The 2-Port DVI KVM Switch Kit, model TK-222DVK, allows you to control two computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-222DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.
Features
Computers
Control up to 2 computers
HD+
Supports resolutions higher that 1080p HD (up to 2560 x 1600 pixels)
2-Way Audio
Full audio support maximizes work station productivity
Console Connectors
Emulation Technology supports most advanced keyboard and mouse designs
DVI-D Monitor
Designed to connect to a monitor's DVI port and supports a 60 Hz refresh rate
Resolution Optimization
Adopts screen resolution from the connected device settings
Computer Ports
Requires free USB and DVI ports from connected computer
Housing
Rugged metal enclosure
USB Share Ports
Two additional USB ports to connect storage drives and printers
Cables Included
All required cables included
Hot Keys
Hot Key command shortcuts

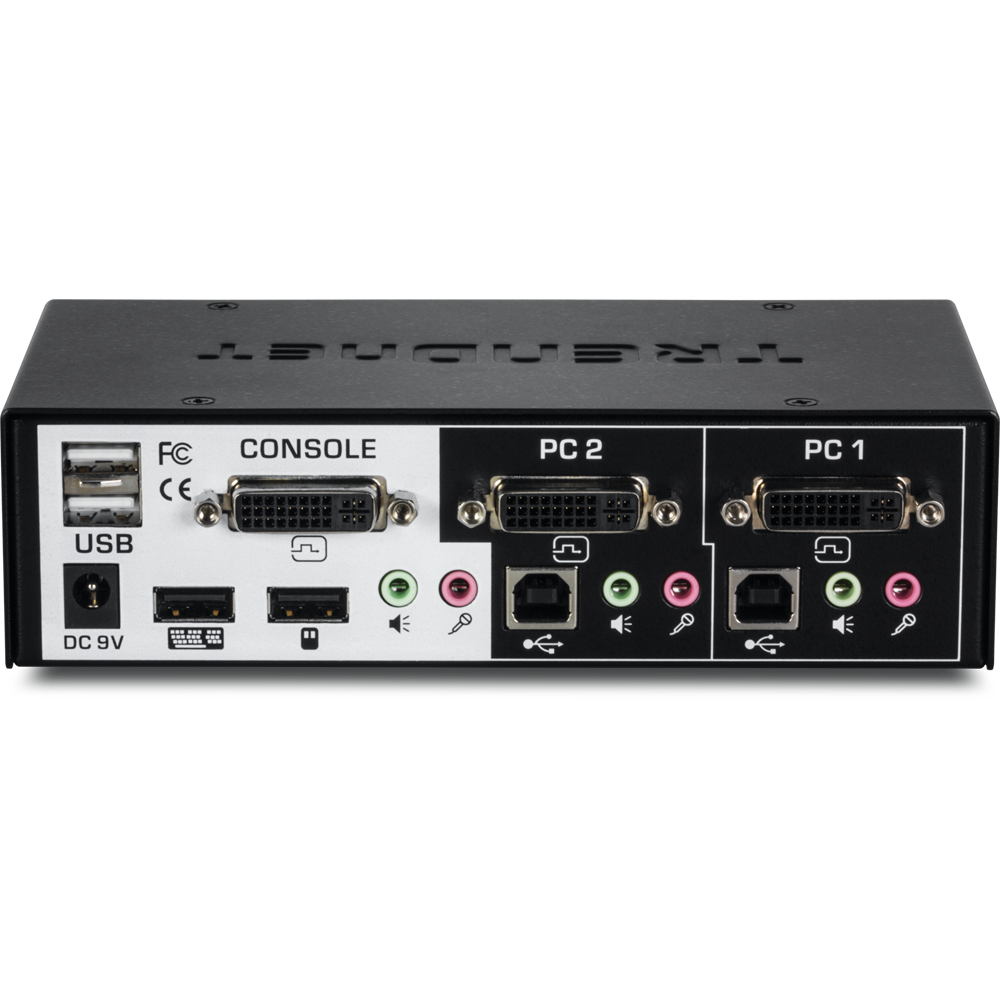

| Attribute | Details |
|---|---|
| Console Port on KVM | Keyboard: USB |
| Mouse: USB | |
| Monitor: DVI-I | |
| 2-port USB 2.0 hub | |
| Speaker jack: 3.5 mm | |
| Microphone jack: 3.5 mm | |
| Computer Port on KVM (up to 2) | Keyboard/Mouse: USB 2.0 type B |
| Monitor: DVI-I | |
| Speaker jack: 3.5 mm | |
| Microphone jack: 3.5 mm | |
| Computer Connections (up to 2) | Keyboard/Mouse: USB 2.0 type A |
| Monitor: Single Link/Dual Link DVI-I/DVI-D | |
| Speaker jack: 3.5 mm | |
| Microphone jack: 3.5 mm | |
| Monitor Resolution | Digital: 2560 x 1600 @ 60 Hz |
| Analog: 2048 x 1536 @ 60 Hz | |

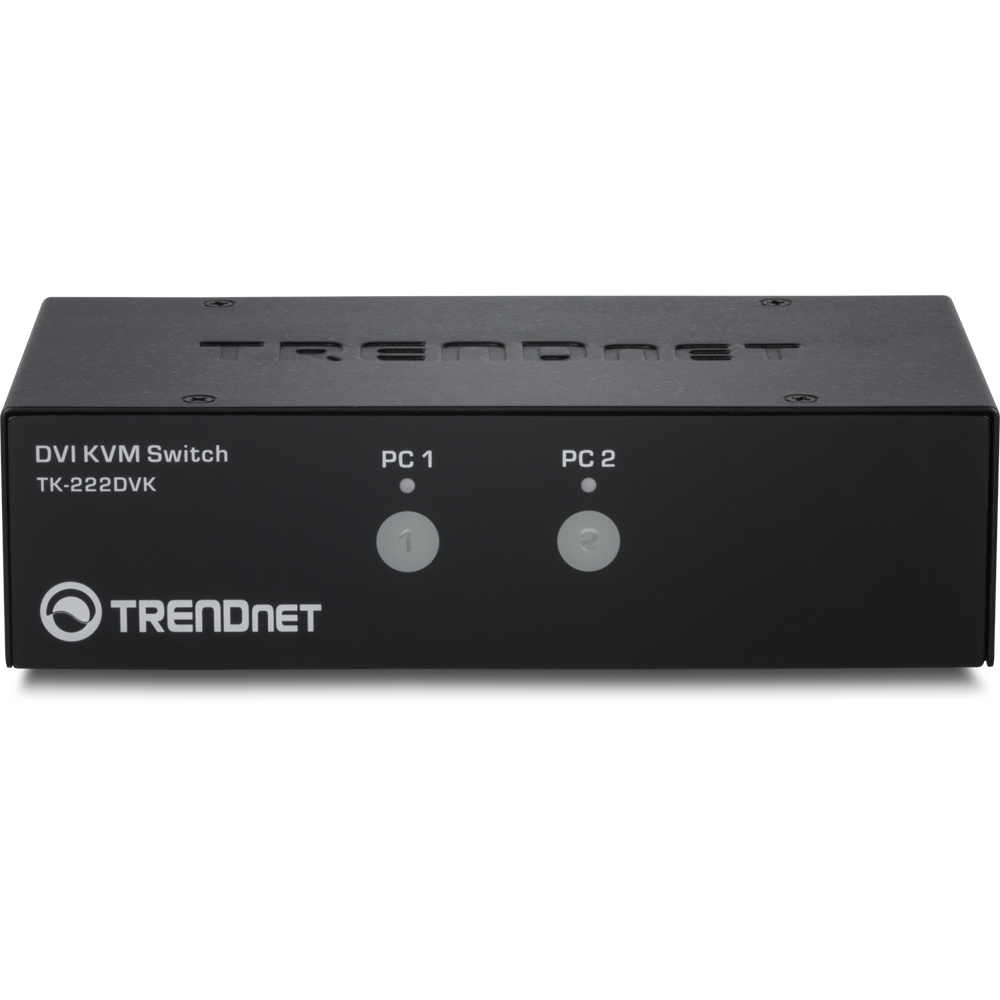

| Switching Control | Face panel touch buttons |
| Keyboard hot key commands | |
| Switching Notification | Audio |
| Scanning Interval | 10 - 60 seconds (Hot key controls) |
| Special Features | Supports Dual Link DVI-D monitor |
| Advanced mouse and keyboard support | |
| All time DDC emulation | |
| Two bonus USB ports | |
| Metal housing | |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Operating Humidity | Max 90 % non-condensing |
| Power | Input: 100 - 240 V AC, 50/60 Hz, 0.4 A |
| Output: 9 V DC, 1 A external power adapter | |
| Consumption: 0.7 Watts | |
| Dimensions | 164 x 90 x 45 mm (6.5 x 3.5 x 1.8 in.) |
| Weight | 586 g (1.29 lbs.) |
| Warranty | 2 year limited |
| Certifications | CE, FCC |

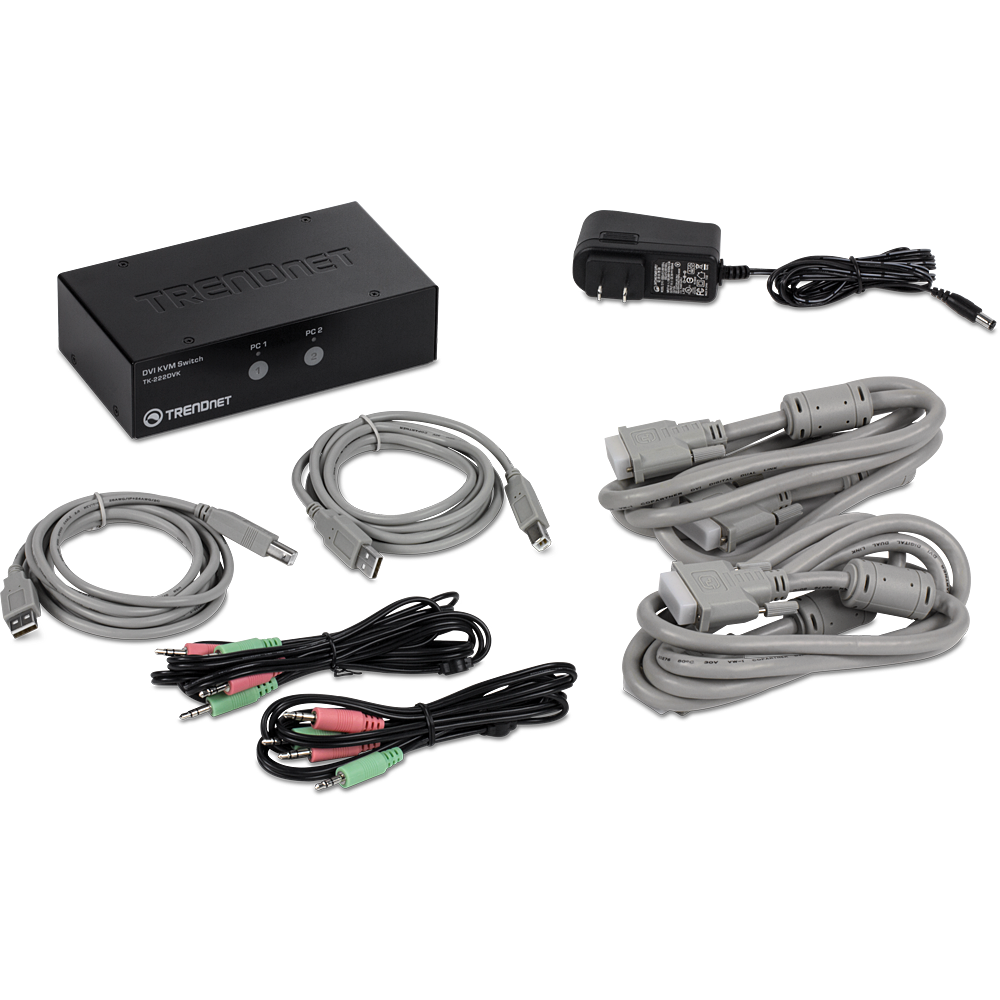

| Package Contents | TK-222DVK |
| Quick Installation Guide | |
| Power adapter (9 V DC, 1 A) | |
| 2 sets of DVI-D KVM cables (1.8 m/6 ft.) | |
| 2 sets of USB 2.0 type A to B cables (1.8 m/6 ft.) | |
| 2 sets of audio cables (1.8 m/6 ft.) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Quick Installation Guide | Downloads |
