Trendnet 2-Port Industrial Outdoor Gigabit UPoE Extender | TI-EU120
SKU: TI-EU120
£399.50 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Trendnet 2-Port Industrial Outdoor Gigabit UPoE Extender | TI-EU120
TRENDnet's 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.
UPoE Power
Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices**
Gigabit Ports
Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.
Outdoor Rated
Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°– 75° C (-40° – 167° F).
Extension Distance
Extends a PoE/PoE+/UPoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE sourcePoE/PoE+/UPoE
Auto detects a PoE (15.4W), PoE+ (30W), and UPoE (60W) network connectionsGigabit Ports

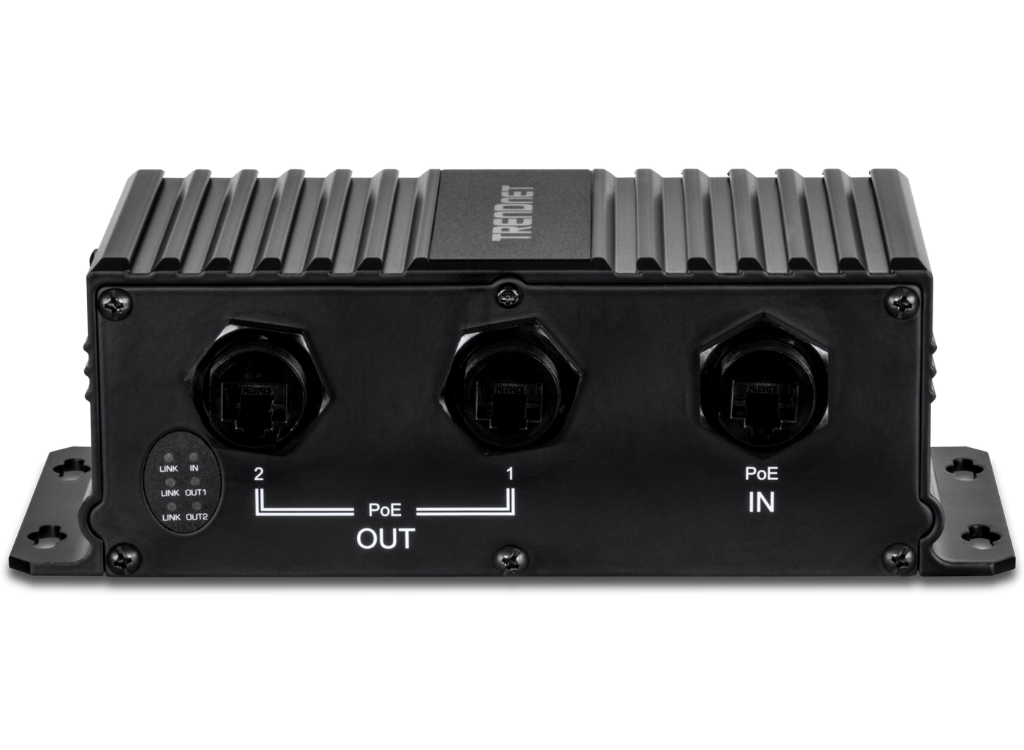

1 x gigabit UPoE input port, 2 x gigabit UPoE output ports, and 64W PoE budget with 95W UPoE input
1 x gigabit UPoE input port, 2 x gigabit PoE+ output ports, and 46W PoE budget with 60W UPoE inputDaisy Chain
Connect up to 4 units for a PoE network extension of up to 500m (1640 ft.).*PoE Powered
No external power required—saves installation time and costOutdoor Ready
Rugged IP67 outdoor weather rated housing -
Category Specification Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt draft Device Interface - 1 x IP67 weather-rated gigabit UPoE input port - 2 x IP67 weather-rated gigabit UPoE output ports - LED indicators Data Transfer Rate - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) - Gigabit: 2000Mbps (full duplex) Performance - RAM Buffer: 1MB - MAC Address Table: 8K - Jumbo Frame: 10KB Special Features - IP67 rated housing - Wall mountable - UPoE support Power - PD power input: 30W/60W/95W - PoE: 15W/30W/60W per PSE - PoE Budget: 64W Max. - Consumption: 3W Max. (without PoE) PoE Power Output - PoE Input: Max PoE Output - 95W Input: 64W - 60W Input: 46W - 30W Input: 22W Single Port Daisy Chain - Number of Daisy Chains From PSE: Max. PoE Output - 1 (up to 100m): 95W Input: 64W - 2 (up to 200m): 95W Input: 45W - 3 (up to 300m): 95W Input: 35W - 4 (up to 400m): 95W Input: 29W Operating Temperature -40° – 75° C (-40° – 167° F) Operating Humidity Max. 95% non-condensing Dimensions 165 x 62 x 112mm (6.5 x 2.4 x 4.4 in.) Weight 834g (29.4 oz.) Certifications CE, FCC, EN60950-1, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Freefall), IEC 60068-2-6 (Vibration) Warranty 3 years Package Contents - TI-EU120 - 3 x IP67 weather-rated cable glands - Wall mount screws - Quick installation guide -
Description Downloads Datasheet Downloads
