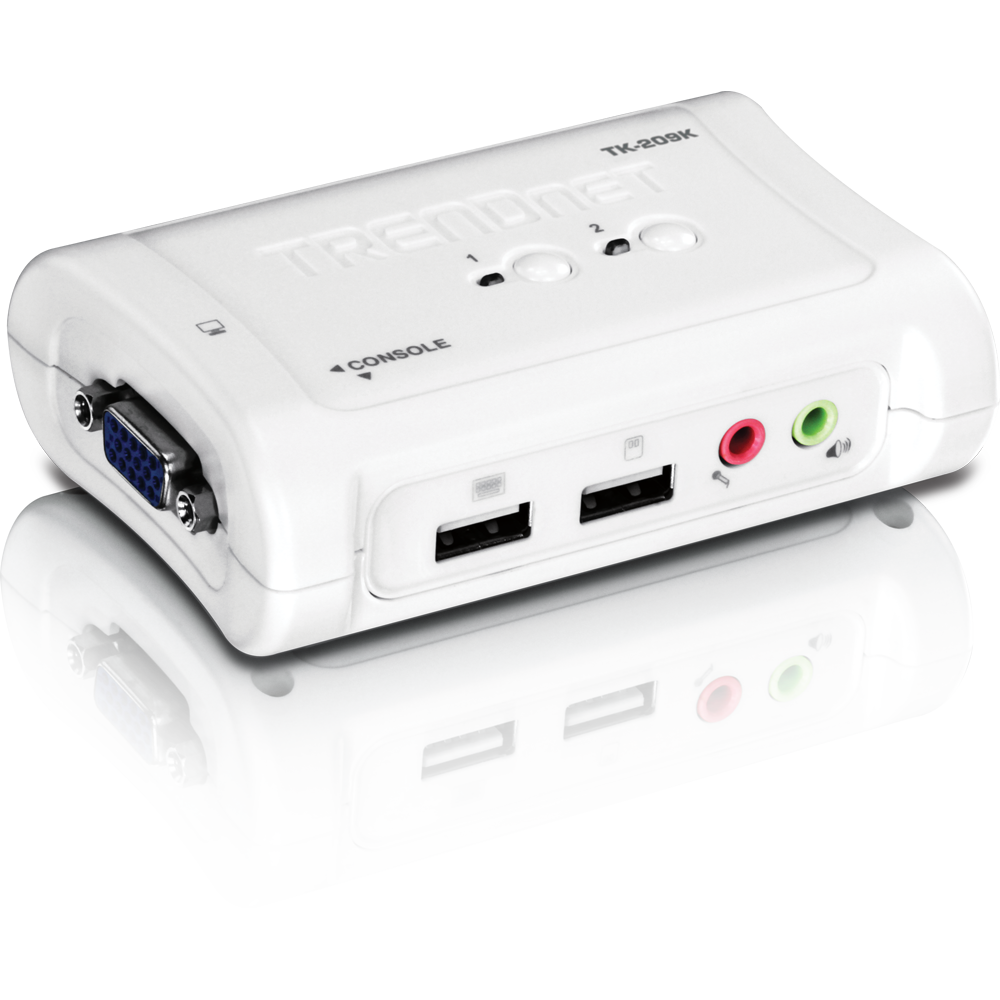

The 2-Port USB Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With it's Hot-Plug, Auto-Scan and Hot-Key operating features, the TK-209K is the perfect choice for managing 2 PCs. Separate KVM cables are included.
Control up to 2 computers/servers with one set of console device
USB keyboard/mouse emulation with 2 sets of detachable KVM cables
Compliant with Windows and Linux
High video quality, up to 2048 x 1536 VGA resolution
Listen to music from one computer while working on the other
Auto-Scan & LED display for computer monitoring
Computer selection by face panel push buttons, keyboard hot key commands or Windows-based client switching software*
User definable hot key (Windows only)
Plug & Play and hot-pluggable
USB interface power method
2-year limited warranty
| Feature | Details |
|---|---|
| Connections | 2 computers |
| USB Interface | USB 1.1 compliant |

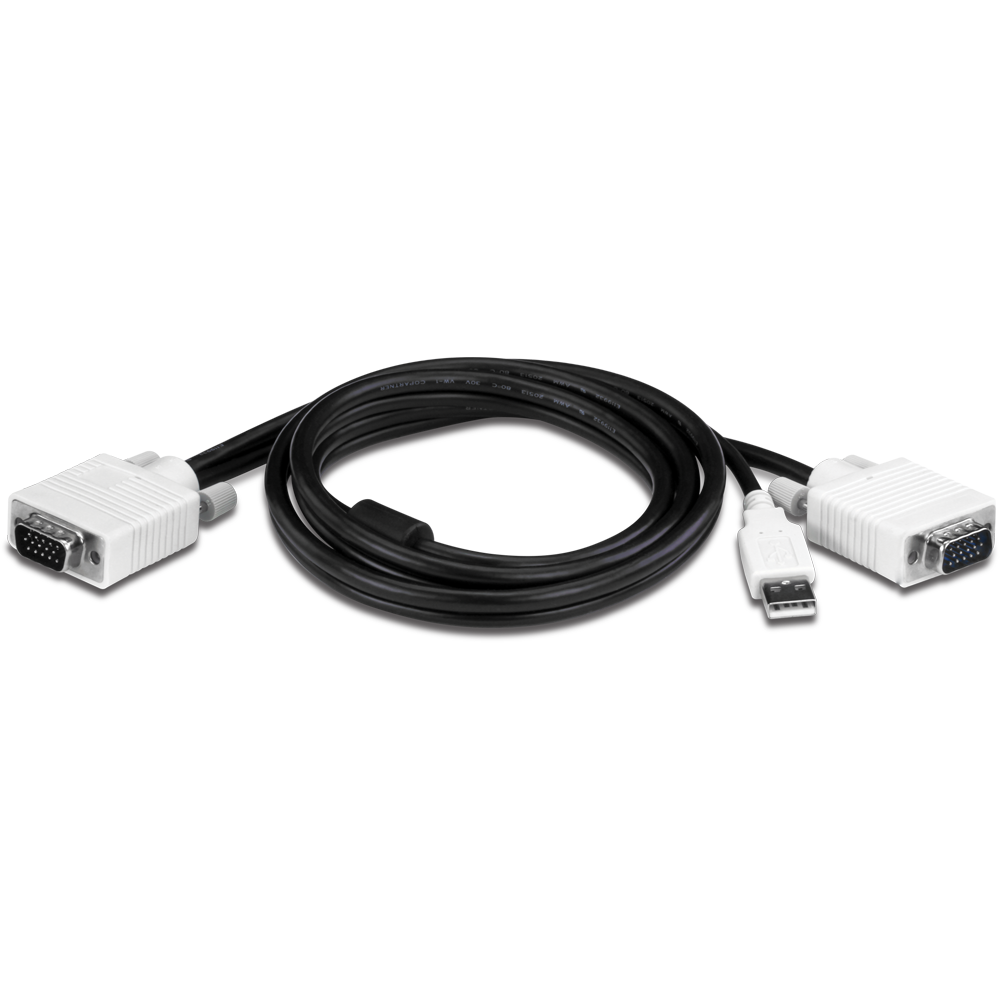

| KVM Cable | 2 sets of 1.2m (4ft.) USB KVM cables |

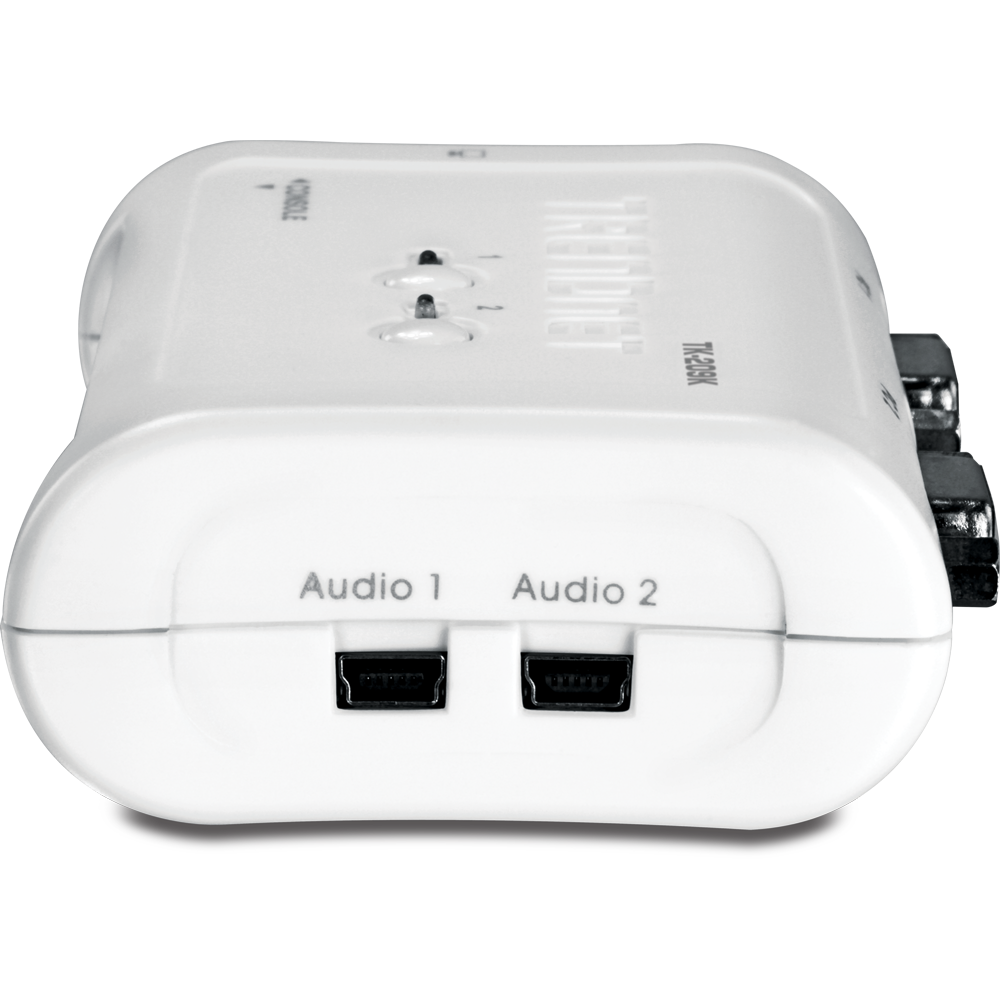

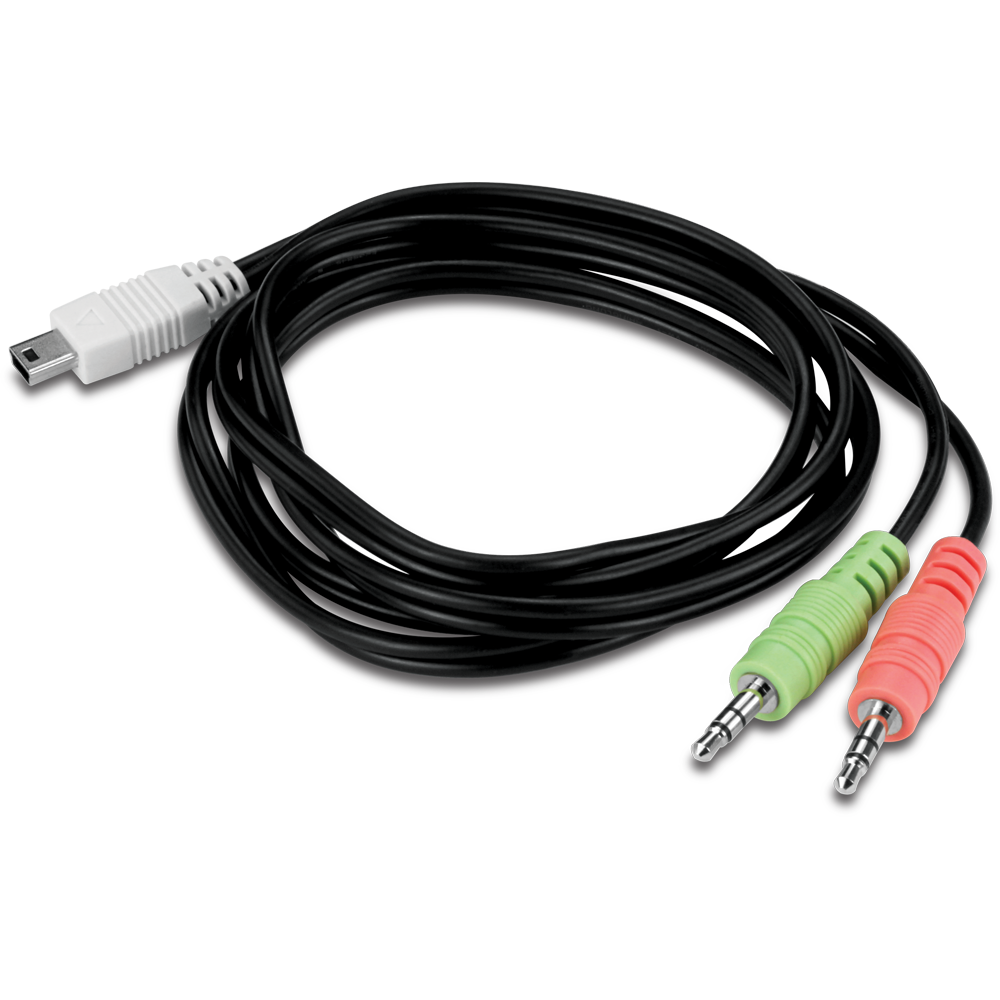

| Audio Cable | 2 sets of 1.2m (4ft.) audio cables (USB mini B to 3.5mm jack) |
| Cable Interface (all male) | To KVM: |
| KVM Cable: 1 x VGA/SVGA HDB 15-pin | |
| Audio Cable: 1 x USB (Mini B) | |
| To PC: | |
| KVM Cable: 1 x USB (Type A), 1 x VGA/SVGA HDB 15-pin | |
| Audio Cable: 1 x 3.5mm speaker jack, 1 x 3.5mm microphone in jack | |

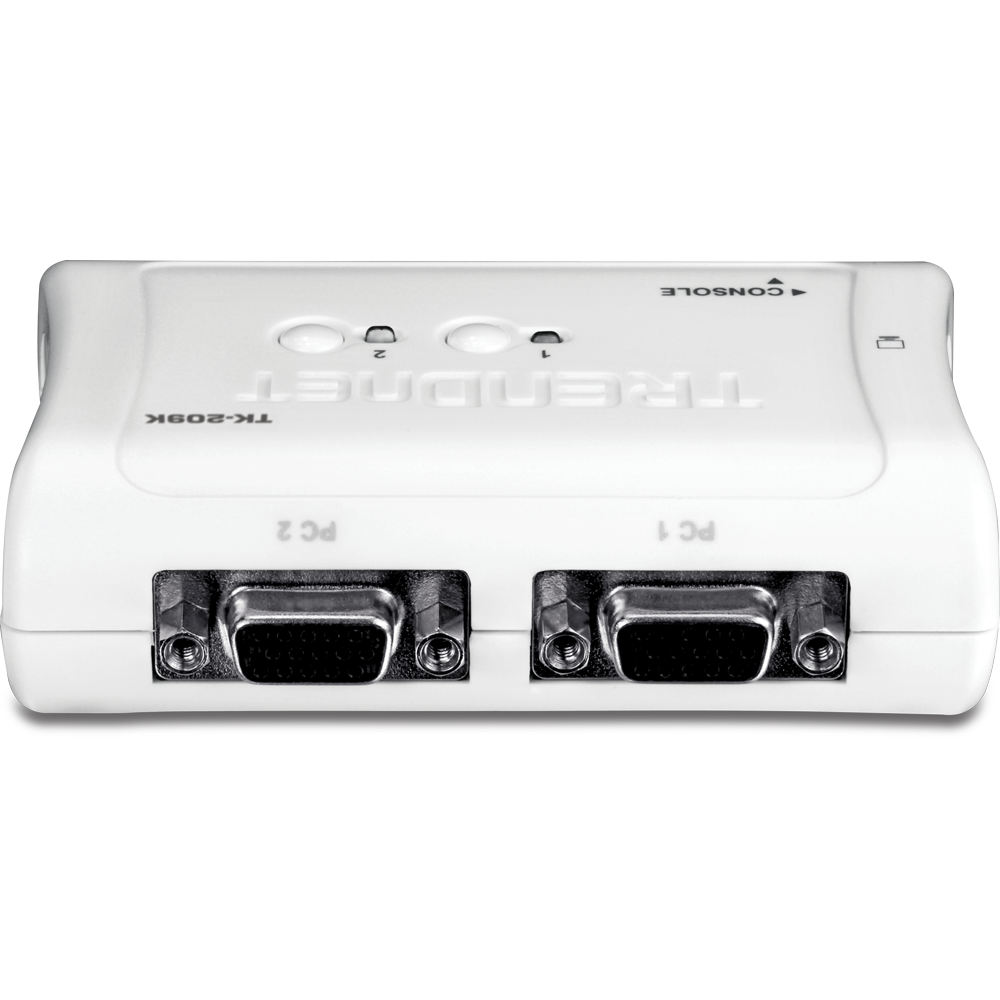

| PC Port Connectors (all female) | 2 x VGA/SVGA HDB 15-pin |
| 2 x USB (Mini B) | |

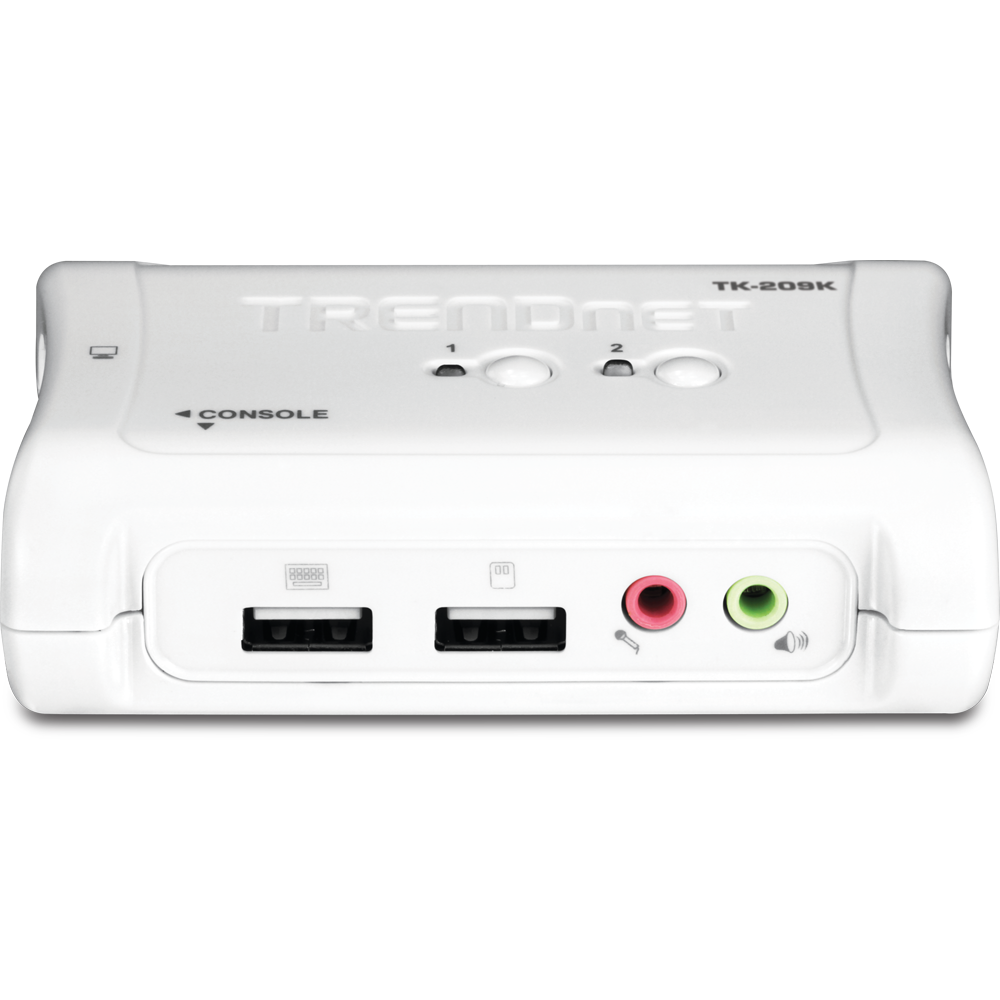

| Console Port Connectors (all female) | 1 x USB keyboard (type A) |
| 1 x USB mouse (type A) | |
| 1 x VGA/SVGA HDB 15-pin | |
| 1 x 3.5mm speaker jack | |
| 1 x 3.5mm microphone jack | |
| Supported Operating Systems | Windows and Linux |
| Port Selection | Front panel push buttons, keyboard hot key commands or Windows-based client switching software |
| Auto-Scan Interval | 10 ~ 60 seconds |
| Keyboard Status | Save and restore |
| Power Type | USB Interface Power |
| Dimensions | 98 x 70 x 28mm (3.86 x 2.76 x 1.1in.) |
| Weight | 100 g (3.6oz) |
| Temperature | Operating: 0°C ~ 40°C (32°F ~104°F) |
| Storage: -20°C ~ 60°C (-4°F ~140°F) | |
| Humidity | 0%~90%, non-condensing |
| Certifications | CE, FCC |
| Package Contents | TK-209K, Quick Installation Guide, 2 sets of USB KVM cables (1.2m/4ft), 2 sets of audio cables (1.2m/4ft.) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
