The 4-Port USB KVM Switch lets you manage four PC's with just one set of keyboard, monitor, and mouse. Switch between 4 PC's with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 4 PC's instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 4-Port USB KVM Switch is the perfect choice for managing multiple PC's.
Control up to 4 computers / servers with one set of console devices
USB keyboard / mouse emulation with 4 sets of detachable KVM cables
Compliant with Windows, Linux, and Mac OS
High video quality, up to 2048 x 1536 VGA resolution
Auto-Scan and LED display for computer monitoring
Keyboard status restored when switching between computers
Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software*
User definable hot key (Windows only)
Plug & Play and hot-pluggable
USB interface power method
2-year limited warranty
| Feature | Details |
|---|---|
| Hardware Connections | 4 computers |
| USB Interface | USB 1.1 compliant |
| KVM Cable | 2 sets of 1.2m (4ft.) USB KVM cables |
| 2 sets of 1.8m (6ft.) USB KVM cables | |
| Cable Interface (all male) | To KVM: |
| 1 x VGA/SVGA HDB 15-pin | |
| To Computer: | |
| 1 x USB (Type A) | |
| 1 x VGA/SVGA HDB 15-Pin | |
| PC Port Connectors | 4 x VGA/SVGA HDB 15-pin (female) |
| Console Port Connectors | 2 x USB keyboard/mouse (type A) |
| 1 x VGA/SVGA 15-pin HDB (female) | |
| PC Selection | Face panel push buttons, keyboard hot key commands or Windows-based client switching software |
| Supported Operating Systems | Windows, Linux, and Mac |
| Auto-Scan Interval | 10 seconds |
| Keyboard State | Save and restore |
| Power Type | USB interface power |
| Dimensions | 167 x 80 x 28 mm (6.6 x 3.2x 1.1 in.) |
| Weight | 159 g (5.6 oz.) |
| Temperature | Operating: 0°C ~ 40°C (32°F ~104°F) |
| Storage: -20°C ~ 60°C (-4°F ~140°F) | |
| Humidity | Max 90% (non-condensing) |
| Certifications | CE, FCC |

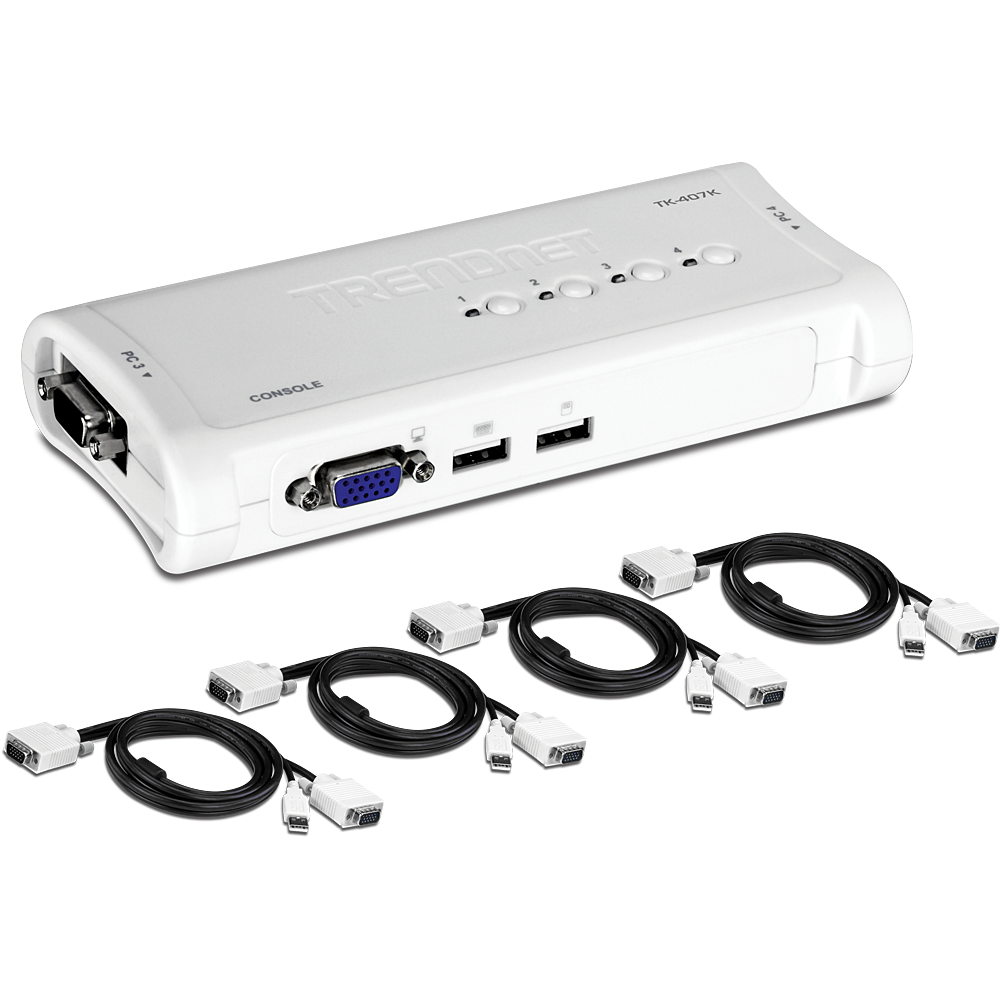

| Package Contents | TK-407K, Quick Installation Guide, 2 sets of USB KVM Cables (2 x 1.2 m / 4 ft.), 2 sets of USB KVM Cables (2 x 1.8 m / 6 ft.) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
