TRENDnet's 65W 4-Port Gigabit PoE+ Injector, model TPE-147GI, allows users to add PoE+ power to a non-PoE switch. Connect the 4-port PoE+ injector to a non-PoE Gigabit switch, and then run Ethernet cables up to 100 meters (328 ft.) to network four PoE devices. This multi-port gigabit PoE+ injector supplies up to 30W of power to four PoE or PoE+ devices. The fanless design on the 4-port PoE+ injector conveniently eliminates operating noise and lowers energy consumption.
4-Port PoE
The 4-port gigabit PoE+ injector supplies up to 30W of power to four PoE or PoE+ devices.
Gigabit Ports
Features 4 x gigabit ports (data in) and 4 x gigabit PoE+ ports (data + PoE out).
Fanless Design
The fanless design of the 4-port PoE+ injector eliminates operating noise and lowers energy consumption.
4-Port PoE
The 4-port PoE+ injector supplies up to 30W of power to four PoE (IEEE 802.3af) or PoE+ (IEEE 802.3at) devices.
Easy Installation
No configuration needed, simply connect a PoE network devices to this 4-port PoE+ injector
Gigabit Ports
4 x gigabit ports (data in) and 4 x gigabit PoE ports (data + PoE out).
PoE Distance
Provides four PoE network connections up to 100m (328 ft.) away from the 4-port PoE injector
LED Indicators
LEDs on the 4-port PoE+ injector indicate PoE connectivity and power status
| Category | Specification |
|---|---|
| Standards | - IEEE 802.3 |
| - IEEE 802.3u | |
| - IEEE 802.3ab | |
| - IEEE 802.3af | |
| - IEEE 802.3at | |
| Device Interface | - 4 x Gigabit Data in ports |
| - 4 x Gigabit Data + PoE+ out ports | |
| - Metal Housing | |
| - Power Switch | |
| PoE Delivery | - Pin 1, 2 for power+ and pin 3, 6 for power- (mode A) |
| PoE Budget | - Max. 65W |
| Power | - Input: 100 – 240V AC, 50/60 Hz |
| - Output: 55V DC, 1.3A | |
| - Max. consumption: 70W | |
| Temperature | - 0° – 40° C (32° – 104° F) |
| Humidity | - Max. 90% non-condensing |
| Certifications | - CE, FCC |
| Dimensions | - 126.4 x 73.95 x 32mm (5 x 2.9 x 1.26 in.) |
| Weight | - 322g (11.3 oz.) |
| Warranty | - 3 years |

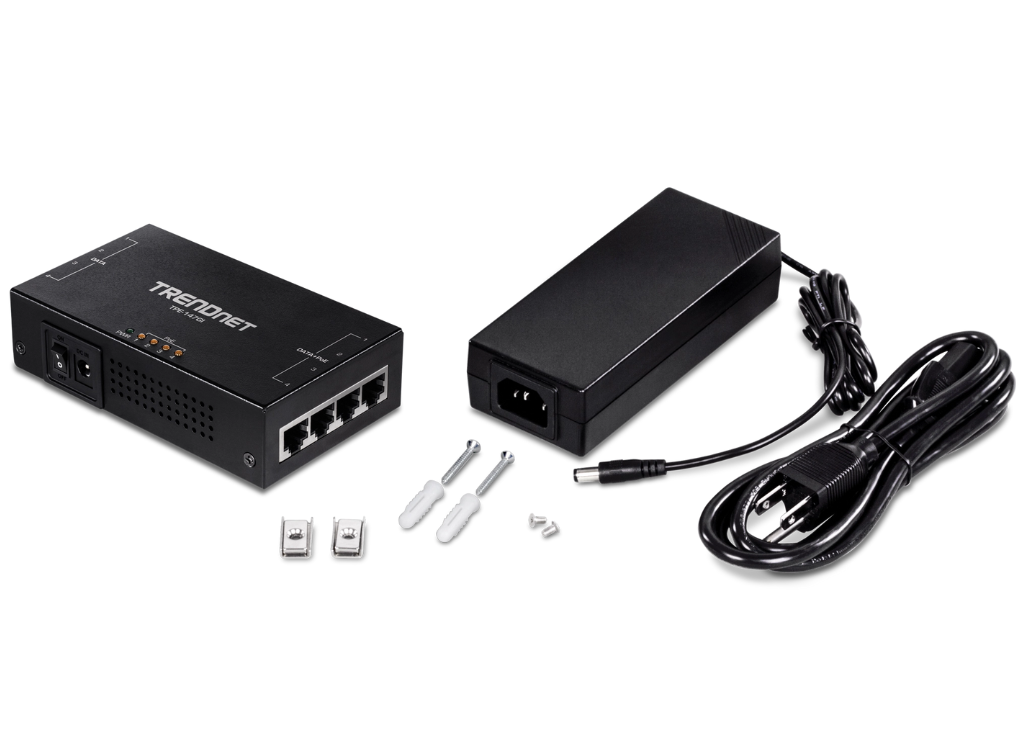

| Package Contents | - TPE-147GI |
| - Quick Installation Guide | |
| - Power Brick | |
| - Power Cord |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
