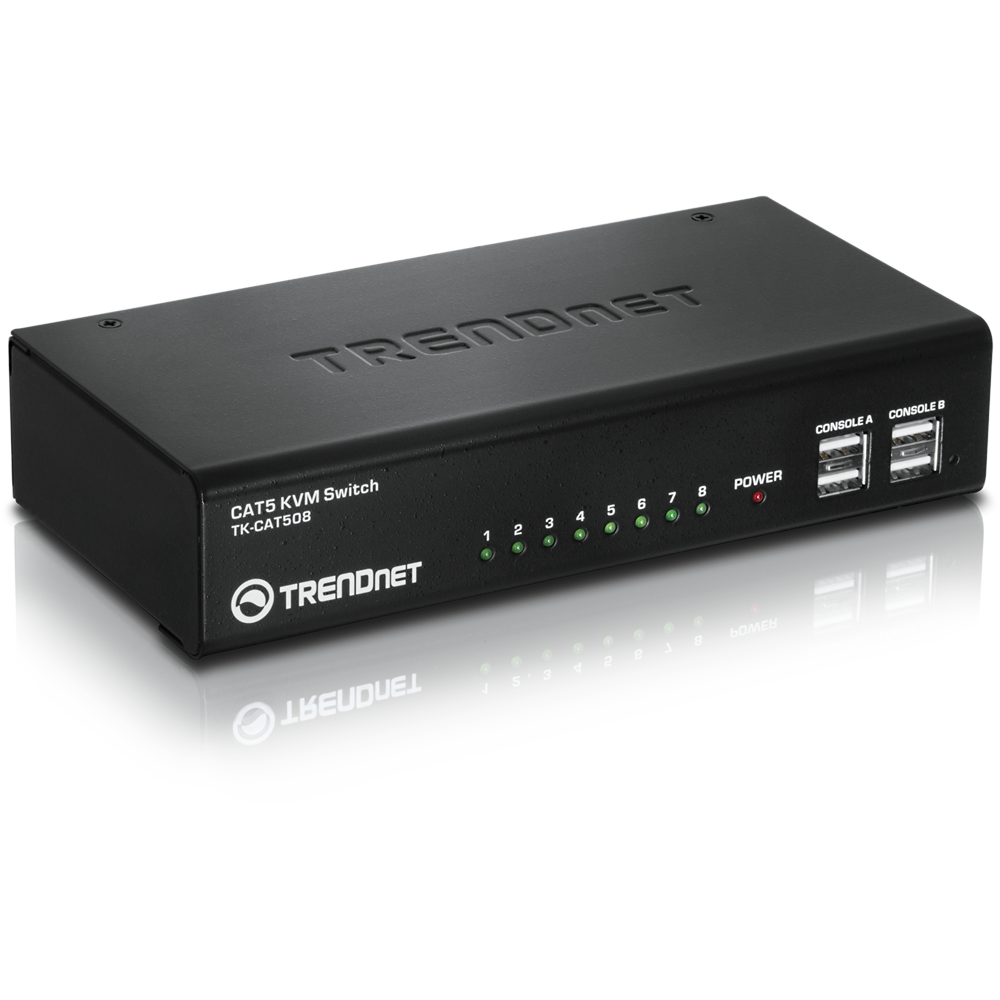

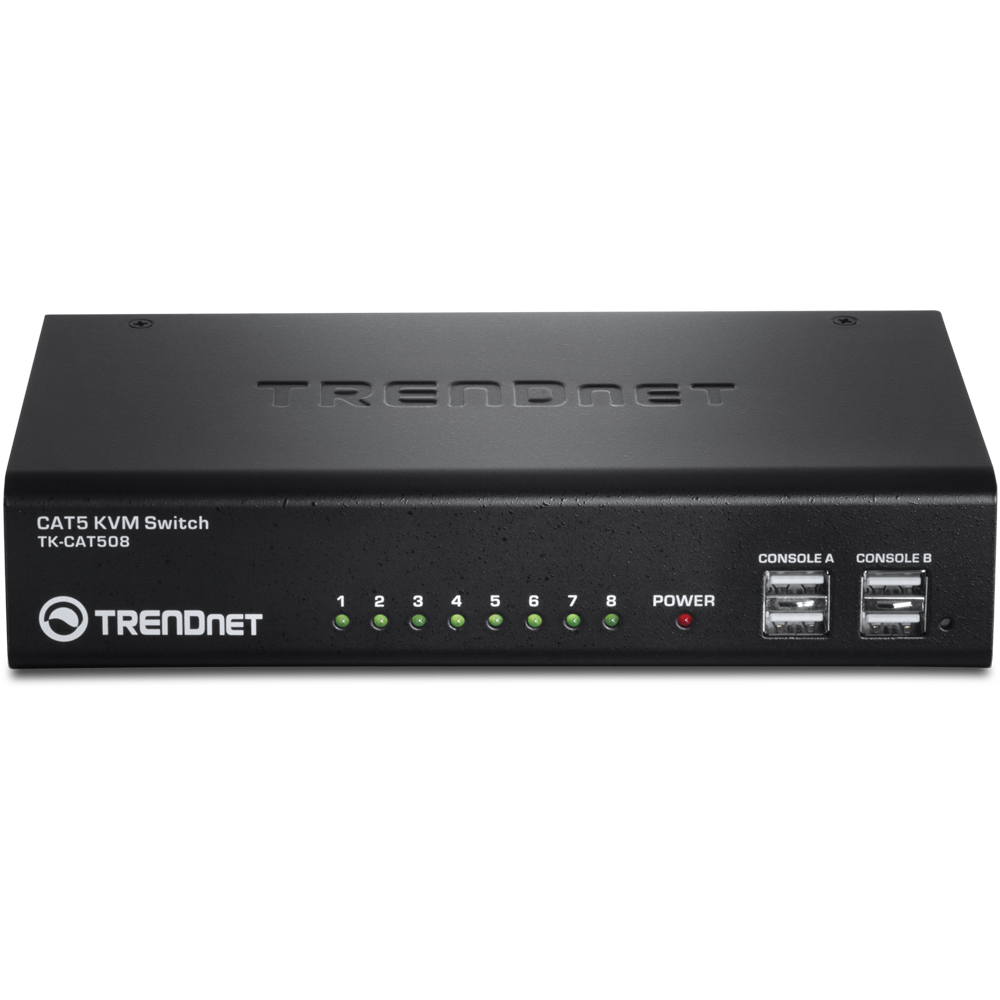

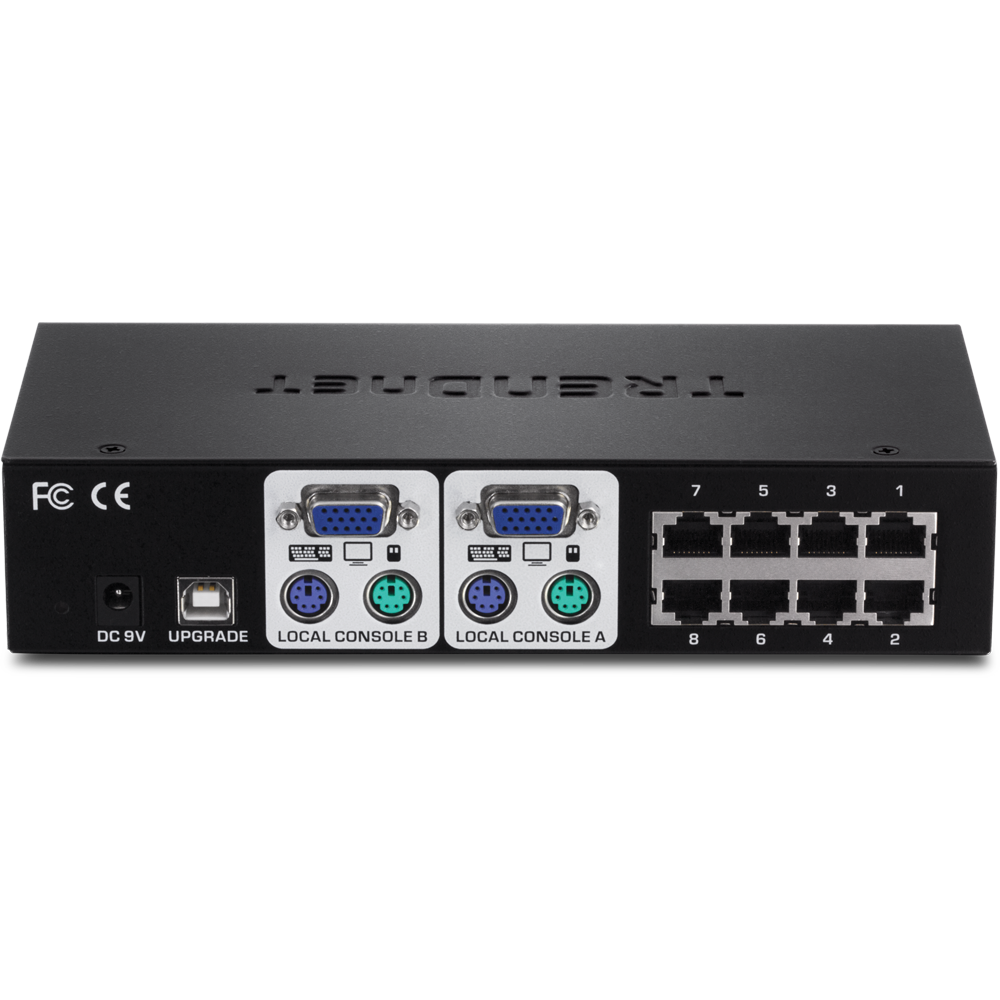

TRENDnet's 8-Port CAT5 KVM Switch, model TK-CAT508, provides centralized control of SMB server environments. Dual Console support, an On Screen Display, and password protection optimize management efficiency. Requires the use of TRENDnet's TK-CAT5U or TK-CAT5P to connect to a server.
Features
Servers
Manage up to 8 servers over distances of up to 30 meters
Dual Console
Supports the use of two consoles concurrently
VGA Monitor
Designed to connect to a monitor's VGA port
HD
Supports resolutions up to 1600 x 1200 pixels
USB and PS/2 Console Support
Supports both USB and PS/2 console connections
OSD
On Screen Display (OSD) interface for efficient management
Server Ports
The TK-CAT5U supports VGA and USB server ports and the TK-CAT5P supports VGA and PS/2 server ports
Housing
Rugged metal enclosure
Hot Keys
Program Hot Key command shortcuts
| Attribute | Details |
|---|---|
| Dual Console Ports | Keyboard: USB or PS/2 |
| Mouse: USB or PS/2 | |
| Monitor: VGA | |
| Computer Ports | 8 x Fast Ethernet ports |
| Requires TK-CAT5U or TK-CAT5P for connection | |
| Monitor Resolution | Max. 1600 x 1200 @ 60 Hz |
| Switching Control/Management | OSD (on screen display) |
| Keyboard hot key commands | |
| Notification: sound | |
| Firmware upgradable (USB cable included) | |
| Scanning Interval | 10 - 90 seconds |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Operating Humidity | Max. 90% non-condensing |
| Power | Input: 100 - 240 V AC, 50/60 Hz, 0.4 A |
| Output: 9 V DC, 1 A external power adapter | |
| Consumption: 8.3 Watts Max. | |
| Dimensions | 205 x 104 x 44 mm (8.07 x 4.1 x 1.7 in.) |
| Weight | 748 g (1.65 lbs.) |
| Warranty | 2 year limited |
| Certifications | CE, FCC |
| Package Contents | TK-CAT508 |
| Quick Installation Guide | |
| USB cable (1.2 m/4 ft.) | |
| Power Adapter (9V 1A) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| Quick Installation Guide | Downloads |
