10/100/1000 Ethernet, 153 x 84 x 39.5 mm, 250 g
5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation
Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Functions in a PtMP environment with the LTU-Rocket as the basestation
| Feature | Details |
|---|---|
| Mechanical | |

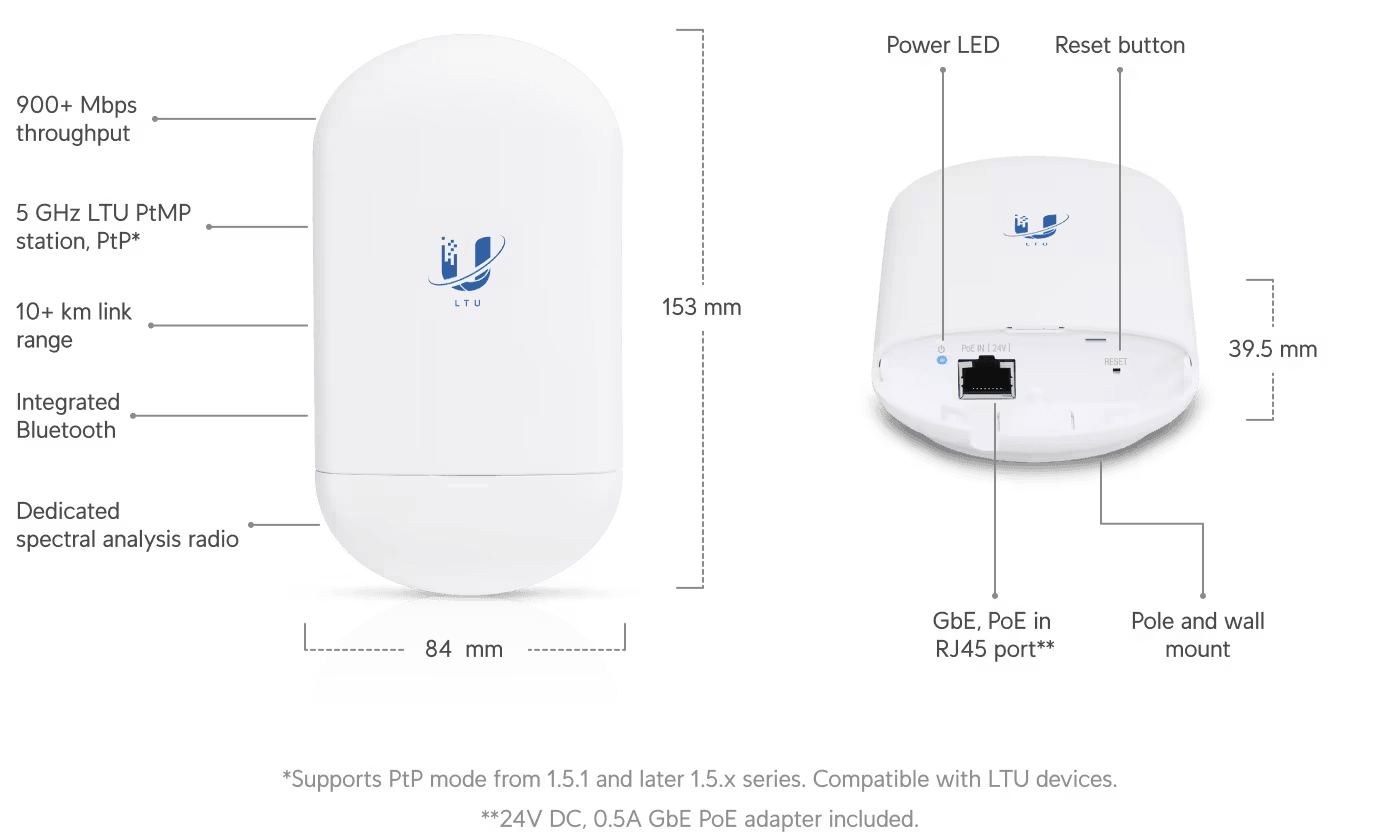

| Dimensions | 153 x 84 x 39.5 mm (6 x 3.3 x 1.6") |
| Weight | 250 g (8.8 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount, wall mount (Kit included) |
| Wind loading | 20 N at 200 km/h (4.5 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Software | |
| Modes | PtMP CPE, PtP* |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App |
| WEB UI | |
| Minimum software requirements | Any modern web browser |
| iOS™ or Android™ based smartphone | |
| System | |
| Maximum throughput | 900+ Mbps* |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency | US/CA |
| U-NII-1 | |
| U-NII-2A | |
| U-NII-2C | |
| U-NII-3 | |
| EU | |
| Worldwide | |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* |
| Antenna gain | 13 dBi |
| Cross-pol isolation | 20 dB |
| Beamwidth | HPOL/VPOL/elevation: 45° |
| Polarization | Dual linear |
| Description | Downloads |
|---|---|
| Ubiquiti 1000 Mbit/s White Power Over Ethernet LTU-LITE DataSheet | Downloads |
