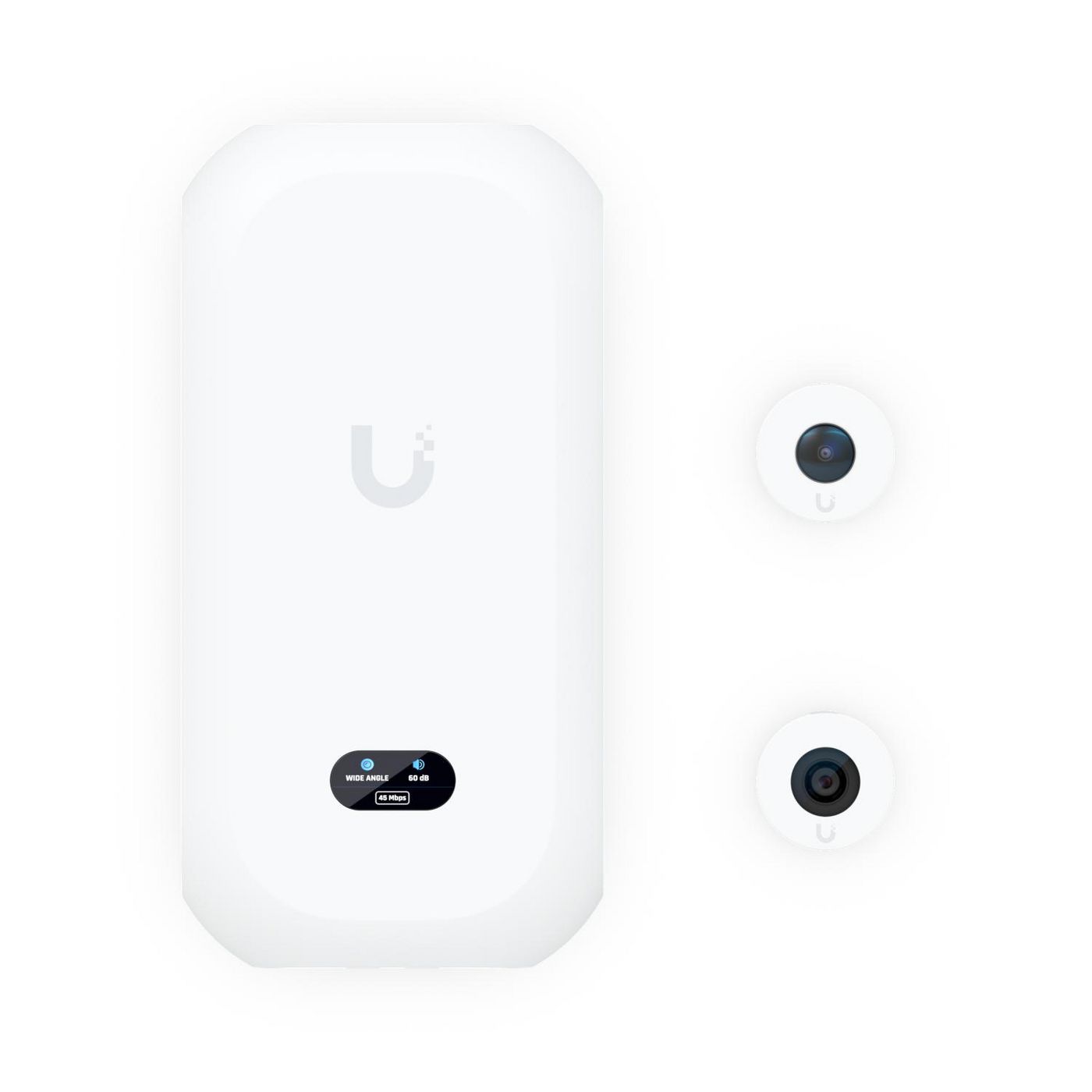

Ubiquiti UniFi Camera AI Theta (UVC-AI-Theta)
The Ubiquiti UniFi Protect Camera AI Theta is a security camera system designed specifically for interior design professionals. It comes with an 8 MP wide-angle lens for wall-mounted applications and a 12 MP fisheye 360° lens for ceiling-mounted applications. Additionally, it includes two-way audio, an advanced AI processing engine for long-range smart detections, and a color LCM display for monitoring device status.
UVC-AI-Theta Key Features
Designed specifically for interior design professionals
Includes an 8 MP wide-angle lens for wall-mounted applications
Comes with a 12 MP fisheye 360° lens for ceiling-mounted applications
Features two-way audio and advanced AI processing engine for long-range smart detections
Equipped with a color LCM display for monitoring device status.
Overall, this camera system offers high-quality features that cater to the needs of interior design professionals who prioritise security and aesthetics. It allows for versatile mounting options and comes equipped with advanced technology to enhance security and monitoring capabilities.
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | |
| UVC-AI-Theta-Hub | 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) |
| UVC-AI-Theta-Lens/360 | Ø22.8 x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | |
| UVC-AI-Theta-Hub | 330 g (11.6 oz) |
| UVC-AI-Theta-Hub Mount | 35 g (1.2 oz) |
| UVC-AI-Theta-Lens/360 | 15 g (0.5 oz) |
| UVC-AI-Theta-Lens/360 Flush Mount | 12 g (0.4 oz) |
| Enclosure Material | |
| UVC-AI-Theta-Hub | Aluminum alloy |
| UVC-AI-Theta-Lens/360 | Aluminum alloy, polycarbonate |

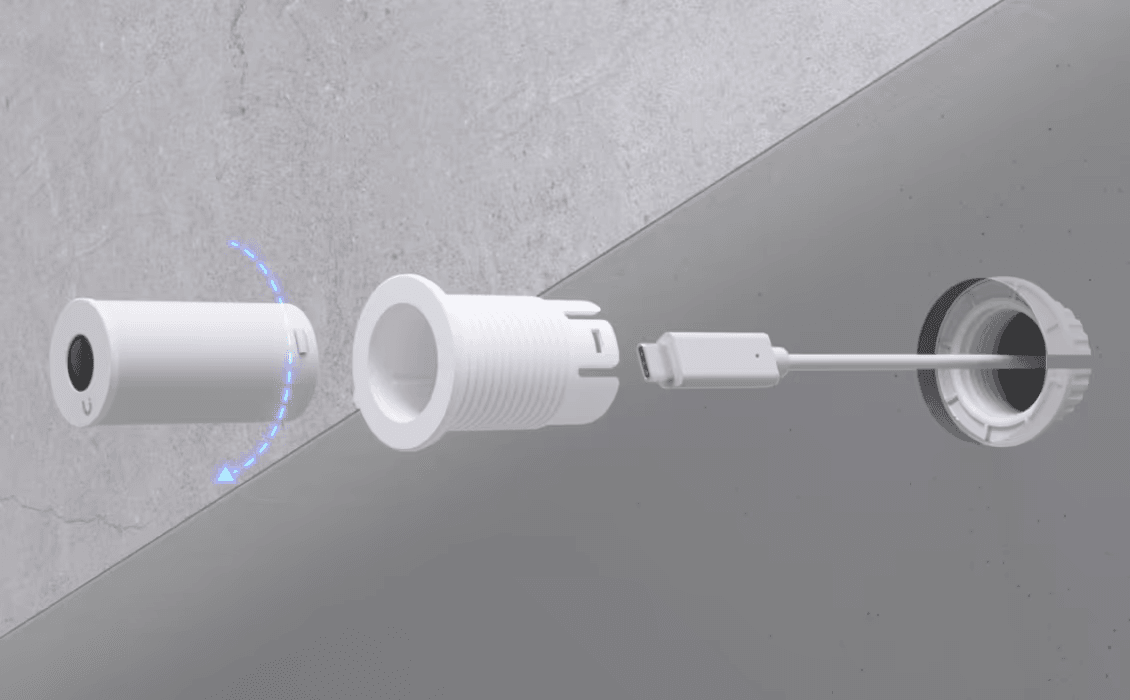

| UVC-AI-Theta-Lens/360 Flush Mount | Polycarbonate |
| Mount Material | |
| UVC-AI-Theta-Hub | Aluminum alloy |
| UVC-AI-Theta-Lens/360 | Aluminum alloy, polycarbonate |
| UVC-AI-Theta-Lens/360 Flush Mount | Polycarbonate |
| Cable Jacket Enclosure Dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3”) |
| Cable Jacket Enclosure Material | PVC |
| Cable Length | 1 m (3.3 ft) |
| Cable Diameter | 3.7 mm (0.15”) |
| Cable Jacket Material | Woven fabric |
| Cable Weight | 18 g (0.63 oz) |

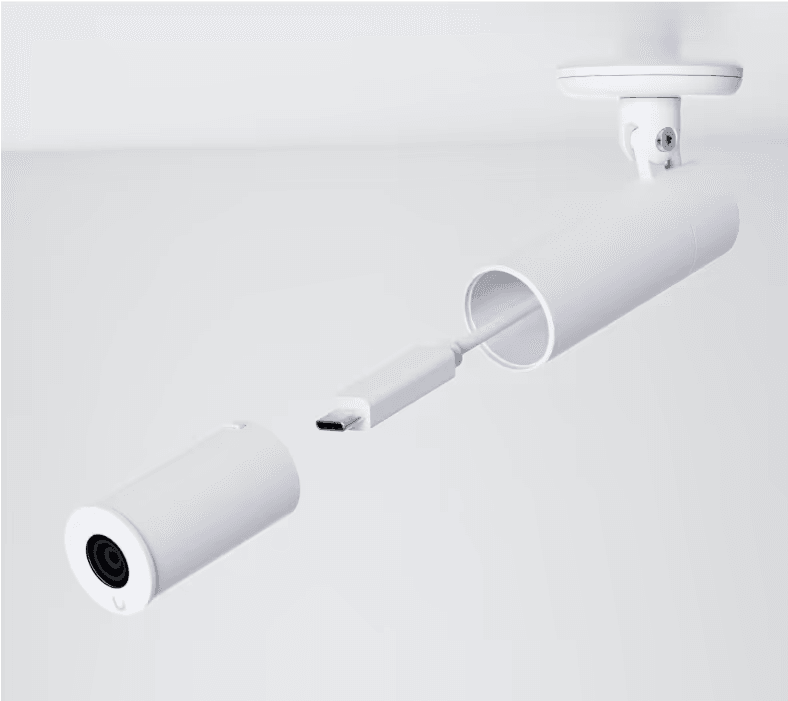

| Cable Connector Type | Theta proprietary |
| Optics | |
| Sensor | |
| UVC-AI-Theta-Lens | 8MP CMOS |
| UVC-AI-Theta-Lens-360 | 12MP CMOS |
| Lens | Fixed focal length |
| View Angle | |
| UVC-AI-Theta-Lens | H: 97.5°, V: 79.4°, D: 118.2° |
| UVC-AI-Theta-Lens-360 | H: 180°, V: 180°, D: 180° |
| Video | |
| Resolution | |
| UVC-AI-Theta-Lens | 8MP 3264 x 2448 (4:3) |
| UVC-AI-Theta-Lens-360 | 6MP 2560 x 2560 (1:1) |
| Max. Frame Rate | |
| UVC-AI-Theta-Lens | 24 FPS |
| UVC-AI-Theta-Lens-360 | 20 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking Interface | GbE RJ45 port |
| Max. Power Consumption | 12.5W |
| Power Method | PoE |
| Power Supply | 5V DC, 0.5A |
| Supported Voltage Range | 37—57V DC |
| Output Power | 5V DC, 1A per port |
| LED | R/G/B/W |
| Button | Factory reset |

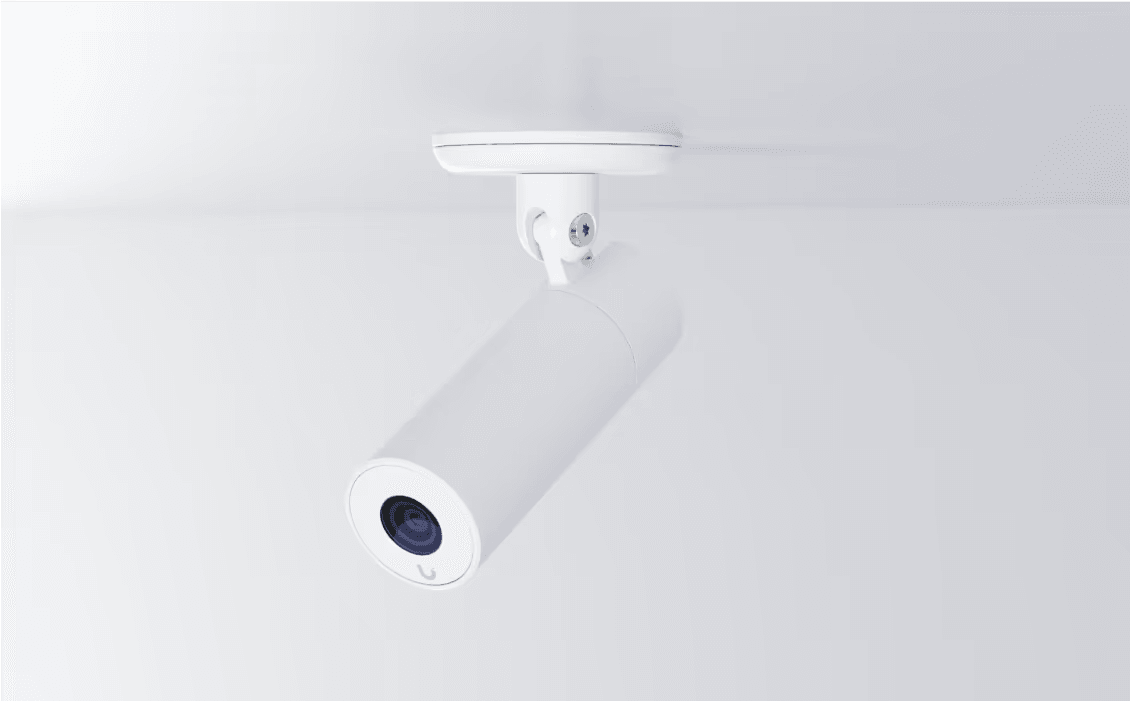

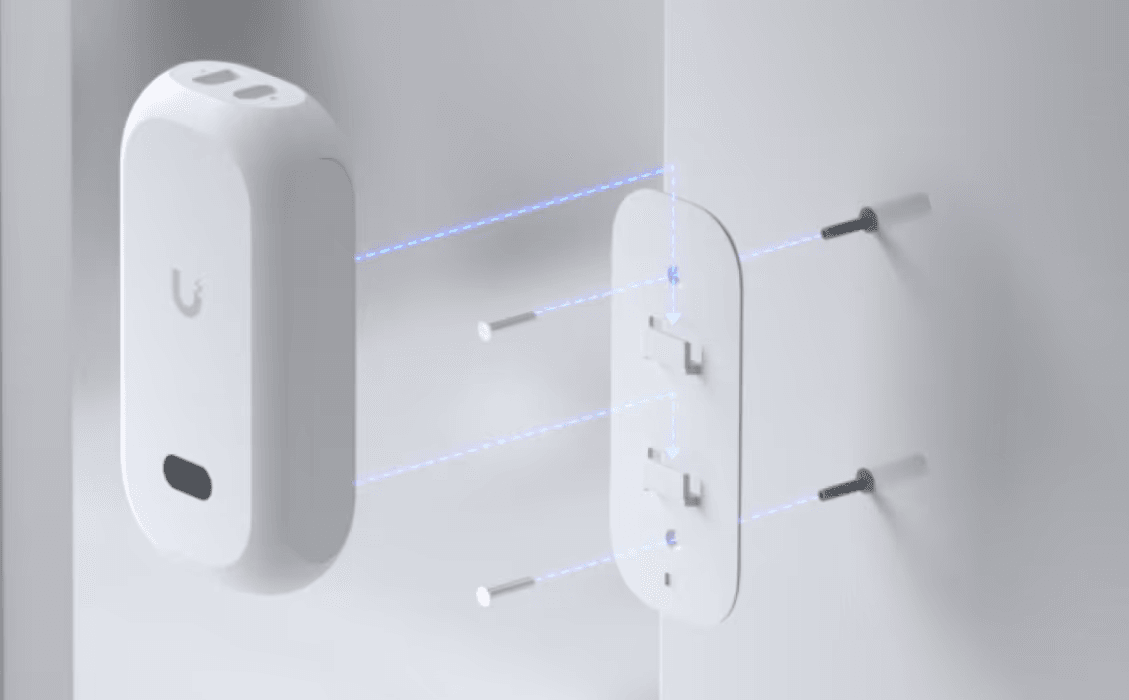

| Mounting | Wall, ceiling mount |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software | |
| Web Application | UniFi Protect: Version 2.7.18 and later |
| Mobile App | UniFi Protect iOS™ and Android™: Version 1.11.0 and later |
| Description | Downloads |
|---|---|
| Ubiquiti AI Theta UniFi Protect 4K UHD PoE Mini IP Camera UVC-AI-THETA User Manual | Downloads |
