Ubiquiti AirFiber 1000 Mbit/s White Power Over Ethernet | AF-5XHD
SKU: AF-5XHD
£320.11 (Excl. VAT)
- Description
- Specifications
-

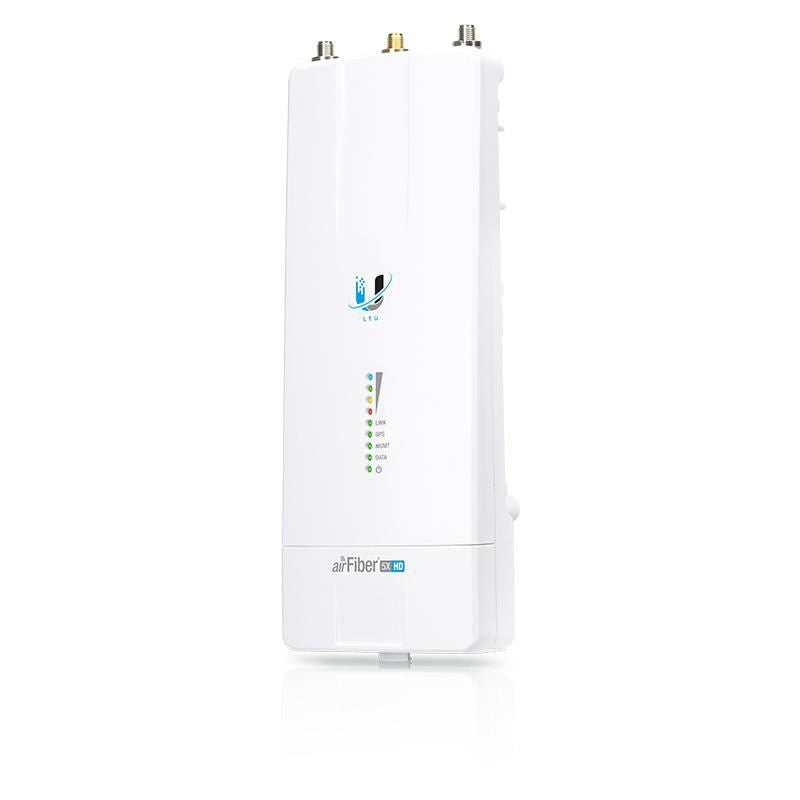

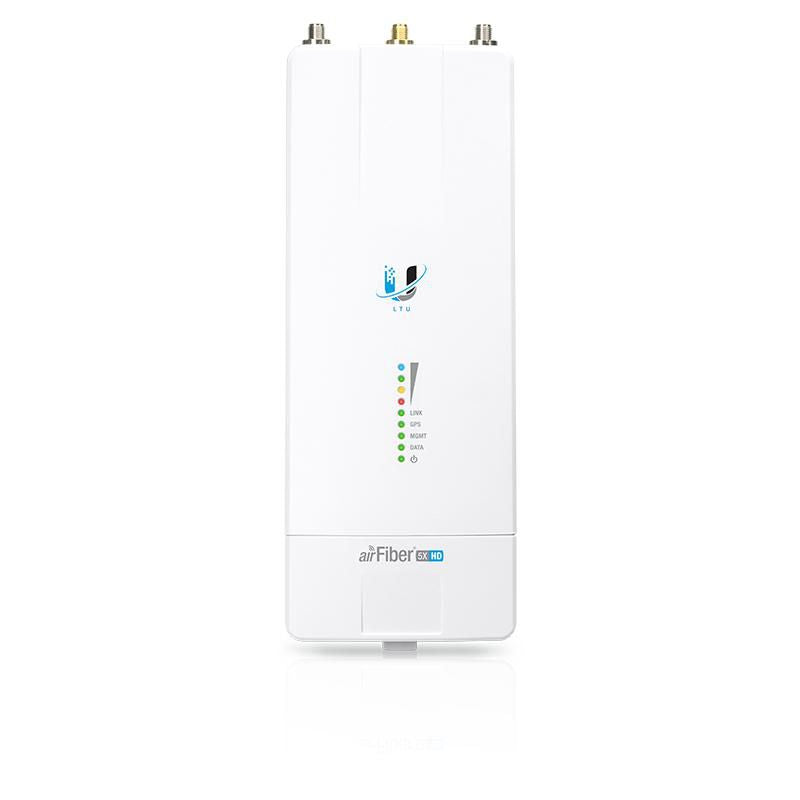

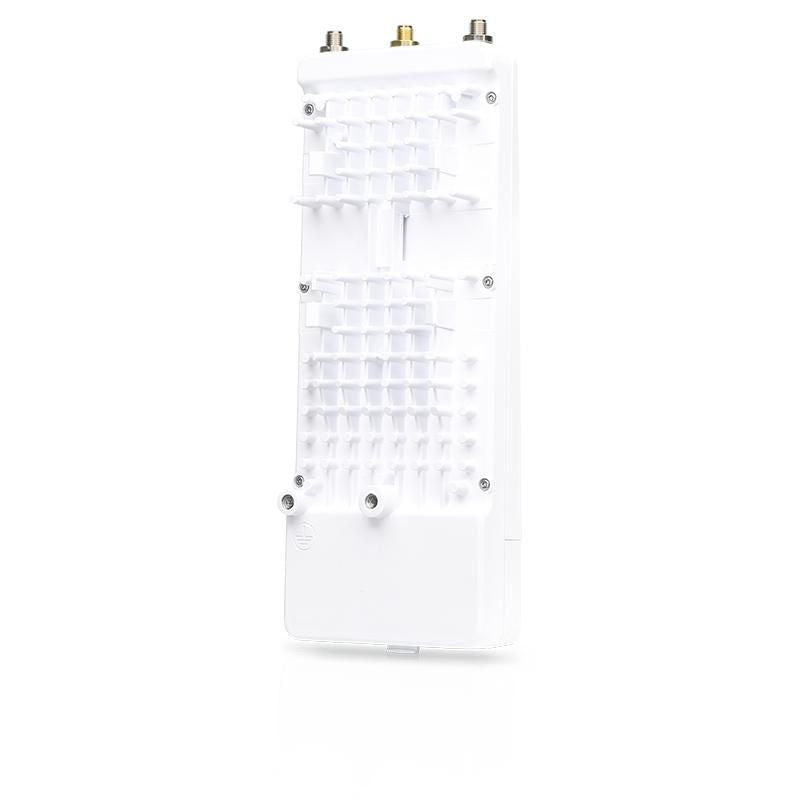

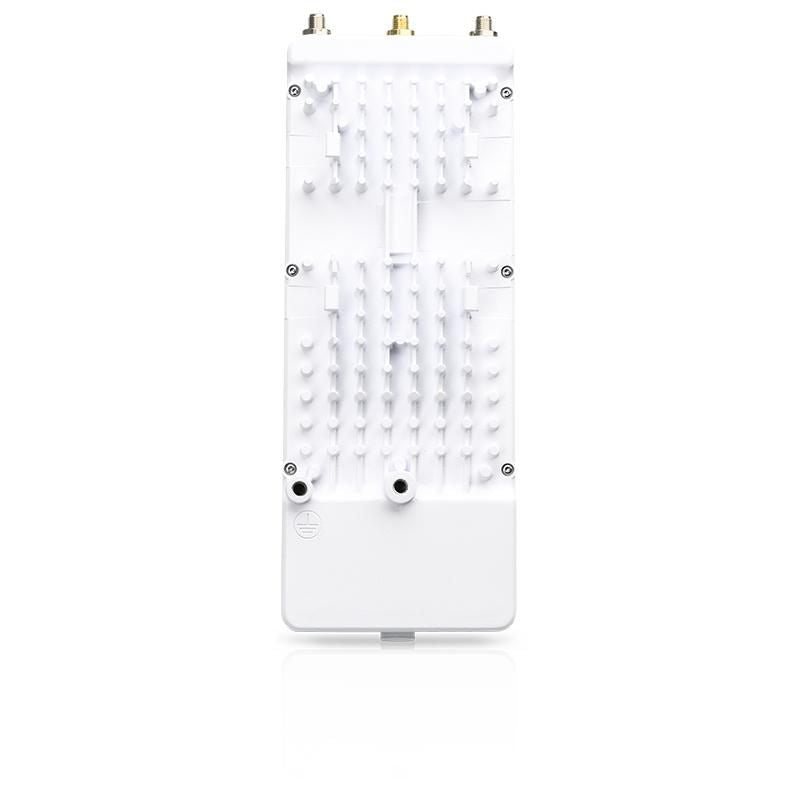

Ubiquiti AirFiber 1000 Mbit/s White Power Over Ethernet
The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’sComplete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
-

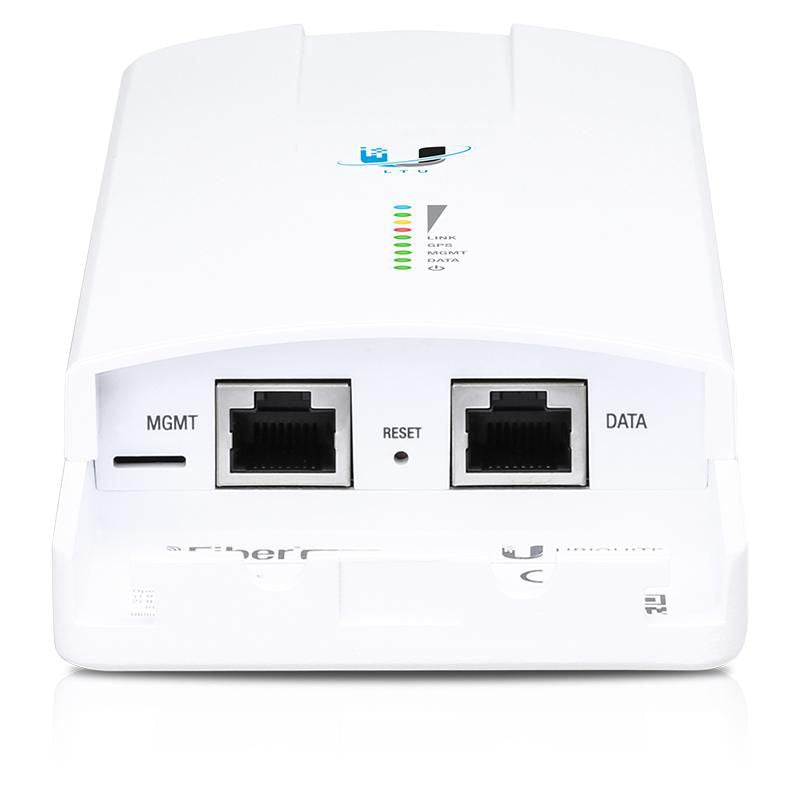

Technical Specifications Mechanical Dimensions 224 x 82 x 48 mm Weight 0.4 kg Mounting airFiber X mount GPS Pole Mount (Included) Weatherproofing IP67* Hardware Networking interface (2) GbE RJ45 ports Power method Passive PoE 4-pairs Passive PoE 2-pairs Power supply 24V, 1A gigabit PoE adapter Supported voltage range 18—54V DC Max. power consumption 12W GPS antenna External, magnetic base Ambient operating temperature -40 to 55° C Certifications CE, FCC, IC Software Modes PtP Master/Slave Max. throughput 1+ Gbps Max. range 100+ km Encryption AES-256 RF Max. TX power 29 dBm* Frequency accuracy ± 2.5 ppm without GPS Sync ± 0.2 ppm with GPS Sync Channel bandwidth 10/20/30/40/50/60/80/100 MHz Operating Frequency (MHz) Worldwide: 4800 - 6200 MHz* US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz
