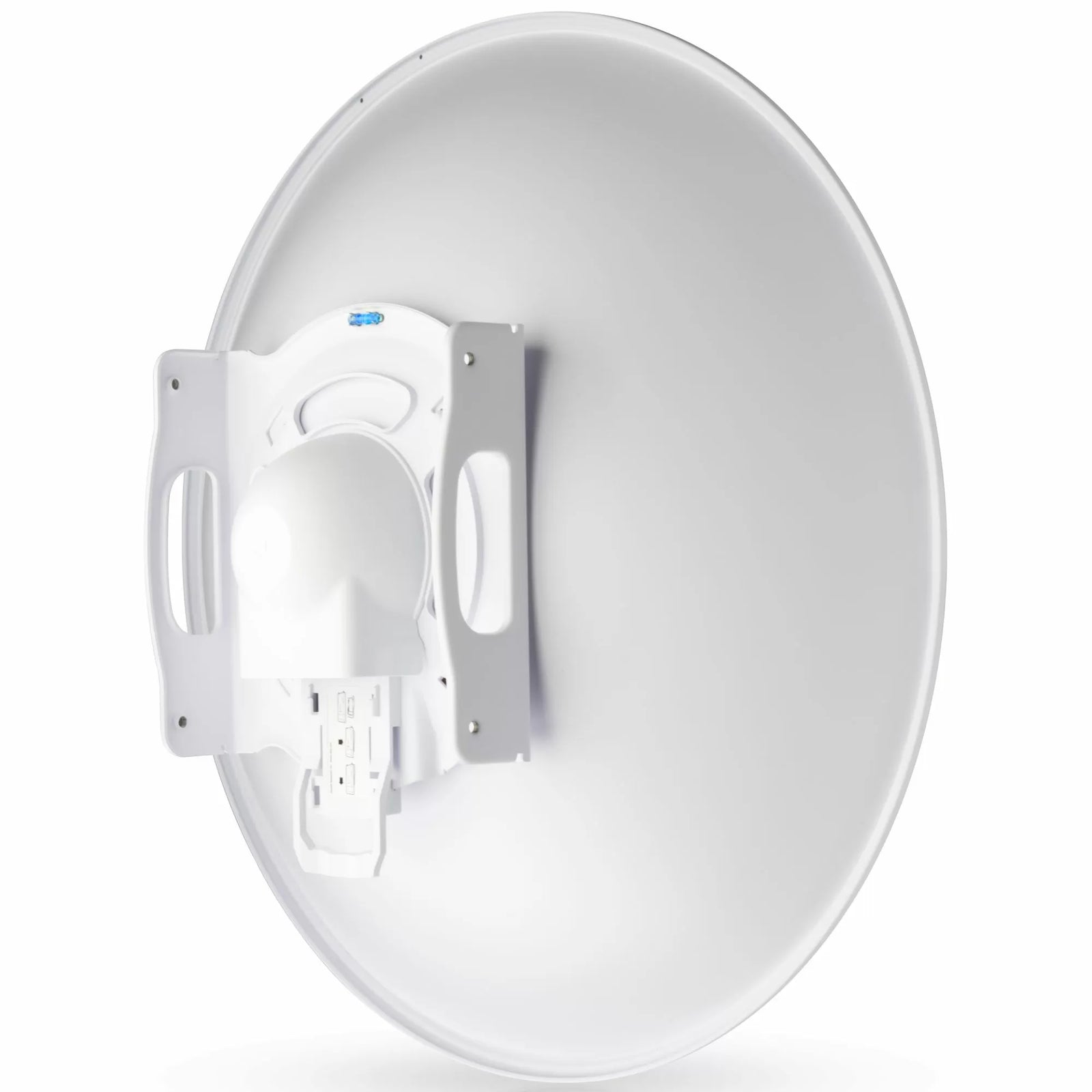

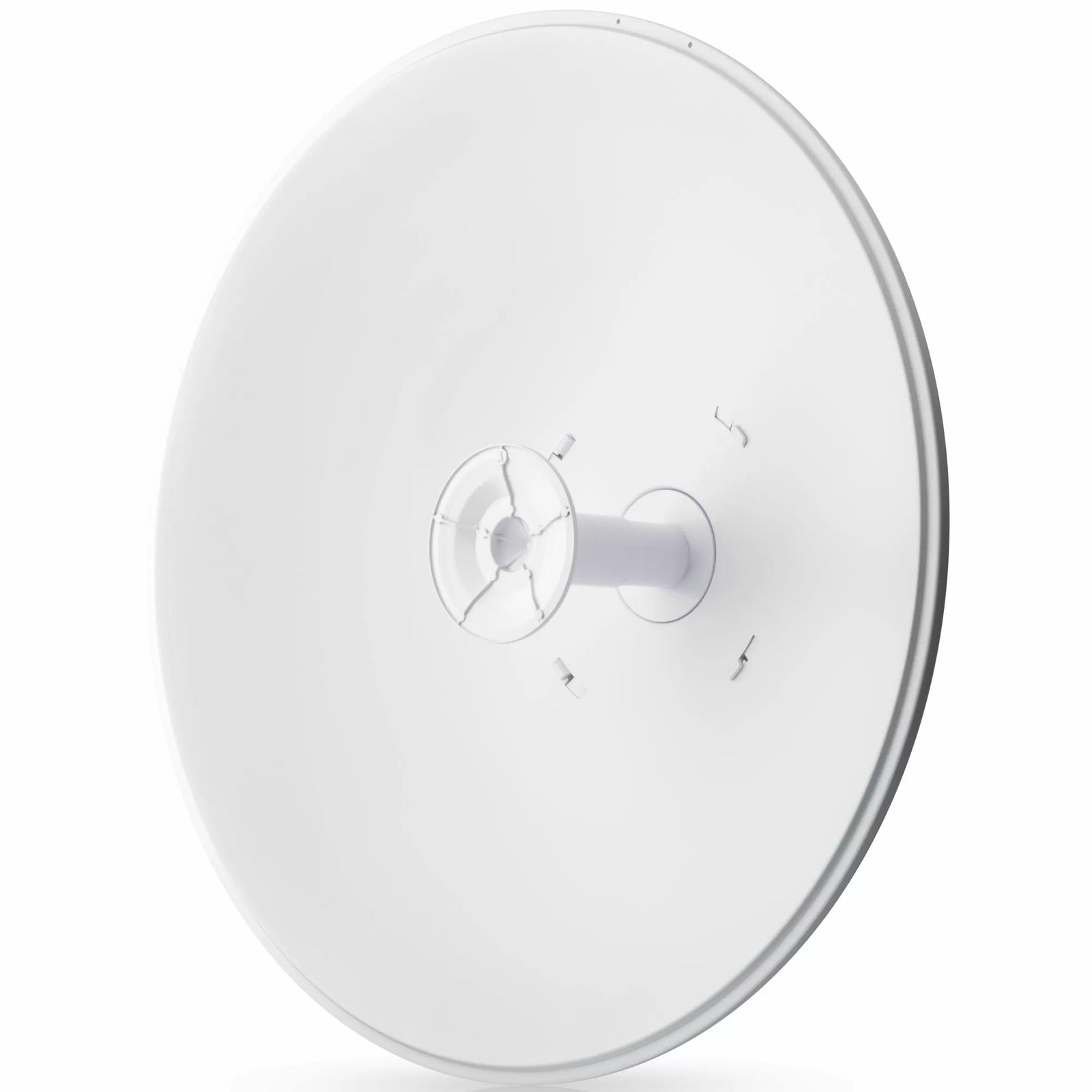

The Ubiquiti airFiber 5X Antenna AF-5G30-S45 is purpose-built with 45° slant polarity for seamless integration with the AF-5X. When paired with the AF-5XHD, the AF-5G30-S45 offers 30 dBi of gain in a 650mm diameter size.
Ubiquiti airFiber AF-5G30-S45 Key Features
5 GHz Frequency
30 dBi Gain
650mm diameter size
Compatible with AF-5XHD and AF-4X
The AF-5X supports ± 45° slant polarisation for improved noise immunity and Signal‑to‑Noise Ratio (SNR). The compact form factor of the AF-5X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special tools.
Compact Footprint for Deployment Flexibility
The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
Plug and Play Integration
The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios
Advanced RF Isolation Design
The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high‑capacity, multipoint networks.
| Feature | Detail |
|---|---|
| Compatible With | AF-5X |
| Color | White |
| Maximum Gain | 30 dBi |
| Frequency Band | 5 GHz |
| Weight | 7.4 kg |
| Dimensions | 65 x 65 x 38.6 cm |
| Warranty | 2 Years |
| Category | Passive Antenna |
