5 GHz, 21 dBi
The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Design and Performance
The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.
Superior Noise Immunity
Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.
Market-Leading Beam Performance
Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.
Industrial-Strength Construction
airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

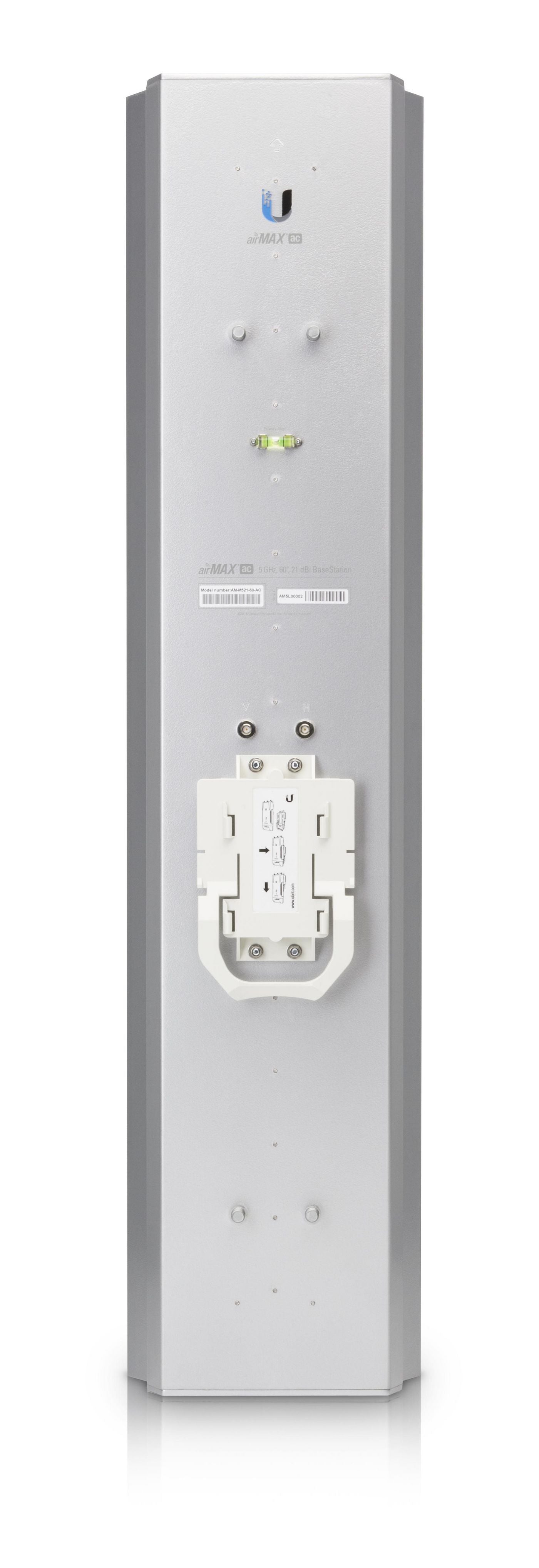

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.
| Feature | Value |
|---|---|
| Colour | White |
| Applications | Wall Mount |
| Polarization | Dual Polarization |
| Gain | 21 dBi |
| Frequency | 5.1 - 5.8 GHz |
| Beamwidth (H/V) | 60° |
| VSWR | 1.5:1 |
| Dimensions | 75 x 17.3 x 7.8 cm |
| Weight | 4.8 kg |
| Warranty | 2 Years |
| Categories | Network |
| Subcategory | Passive Antennas |
| Description | Downloads |
|---|---|
| Ubiquiti airMAX AC 2x2 Network Antenna 21 dBi AM-5AC21-60 DataSheet | Downloads |
| Ubiquiti airMAX AC 2x2 Network Antenna 21 dBi AM-5AC21-60 Quick Start Guide | Downloads |
