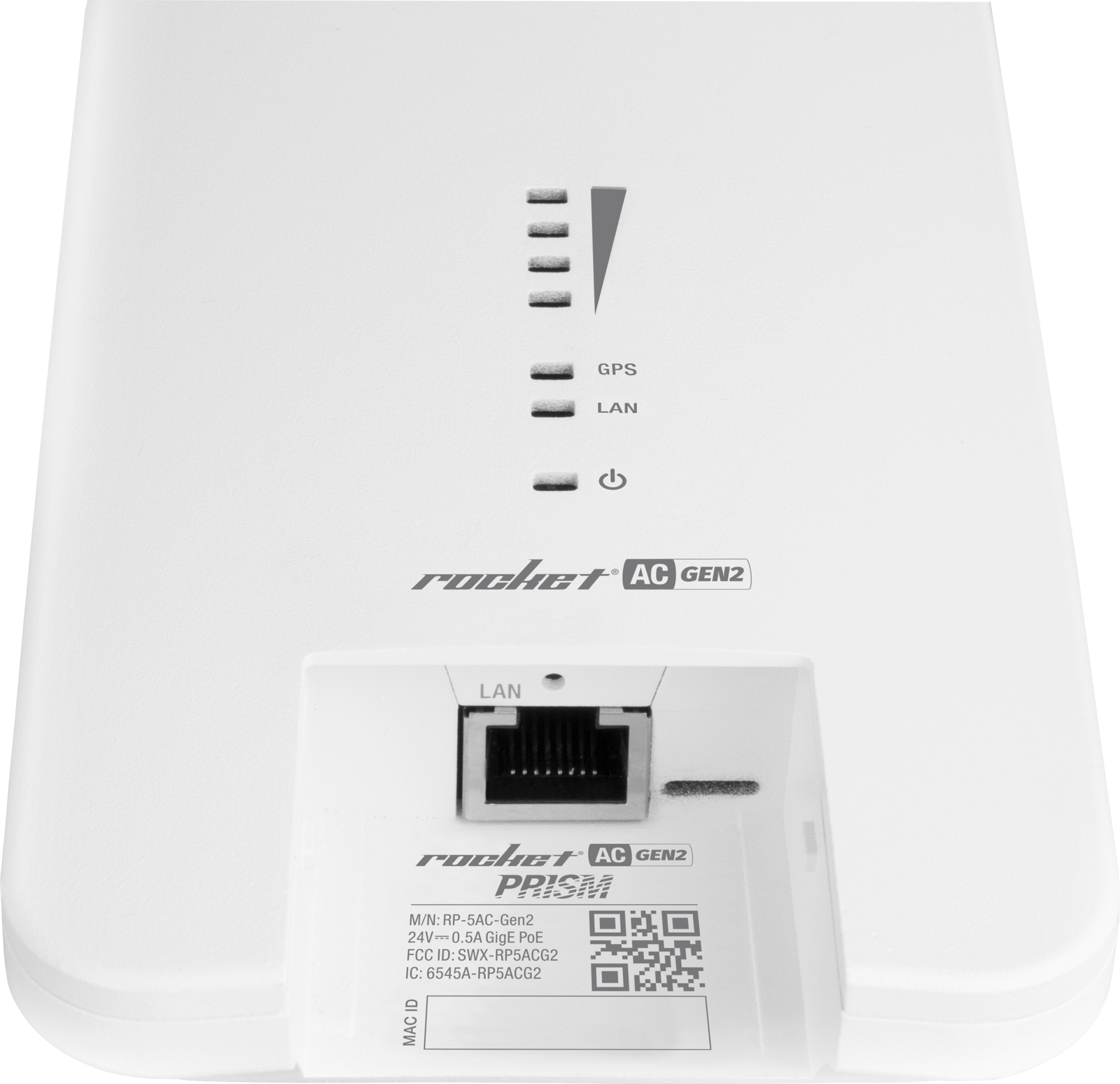

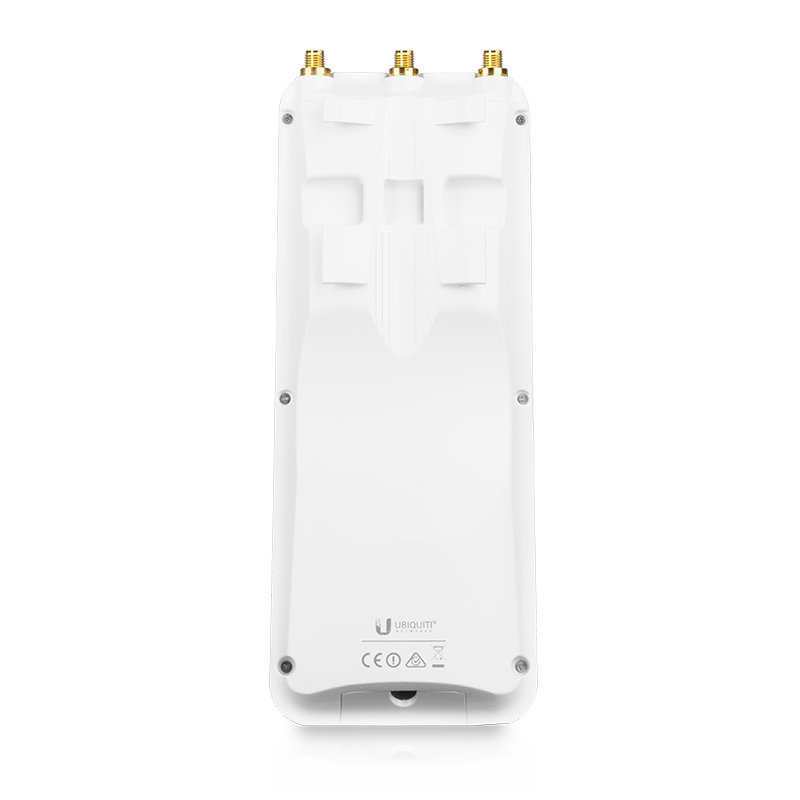

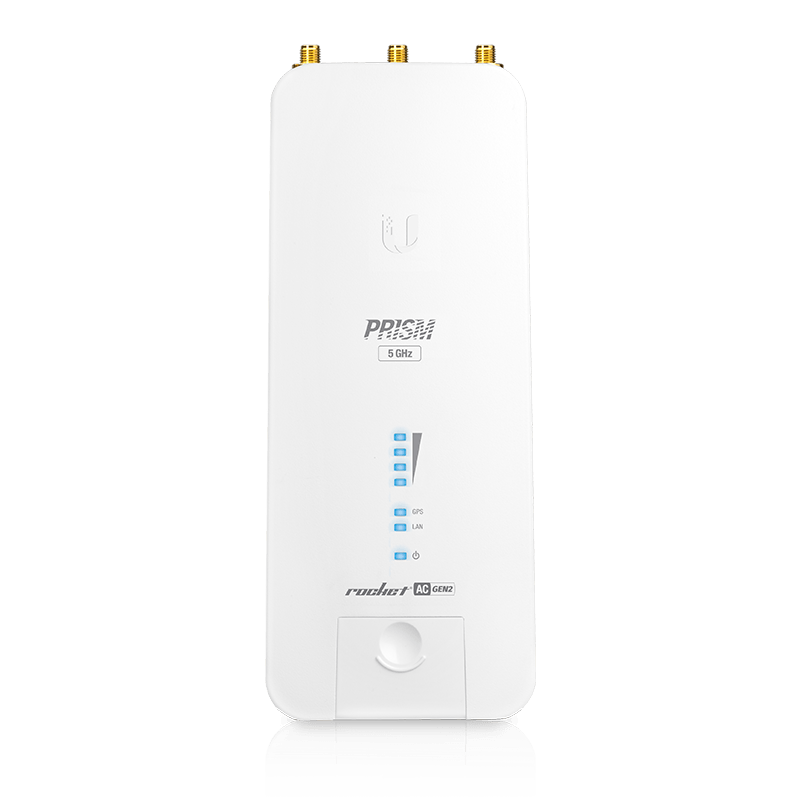

Ubiquiti airMAX Rocket Prism ac Radio BaseStation Gen 2 (RP-5AC-GEN2)
The Ubiquiti airMAX Rocket Prism 5AC Gen 2 is a 5 GHz base station with active AF filtering technology. This radio features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance.
Ubiquiti Rocket Prism 5AC Gen 2 Key Features
5 GHz Wide Band Operating Frequency
Custom Ubiquiti airMAX ac Processor
Dedicated WiFi Radio for Management
Throughput 500+ Mbps (Max. 80 MHz)
Ports (1) 10/100/1000 Ethernet Port
airPrism Technology
Full-Band 5 GHz Coverage
You can deploy the Rocket Prism 5AC Gen 2 anywhere in the world; the Rocket Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
Management Wi-Fi Radio
The Rocket Prism 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket Prism 5AC Gen 2 features enhanced protection against ESD events.
GPS Synchronisation
The Rocket Prism 5AC Gen 2 supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughput than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
| Feature | Value |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure Material | Die-cast aluminum |
| Mounting | Pole mounting (Kit included) |
| Wind Loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Networking Interface | (1) GbE RJ45 port |
| RF Connectors | (2) RP-SMA (Waterproof), (1) GPS (Waterproof) |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported Voltage Range | 18—27V DC |
| Max. Power Consumption | 9.5W |
| LEDs | (4) Signal strength (software-adjustable), GPS, LAN, power |
| Shock and Vibration | ETSI300-019-1.4 |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC, RoHS |
| Modes | Access Point, Station |
| Channel Sizes (PtP Mode) | 10/20/30/40/50/60/80 MHz |
| Channel Sizes (PtMP Mode) | 10/20/30/40 MHz |
| Services | Web server, SNMP, SSH server, Telnet, ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
| Distance Adjustment | Dynamic Ack and Ackless mode |
| Power Adjustment | Software adjustable (UI or CLI) |
| Security | WPA2 AES only |
| QoS | Supports packet level classification (WMM), user-customizable levels (High/Medium/Low) |
| Statistical Reporting | Uptime, packet errors, data rates, wireless distance, Ethernet link rate |
| Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode |
| Operating Frequency (MHz) | Worldwide: 5150–5875 MHz |
| Operating Frequency (MHz) | USA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz |
| Management Radio (MHz) | Worldwide: 2412–2472 MHz, USA: 2412–2462 MHz |
