Features
500 m (1,640 ft) maximum range
60 GHz & 5 GHz dual-radio redundancy
(1) 10G SFP+ and (1) GbE PoE++ port
Powered using PoE++
Built-in LED alignment indicators
Sold as 2-pack
| Category | Specifications |
|---|---|
| Mechanical | |
| Dimensions | Ø191.8 x 59 mm (Ø7.6 x 2.3") |
| Weight | Without mount: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Enclosure material | Aluminum alloy, UV-resistant polycarbonate |
| Mount material | Stainless steel |
| Pole mount diameter | 1-2.5" on pipe outer diameter |
| Weatherproofing | IPX6 |
| Hardware | |

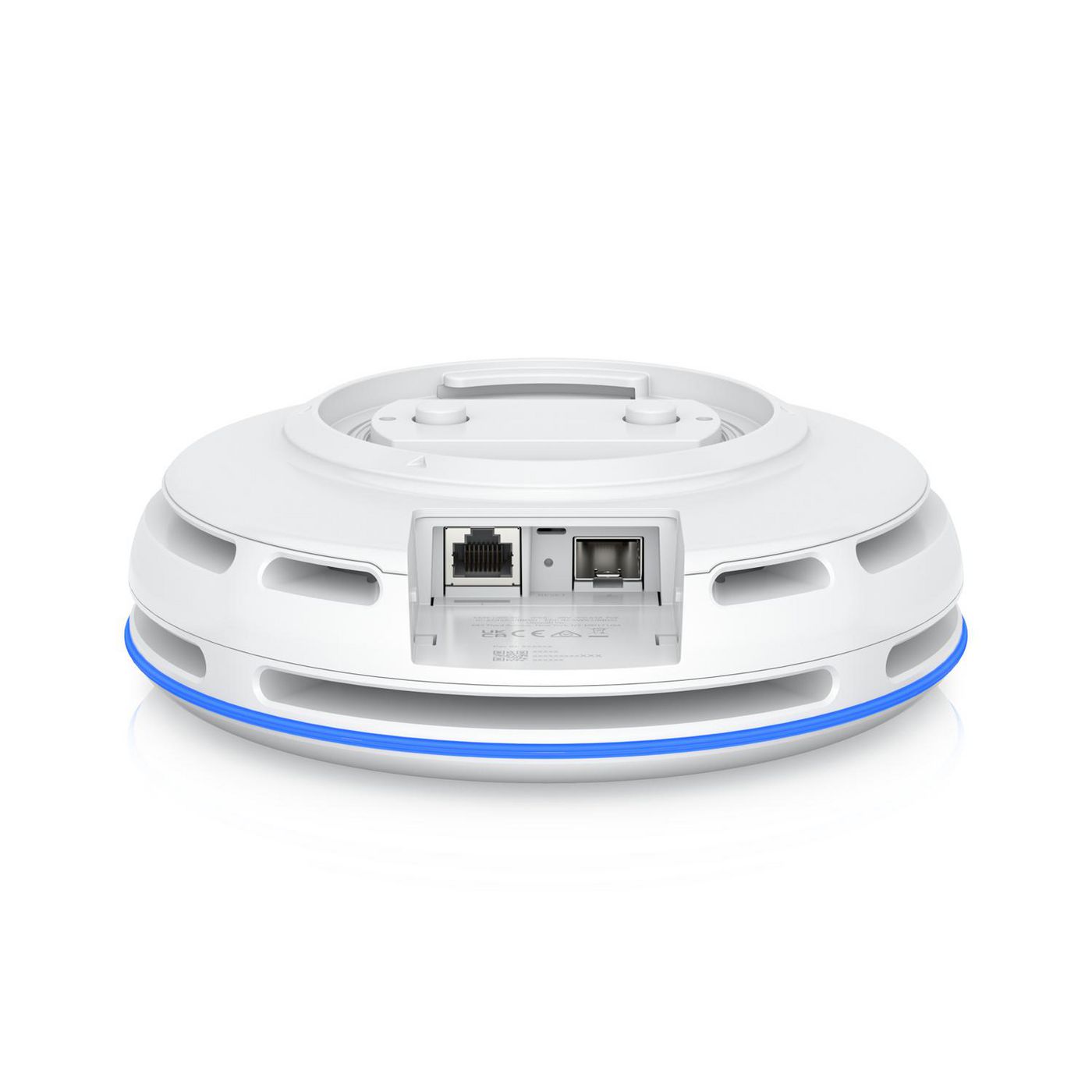

| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Management interface | Ethernet, Bluetooth |
| Power method | PoE++ Passive PoE: 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) 2-pairs (4, 5+; 7, 8-) |
| Power supply | UniFi PoE switch 48V, 0.65A Gigabit PoE adapter (included) |
| Supported voltage range | 48V DC ± 10% |
| Max. power consumption | 31.2W |
| Max. TX power | 2.4 GHz: - 5 GHz: 23 dBm 6 GHz: 16 dBm (60 GHz) |
| Throughput rate | 2.4 GHz: - 5 GHz: 866.6 Mbps 6 GHz: 6 Gbps (60 GHz) |
| Antenna gain | 2.4 GHz: - 5 GHz: 14 dBi 6 GHz: 21 dBi (60 GHz) |
| Maximum range | 500 m (1,640 ft) |
| LEDs | R/G/B |
| Button | Factory-reset |

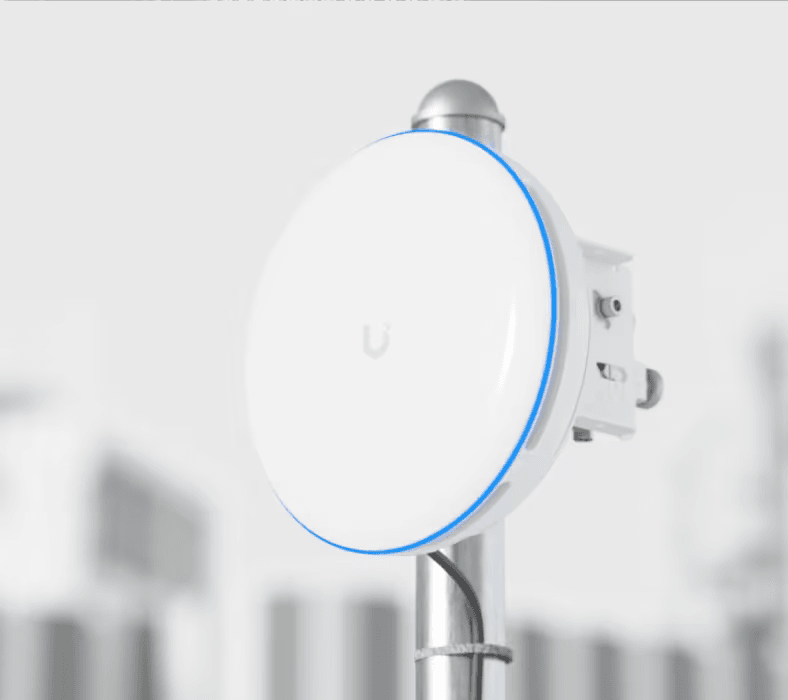

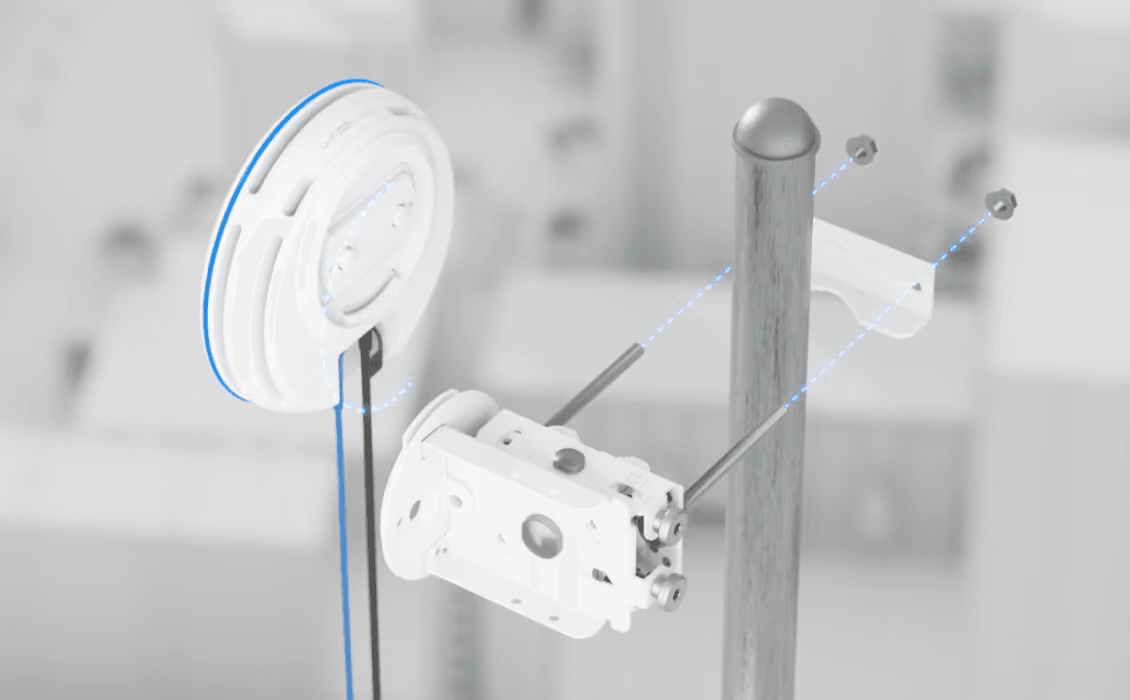

| Mounting | 60G precision alignment pole mount (Included) |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, terragraph |
| Software | |
| WiFi standards | 802.11ac/ad/ay |
| Wireless security | WPA2 AES (Always On) |
| Operating modes | PtP |
| VLAN | Management VLAN only |
| RF | |
| Operating frequency* | 57 to 66 GHz *Dependent on regional regulations. |
| Channel bandwidth | 2,160/4,320 MHz (Channel Bonding Enabled) |
| Operating channels* | 58,320/59,400/60,480/61,560/62,640/63,720/64,800 MHz *Dependent on regional regulations. |
| Backup RF | |
| Operating frequency* | US/CA: Worldwide: U-NII-1: 5,150 - 5,250 MHz U-NII-2A: 5,250 - 5,350 MHz U-NII-2C: 5,470 - 5,725 MHz U-NII-3: 5,725 - 5,850 MHz *Dependent on regional regulations. |
| Channel bandwidth | 20/40/80 MHz |
