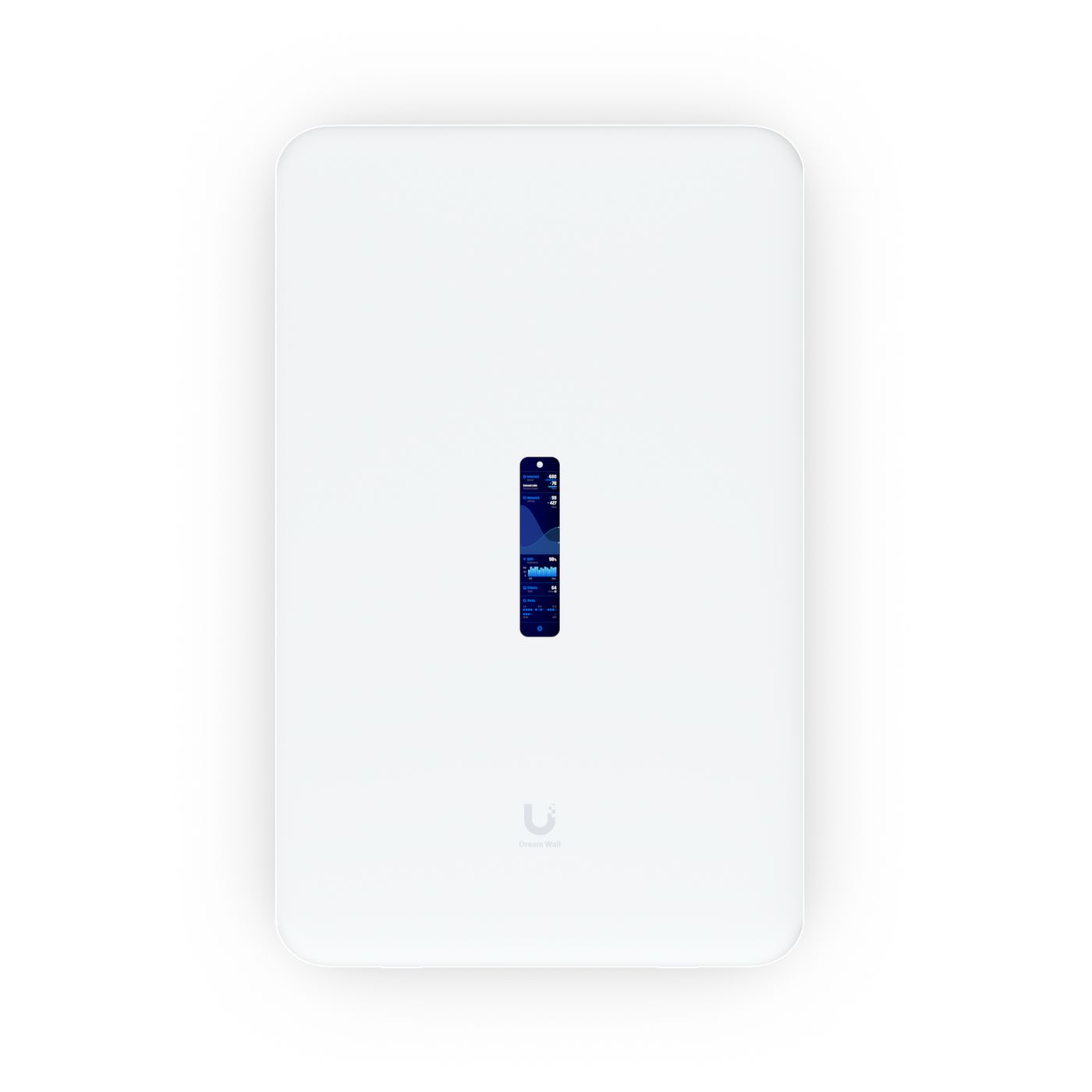

The Ubiquiti UniFi Dream Wall is a wall-mounted UniFi OS Console with a security gateway, high-speed access point, network video recorder, and a PoE switch with a versatile networking interface.
Ubiquiti UniFi Dream Wall Key Features
Built-in WiFi 6 AP
Includes full UniFi application suite for device management
3.5+ Gbps routing with IDS/IPS

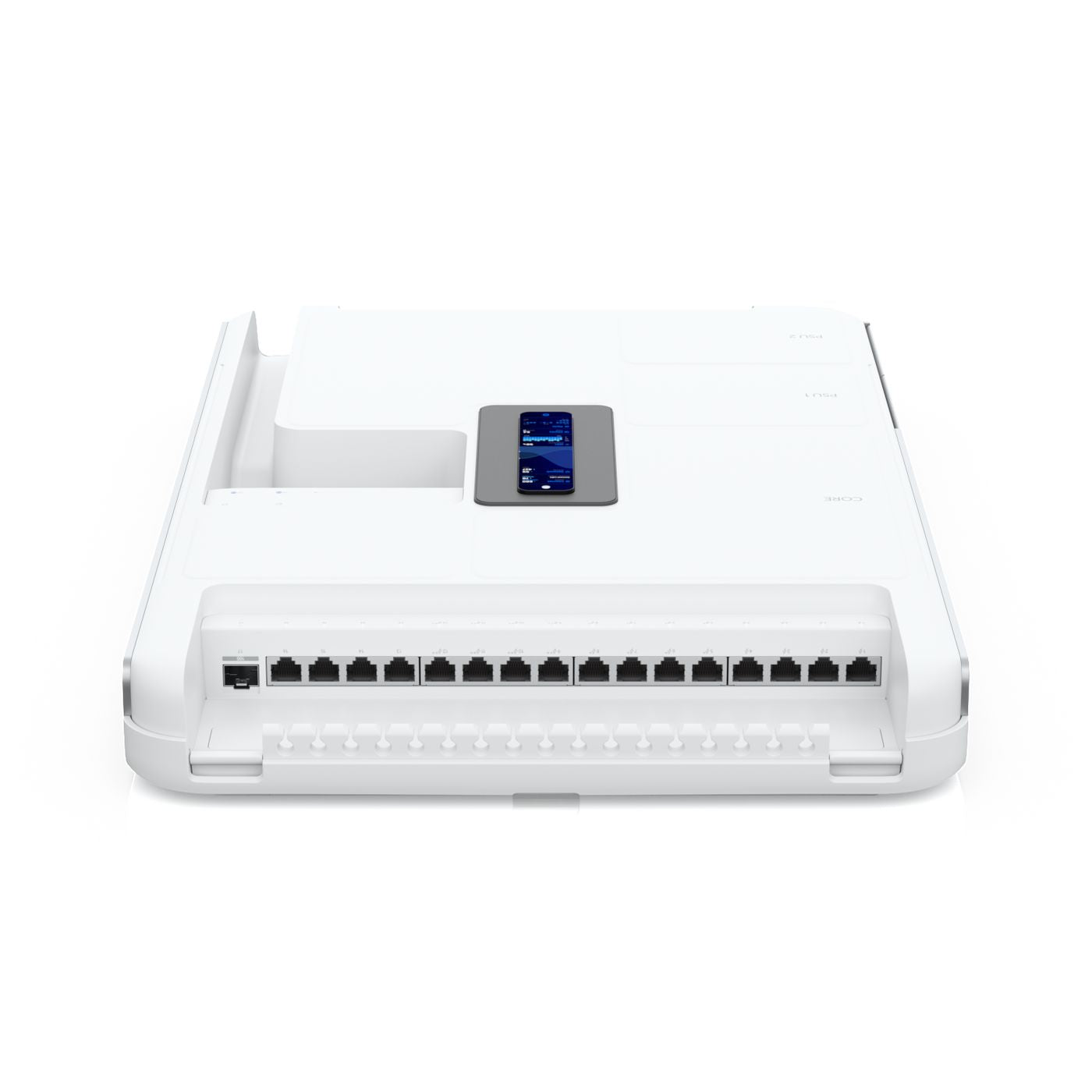

(1) 10G SFP+*, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports
(1) 10G SFP+*, (1) 2.5 GbE RJ45 WAN ports
4.7" touchscreen for management
Integrated 128 GB SSD & pre-installed 512 GB microSD card
The Dream Wall is wall-mounted UniFi OS Console that serves as a standalone, space-saving deployment hosting solution. Each of these feature-rich, next-gen consoles are equipped with a variety of multi-gigabit WAN/LAN ports to support high-speed connectivity, along with a wealth of GbE RJ45 ports that deliver PoE, PoE+, and PoE++ output.
More UDW Features
Dedicated Bluetooth management radio for streamlined configuration
1.3" LCM colour touchscreen

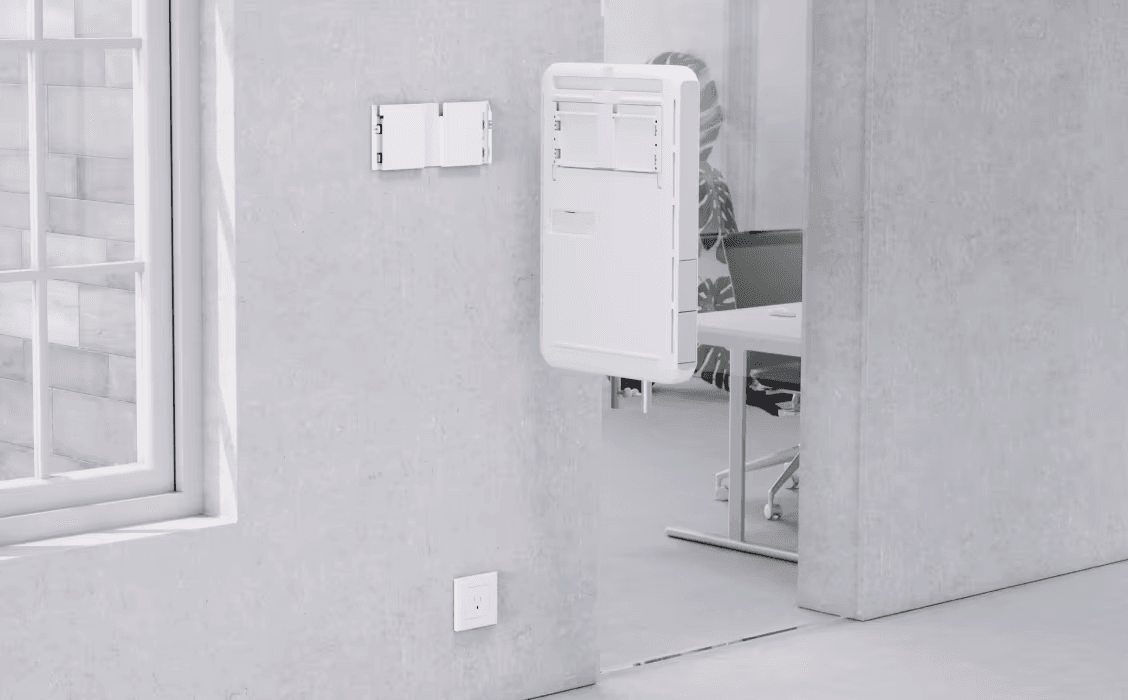

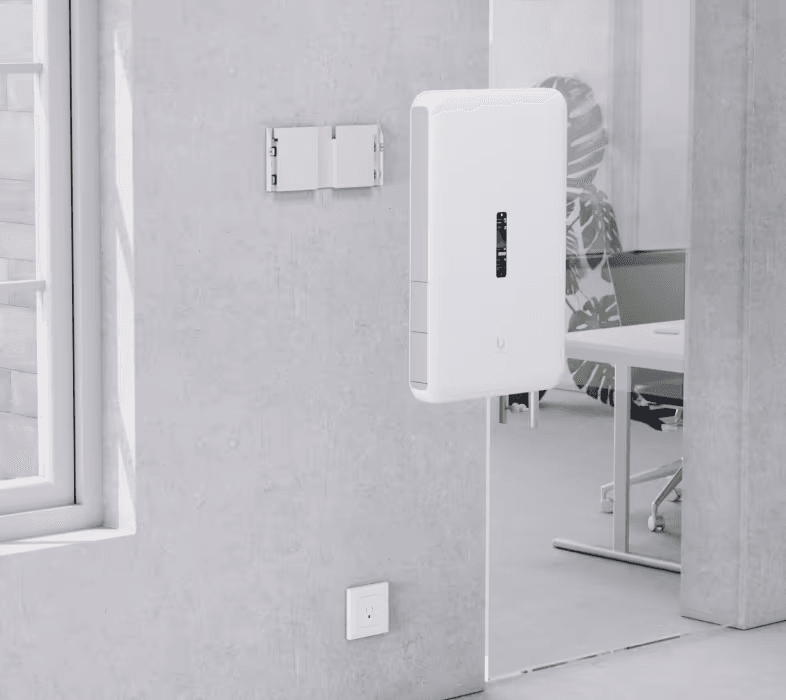

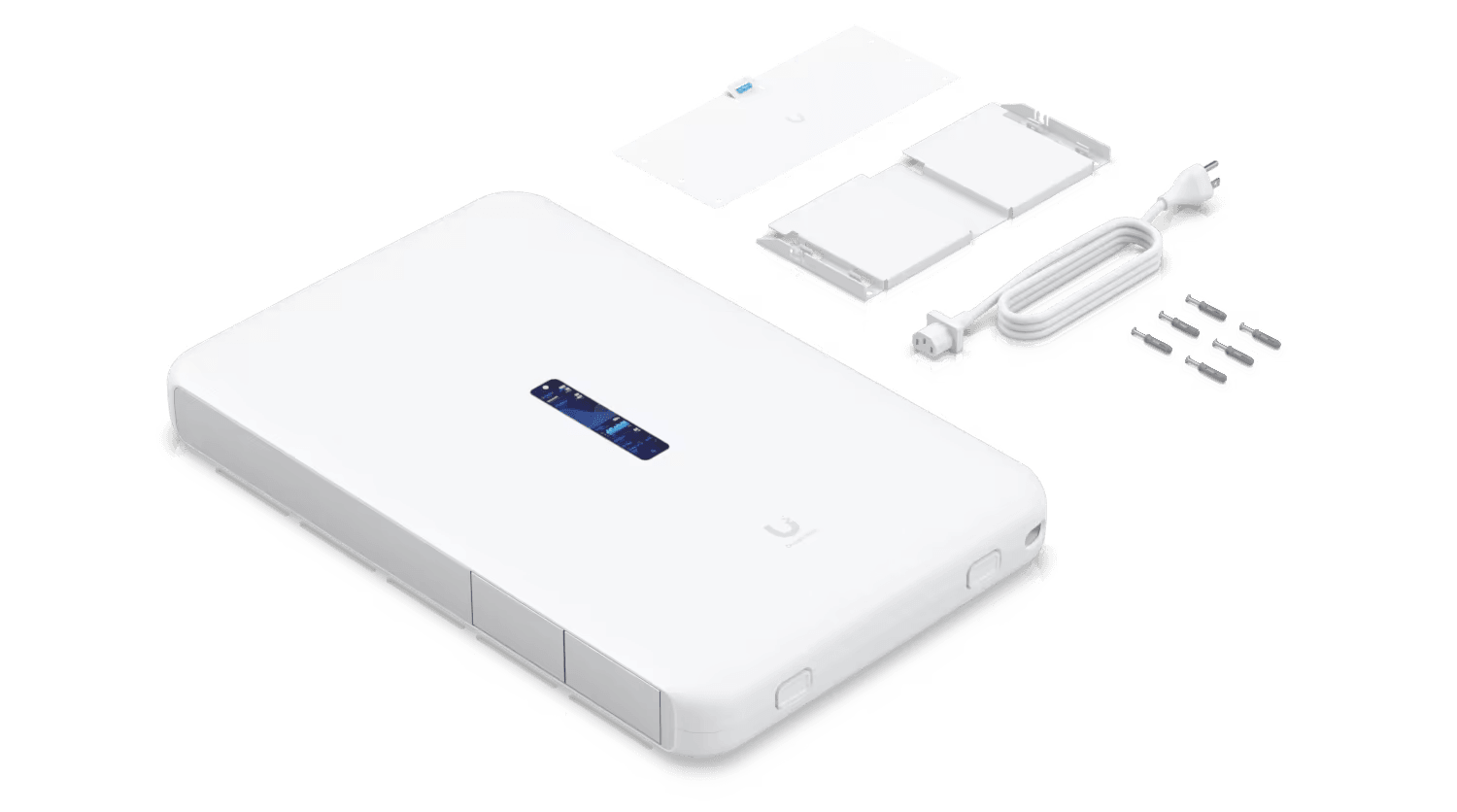

Includes a wall mount, screw kits, and a power cord
128 GB integrated storage for full UniFi OS Application experience
Micro SD memory card expansion slot (card needs min 128 GB of storage)
Supports redundant power resources
| Category | Details |
|---|---|
| Design | |
| Certification | CE, FCC, IC |
| Enclosure material | Aluminum |
| LED indicators | LAN |
| Mounting type | Wall mounting |
| Product colour | White |
| Features | |
| Antenna gain level | 6 dBi |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Legal Information | |
| UNSPSC Code | 43222605 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Network | |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11d/IEEE 802.11g/IEEE 802.11n/IEEE 802.1Q |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1/11/12/1732/1733/1734/1750/18/2/24/2402/300/36/48/5.5/54/6/9 Mbit/s |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -10 - 40 °C |
| Package dimensions | Gross Weight (Package, kg) |
| Packaging content | Quick installation guide |
| Performance | |
| Built-in processor | Yes |
| Control display unit | Yes |
| Flash memory | 16384 MB |
| Internal memory | 4096 MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor frequency | 1700 MHz |
| Processor manufacturer | ARM |
| Processor model | Cortex-A57 |
| SSD capacity | 128 GB |
| Ports & interfaces | Ethernet LAN (RJ-45) ports |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Input current | 7 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 532 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | Net Weight (Product, kg) |
| Product Depth | 54.9 cm |
| Product Height | 6.2 cm |
| Product Width | 34.2 cm |
| Protocols | DHCP server |
| Security | |
| Security algorithms | WEP/WPA/WPA-Enterprise/WPA-PSK/WPA2/WPA3 |
| VLAN support | Yes |
| Vendor information | Brand Name |
| Warranty | 2 Year(s) |
| Categories | |
| Main category | Network |
| Subcategory | Firewalls & Gateways |
| Subcategory | Gateways/Controllers |
