Official Partner
10G Routing Technology for the Masses

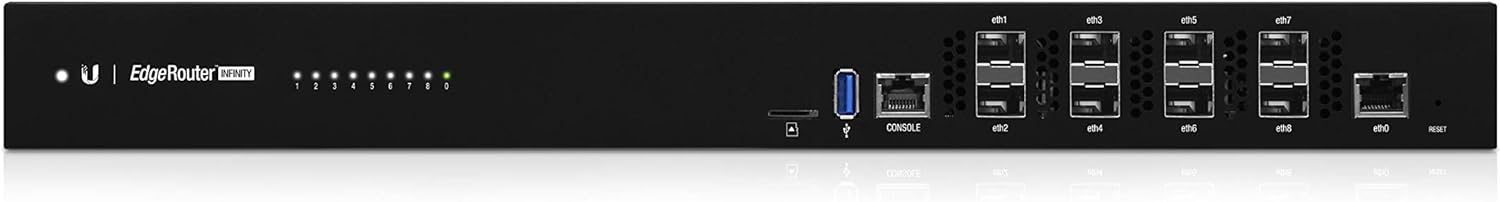

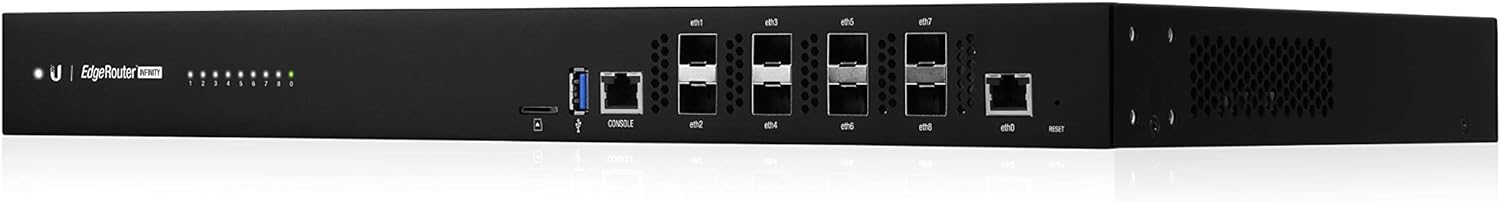

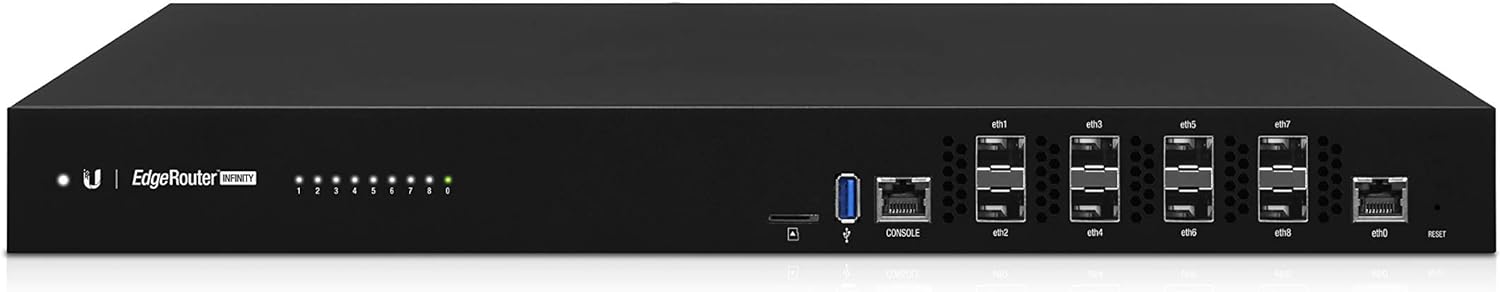

The EdgeRouter Infinity features eight 10G SFP+ ports for fiber connectivity and a Gigabit Ethernet RJ45 port for copper connectivity.
Rackmount Design

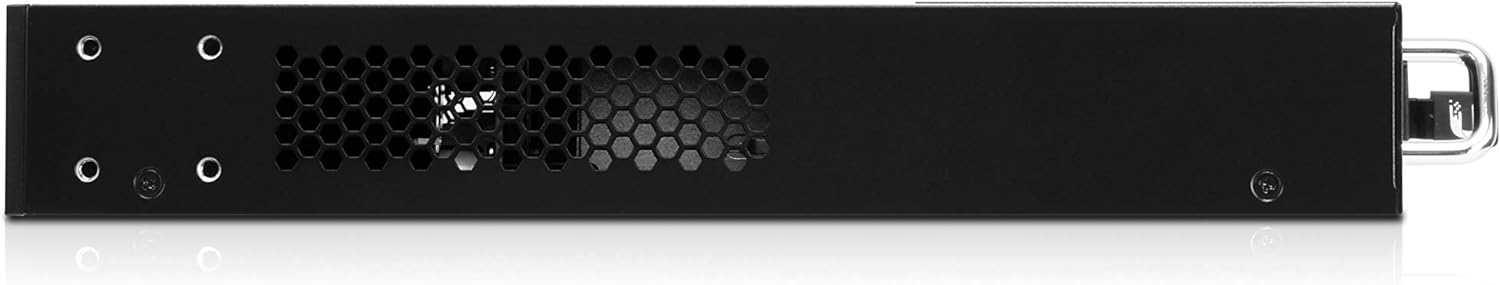

The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
Power Versatility

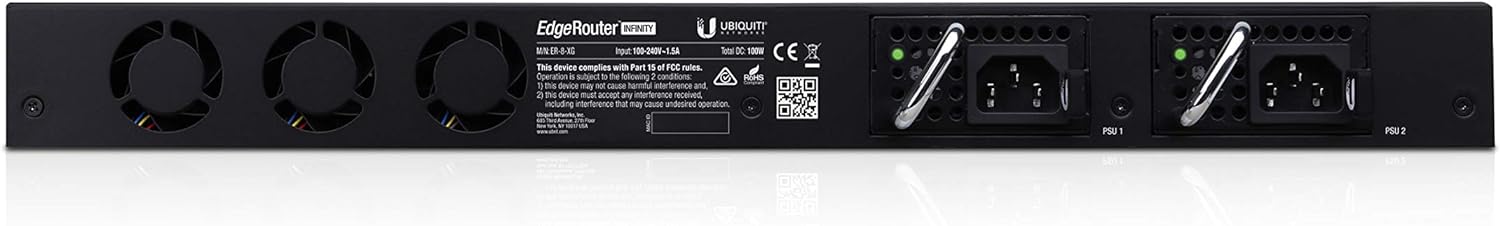

The EdgeRouter Infinity includes two AC/DC power modules – one for backup. An optional DC/DC power module is available for use with DC power.
Centralized Management
The EdgeRouter Infinity is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mount: 4.95 kg (10.9 lb) |
| With mount: 5.05 kg (11.1 lb) | |
| Hardware | |
| Processor | MIPS64 16 Core 1.8 GHz |
| System memory | 16 GB DDR4 RAM |
| On-board flash | 8 MB NOR |
| 4 GB eMMC NAND | |
| Networking interface | (1) RJ45 serial port |
| (8) SFP+ ports | |
| (1) GbE RJ45 port | |
| Power method | (2) Hot-swappable AC/DC PSU |
| Supported voltage | AC input: 100–240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 24 kV, contact: ± 24 kV |
| Button | Factory reset |
| LEDs | System SFP+ data: Status |
| RJ45 ports: link/activity | |
| Data port: link/activity | |
| Mounting | Rack |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
