Price/Performance Breakthrough

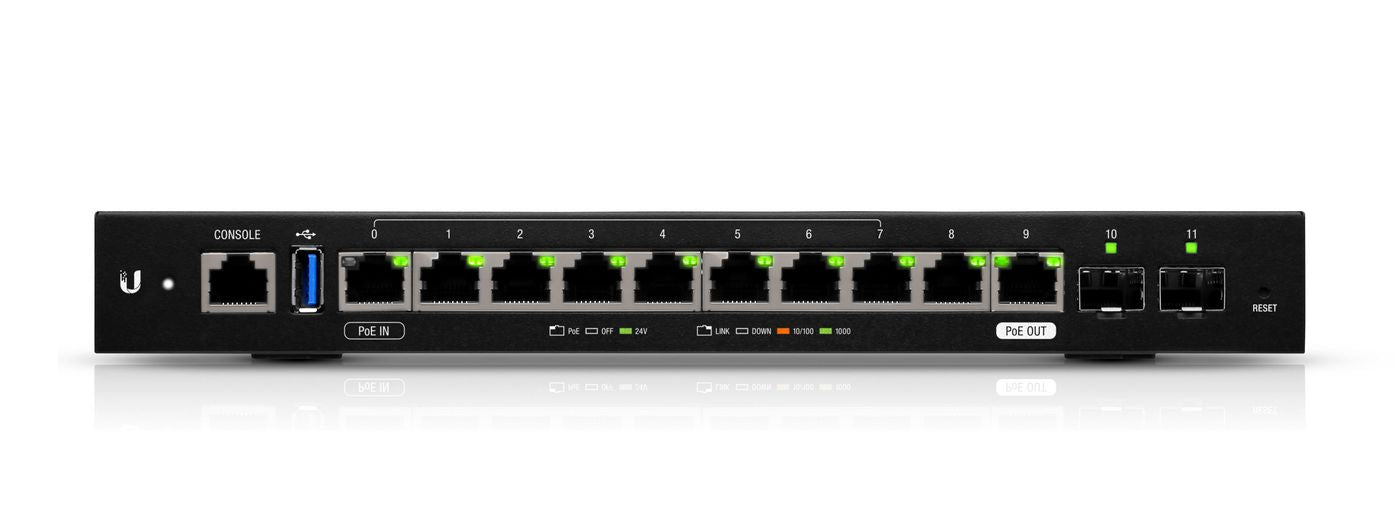

The EdgeRouter™ 12 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6.8 Gbps. Ten Copper Gigabit ports and two independent SFP ports allows for deployment flexibility. The EdgeRouter 12 supports Layer-2 switching.
Versatile Design
The EdgeRouter 12 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 12 is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
| Feature | Detail |
|---|---|
| Dimensions | 268.1 x 136.5 x 31.1 mm (10.6 x 5.4 x 1.2") |
| Weight | 700 g (1.5 lb) |
| Hardware | |
| Processor | 4-Core 1 GHz MIPS64 |
| Memory | 1 GB DDR3 RAM |
| Storage | 4 GB eMMC, 8 MB SPI NOR |
| Networking | |
| Gigabit Ethernet Ports | 10 |
| SFP Ports | 2 (1 Gbps) |
| Management | 1 x RJ45 Serial Port |
| Power | |
| Power Method | External AC/DC Adapter (Included) |
| Power Supply | 24V Passive PoE |
| Voltage Range | 9-30V DC |
| Max Power Consumption | 20W (Excluding PoE output) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Buttons | Factory Reset |
| LEDs | System: Power, Data Ports: Speed/Link/Activity, PoE, SFP Data Port: Link/Activity |
| Operating Temperature | -10 to 50° C (14 to 122° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
