Advanced Gigabit Router with PoE and SFP
The EdgeRouter™X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.
Versatile PoE Capability
The EdgeRouter™X SFP supports 24V passive PoE to power up to five airMAX®devices.
World-Leading Price/Performance
At $79 USD MSRP, the EdgeRouter™X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.
Gigabit Connectivity

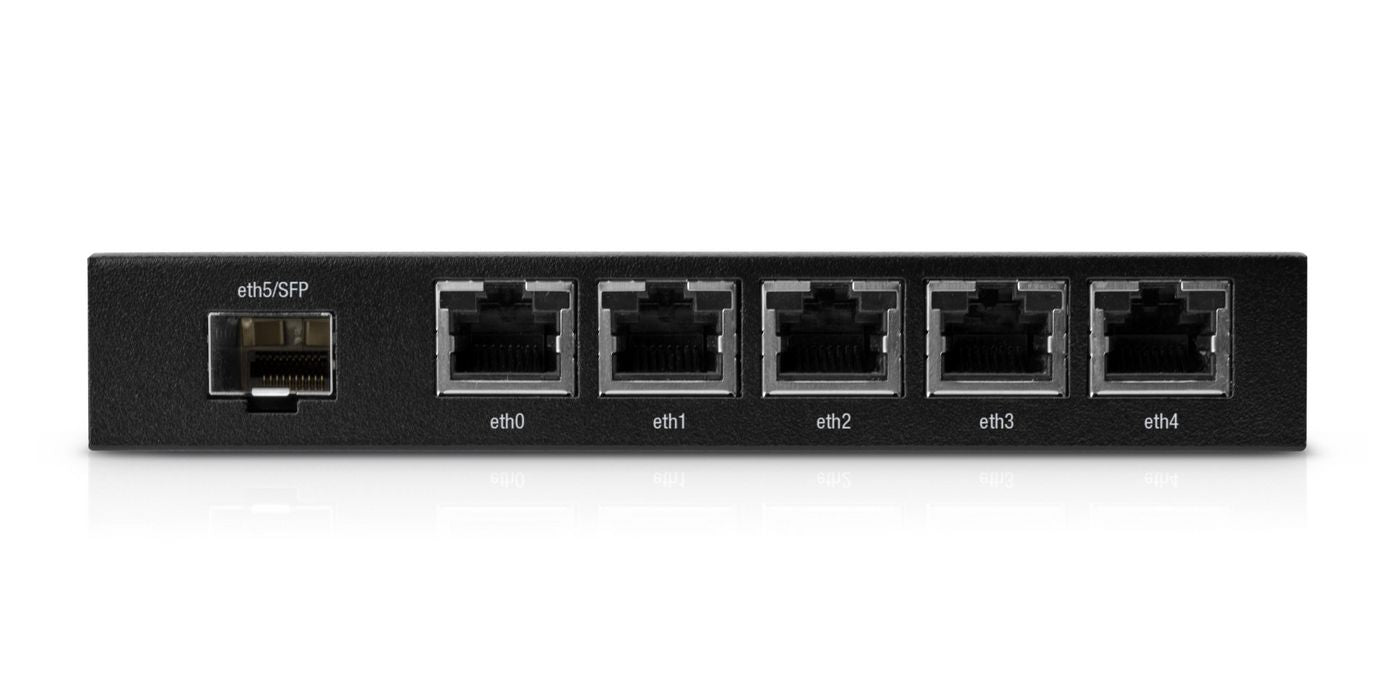

The EdgeRouter™X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.
Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.
EdgeOS™- Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.
| Feature | Specification |
|---|---|
| Mechanical | |
| Dimensions | 142 x 75 x 23 mm (5.6 x 3 x 0.9") |
| Weight | 215 g (7.6 oz) |
| Hardware | |
| Processor | Dual-Core 880 MHz, MIPS1004Kc |
| Memory | 256 MB DDR3 RAM |
| Code storage | 256 MB NAND |
| Networking interface | (5) 10/100/1000 RJ45 ports |
| (1) 100/1000 SFP port | |
| Power method | 24VDC, 2.5A power adapter (Included) |
| Power Supply | External AC/DC adapter |
| Supported Voltage Range | 9–26V DC |
| Max. power consumption | 5W |
| PoE method | Passive |
| PoE out voltage range | 22-24V DC |
| Max. PoE wattage per port | 12W (24V) |
| Max. PoE wattage combined | 50W |
| Buttons | Factory reset |
| LEDs | Power, Link/Activity (6), PoE (5) |
| Mounting | Wall mount |
| Environmental | |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Description | Downloads |
|---|---|
| Ubiquiti EdgeRouter X SFP 5 Port Passive-PoE Gigabit Wired Router | ER-X-SFP DataSheet | Downloads |
| Ubiquiti EdgeRouter X SFP 5 Port Passive-PoE Gigabit Wired Router | ER-X-SFP Quick Start Guide | Downloads |
