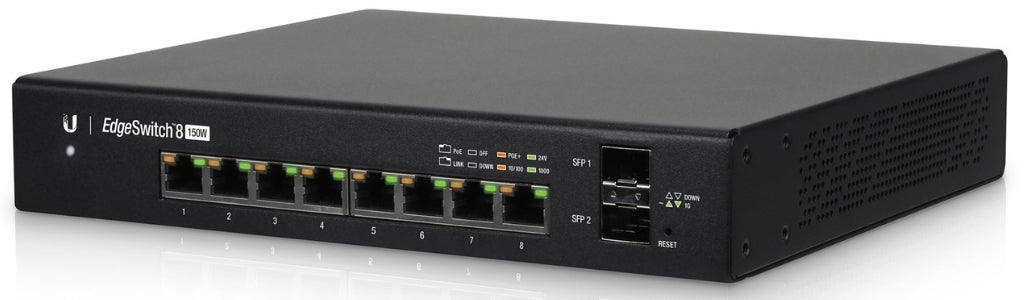

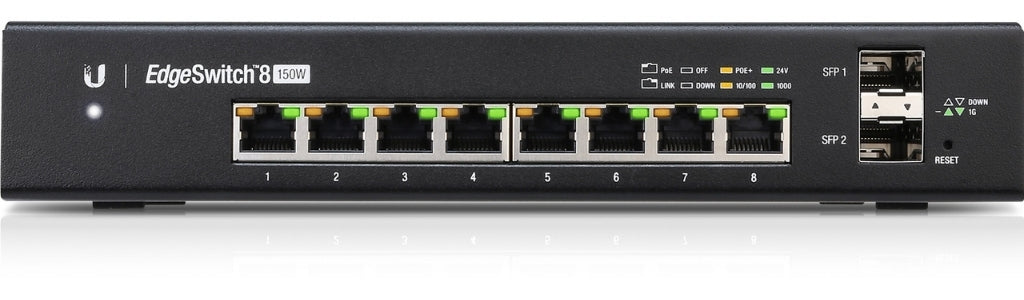

Ubiquiti ES-8-150W EdgeSwitch 8 PoE Managed Switches
Gigabit switch with (8) RJ45 ports, (2) SFP ports, and a 150W power supply.
(8) GbE RJ45 ports with 24V passive PoE
(2) SFP ports
150W total PoE availability
Desktop-mountable
-
| Mechanical |
Specifications |
| Dimensions |
204 x 43 x 235 mm (8.03 x 1.69 x 9.25 inches) |
| Weight |
Without Wall Mount: 1.72 kg (3.79 lb) |
|
With Wall Mount: 1.8 kg (3.96 lb) |
| Hardware |
Specifications |
| Networking Interface |
(8) 10/100/1000 Mbps RJ45 Ports |
|
(2) 1 Gbps SFP Ports |
| Management Interface |
Ethernet In-Band, UART Console Out-of-Band |
| PoE Interface |
(8) PoE/PoE+ 2-Pair (+1, 2; -3, 6) |
|
(8) 24V/0.7A 2-Pair (+4, 5; -7, 8) |
| Total Non-Blocking Line Rate |
10 Gbps |
| Max. Power Consumption |
20W (Excludes PoE Output) |
| Power Method |
AC, DC |
| Power Supply |
Internal AC/DC 150W |
| Operating Voltage |
AC: 100 to 240VAC, 50-60 Hz |
|
DC: 42 to 56VDC |
| LEDs |
Specifications |
| System |
Status |
| RJ45 Data Ports |
PoE; Link/Speed/Activity |
| SFP Data Ports |
Link/Speed/Activity |
| ESD/EMP Protection |
Specifications |
| ESD/EMP Protection |
± 24kV Air, ± 24kV Contact |
| Operating Temperature |
Specifications |
| Internal AC/DC at 150W |
-25 to 45° C (-13 to 113° F) |
| Internal AC/DC at 100W |
-25 to 55° C (-13 to 131° F) |
| External DC |
-25 to 60° C (-13 to 140° F) |
| Operating Humidity |
Specifications |
| Operating Humidity |
5 to 95% Noncondensing |
| Certifications |
Specifications |
| Certifications |
CE, FCC, IC |
