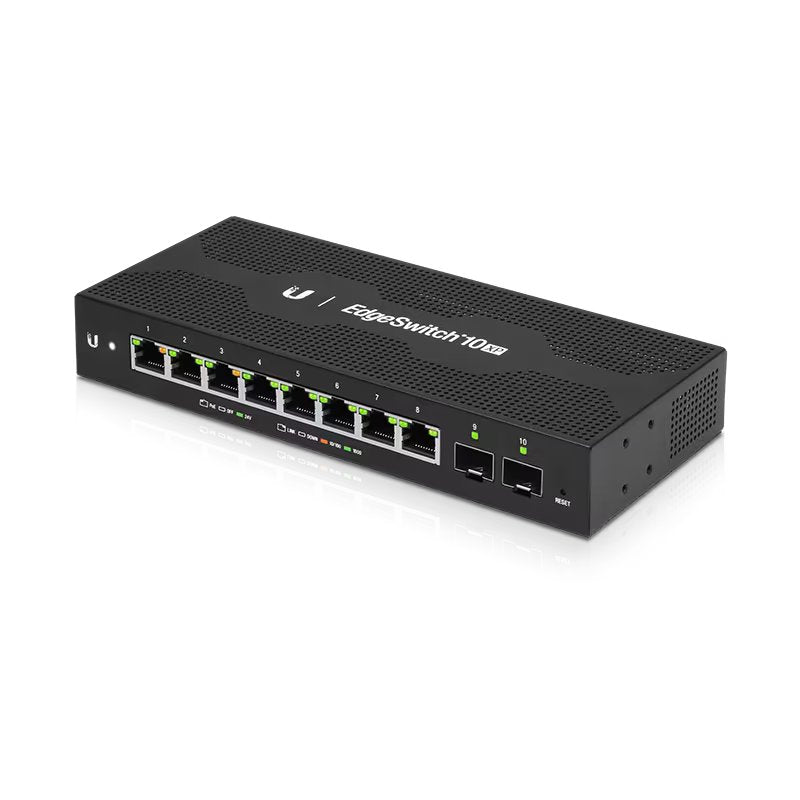

Ubiquiti ES-10XP EdgeSwitch 10XP Managed Switches
SKU: ES-10XP
£98.75 (Excl. VAT)
- Description
- Specifications
-
Ubiquiti ES-10XP EdgeSwitch 10XP Managed Switches
Compact WISP switch sporting (8) Gigabit RJ45 ports, each equipped with a 24V passive PoE output, and (2) SFP ports.
(8) GbE RJ45 ports
(2) 1G SFP ports
24V passive PoE support on all RJ45 ports -
Mechanical Specifications Dimensions 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54 inches) Weight 500 g (1.10 lb) Hardware Specifications Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports Management Interface Ethernet In-Band Total Non-Blocking Throughput 10 Gbps Switching Capacity 20 Gbps Forwarding Rate 14.88 Mpps Max. Power Consumption (Excluding PoE Output) 8W Power Method 24VDC, 2.5A Supported Voltage Range 9 - 30VDC, 5A Power Supply 24VDC, 2.5A Power Adapter (Included) LEDs Specifications System Status RJ45 Data Ports PoE, Link/Speed/Activity SFP Data Ports Link/Activity ESD/EMP Protection Specifications ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Shock and Vibration Specifications Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature Specifications Operating Temperature -10 to 50° C (14 to 122° F) Operating Humidity Specifications Operating Humidity 5 to 95% Noncondensing Certifications Specifications Certifications CE, FCC, IC PoE Specifications PoE Interface (8) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) Max. Passive PoE Wattage per Port 15W 24V Passive PoE Voltage Range 24V
