2x2 MIMO airMAX ac Sector AP

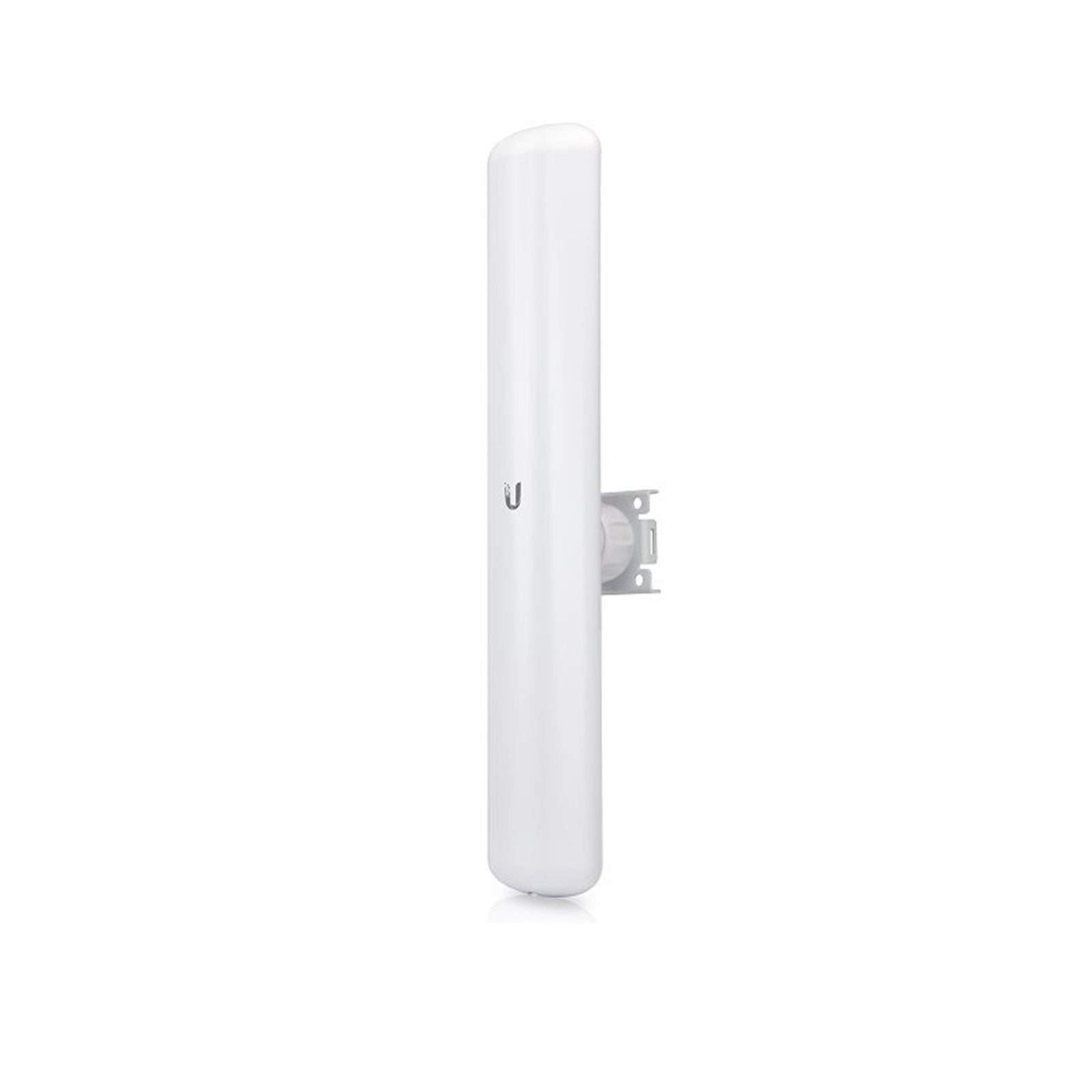

The LiteAP ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
airMAX ac Sector Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility
Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
| Features | Details |
|---|---|
| Antenna type | MIMO directional antenna |
| Certification | FCC, IC, CE |
| Mounting | Pole |
| Product colour | White |
| RoHS compliance | Yes |
| EU ECCN Code | N/A |
| UNSPSC Code | 43221729 |
| US ECCN Code | 5A992 |
| Harmonized System (HS) code | 85177100 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 70 °C |
| Package dimensions | Depth Verified: 10.4 cm Gross Weight Verified: 0.944 kg Height Verified: 7.9 cm Width Verified: 47.9 cm |

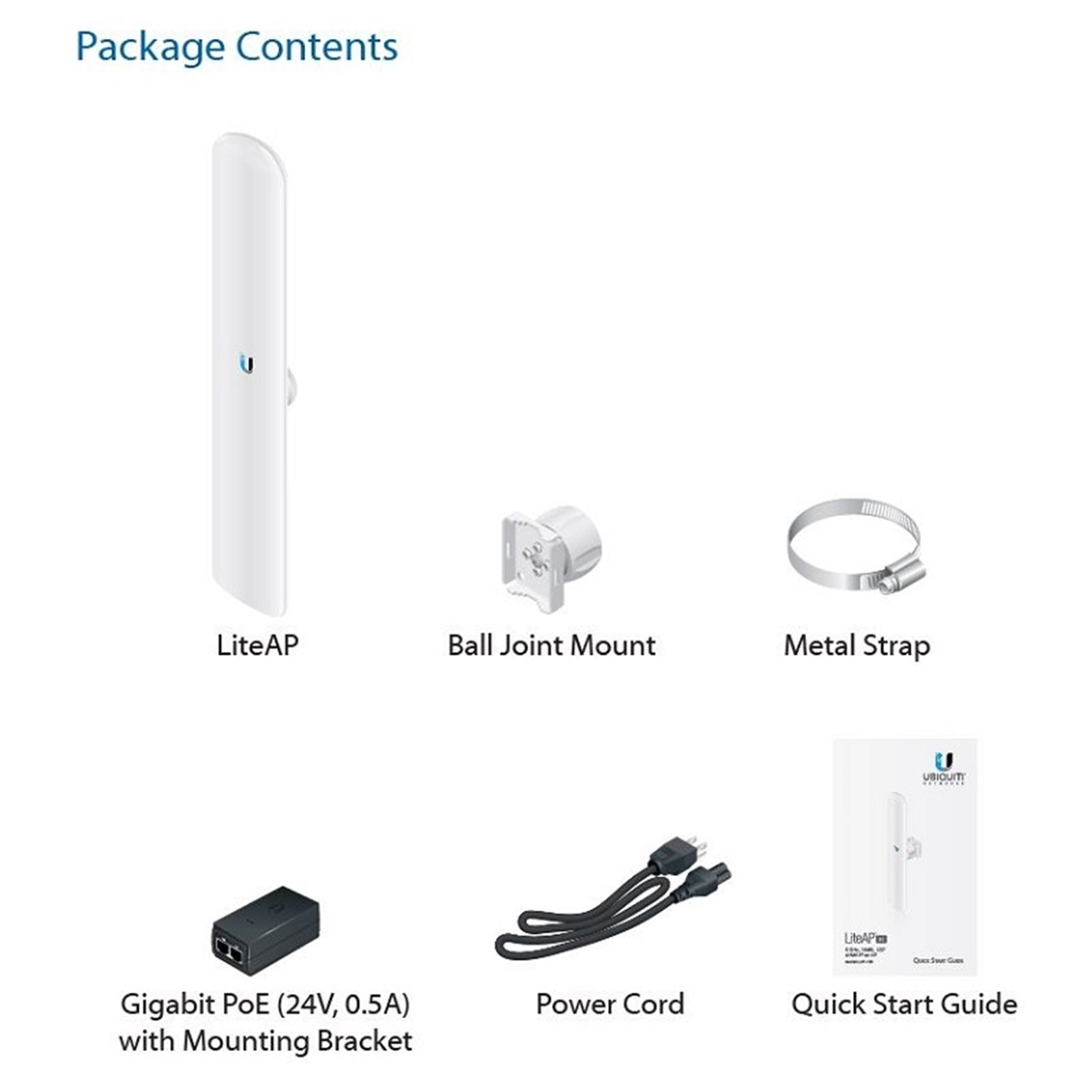

| Packaging content | Cables included: AC Mounting kit: Yes Quantity: 1 Quantity per pack: 1 pc(s) Quick installation guide: Yes |
| Performance | Antenna gain level (max): 16 dBi Bandwidth note: 5150 - 5875 MHz Built-in processor: Yes Cabling technology: 10/100/1000Base-T(X) Frequency band: 5 GHz Internal memory: 64 MB Networking type: 10/100/1000 Processor frequency: 533 MHz Processor model: Atheros MIPS 74Kc |
| Power | Power consumption (max): 7 Watt Power source type: PoE |
| Product dimensions | Net Weight (Product, kg): 0.42 kg Product Depth: 5.44 cm Product Height: 45.23 cm Product Width: 7.87 cm |
| Technical details | Harmonized System (HS) code: 85177100 Sustainability certificates: RoHS |
| Vendor information | Brand Name: Ubiquiti |
| Warranty | 2 Year(s) |
| Categories | Main category: Network Subcategory: Wireless Network Subcategory: Passive Antennas |
