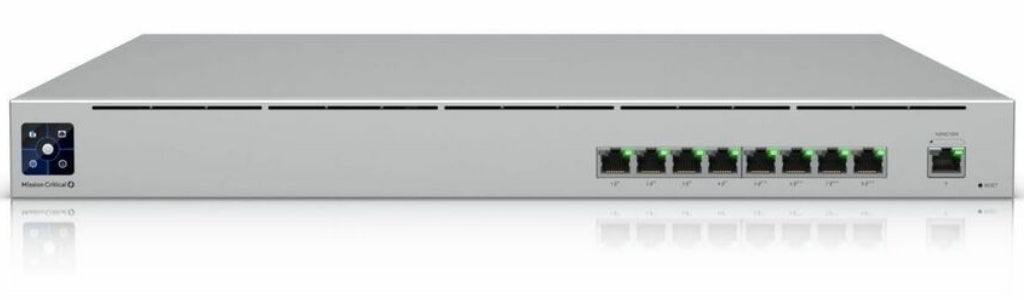

Ubiquiti UniFi Switch Mission Critical (USW-Mission-Critical)

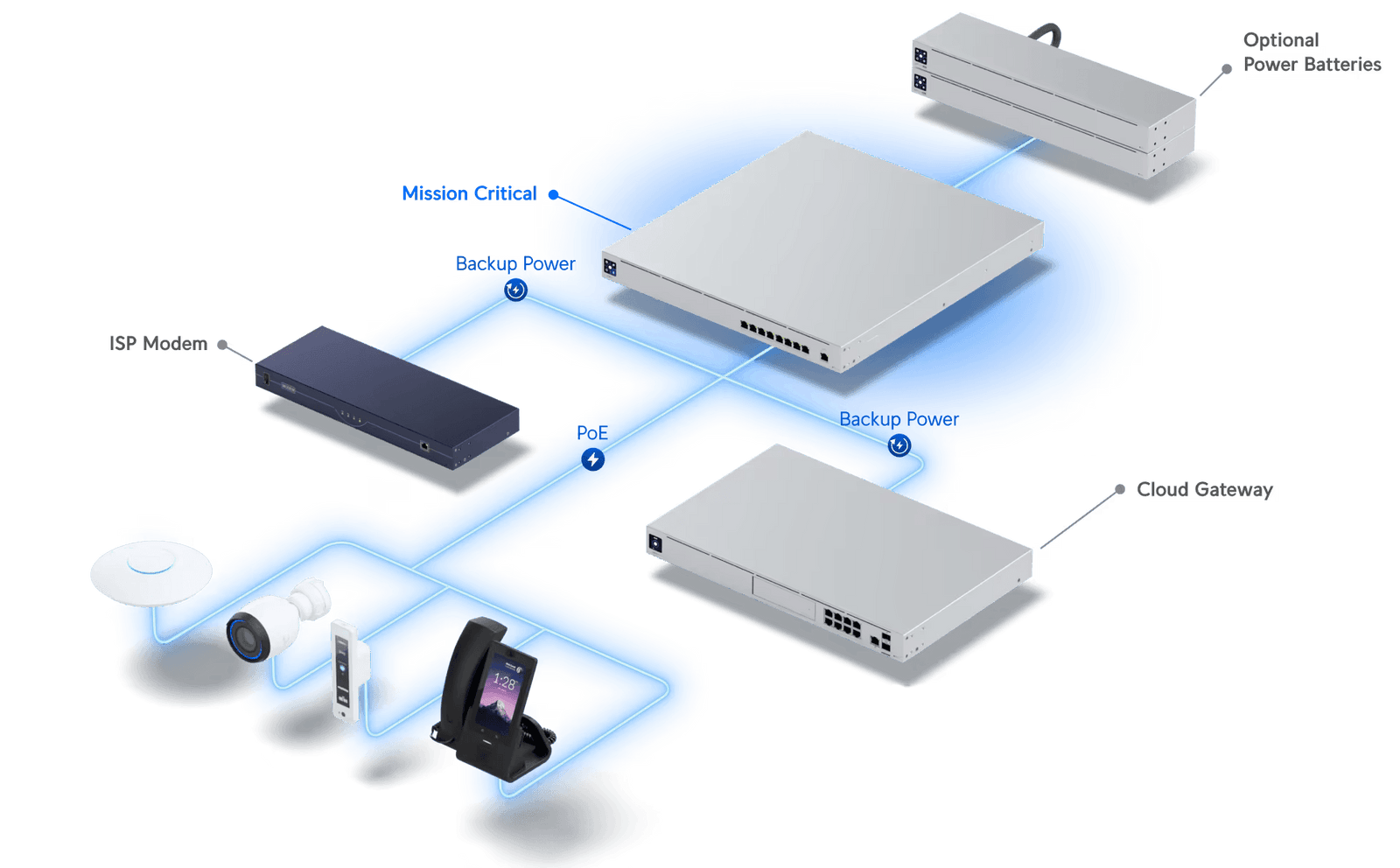

The Ubiquiti UniFi Mission Critical is a switch with an egrated 368Wh Lithium-ion battery. The USW-Mission-Critical is capible of providing uninterruptible power for 8 devices.
USW-Mission-Critical Key Features
(4) GbE PoE+, (4) GbE PoE++ ports
(1) GbE port
(2) 230V AC outputs; 120W total PoE available
Battery backup power system
Internal battery 368Wh
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442 x 480 x 44 mm |
| Weight (Without mount) | 9 kg |
| Weight (With mount) | 9.2 kg |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |

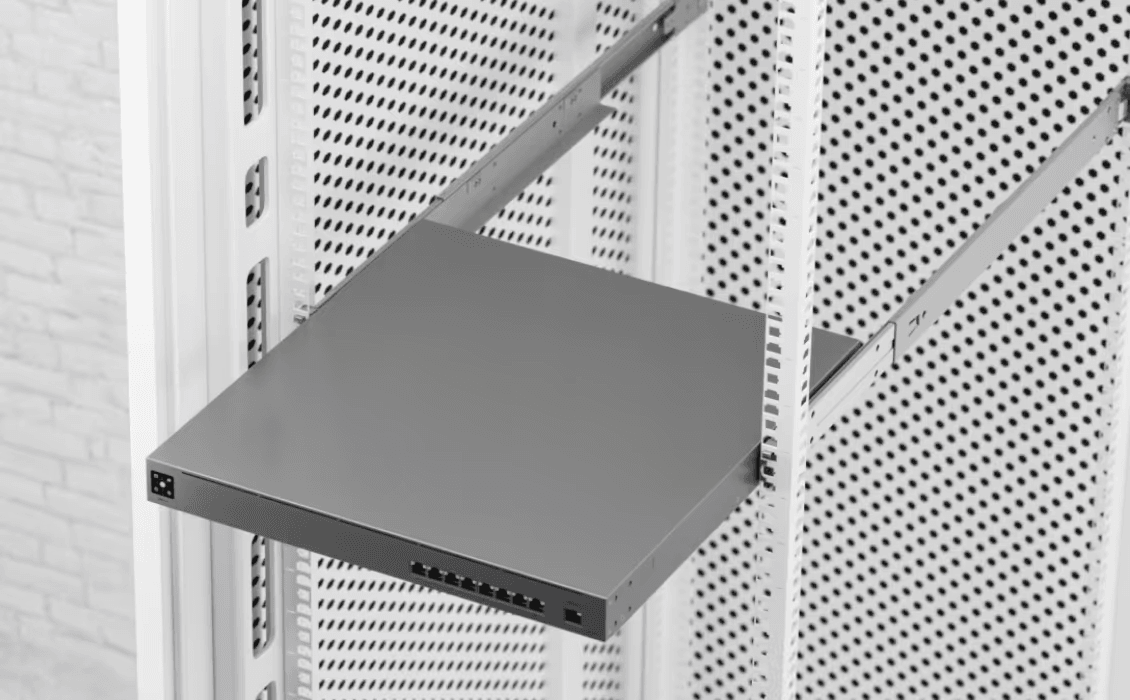

| Supported rack depth | 700 to 1000 mm |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (9) GbE RJ45 ports |
| PoE interface | (4) PoE/PoE+, (4) 60W PoE++ |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 26.78 Mpps |
| Power method | (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz |
| Switching Features | |
| Layer 2 features | IGMP snooping, STP / RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs |
| LEDs | |
| Ethernet | Green: 1 Gbps, Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+/PoE++ |
| Power output | Blue: active |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
