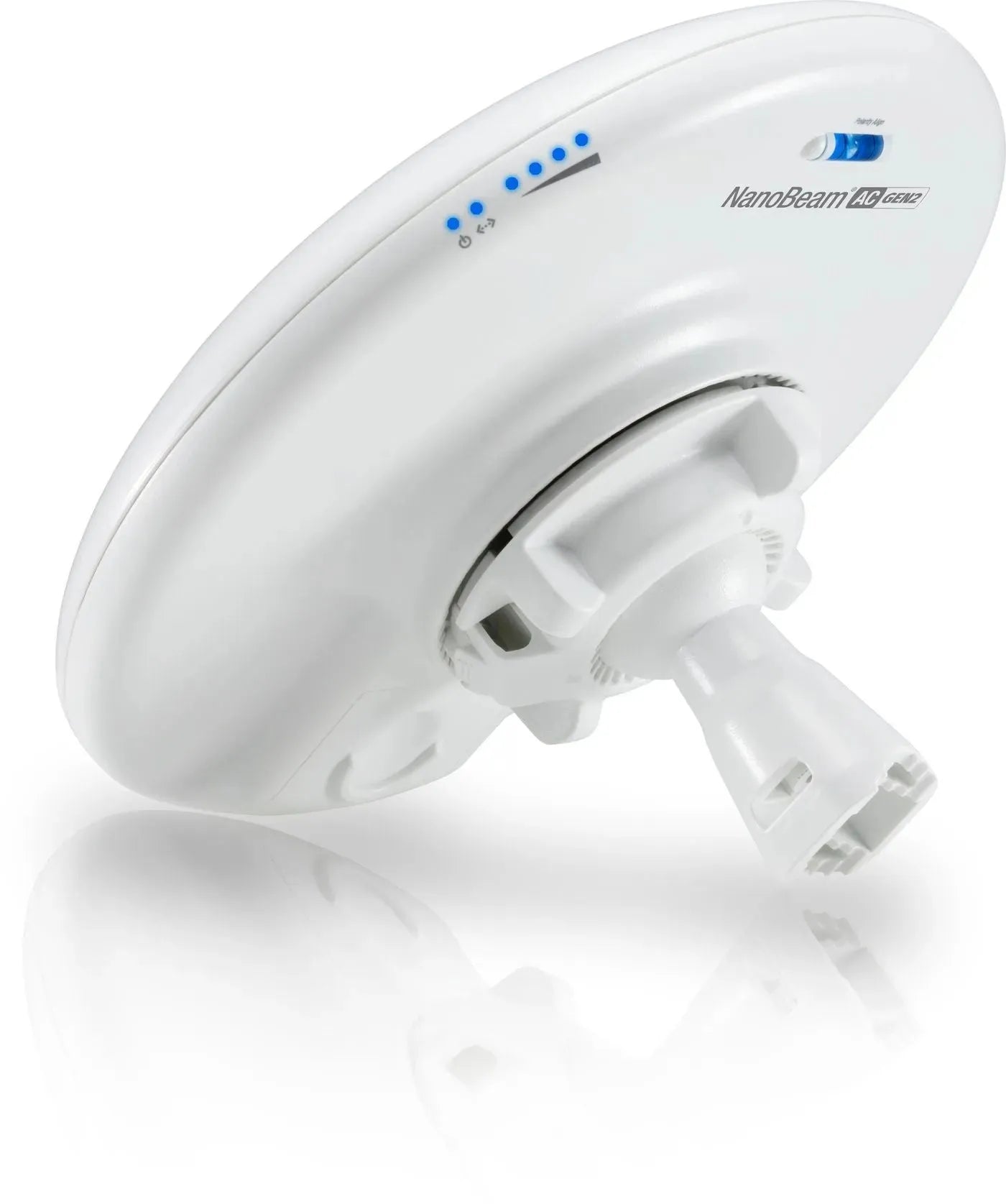

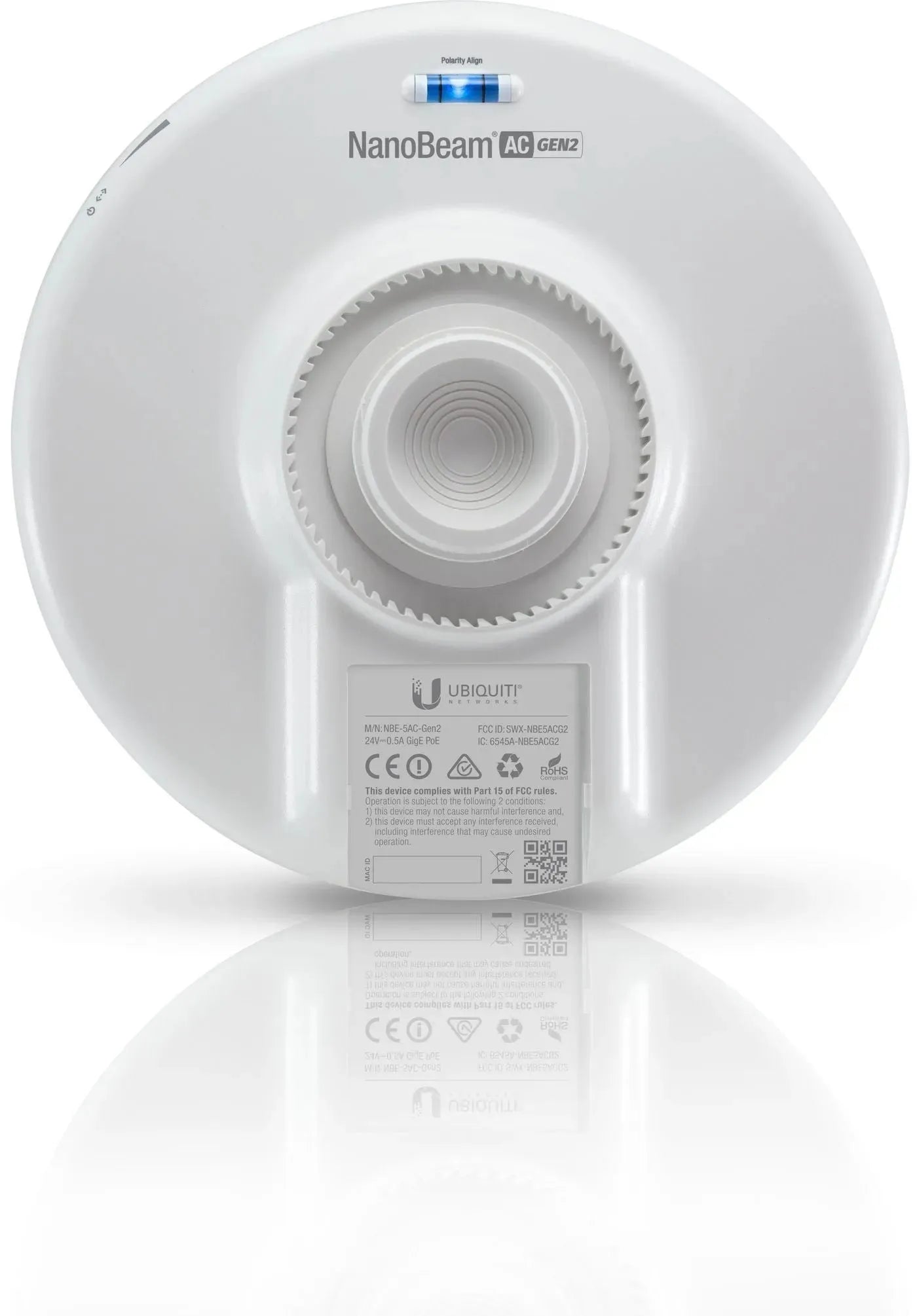

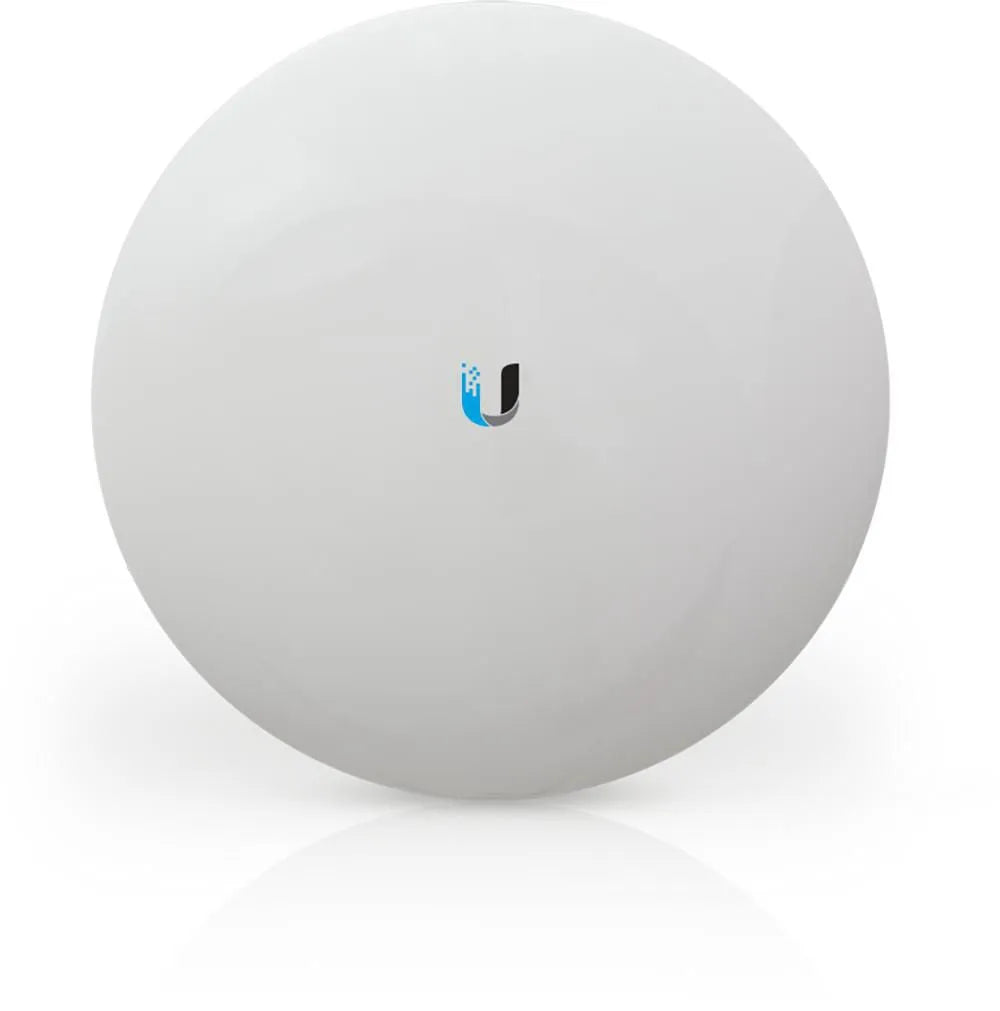

Ubiquiti NanoBeam 5AC Gen 2 High Performance airMAX Outdoor Wireless AC CPE Bridge
Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam® AC features enhanced protection against ESD events.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna ?Beam? Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Plug and Play Installation

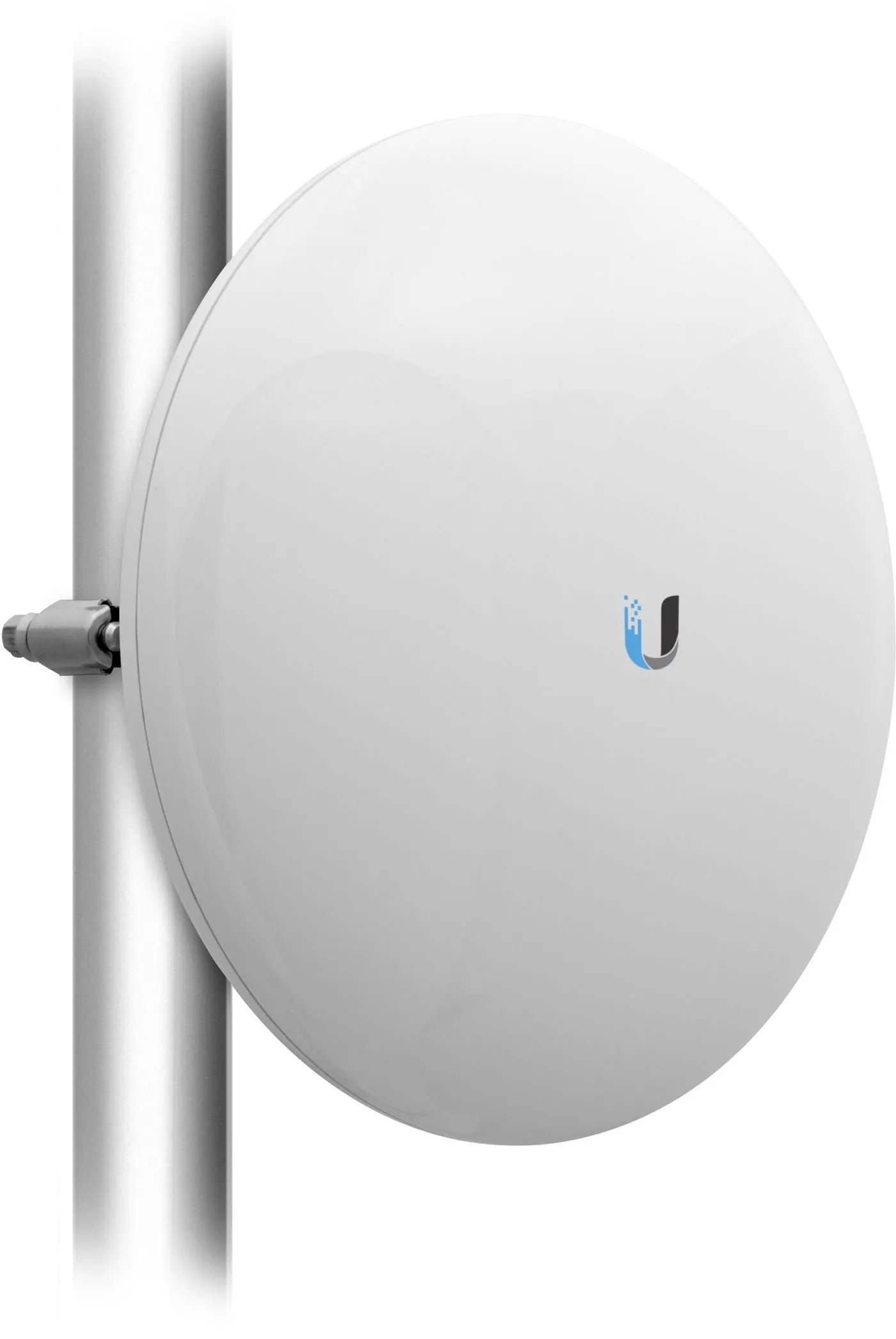

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
-
| Category |
Specification |
| Antenna |
|
| Antenna gain level (max) |
19 dBi |
| Certificates |
|
| Certification |
CE, FCC, IC, RoHS |
| Data transmission |
|
| Max data transfer rate |
450 Mbit/s |
| Max transfer distance |
15000 m |
| Features |
|
| Internal memory |
128 MB |
| LED indicators |
LAN/Power/Signal strength |
| Material |
Plastic |
| Mounting type |
Pole/Wall |
| Product colour |
White |
| Product type |
Network bridge |
| Reset button |
Yes |
| Surge protection |
Yes |
| Legal Information |
|
| EU ECCN Code |
N/A |
| UNSPSC Code |
43222608 |
| US ECCN Code |
5A992 |
| Logistics data |
|
| Harmonized System Code |
85176990 |
| Management features |
|
| Web-based management |
Yes |
| Memory |
|
| Flash memory |
8 MB |
| RAM capacity |
128 MB |
| RAM type |
DDR2 |
| Network |
|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10/100/1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Operational conditions |
|
| Operating humidity (H-H) |
5 - 95 % |
| Operating temperature (F) |
-40 - 176 °F |
| Operating temperature (C) |
-40 - 80 °C |
| Package dimensions |
|
| Depth |
22.5 cm |
| Gross Weight |
1.118 kg |
| Height |
9.8 cm |
| Width |
24.1 cm |
| Packaging content |
|
| Cables included |
AC |
| Mounting bracket(s) |
Yes |
| PoE+ Injector(s) |
Yes |
| Quantity per pack |
1 pc(s) |
| Ports & interfaces |
|
| Ethernet LAN (RJ-45) |
2 |
| Power |
|
| DC output current |
0.5 A |
| DC output voltage |
24 V |
| Power consumption (max) |
8.5 Watt |
| Power over Ethernet (PoE) |
Yes |
| Power source type |
PoE |
| Processor |
|
| Processor family |
Atheros |
| Processor frequency |
720 MHz |
| Processor model |
MIPS 74Kc |
| Product dimensions |
|
| Net Weight |
0.53 kg |
| Depth |
12.5 cm |
| Height |
18.9 cm |
| Width |
18.9 cm |
| Security |
|
| Security algorithms |
WPA2 |
| Technical details |
|
| Sustainability certificates |
CE/RoHS |
| Vendor information |
|
| Brand Name |
Ubiquiti |
| Warranty |
2 Year(s) |
| Weight & dimensions |
|
| Dimensions (WxDxH) |
189 x 189 x 125 mm |
| Wireless LAN features |
|
| Frequency band |
5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
| Modulation |
16-QAM/256-QAM/64-QAM/BPSK/QPSK |
| Wi-Fi |
Yes |
