The indoor/outdoor NanoStation AC loco is a compact, high-performance CPEs featuring airMAX AC technology and a dedicated Wi-Fi radio for management.
Sleek Industrial Design
The NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.
Management Wi-Fi Radio
Each NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS
airOS provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| Category | Details |
|---|---|
| Mechanical | |
| Dimensions | 179 x 77.5 x 59.1 mm (7.1 x 3.1 x 2.3") |
| Weight | 180 g (6.4 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |

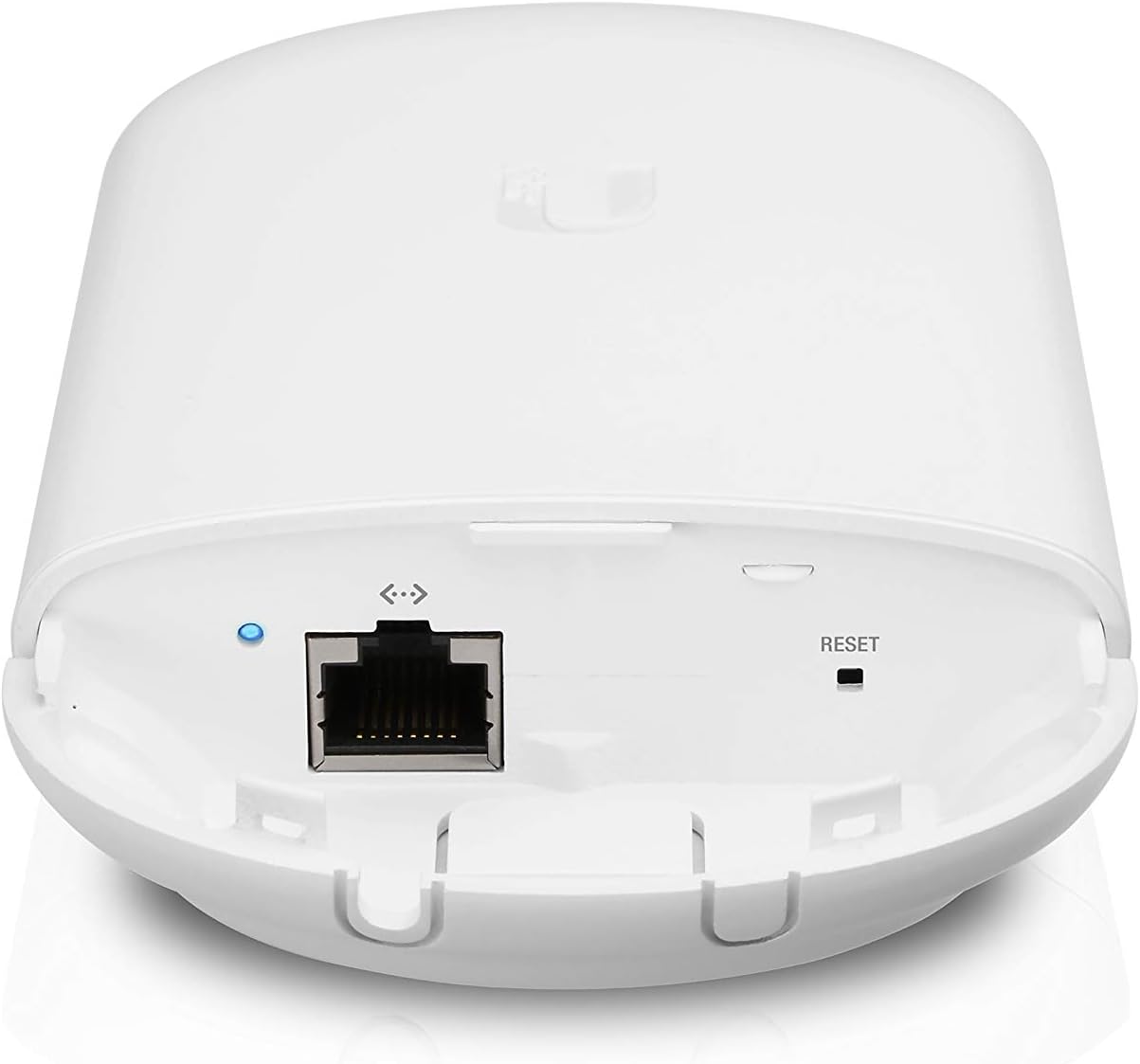

| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE supply (Not included) |
| Supported voltage range | 22–27V DC |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Ambient operating temp. | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA | |
| U-NII-1: 5150-5250 MHz | |
| U-NII-2A: 5250-5350 MHz | |
| U-NII-2C: 5240-5725 MHz | |
| U-NII-3: 5725-5850 MHz | |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
