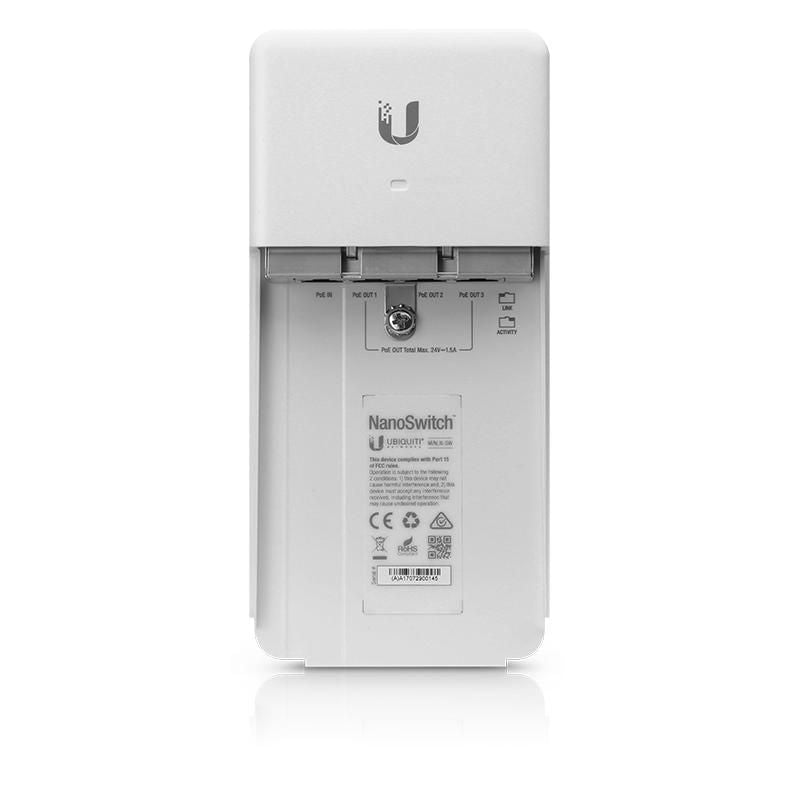

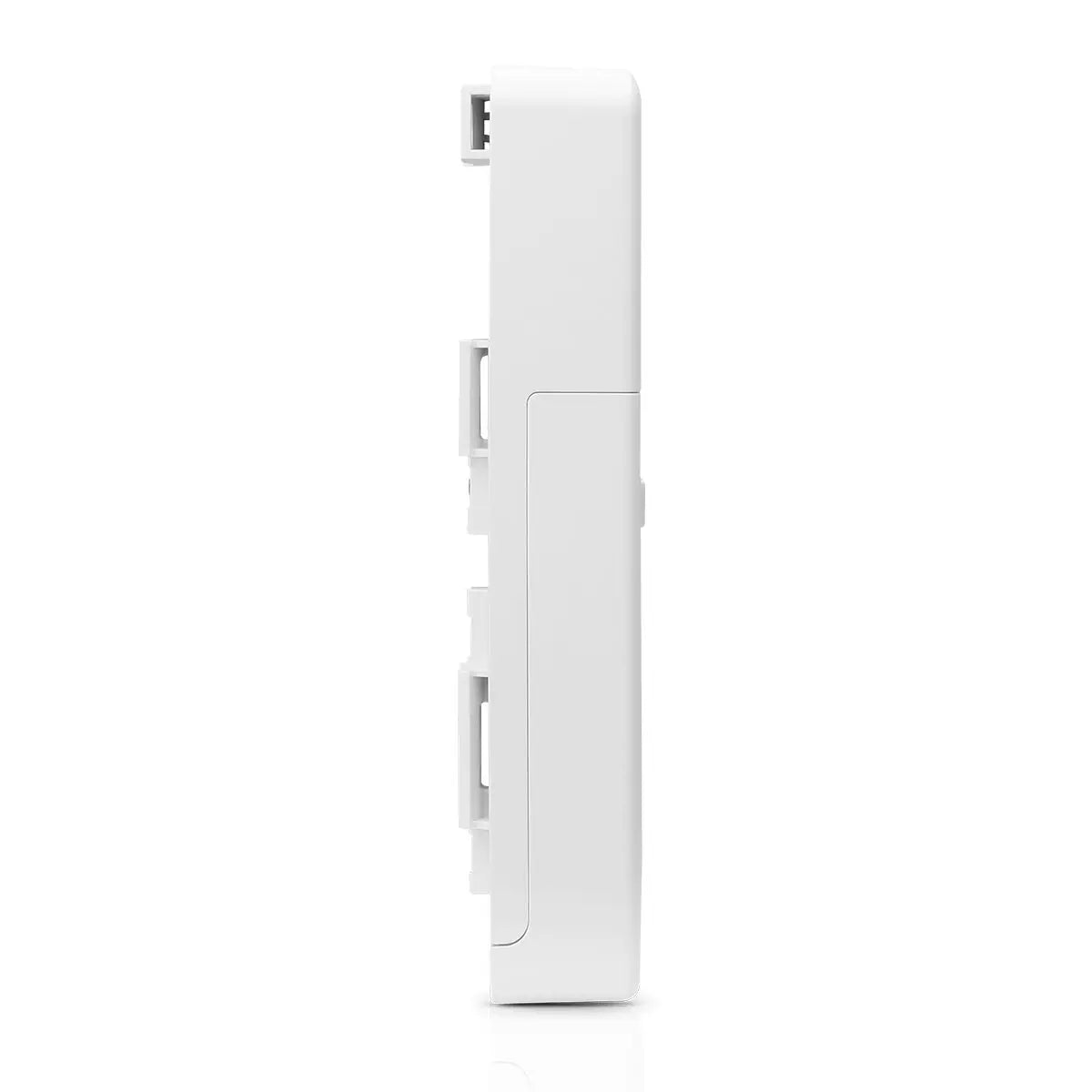

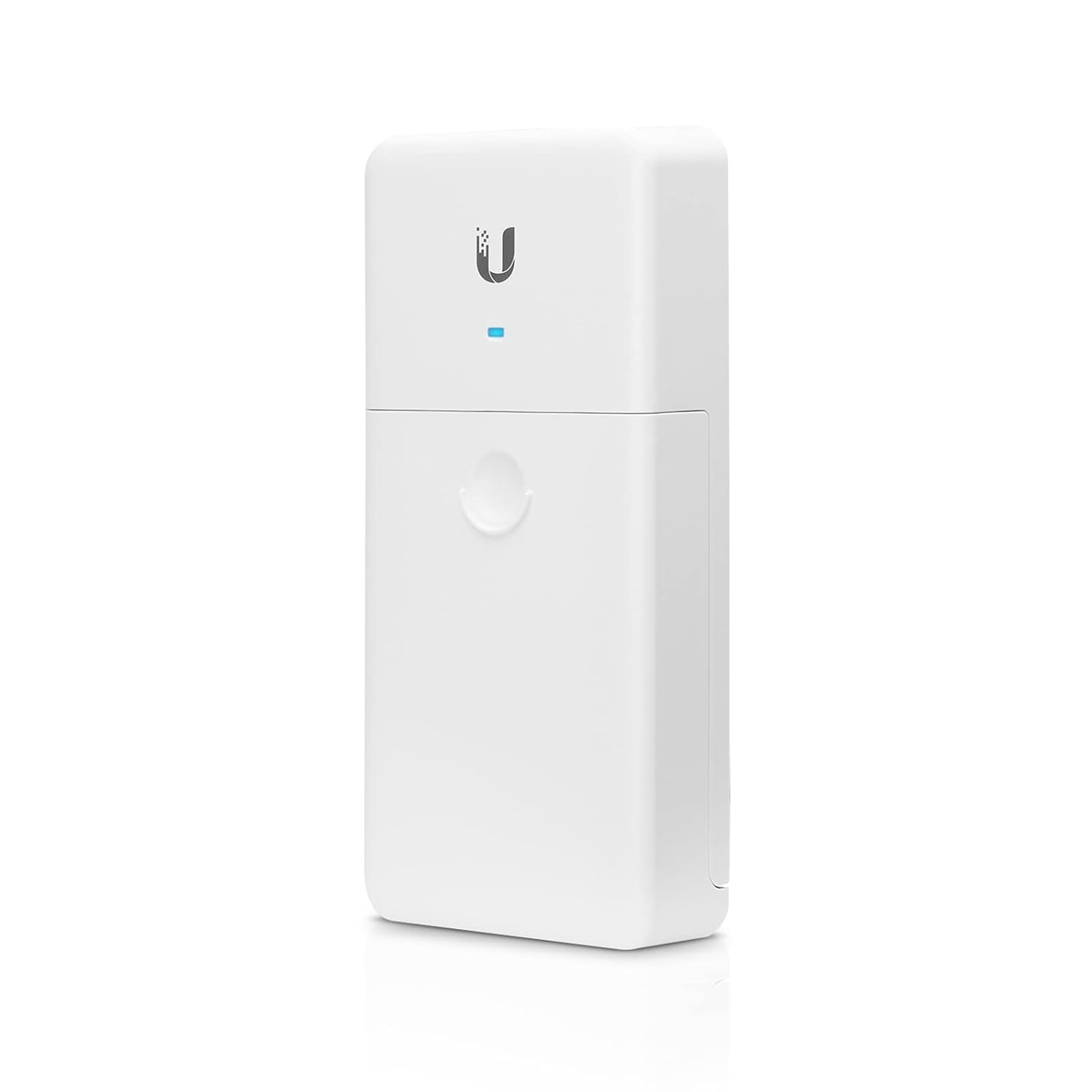

Introducing the Ubiquiti N-SW NanoSwitch Outdoor 4-Port PoE Passthrough Switch, an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the NanoSwitch supports up to 4 Gbps. Featuring a durable, weatherproof form factor, the Ubiquiti Outdoor NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
Key Features
One (1) Gigabit 24V Passive PoE In Port.
Three (3) Gigabit 24V Passive PoE Out Ports.
Outdoor, Weather-Resistant Enclosure.
Can be easily mounted on a pole or wall.
LEDs for Speed, Link and Activity.
| Feature | Specification |
|---|---|
| Dimensions | 196 x 93 x 32 mm (7.7 x 3.7 x 1.3") |
| Weight | 269 g (9.5 oz) |
| Material | White polycarbonate |

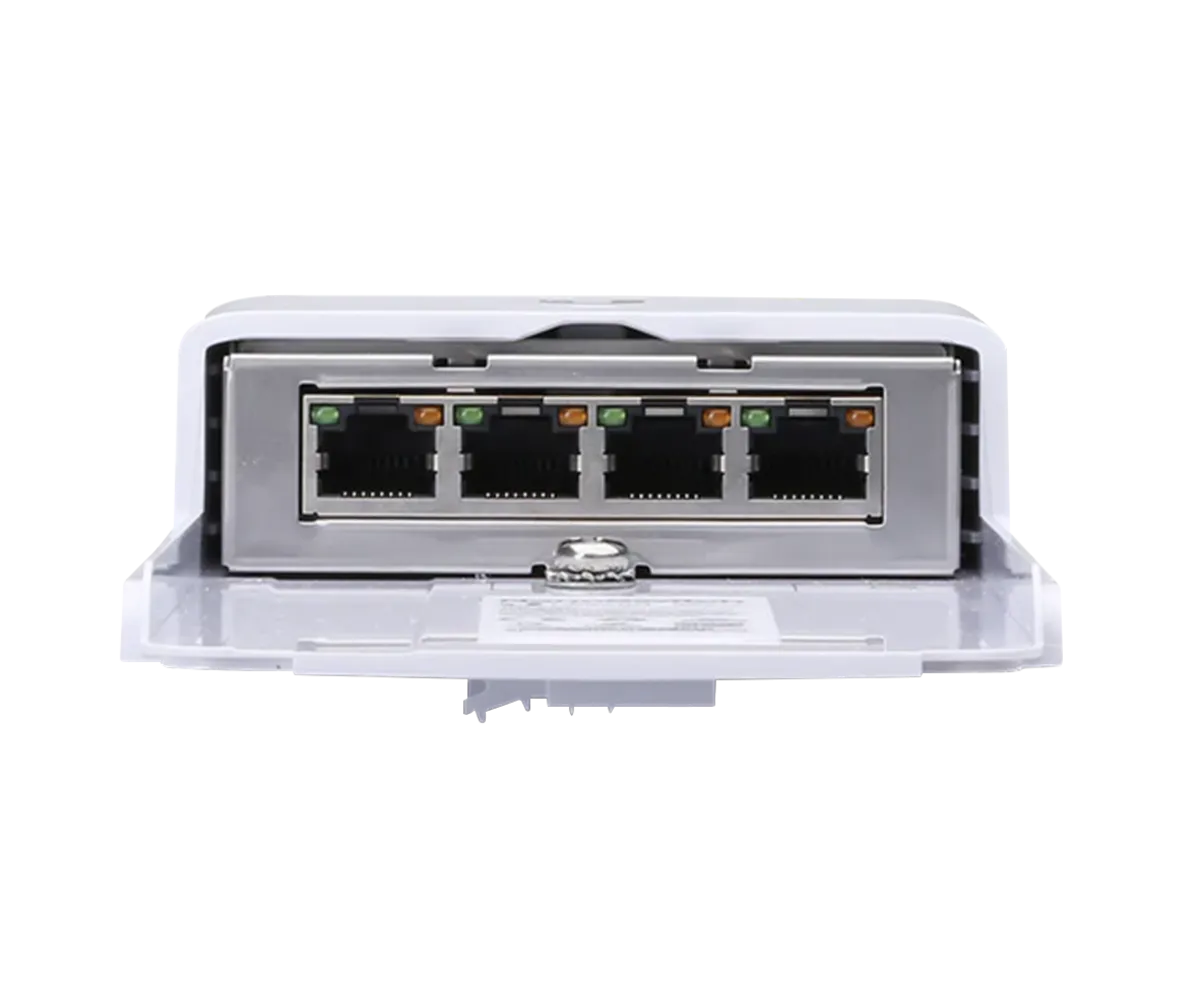

| Networking | (4) GbE RJ45 ports [(1) PoE-in, (3) PoE passthrough] |
| Line Rate | 4 Gbps |
| Power Method | Passive 24V, 2-pair PoE-in |
| Voltage Range | 21.6–30V |
| Power Consumption | Typical: 1.5W, Max.: 30W |
| Power Supply | POE-24-30W-G PoE adapter (Not included) |
| ESD/EMP Protection | Air/contact: ± 24 kV |
| PoE per Port | 24V, 2-pair, 1A per port (24W) |
| Total PoE Max. | 24V, 2-pair, 1A for 3 ports (30W) |
| LEDs | Speed/Link/Activity (All ports) |
| Temperature | -30 to 70°C (-22 to 158°F) |
| Humidity | 5 to 95% noncondensing |
