2x2 MIMO airMAX® ac Sector AP

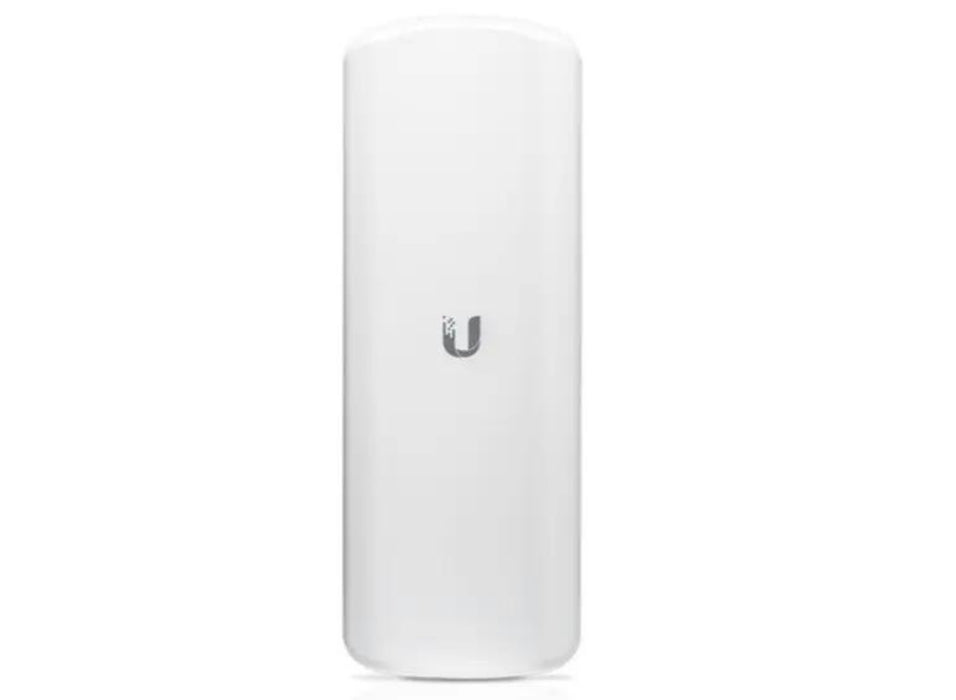

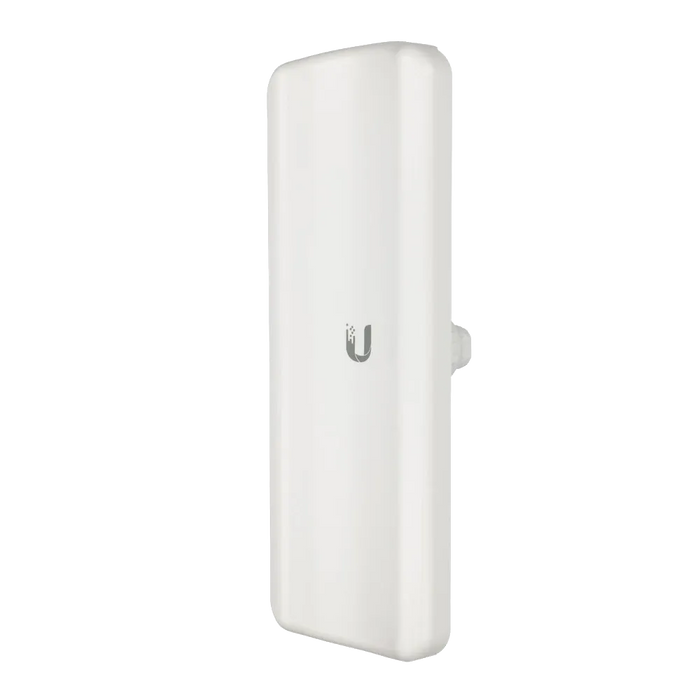

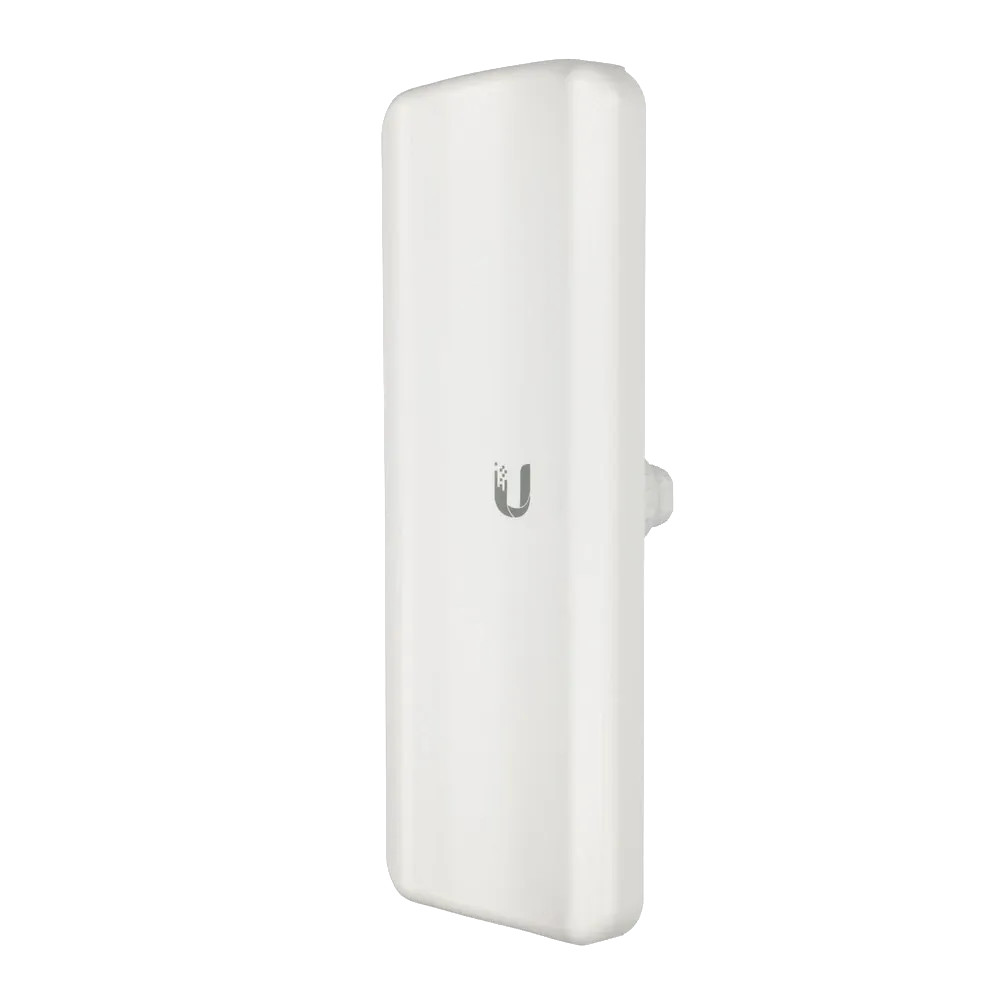

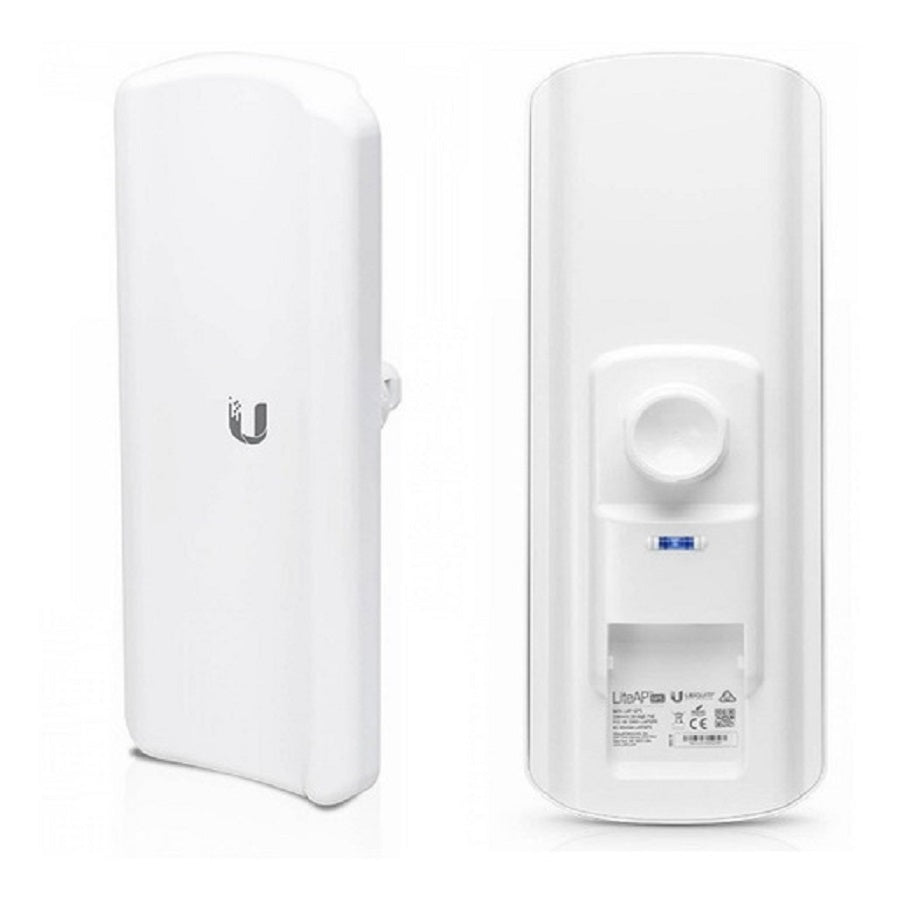

The LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.
Coverage
The LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
GPS Synchronization
LiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Now with airOS®
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Lightweight and Sleek Design
The LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
Installation Flexibility

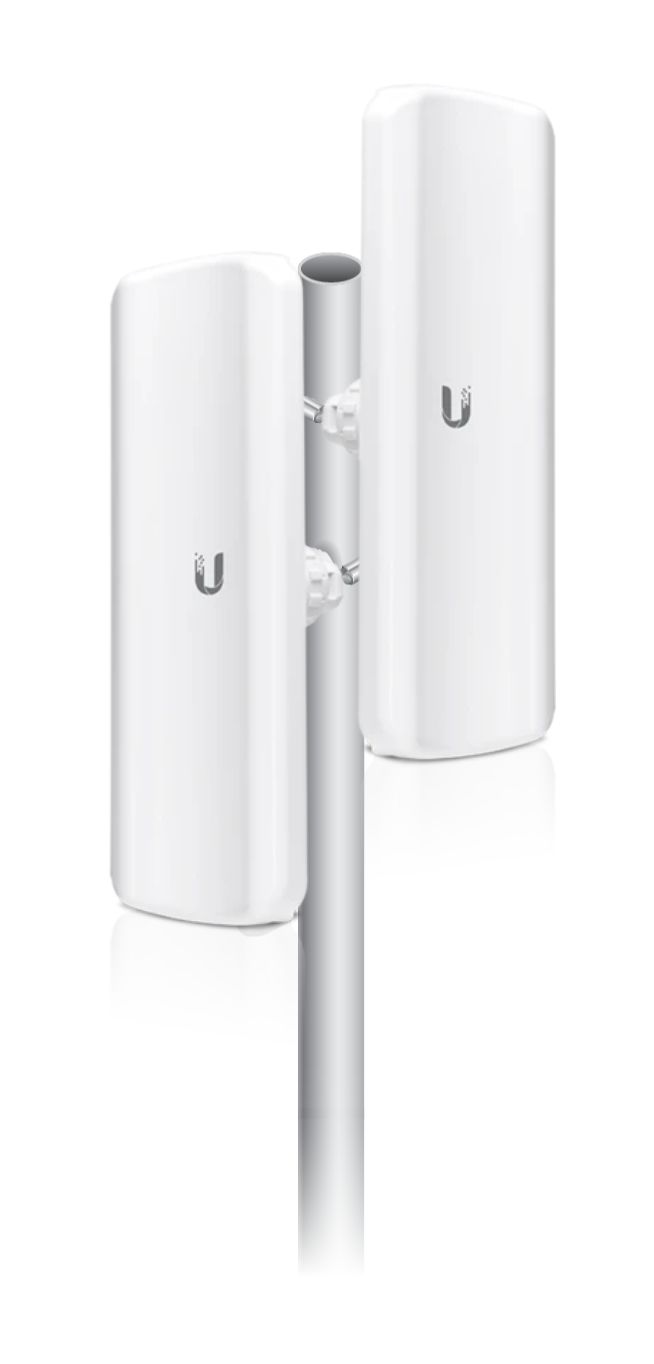

Featuring the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
| Category | Description |
|---|---|
| Features | Antenna type: MIMO directional antenna |
| Certification: FCC, IC, CE | |
| Mounting: Pole | |
| Product colour: White | |
| RoHS compliance: Yes | |
| Legal Information | EU ECCN Code: N/A |
| UNSPSC Code: 43221729 | |
| US ECCN Code: 5A992 | |
| Logistics data | Harmonized System (HS) code: 85177100 |
| Package dimensions (verified): | |
| - Depth Verified: 16.1 cm | |
| - Gross Weight Verified: 1.344 kg | |
| - Height Verified: 9.1 cm | |
| - Width Verified: 39 cm | |
| Packaging content: | |
| - Cables included: AC | |
| - Mounting kit: Yes | |
| - Quantity: 1 | |
| - Quantity per pack: 1 pc(s) | |
| - Quick installation guide: Yes | |
| Performance | Antenna gain level (max): 17 dBi |
| Bandwidth note: 5150 - 5875 MHz | |
| Built-in processor: Yes | |
| Cabling technology: 10/100/1000Base-T(X) | |
| Frequency band: 5 GHz | |
| Internal memory: 64 MB | |
| Internal memory type: DDR2 | |
| Networking type: 10/100/1000 | |
| Processor frequency: 533 MHz | |
| Processor model: Atheros MIPS 74Kc | |
| Power | Input voltage: 24 V |
| Power consumption (max): 7.1 Watt | |
| Power source type: AC/PoE | |
| Product dimensions | Net Weight (Product, kg): 0.75 kg |
| Product Depth: 12.46 cm | |
| Product Height: 36.1 cm | |
| Product Width: 7.13 cm | |
| Technical details | Harmonized System (HS) code: 85177100 |
| Sustainability certificates | RoHS |
| Vendor information | Brand Name: Ubiquiti |
| Warranty | 2 Year(s) |
| Categories | Main category: Network |
| Subcategory: Wireless Network | |
| Subcategory: Passive Antennas |
