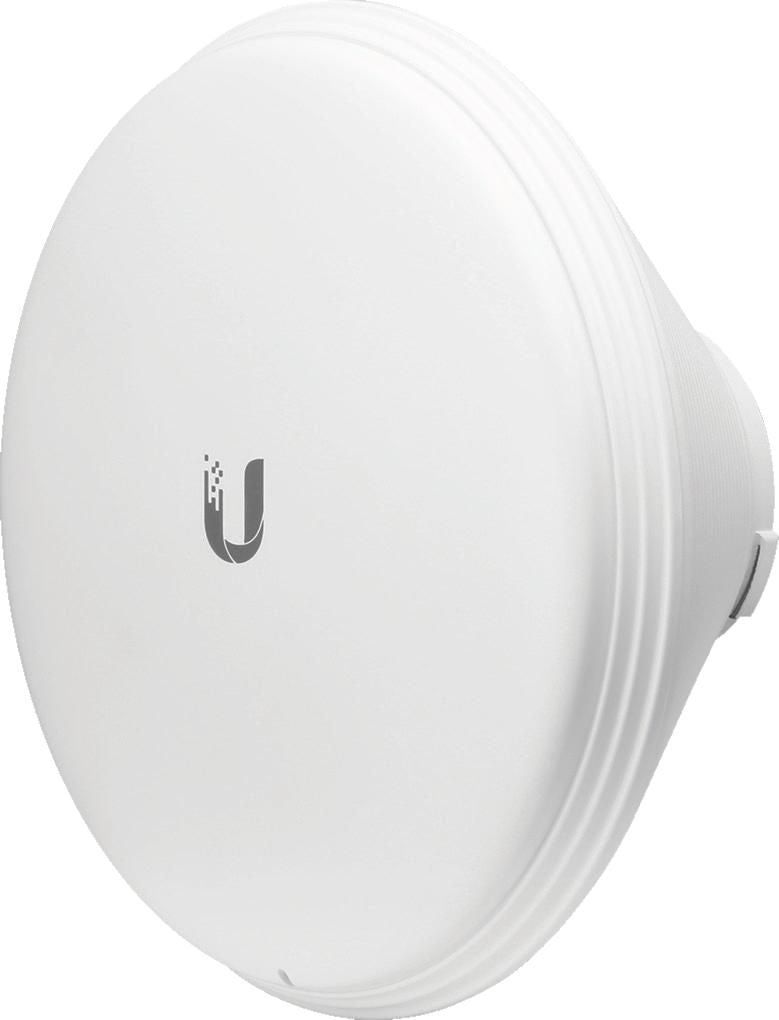

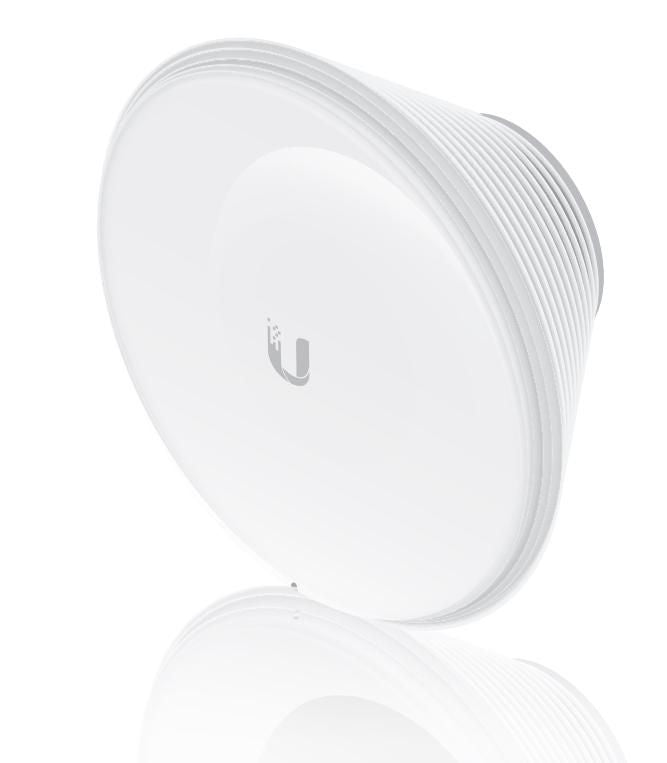

5 GHz Beamwidth Horn Antenna
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
Symmetrical horn antenna
30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
| Feature | Detail |
|---|---|
| Type | Horn |
| Gain | 15.5 dBi |
| Frequency | 5.15-5.85 GHz |
| Beamwidth | 45° (Horizontal/Vertical) |
| Polarization | Dual |
| Color | White |
| Wind Speed | Up to 200 km/h |
| Weight | 0.7 kg |
| Dimensions | Ø17.5 cm x 9.6 cm |
| Warranty | 2 Years |
| Category | Ubiquiti Passive Horn Antenna |
