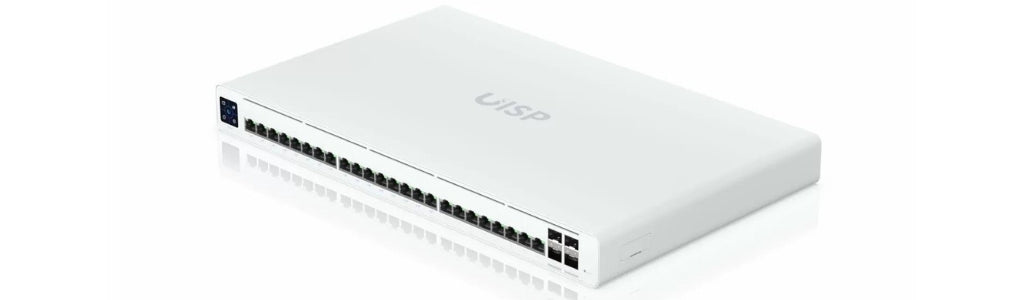

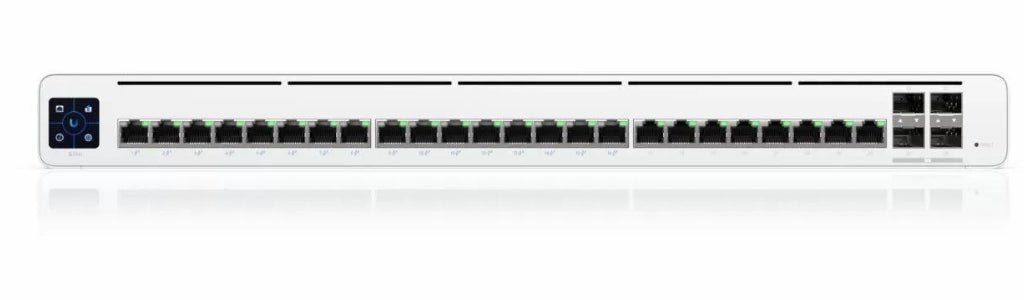

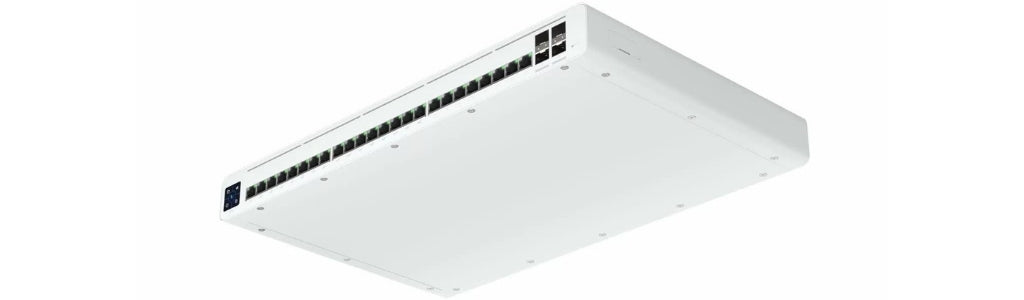

The Ubiquiti UISP Switch Pro is a 220W (27V) PoE switch with (24) GbE RJ45 ports, including (16) with 27V passive PoE, and (4) 10G SFP+ ports. More info coming soon.
Ubiquiti UISP-S-Pro Key Features
(24) GbE RJ45 ports, including (16) with 27V passive PoE output
(4) SFP+ ports
220W (27V) total PoE availability, 15W/port (2-pair) / 30W/port (4-pair)
Port isolation, speed limiting, and DHCP snooping functionality
1.3" LCM color touchscreen
Additional Power TransPort input for DC redundancy
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
| Weight | 4 kg (8.8 lb) |
| Enclosure materials | SGCC steel, polycarbonate/acrylonitrile butadiene styrene |
| Hardware | |
| Networking interface | (24) GbE RJ45 LAN ports |
| (4) 1/10G SFP+ ports | |
| Management interface | Ethernet In-band |
| Bluetooth | |
| Total non-blocking throughput | 64 Gbps |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| Power method | (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz |
| (1) Power TransPort DC input 27V DC, 9.3A | |
| Power supply | AC/DC, Internal, 250W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W (Excluding PoE output) |
| ESD/EMP protection | Air: ± 15 kV, contact: ± 8 kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| PoE interface | (16) 27V passive PoE: 2-pair (Pins 4, 5+/7, 8-) or 4-pair (Pins 1, 2, 4, 5+/3, 6, 7, 8-); Ports 1 to 16 |
| Total available PoE | 220W |
| Max. passive PoE wattage per port | 30W/27V DC |
| Passive PoE voltage range | 27V DC |
| LEDs | |
| RJ45 data ports | PoE |
| Speed/link/activity | |
| SFP+ data ports | Speed/link/activity |
| Software | |
| Management application | UISP: Version 1.5.7 and later |
