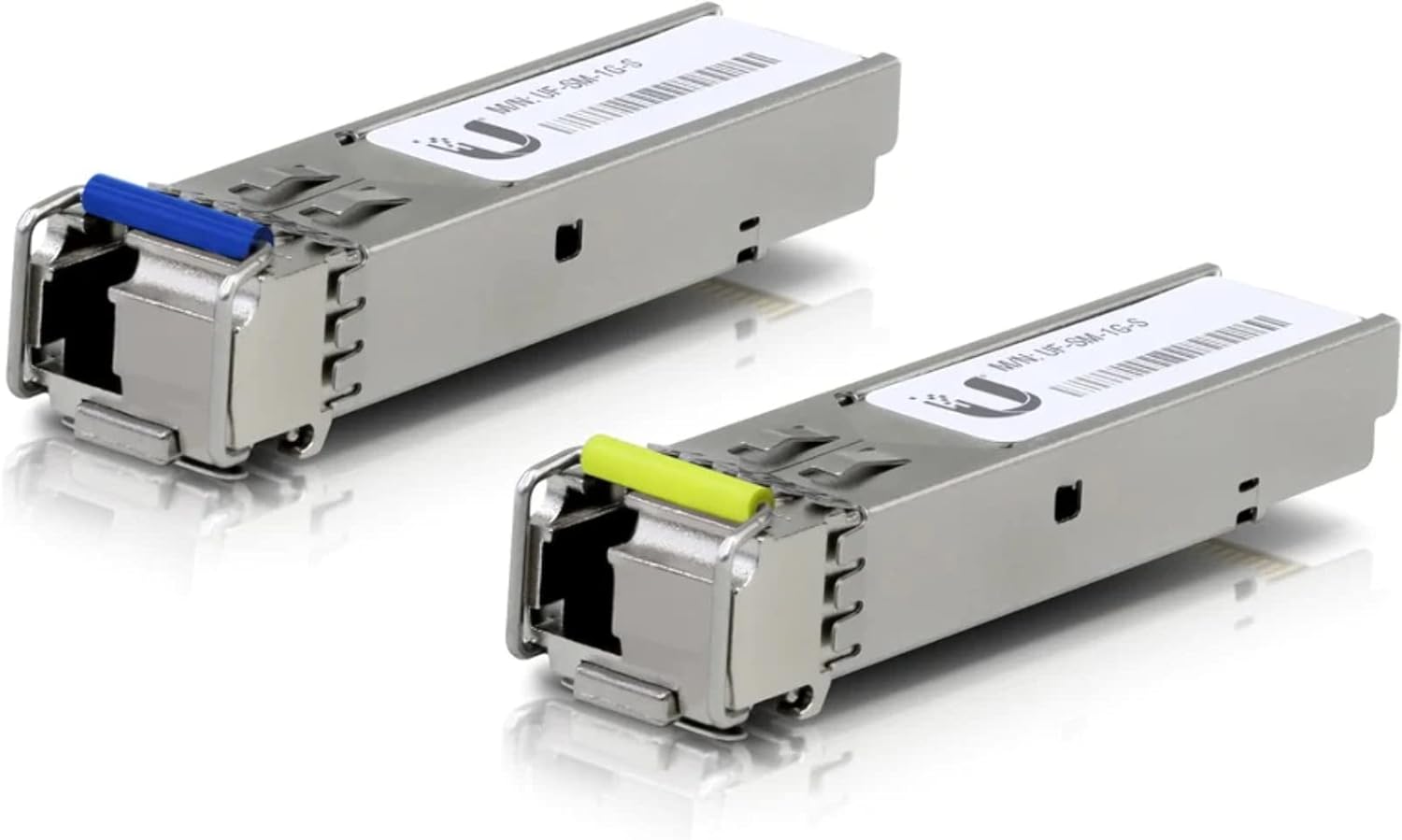

Ubiquiti U-Fiber UF-SM-1G-S SFP/SFP+ Module (2 Pack)
The Ubiquiti U-Fiber UF-SM-1G-S SFP/SFP+ Module allows you to upgrade or expand specific Ubiquiti switches for faster network operations. This Gigabit SFP Transceiver Module kit is compatible with all Ubiquiti products that support the UF-SM-1G-S SFP Transceiver.
Ubiquiti U-Fiber UF-SM-1G-S Key Features
TX Wavelength Blue 1310 nm Yellow 1550 nm
RX Wavelength Blue 1550 nm Yellow 1310 nm
Data Rate 1.25 Gbps SFP
Cable Distance 3 km
UACC-OM-SM-1G-S-2
Outdoor Use
For long-distance single-mode runs, use the UF-SM-1G-S for distances of up to 3 km at 1 Gbps. To protect DC power and fiber, deploy EdgePoint with EdgePower.
Deploy a BiDi (BiDirectional) model, UF-SM-1G-S, to maximise re-use of existing infrastructure. You must deploy a BiDi model as a paired set of modules because the pair uses two different wavelengths, upstream and downstream, on a single fiber.
| Feature | Description |
|---|---|
| Product colour | Stainless steel |
| UNSPSC Code | 43201553 |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Gross Weight (Package, kg) | 0.07 kg |
| Number of products included | 2 pc(s) |
| Fiber optic connector | LC |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Maximum transfer distance | 3000 m |
| Rx wavelength (max) | 1550 nm |
| Rx wavelength (min) | 1310 nm |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Tx wavelength (max) | 1550 nm |
| Tx wavelength (min) | 1310 nm |
| Net Weight (Product, kg) | 0.02 kg |
| Brand Name | Ubiquiti |
| Warranty | 2 Year(s) |
