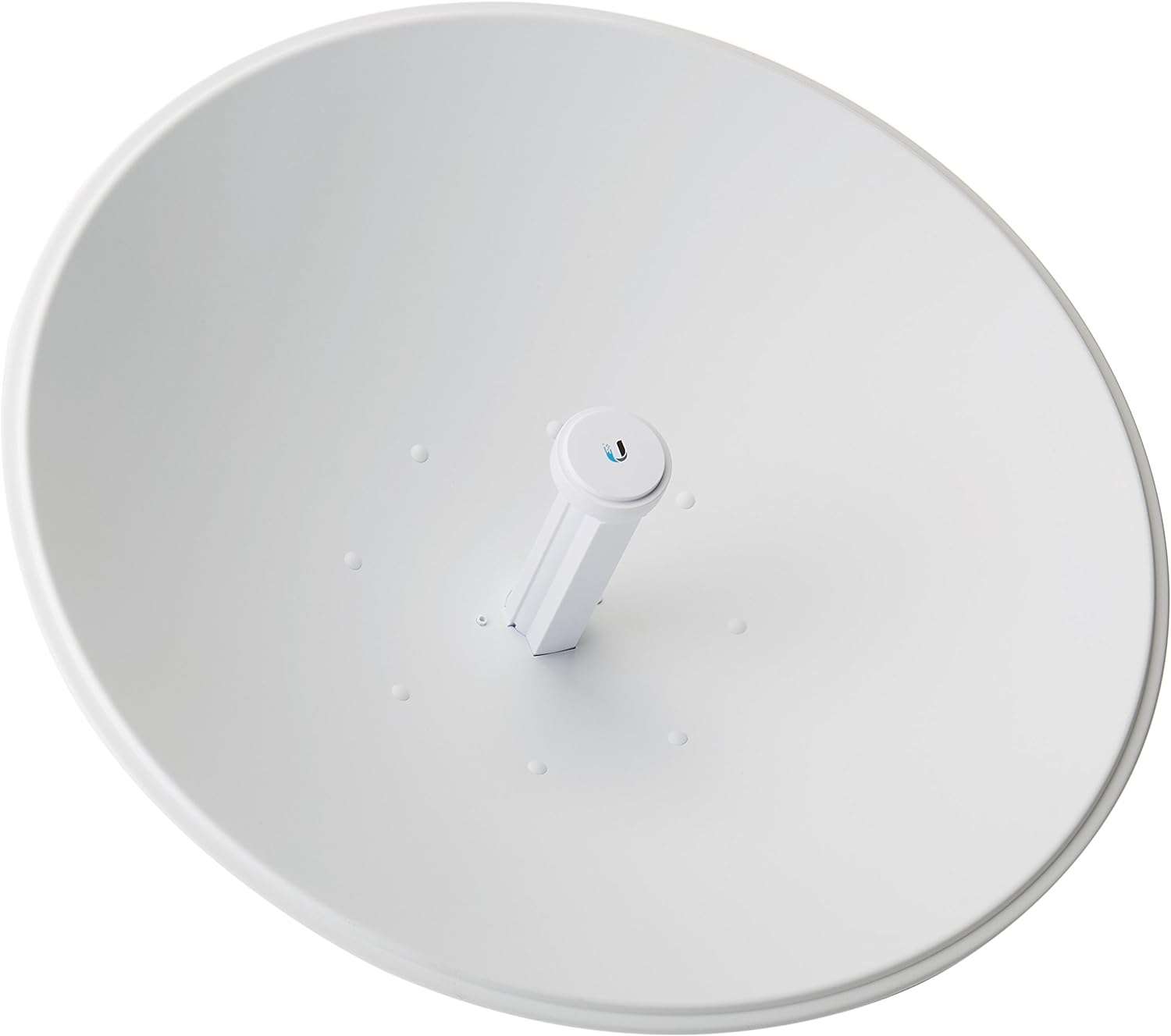

Ubiquiti PowerBeam PBE-5AC-620 airMAX AC Bridge
The Ubiquiti PowerBeam AC PBE-5AC-620 Bridge is a high performance, airMAX AC powered CPE (Customer Premises Equipment). Advanced features include improved noise immunity, innovative mechanical design and 5 GHz frequency and throughput. The ability to block and filter out noise is perfect for crowded areas with other RF signals of the same or similar frequency.
PowerBeam AC PBE-5AC-620 Key Features
Frequency: 5 GHz
Throughput: 450+ Mbps
Range: 30+ km
Uniform Beamwidth Maximises Noise Immunity
Innovative Mechanical Design
High-Speed Processor for Superior Performance
Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam AC PBE-5AC-620 is ideal for CPE deployments requiring maximum performance as it directs RF energy through a tighter beamwidth.
InnerFeed Technology
Ubiquiti’s InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. This feature, coupled with its high-performance and innovative mechanical design, makes the PowerBeam AC PBE-5AC-620 versatile and cost-effective to deploy.
| Property | Value |
|---|---|
| Mechanical | |
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind loading | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) |
| With radome: 1830 N at 200 km/h (411 lbf at 125 mph) | |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| Salt fog test | IEC 68-2-11 (ASTM B117) |
| Equivalent: MIL-STD-810 G method 509.5 | |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) |
| Equivalent: ETS 300 019-1-4 | |
| Wind-driven rain test | ETS 300 019-1-4 |
| Equivalent: MIL-STD-810 G method 506.5 | |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Gain | 29 dBi |
| Max. VSWR | 1.6:1 |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz |
| PtMP Mode: 10/20/30/40 MHz | |
| Polarization | Dual linear |
| Operating Frequency (Mhz) | Worldwide: 5150 - 5875 MHz |
| USA: U-NII-1: 5150 – 5250 MHz | |
| U-NII-2A: 5250 – 5350 MHz | |
| U-NII-2C: 5470 – 5725 MHz | |
| U-NII-3: 5725 – 5850 MHz |
