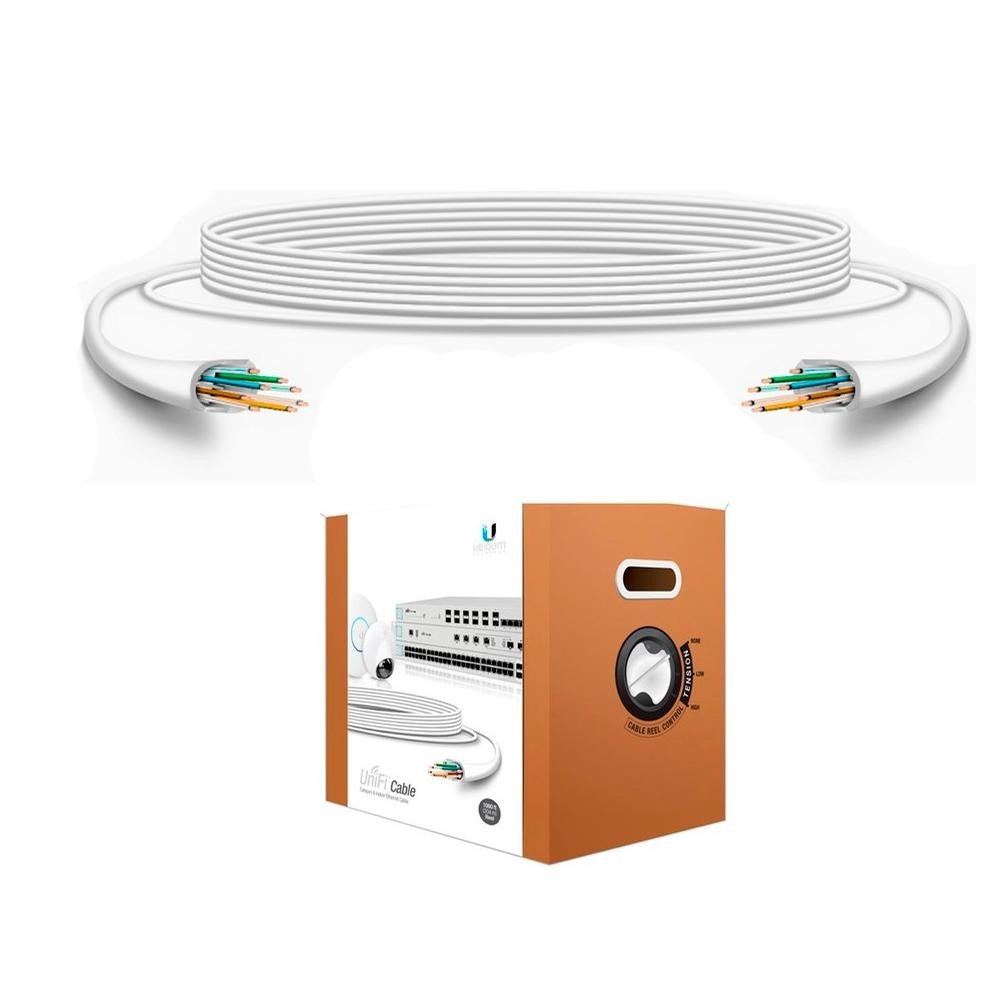

UniFi Cable Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments
U-Cable-C6-CMR is a Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of 1Gbps. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation. CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications. We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.
Ubiquiti UniFi Cable (UC-C6-CMR) Key Features
Speeds of up to 10G Ethernet
23 AWG Solid Copper Conductor Pairs
Anti-Crosstalk Divider for Improved Pair Isolation
Length: 1000 ft
Performance
Available in lengths of 1000 ft(304 m), UniFi Cable is Category 6UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.
Environment
CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non‑plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications.
| Technical Specifications | |
|---|---|
| Mechanical | |
| Box dimensions | 474 x 346 x 458 mm (18.7 x 13.6 x 18") |
| Box weight | 14.8 kg (32.7 lb) |
| Cable length | 305 m (1000 ft) |
| Cable color | White |
| Cable type | Category 6 |
| Shielding type | UTP |
| Flame rating | CMR |
| Conductor wire gauge | 23 AWG |
| Conductor type | Solid bare copper |
| Jacket material | PVC |
| Jacket diameter | 6.0 ± 0.2 mm |
| Bend radius | Min. 24 mm |
| Pulling tension | Max. 110 N |
| Storage temperature | -20 to 75°C (-4 to 167°F) |
| Installation temperature | 0 to 60°C (32 to 140°F) |
| Ambient operating temperature | -20 to 60°C (-4 to 140°F) |
| Anti-crosstalk divider | Yes |
| Ripcord | Yes |
| Data rate | 10/100/1000 Base-T |
| Reference bandwidth | Up to 600 MHz |
| Standards | |
| Electrical transmission | ANSI/TIA-568-C.2 (2009) |
| ISO/IEC 11801 (Edition 2.2) | |
| IEC 61156-5 (Edition 2.1) | |
| Flame test | UL 1666 (CMR) |
| Material and construction | UL 444 |
| CSA 22.2 NO.214 | |
| EU Directive 2011/65/EU (RoHS2) | |
| EU Directive 2006/95/EC (LVD) |
