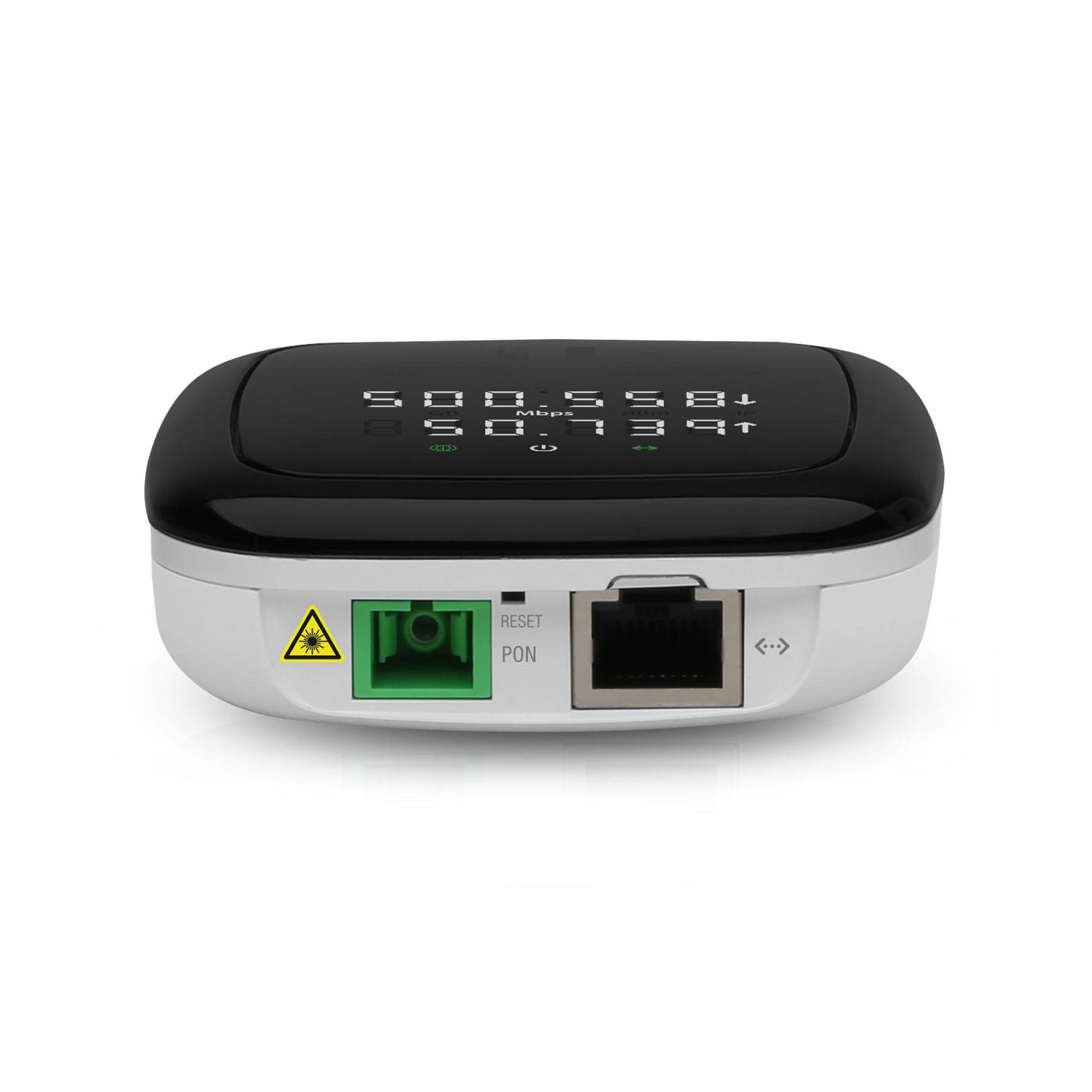

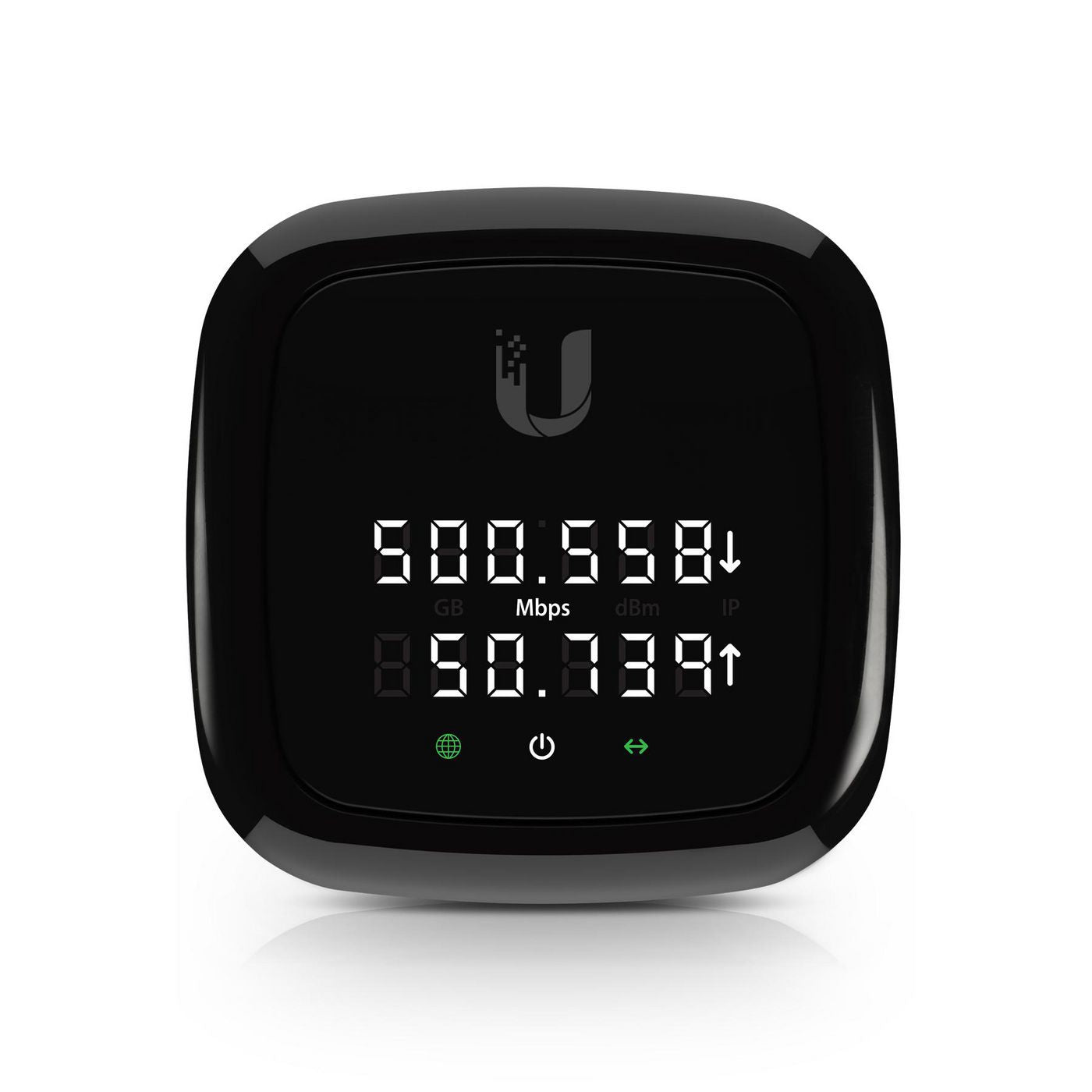

Status Display
The easy-to-read display provides status information: IP address, signal strength, and current throughput.
Power over Ethernet
The Nano G is powered by 24V passive PoE – a single cable to carry both power and data.
Designed for Integration
Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.
| Specification | Description |
|---|---|
| Dimensions | 77 x 77 x 28 mm (3 x 3 x 1.1") |
| Weight | 110 g (3.9 oz) |
| Enclosure Material | UV-stabilized polycarbonate (PC110U) |

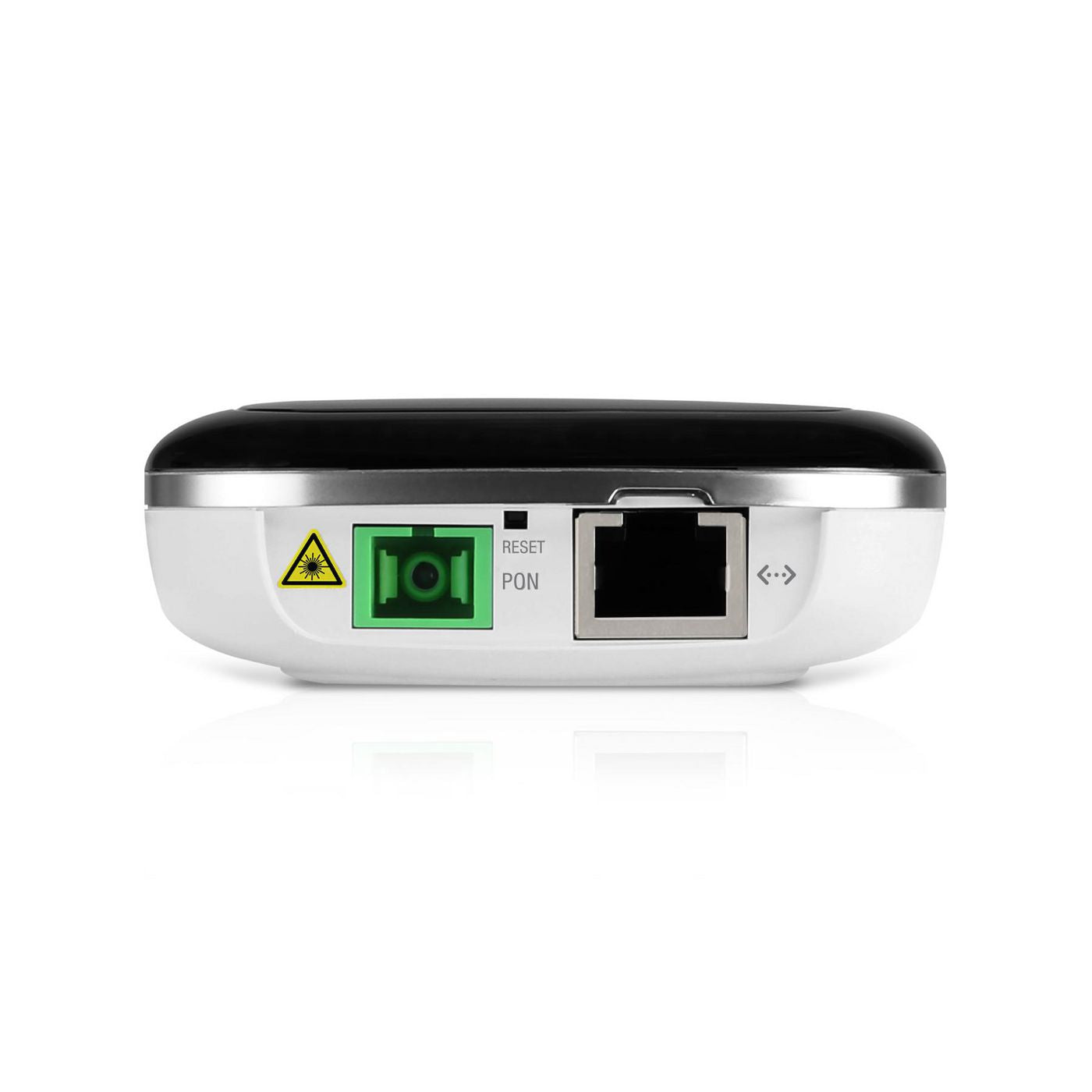

| Networking Interface | (1) SC/APC, ITU-G.984 GPON WAN port (1) GbE RJ45 LAN port |
| Management Interface | Ethernet In-Band |
| Power Method | 24V Passive PoE (Pins 4, 5+; 7, 8-), 0.3A |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 20–28V DC |
| Max. Power Consumption | 7W |
| Total Non-Blocking Line Rate | Downstream: 2.488 Gbps Upstream: 1.244 Gbps |
| Normal Range of Optical Module | TX: 1.5 to 5 dBm RX: -8 to -28 dBm |
| Button | (1) Factory reset (1) Information |
| Ambient Operating Temperature | -40 to 55° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| LEDs | PON Status: Steady white: powered up Blinking white: activity OFF: link down Red: no optical receive power, loss of signal Ethernet: Steady white: link up Blinking white: activity OFF: link down Power: White: ON |
| Software Mode | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features |
| Utilities | Dashboard, monitoring, alarms, and logs |
| Other | Remote reset, remote reboot, remote firmware upgrade, VLAN support |
| Security | GEM Port Encryption |
| Ubiquiti Specific Features | UISP Mobile App |
| Operating Wavelength | TX: 1310 nm RX: 1490 nm |
| Line Code | Scrambled NRZ |
| Optical Interface Nominal Bit Rate | Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s |
| Physical Reach | 20 km |
| Description | Downloads |
|---|---|
| Ubiquiti Networks UFiber Nano G Gateway & Controller 1000 Mbit/s | UF-NANO DataSheet | Downloads |
| Ubiquiti Networks UFiber Nano G Gateway & Controller 1000 Mbit/s | UF-NANO User Manual | Downloads |
