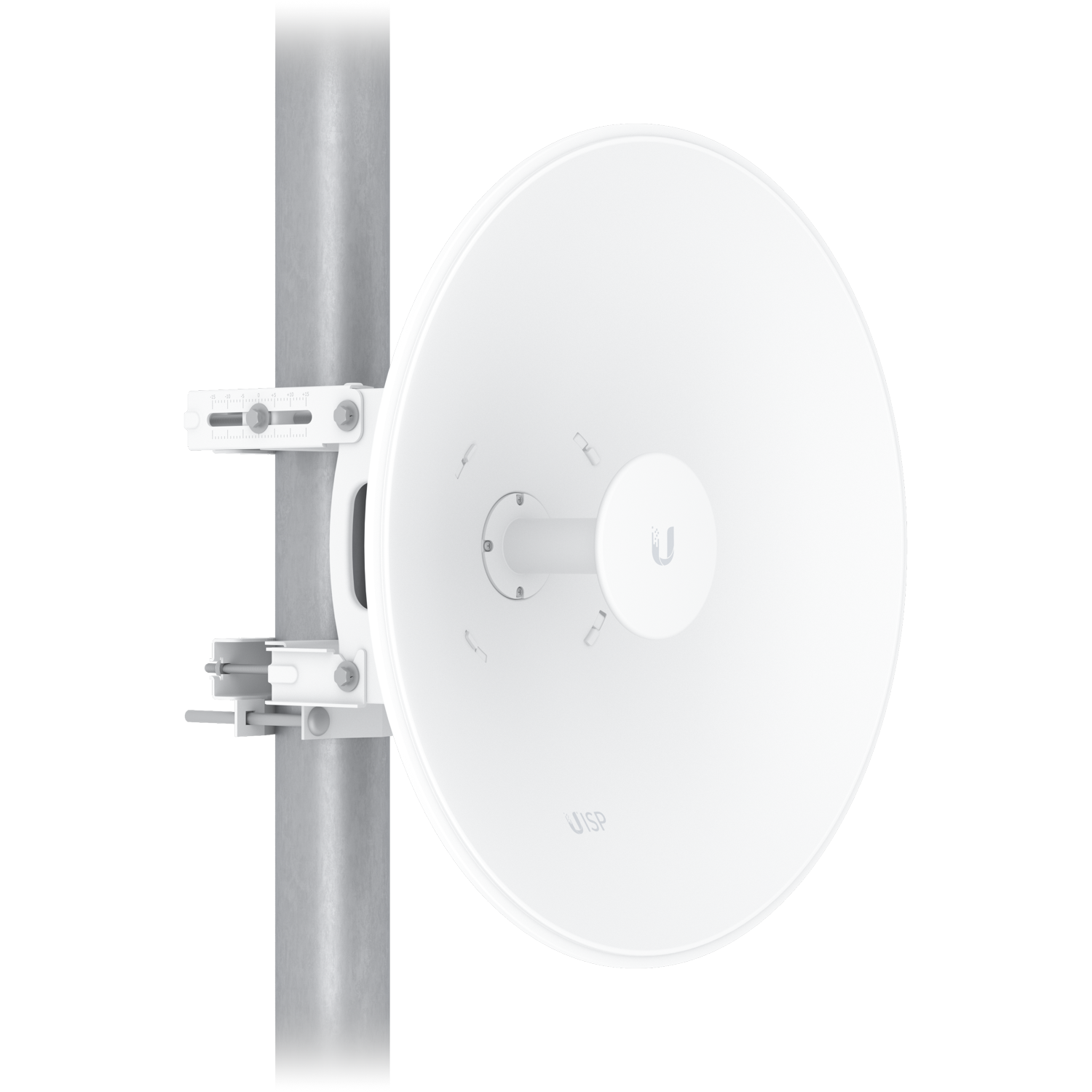

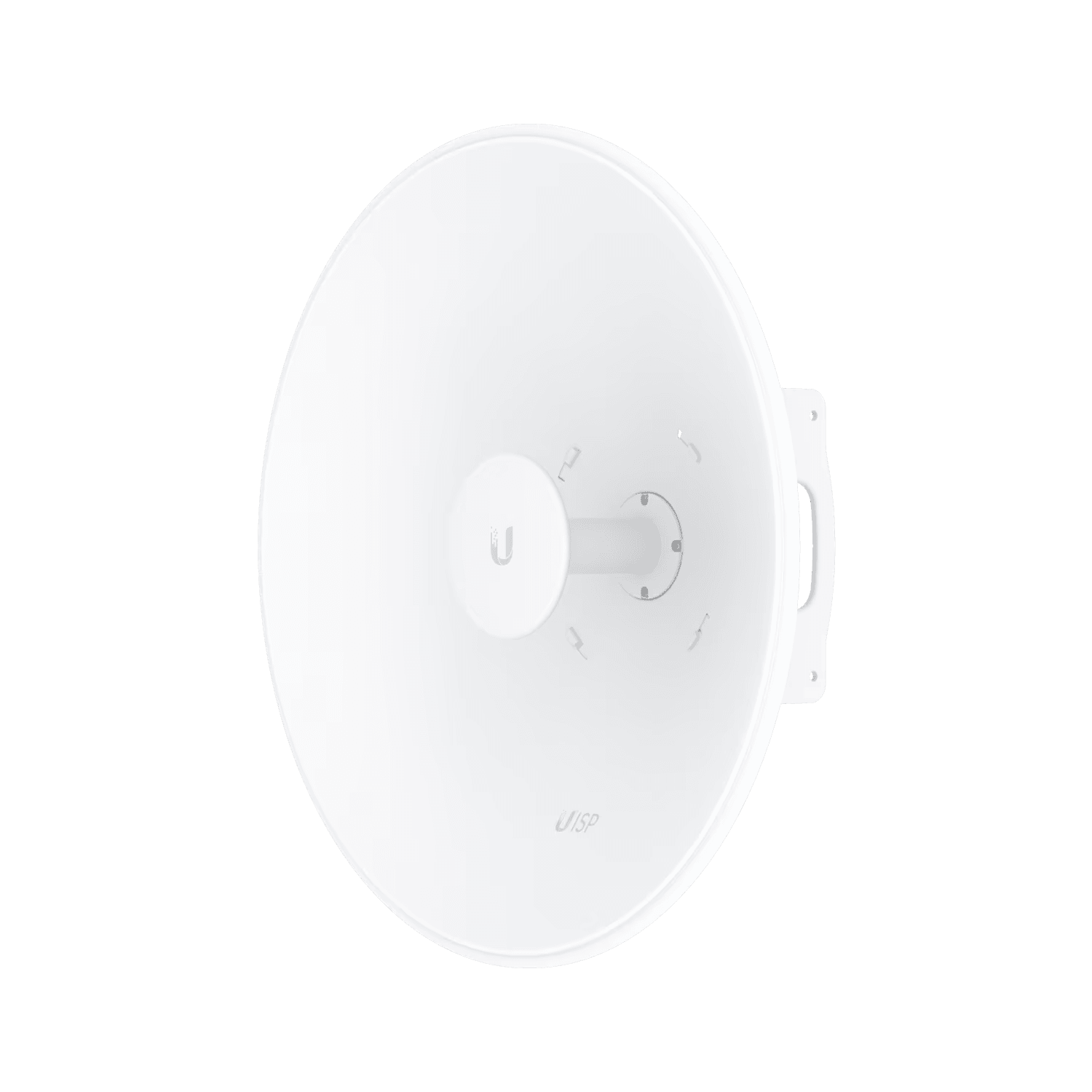

The Ubiquiti UISP-Dish Outdoor 5GHz 30dBi Point-To-Point PtP Link is a high-gain PtP antenna that provides ample coverage by utilising a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD) or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) to amplify their signal (both sold separately, see accessories tab). The UISP Dish also has a latch on each side for secure, snap-in radio connection.
Key Features
Frequency range: 5.15 - 6.875 GHz.
30+ km PtP link range.

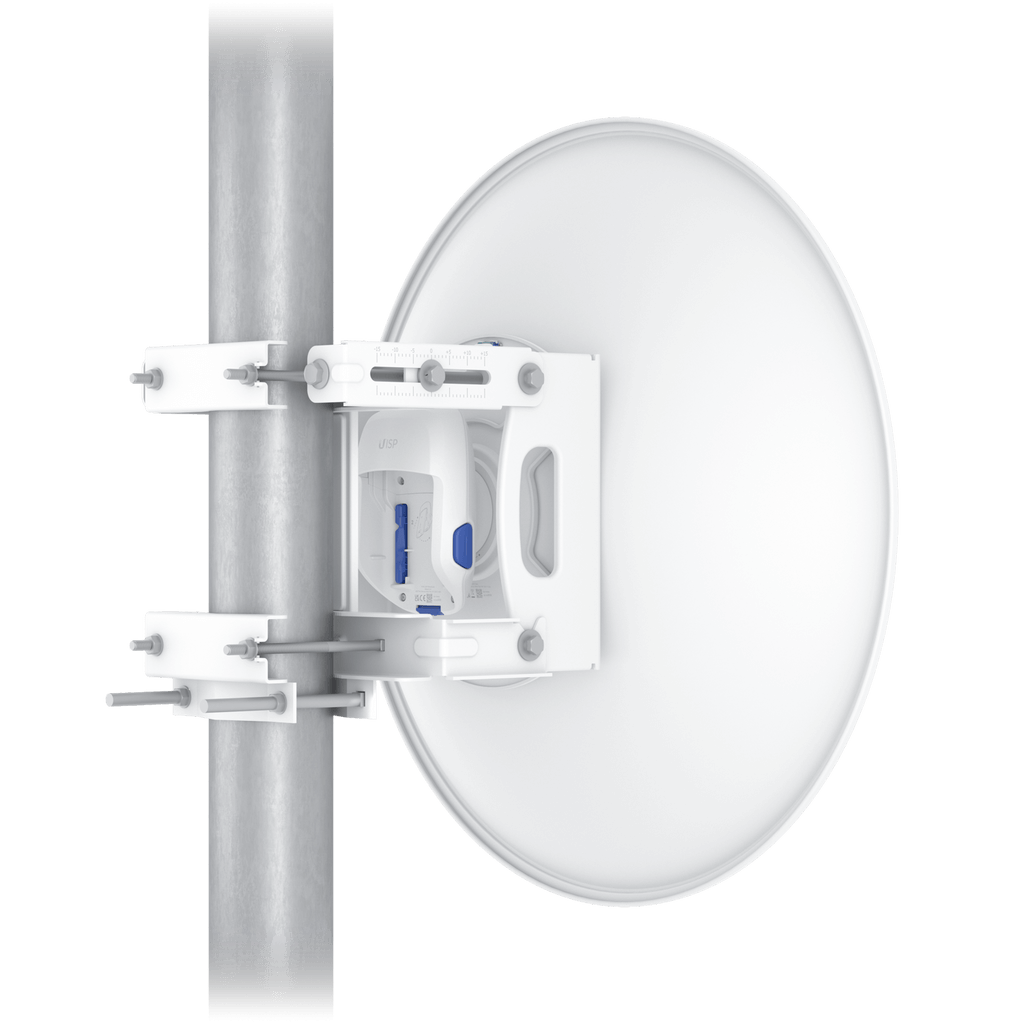

Precision mounting bracket for easy installation and alignment.
Two side latches for secure, snap-in radio connection.
Compatible with the AF 5XHD and RP 5AC (sold separately, see accessories tab).
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | Ø 650 x 200 mm (Ø 25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb) |
| Enclosure materials | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind survivability | Up to 200 km/h (124 mph) |
| Wind loading | 860 N at 200 km/h |
| Mounting | Alignment mounting kit (included) Mechanical adjustment: ±15° elevation Pole compatibility: Ø40 to 90mm (Ø1.57 to 3.5") |
| Weatherproofing | IPX6 |
| Hardware | |
| Frequency range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth | Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical downtilt | 0° |
| Maximum VSWR | 2:1 |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
