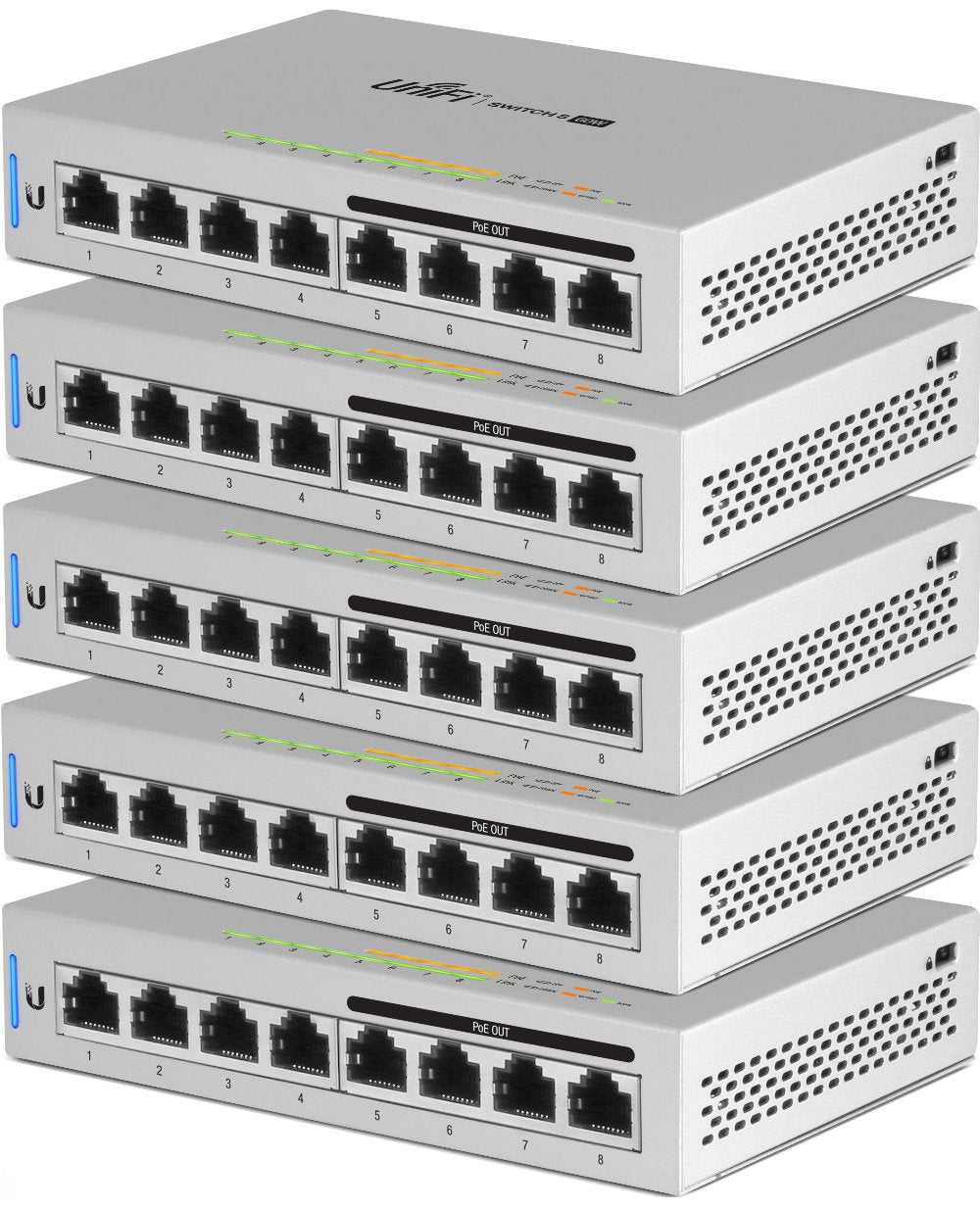

Ubiquiti Networks UniFi 5 x Switch 8 Managed Gigabit | US-8-60W-5
SKU: US-8-60W-5
£469.93 (Excl. VAT)
- Description
- Specifications
-
Ubiquiti Networks UniFi 5 x Switch 8 Managed
Gigabit
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts. -
Category Details Data transmission Jumbo frames support Yes Switching capacity 16 Gbit/s Throughput 8000 Mpps Design Certification ETSI300-019-1.4, CE, FCC, IC Housing material Steel LED indicators Activity/Link/PoE/Speed Product colour Grey Reset button Yes Wall mountable Yes Legal Information EU ECCN Code N/A UNSPSC Code 43222612 US ECCN Code 5A992 Logistics data Harmonized System (HS) code 85176990 Management features Switch type Managed Web-based management Yes Network 10G support No Auto-sensing Yes Broadcast storm control Yes Flow control support Yes Networking standards IEEE 802.1x/IEEE 802.3af Port mirroring Yes Spanning tree protocol Yes VLAN support Yes Operational conditions Operating relative humidity 5 - 95 % Operating temperature -5 - 45 °C Package dimensions Depth Verified 25.4 cm Gross Weight Verified 4.562 kg Height Verified 18.2 cm Width Verified 29.6 cm Packaging data Quick start guide Yes Performance Harmonized System (HS) code 85176990 Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Power connector DC-in jack Power Output current 1.25 A Output voltage 48 V Power consumption (max) 12 Watt Power over Ethernet (PoE) Power over Ethernet (PoE) Yes Power over Ethernet (PoE) ports quantity 4 Power over Ethernet (PoE) power per port 15.4 Watt Total Power over Ethernet (PoE) budget 60 Watt Product dimensions Net Weight (Product, kg) 0.43 kg Product Depth 9.95 cm Product Height 3.07 cm Product Width 14.8 cm Vendor information Brand Name Ubiquiti Warranty Warranty 2 Year(s) Categories Main category Network Subcategory Wired Network Subcategory Network Switches Subcategory Network Switches
