Ubiquiti NSM5 NanoStation M5 5Ghz Wireless Access Point
SKU: NSM5
£66.46 (Excl. VAT)
- Description
- Specifications
-
Ubiquiti NSM5 NanoStation M5 5Ghz Wireless Access Point
The Ubiquiti NanoStation M5 (NSM5) is a high performance, low cost and extremely versatile Point-to-Point wireless bridge. The NSM5 comes with a redesigned, sleek and elegant form-factor, along with integrated Ubiquiti airMax (MIMO TDMA Protocol) technology.
Ubiquiti NanoStation M5 Key Features
Great Performance
Dual Ethernet Connectivity
PoE Enabled
Frequency 5 GHz
Throughput 150+ Mbps
Range 15+ km
The Ubiquiti NanoStation M5 features 150+ Mbps real outdoor throughput and up to 15km+ range, with 2x2 MIMO technology, meaning the NSM5 links significantly faster and further than ever before.Next-Gen Antenna Design
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz. Optimised cross-polarity isolation and in a compact form-factor.Integrated AirMax Technology
Unlike standard WiFi protocol, Ubiquiti's Time Division Multiple Access (TDMA) AirMax protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.

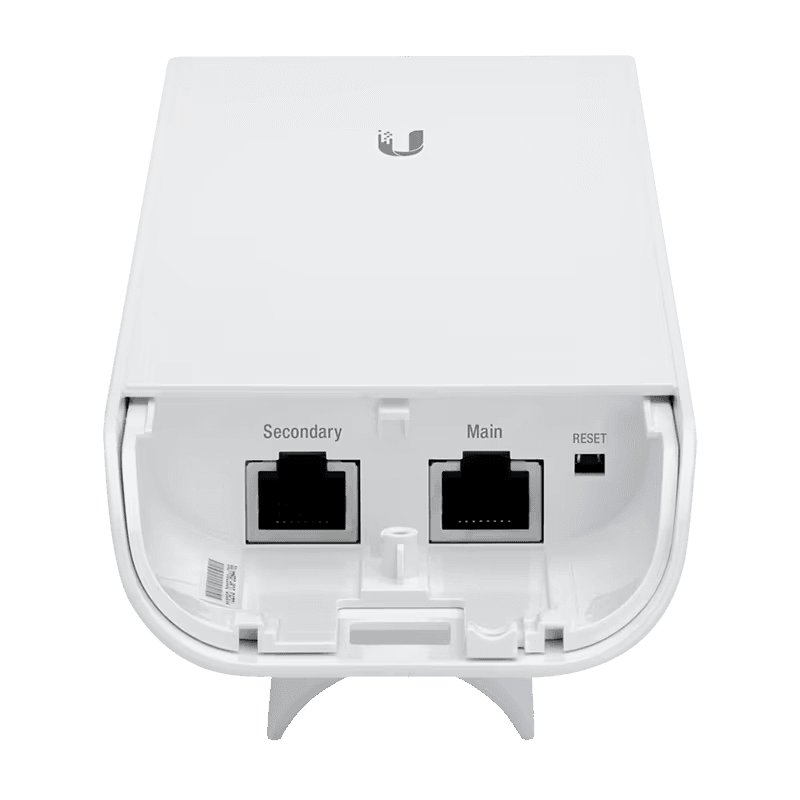

Dual Ethernet Connectivity
The Ubiquiti NanoStation M5 provides a secondary Ethernet port with software enabled PoE output for seamless IP Video integration.Intelligent PoE
Remote hardware reset circuitry of Ubiquiti NanoStation M5 allows for device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation M5 can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter. Remote reset is an additional option.AirOS V
Version 5 of Ubiquiti's airOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality. -
Hardware Dimensions 294 x 31 x 80 mm (11.6 x 1.3 x 3.2") Weight 400 g (14.1 oz) Enclosure material Outdoor UV-stabilized plastic Mounting Pole-mount (Kit included) Networking interface (2) 10/100 MbE RJ45 ports Power method Passive PoE 2-pair (4, 5+; 7, 8 return) Power supply 24V, 0.5A PoE adapter (Included) Supported voltage range 22–27V DC Max. power consumption 8W Ambient operating temperature -30 to 75° C (-22 to 167° F) Operating Humidity 5 to 95% noncondensing Shock & vibration ETSI300-019-1.4 Certifications FCC, ICC, CE, RoHS System Frequency 5 GHz Operating frequency Worldwide: 5170-5875 MHz<br> USA: 5725-5850 MHz<br> USA DFS: 5250-5850 MHz Gain 14.6-16.1 dBi Cross-pol isolation 22 dB Min. Max. VSWR 1.6:1 Beamwidth 43° (H-pol) / 41° (V-pol) / 15° (Elevation) Polarization Dual Linear
