Ubiquiti Outdoor 5GHz 19.5dBi Point-To-Multi-Point Horn Antenna | UISP-HORN
SKU: UISP-HORN
£147.62 (Excl. VAT)
- Description
- Specifications
-

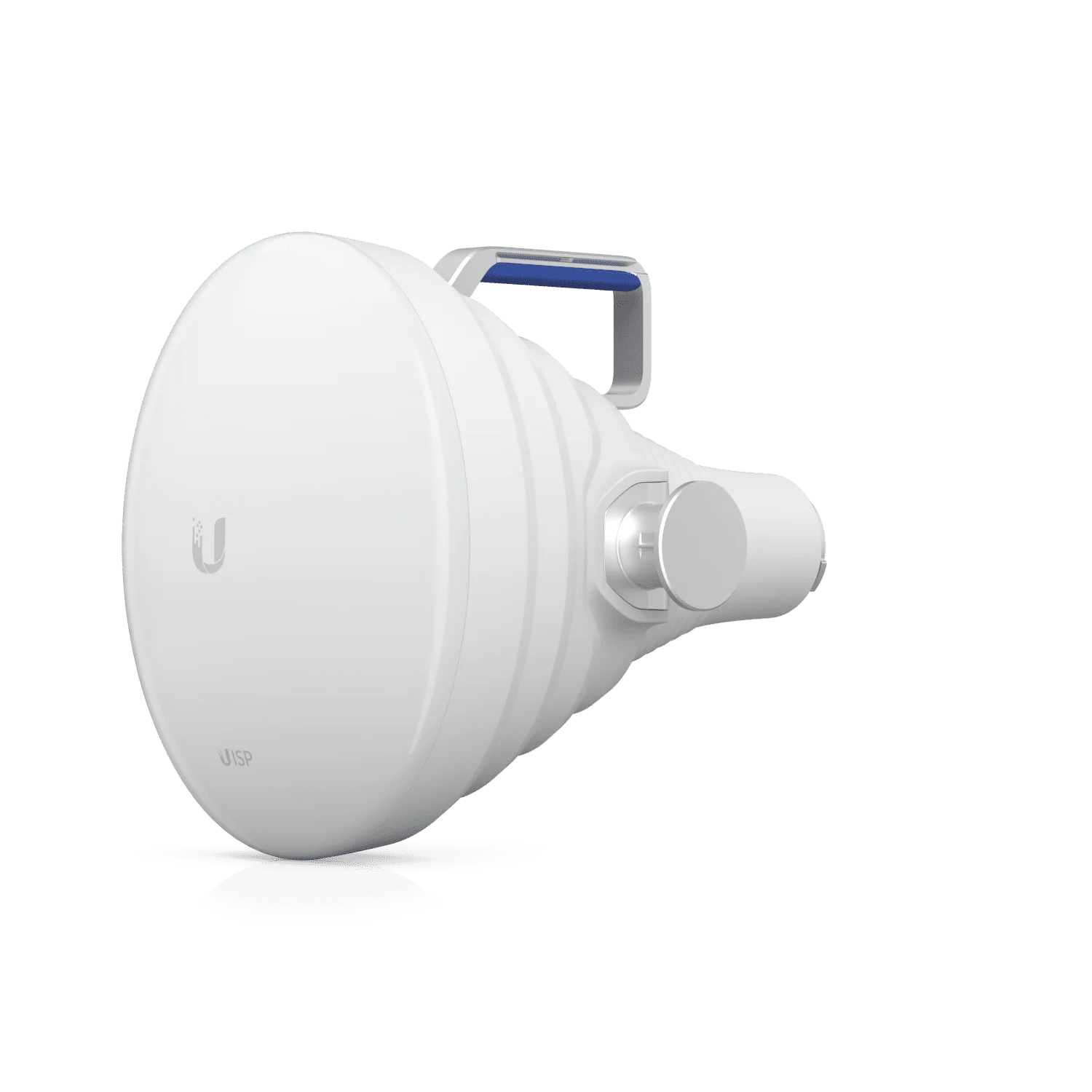

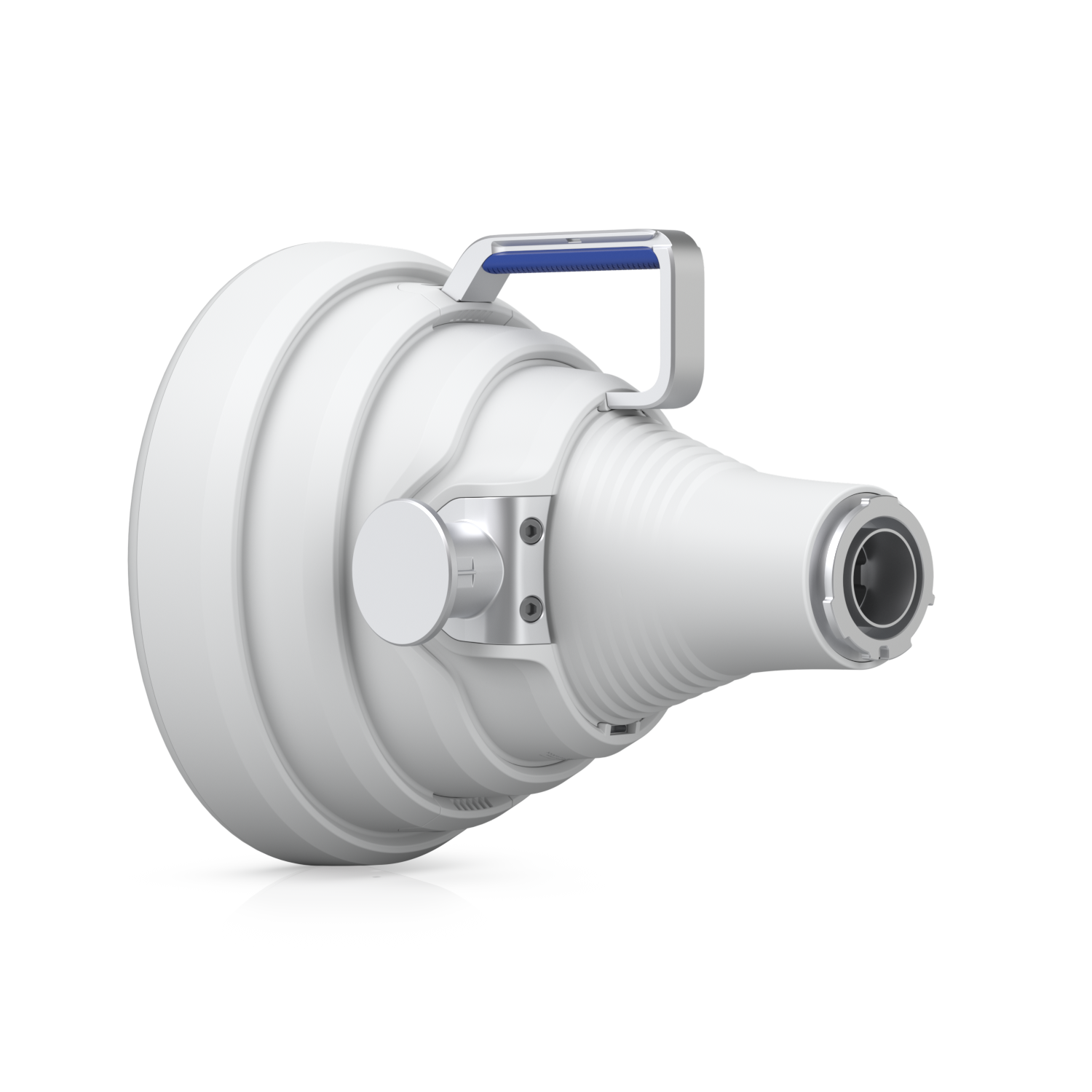

Ubiquiti Outdoor 5GHz 19.5dBi Point-To-Multi-Point Horn Antenna
The Ubiquiti UISP-Horn Outdoor 5GHz 19.5dBi Point-To-Multi-Point PtMP Link is an efficient PtMP antenna that provides high isolation within congested environments by utilising its wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber 5XHD Radio (AF 5XHD), LTU Rocket, or airMAX Rocket Prism AC 5 GHz Radio (RP 5AC) (all sold separately, see accessories tab) to amplify their signal. The UISP Horn also has a latch on each side for secure, snap-in radio connection.
Key Features
High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).
Low backlobes for device co-location.
15+ km PtMP link range.
Die-cast, UV-stabilised polycarbonate enclosure for enhanced durability and weatherproofing.
Pole-mountable antenna with a metal carrying handle.
Two side latches for secure, snap-in radio connection.
Compatible with the AF 5XHD, RP 5AC, and LTU Rocket (sold separately, see accessories tab). -
Feature Detail Size 282 x 224 x 380 mm (11.1 x 8.8 x 15") Weight Device: 3.06 kg (6.75 lb), Mount: 925 g (2.04 lb) Material UV plastic, Aluminum Wind Survival Up to 200 km/h (124 mph) Mount Compatibility Ø25 to 70 mm (Ø1 to 3") Weatherproof Yes (IPX6) Frequency Range 5.15 to 6.875 GHz Gain 19.5 dBi Beamwidth 30° (horizontal), 25° (vertical) Polarization Dual-linear
