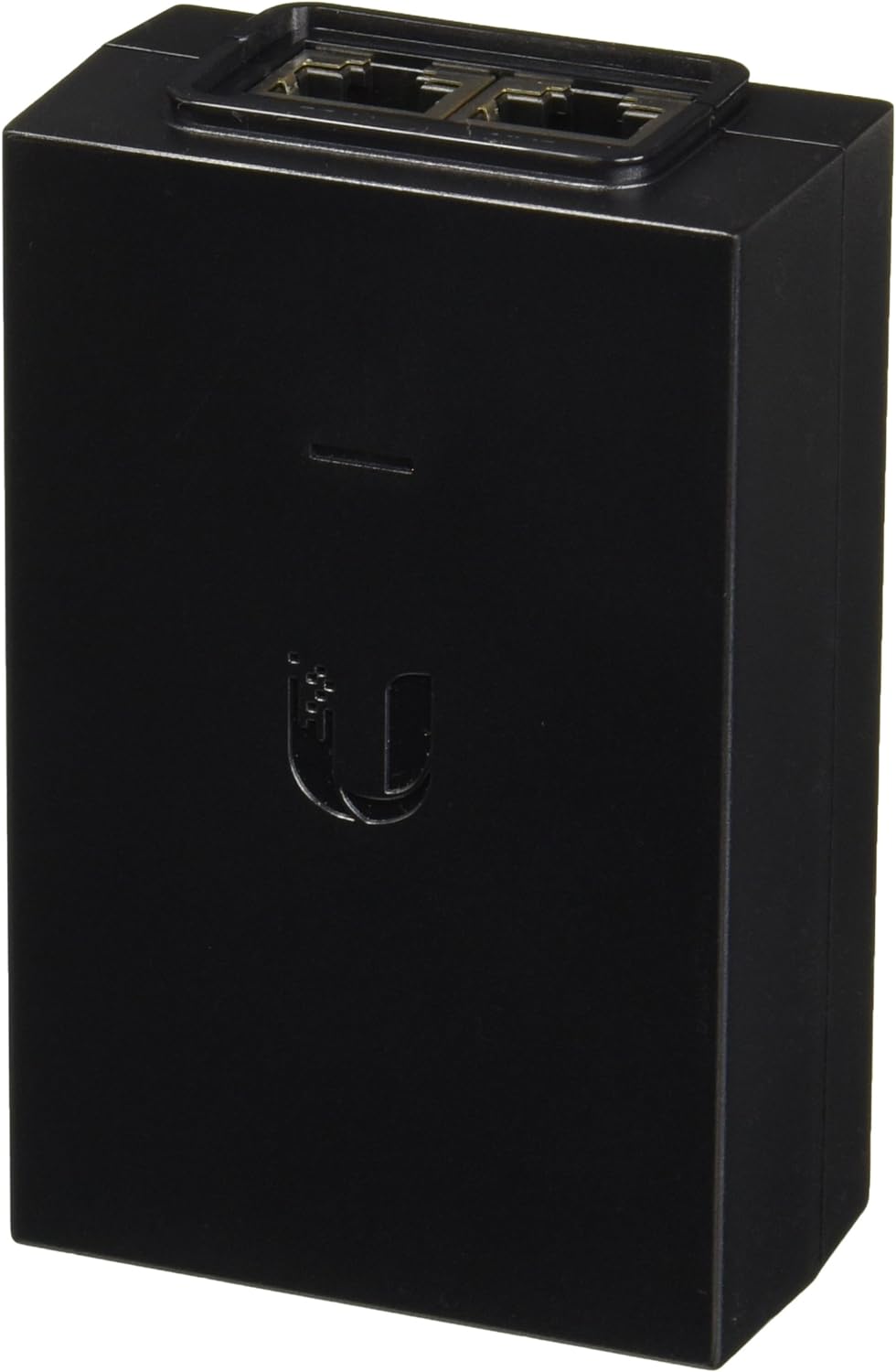

This Ubiquiti POE-48-24W Power Over Ethernet PoE Injector/adapter is suitable for use with Ubiquiti Wireless Networking devices. This Ubiquiti PoE adapter is supplied with a power cord.
Key Features
Power over Ethernet adapter with 48V/24W capacity.
Allows long ethernet cable runs, typically up to 100 metres.
LAN Activity Indicator: Detects if LAN is connected to the device.
Remote Reset Capability: Supports Airmax Bullet, Rocket, Nano, Pico.
Warning!
This unit can be connected directly to the UniFi UAP-PRO and UAP-AC but must NOT be connected directly to other Ubiquiti devices that are limited to a 24v input maximum. Connecting those devices directly to this unit without the Ubiquiti Outdoor Instant 802.3af 48v to 16v adapter will damage those devices.
| Features | Details |
|---|---|
| Certification | CE, FCC, IC, UL |
| Product colour | Black |
| Surge protection | Yes |
| Wall mountable | Yes |
| Legal Information | |
| EU ECCN Code | N/A |
| US ECCN Code | EAR99 |
| Logistics Data | |
| Harmonized System (HS) code | 85044090 |
| Network | |
| Power over Ethernet (PoE) | Yes |
| Operational Conditions | |
| Operating relative humidity (H-H) | 35 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Package Dimensions (Verified) | |
| Depth Verified | 10.3 cm |
| Gross Weight Verified | 0.302 kg |
| Height Verified | 4.4 cm |
| Width Verified | 18.7 cm |
| Ports & Interfaces | |

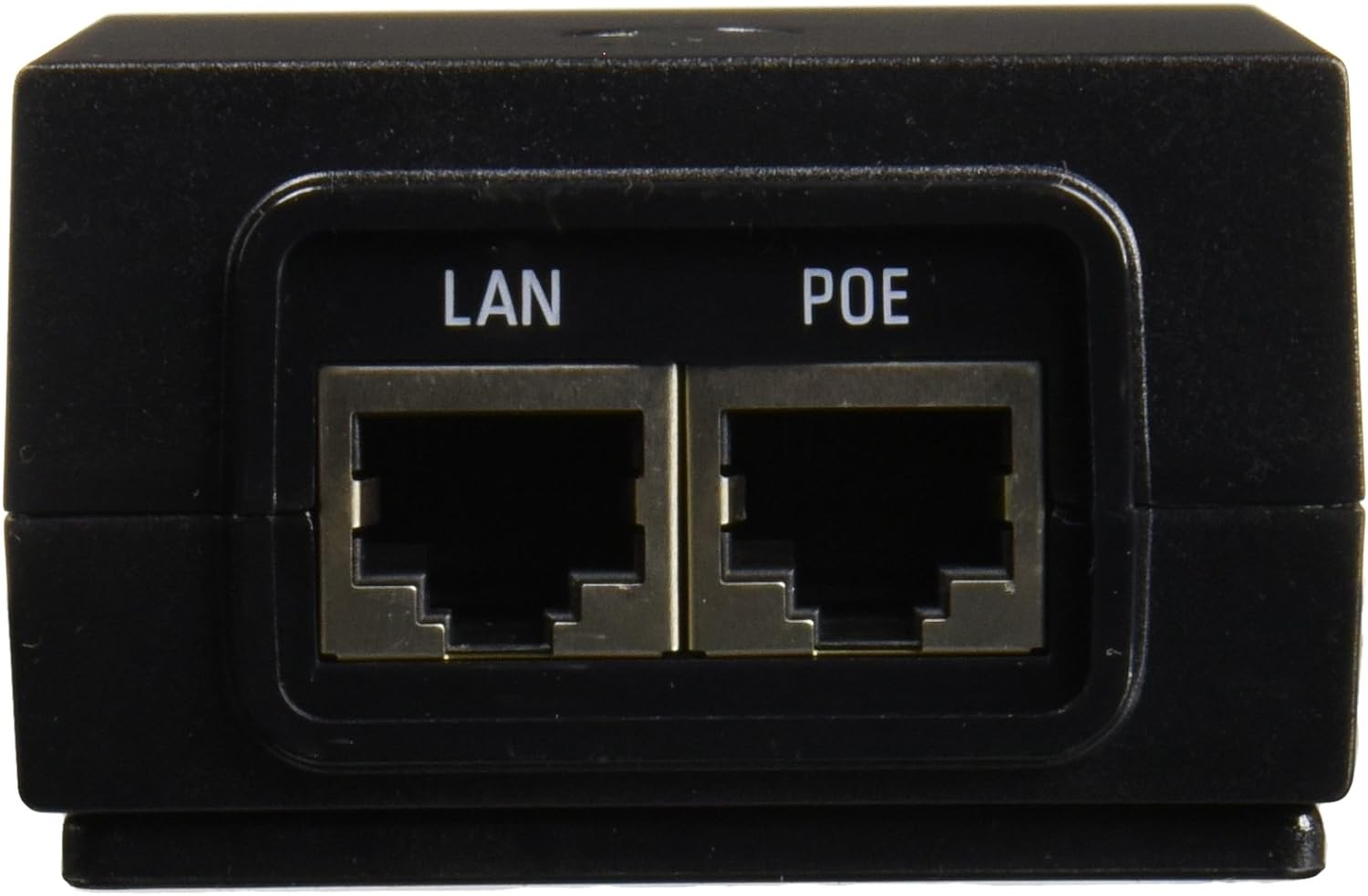

| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Input current | 0.4 - 0.6 A |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power over Ethernet (PoE) voltage | 48 V |
| Product Dimensions | |
| Net Weight (Product, kg) | 0.14 kg |
| Product Depth | 8.8 cm |
| Product Height | 3.3 cm |
| Product Width | 5.7 cm |
| Technical Details | |
| Harmonized System (HS) code | 85044090 |
| Vendor Information | |
| Brand Name | Ubiquiti |
| Warranty | |
| Warranty | 2 Year(s) |
| Categories | |
| Main category | Network |
| Subcategory | Wired Network |
| Subcategory | PoE Adapters |
| Product | Datasheet |
|---|---|
| Ubiquiti PoE Adapter 48 V | POE-48-24W DataSheet | Downloads |
