Official Partner

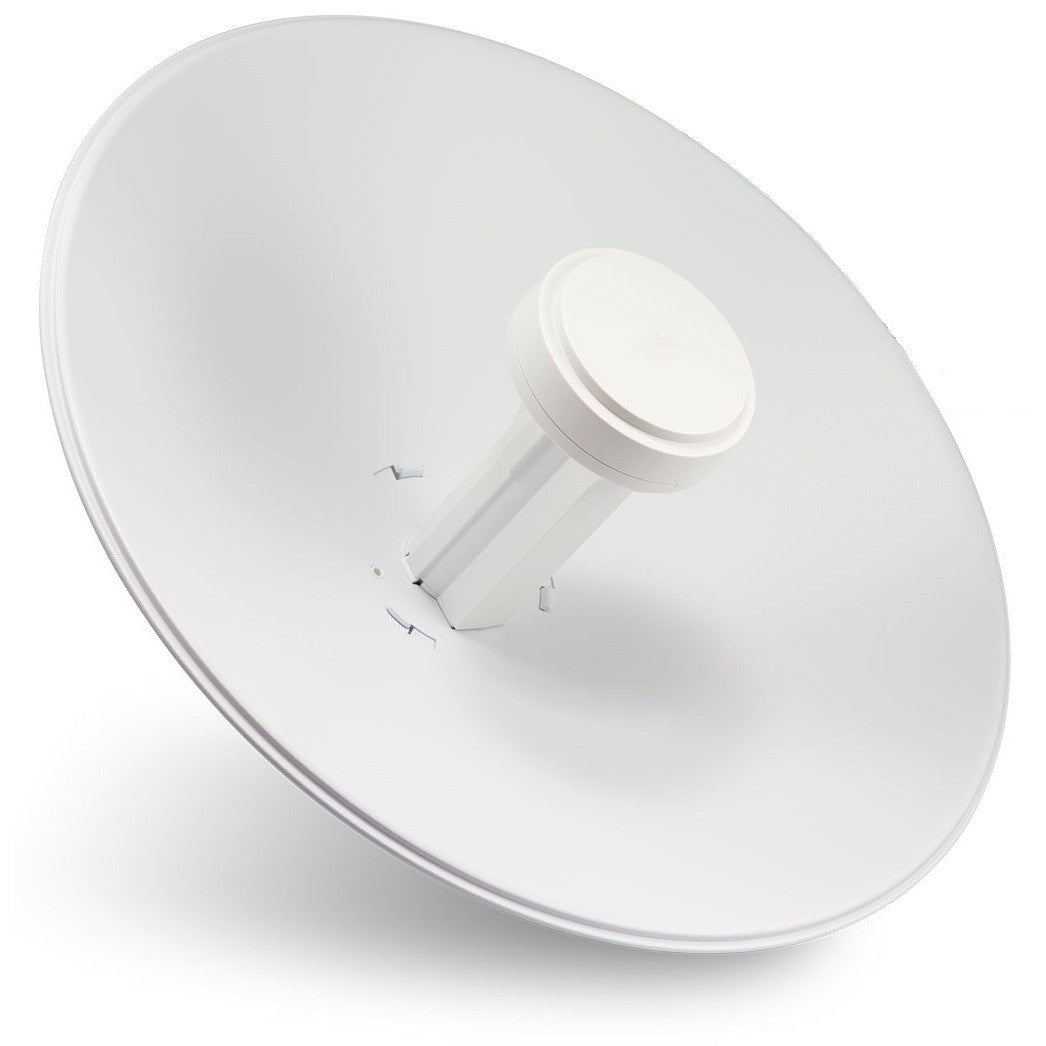

High-Performance airMAX® ac Bridge
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.
Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.
Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
| Category | Feature | Details |
|---|---|---|
| General | Product Name | Ubiquiti Outdoor Directional Antenna |
| Purpose | Outdoor | |
| Color | White | |
| RoHS Compliance | Yes | |
| Ultraviolet (UV) Resistant | Yes | |
| Wind Load | 342.5 | |
| Survival Wind Speed | 200 km/h | |
| Certification | CE, FCC, IC, ETSI300-019-1.4 | |
| Technical Specifications | Antenna Type | Directional antenna |
| Frequency Band | 2.4 GHz | |
| Antenna Gain | 18 dBi | |
| Maximum Operating Distance | 20,000 m | |
| Modulation | 16-QAM, 256-QAM, BPSK, QPSK | |
| Networking and Performance | Built-in Processor | Yes |
| Processor Model | Atheros MIPS 74Kc | |
| Internal Memory | 64 MB | |
| Cabling Technology | 10/100/1000Base-T(X) | |
| Antenna Gain Level (Max) | 18 dBi | |
| Power | Input Voltage | 22 - 26 V |
| Maximum Power Consumption | 7.5 Watt | |
| Power Source Type | PoE | |
| Physical Characteristics | Dimensions | 38.6 cm (Depth) x 62 cm (Height) x 62 cm (Width) |
| Diameter | 42 cm | |
| Net Weight | 1.8 kg | |
| Gross Weight | 4 kg | |
| Packaging Content | Cables Included | AC Cable |
| Mounting Kit | Yes | |
| Quick Installation Guide | Yes | |
| Quantity per Pack | 1 pc(s) | |
| Operational Conditions | Operating Temperature (T-T) | -40 - 70 °C |
| Operating Relative Humidity (H-H) | 5 - 95 % | |
| Logistics Information | EU ECCN Code | 5A002 |
| US ECCN Code | 5A002 | |
| HS Code | 85177100 | |
| UNSPSC Code | 43221729 |
