PLEASE NOTE NO POE INJECTOR INCLUDED - Compatible with U-POE-AT

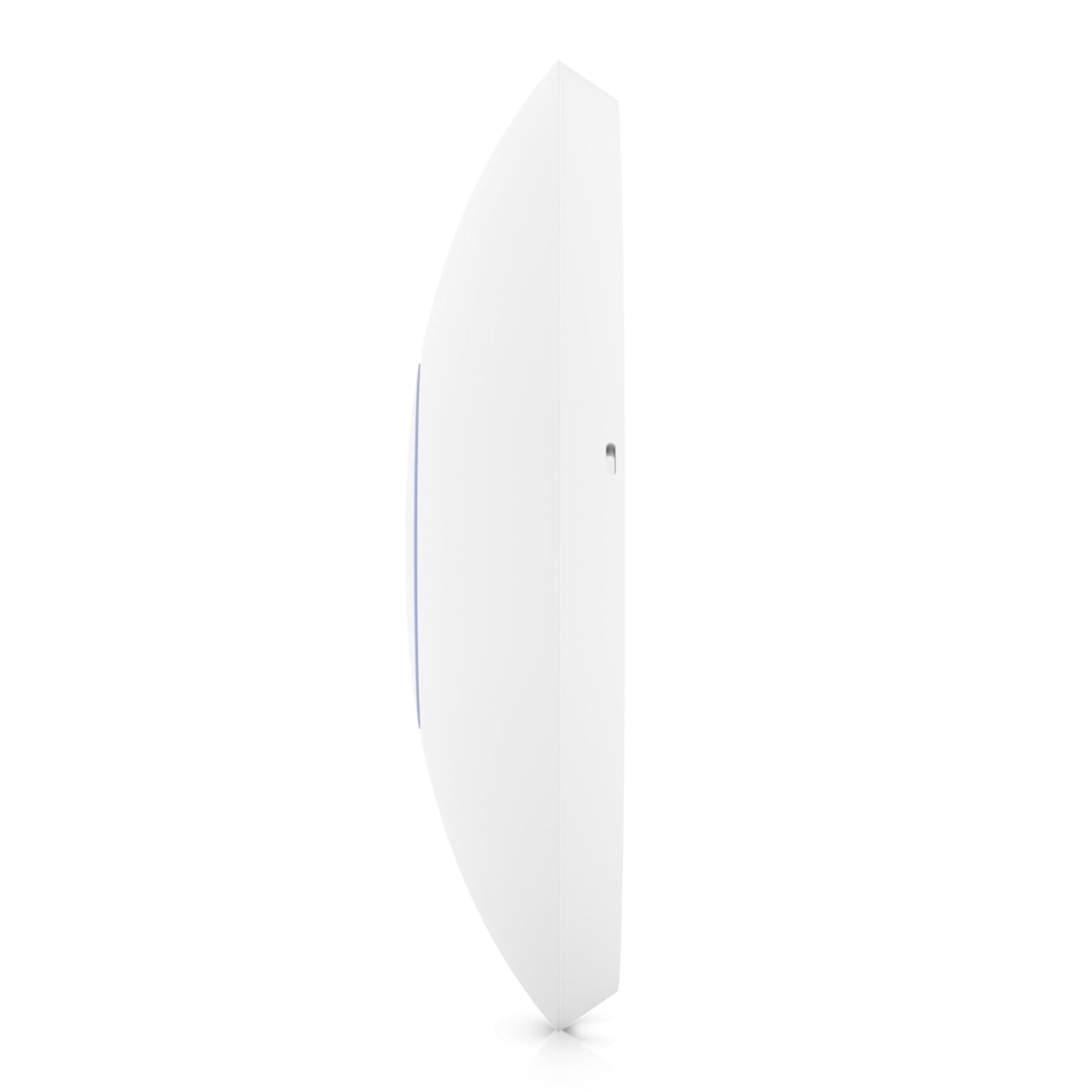

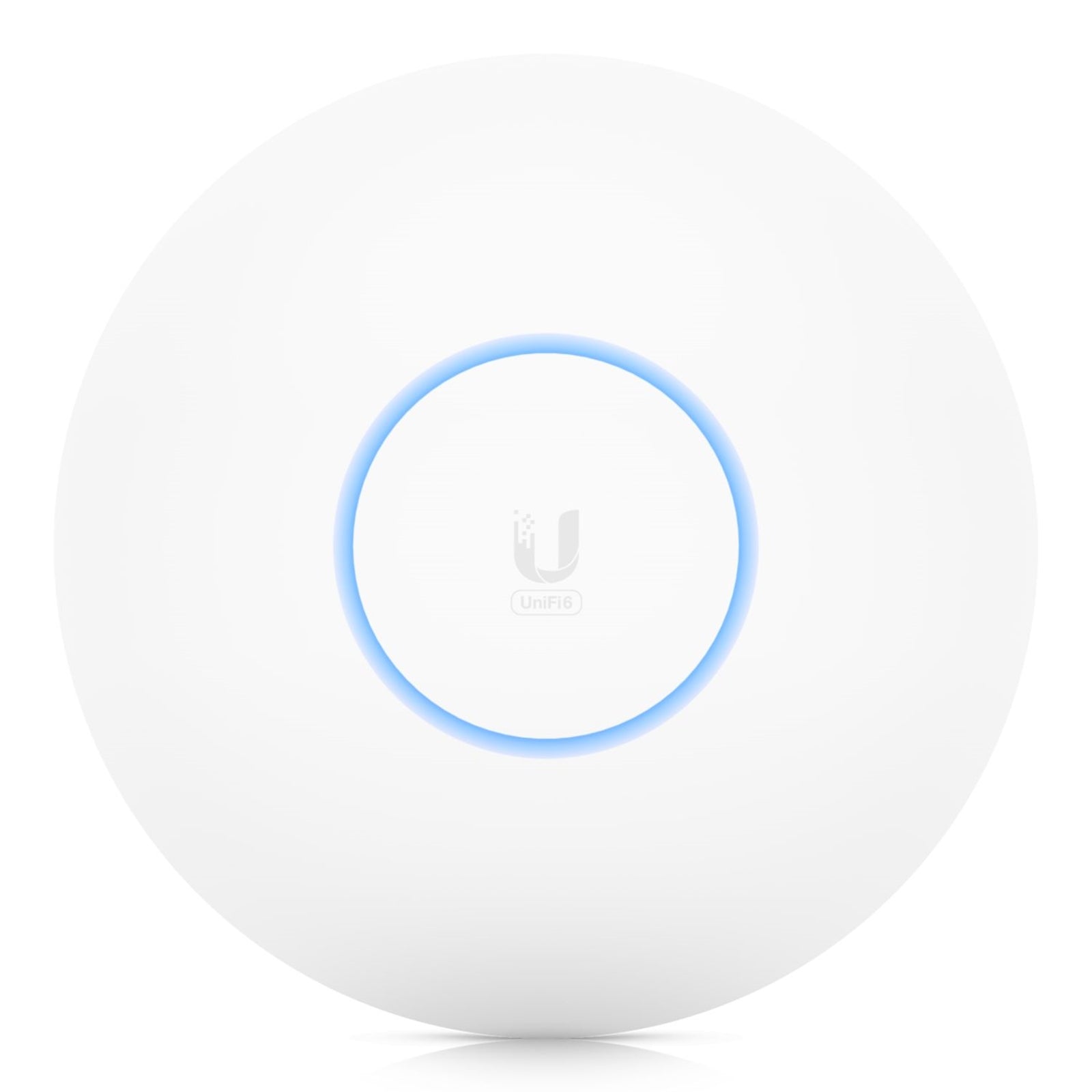

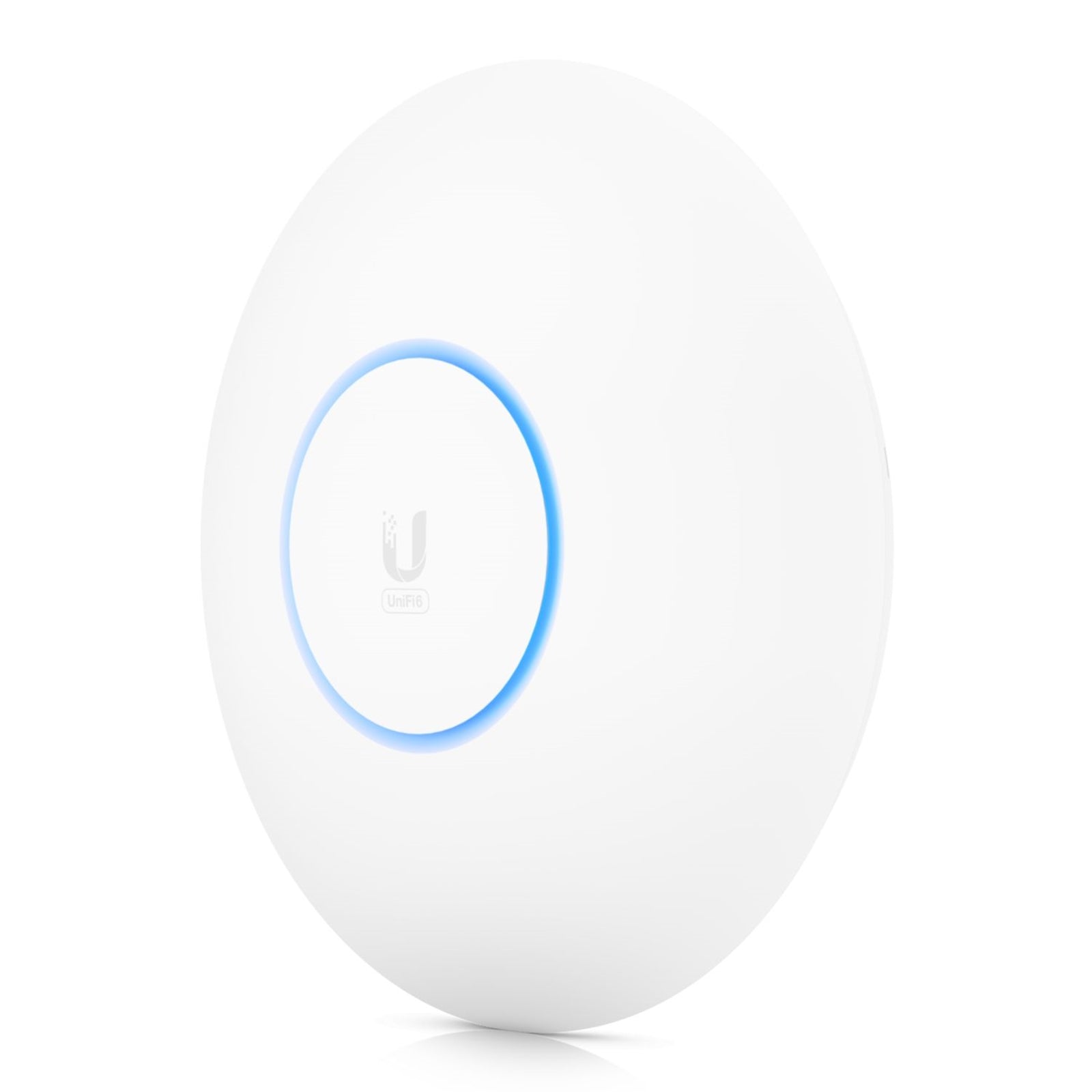

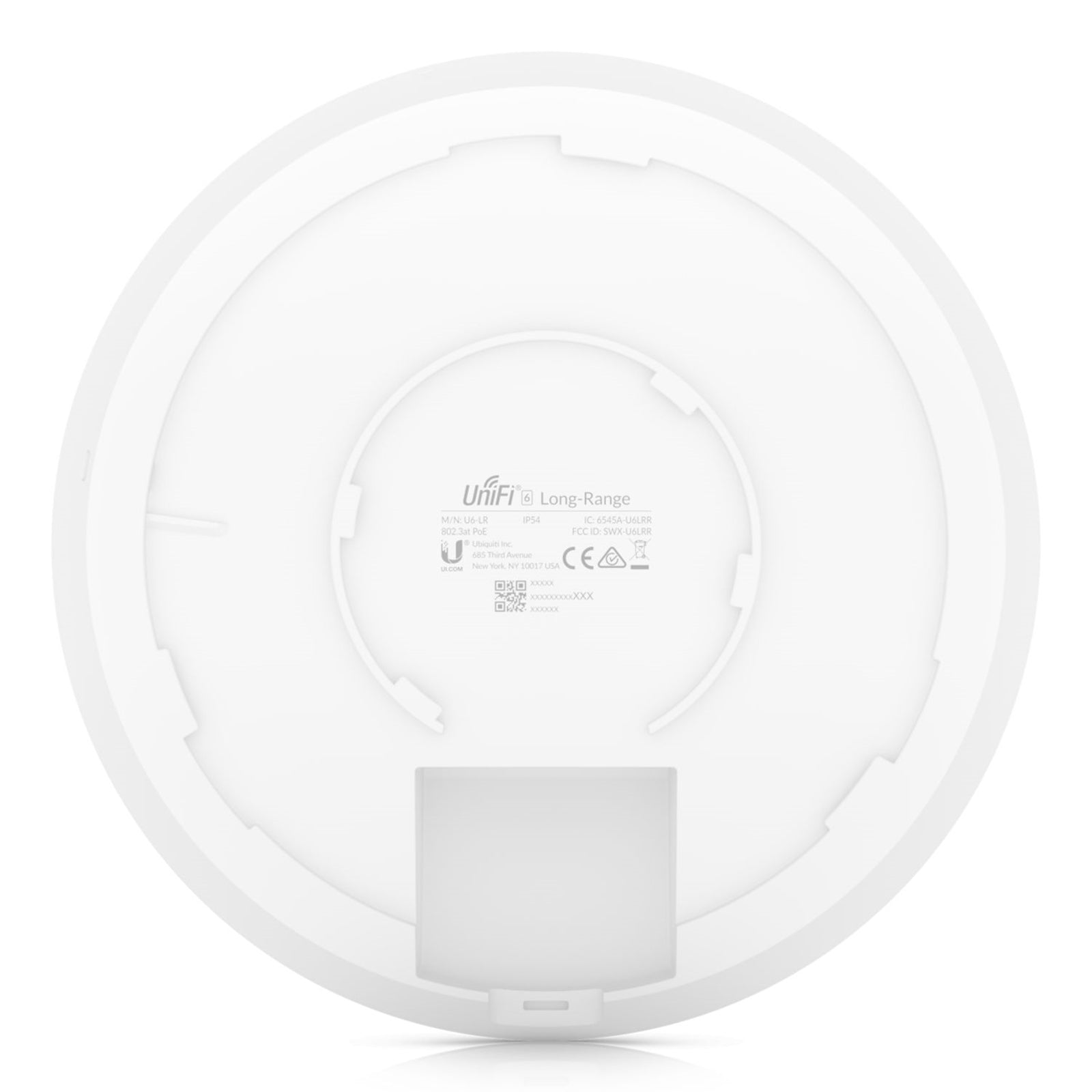

U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features
1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
Four-stream high-efficiency Wi-Fi 6 technology
5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
Powered with 802.3at PoE (PoE injector not included)
| Technical Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 800 g (1.8 lb) With mount: 930 g (2.1 lb) |
| Enclosure material | Polycarbonate |

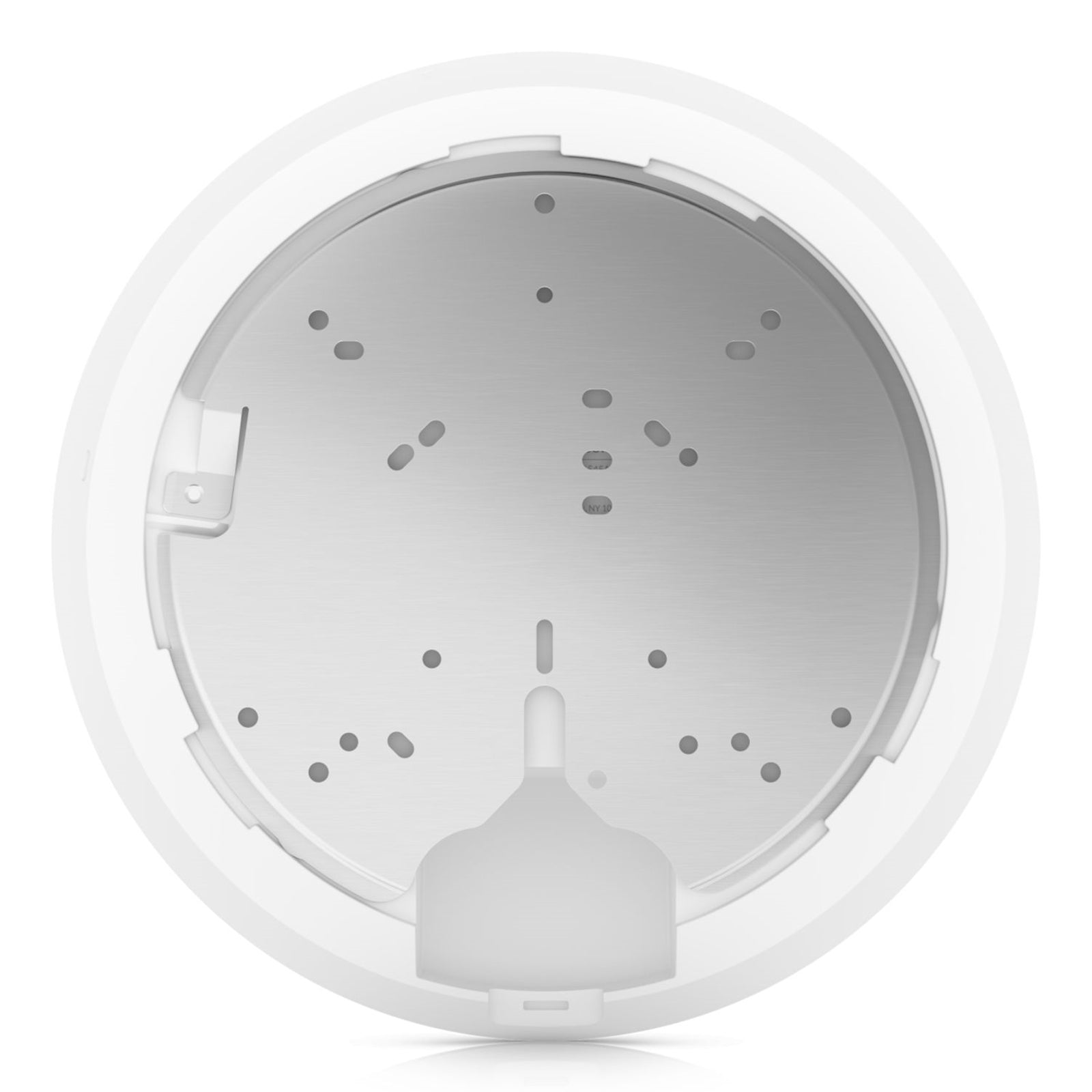

| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |

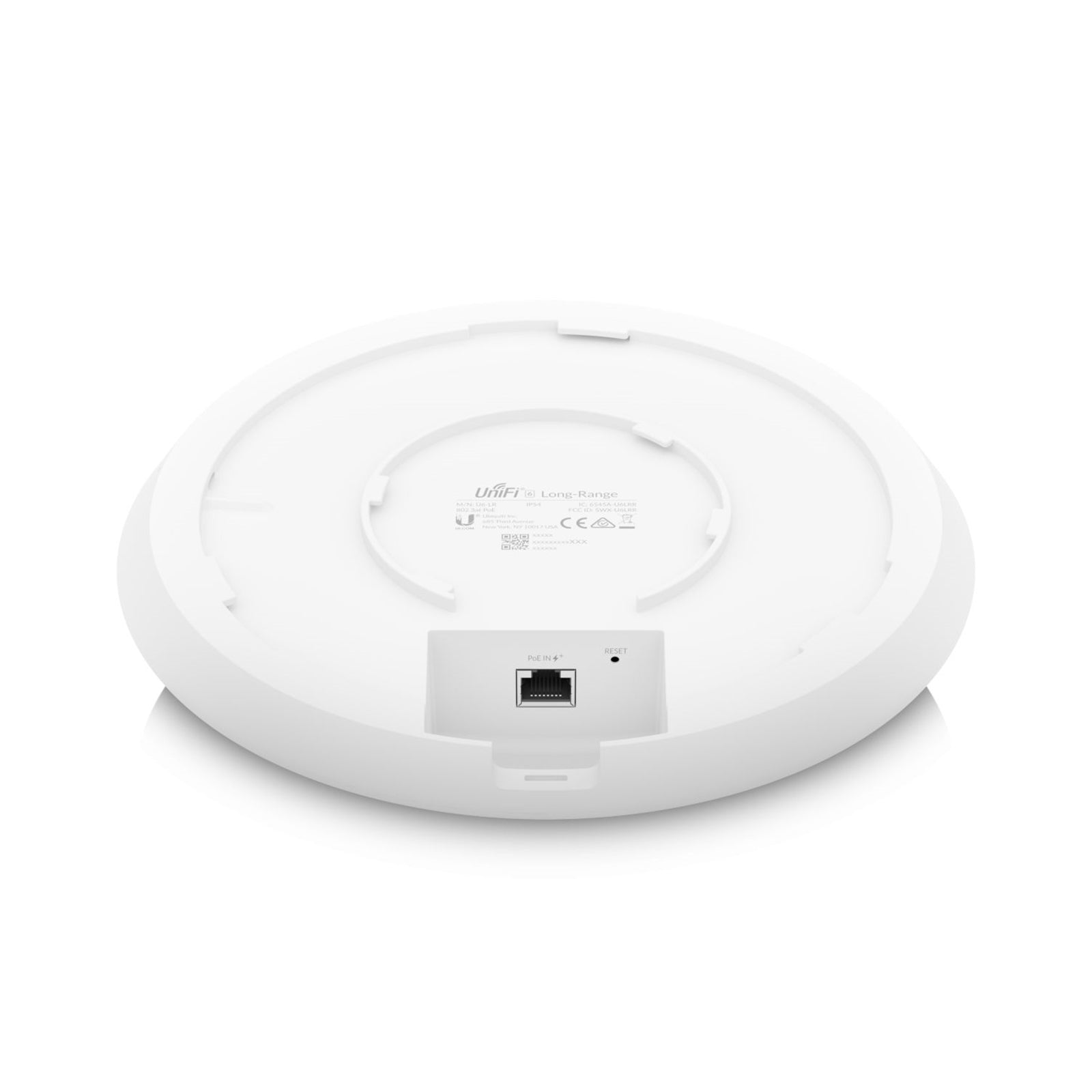

| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet, Bluetooth |
| Power method | PoE+, Passive PoE, 48V |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (Not included) |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 18.5W |
| Max. TX power | |
| 2.4 GHz | 26 dBm |
| 5 GHz | 26 dBm |
| 6 GHz | – |
| MIMO | |
| 2.4 GHz | 4 x 4 |
| 5 GHz | 4 x 4 |
| 6 GHz | – |
| Throughput rate | |
| 2.4 GHz | 600 Mbps |
| 5 GHz | 2400 Mbps |
| 6 GHz | – |
| Antenna gain | |
| 2.4 GHz | 4 dBi |
| 5 GHz | 5.5 dBi |
| 6 GHz | – |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.0.34 and later |
