All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.

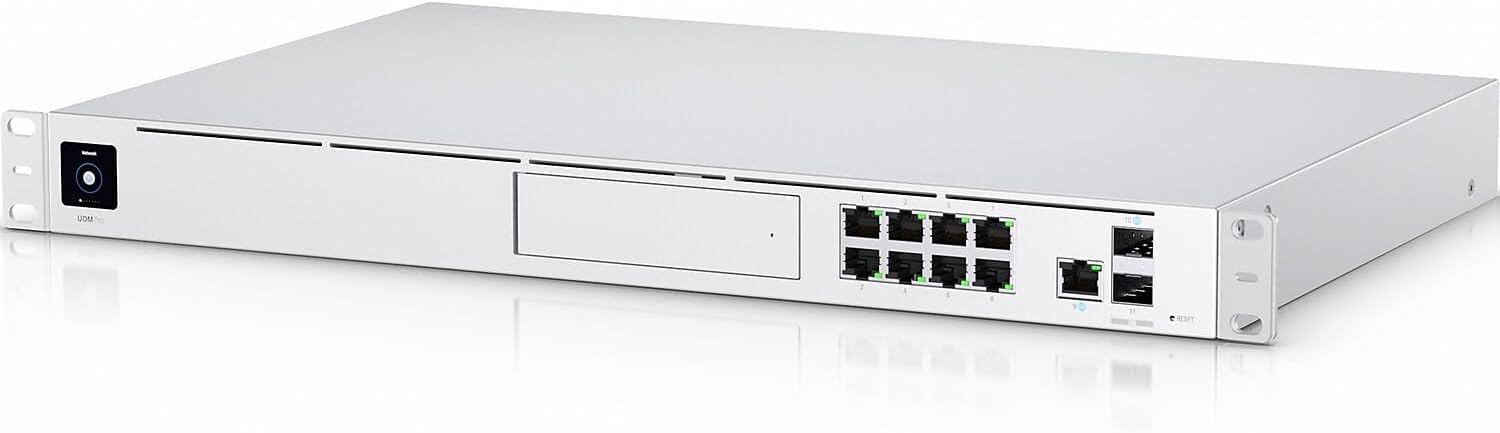

UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
All-in-one 1U rack appliance for small to medium sized businesses
Combines new UniFi OS with 8-port switch and security gateway
UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
Powered by fast 1.7 GHz quad-core processor
| Specifications | Details |
|---|---|
| Dimensions | |
| Width x Height x Depth | 442.4 x 43.7 x 285.6 mm<br>(17.42 x 1.72 x 11.24") |
| Weight | |
| Without Mounting Kits | 3.90 kg (8.60 lb) |
| With Mounting Kits | 3.99 kg (8.80 lb) |
| Package Contents | |
| Rackmount Brackets | (2) |
| Bracket Screws | (8) |
| Mounting Screws | (4) |
| Cage Nuts | (4) |
| Security Screw | (1) |
| 2.5" HDD Screws | (4) |
| Power Cord | (1) |
| Rubber Feet | (4) |
| Interfaces | |
| LAN Ports | (8) 10/100/1000 RJ45 |
| WAN Port | (1) 10/100/1000 RJ45 |
| SFP+ LAN Port | (1) 1/10G |
| SFP+ WAN Port | (1) 1/10G |
| Management Interfaces | |
| Ethernet In-Band | Yes |
| Bluetooth BLE | Yes |
| Technical Information | |
| IDS/IPS Throughput | 3.5 Gbps*<br>* Measured with iPerf3. |
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | 16 GB eMMC |
| Environment | |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Power | |
| Max. Power Consumption | 33W |
| Voltage Range | 100 to 240VAC |
| Power Method | (1) Universal AC Input, 100-240VAC, 50/60 Hz |
| Redundant Power | (1) RPS DC Input |
| Power Supply | Internal 50W/12V |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
