Introducing the Ubiquiti N-SW NanoSwitch Outdoor 4-Port PoE Passthrough Switch, an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the NanoSwitch supports up to 4 Gbps. Featuring a durable, weatherproof form factor, the Ubiquiti Outdoor NanoSwitch is ideal for outdoor deployment. For quick installation, the compact NanoSwitch can be easily mounted on a pole or wall.
Key Features
One (1) Gigabit 24V Passive PoE In Port.
Three (3) Gigabit 24V Passive PoE Out Ports.
Outdoor, Weather-Resistant Enclosure.
Can be easily mounted on a pole or wall.
LEDs for Speed, Link and Activity.Low-Cost GPON Optical Network Unit

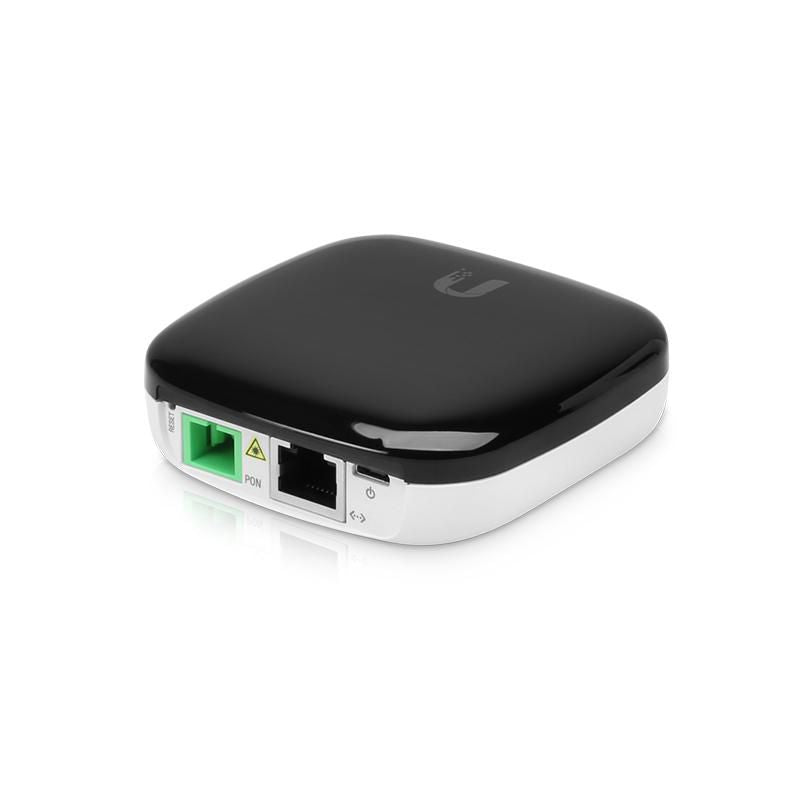

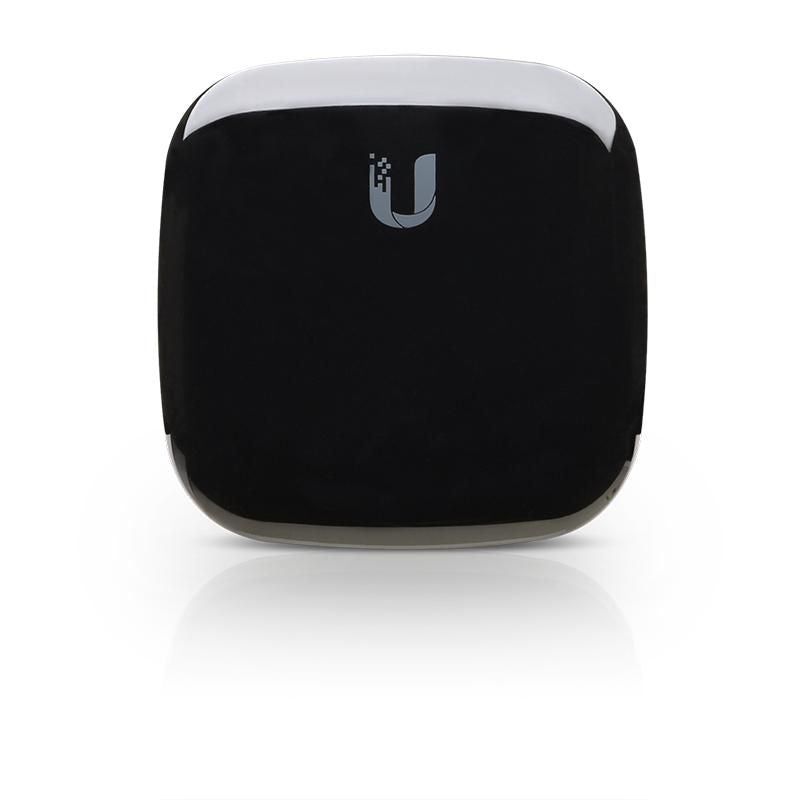

Sporting a sleek industrial design, the U Fiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and two power options.

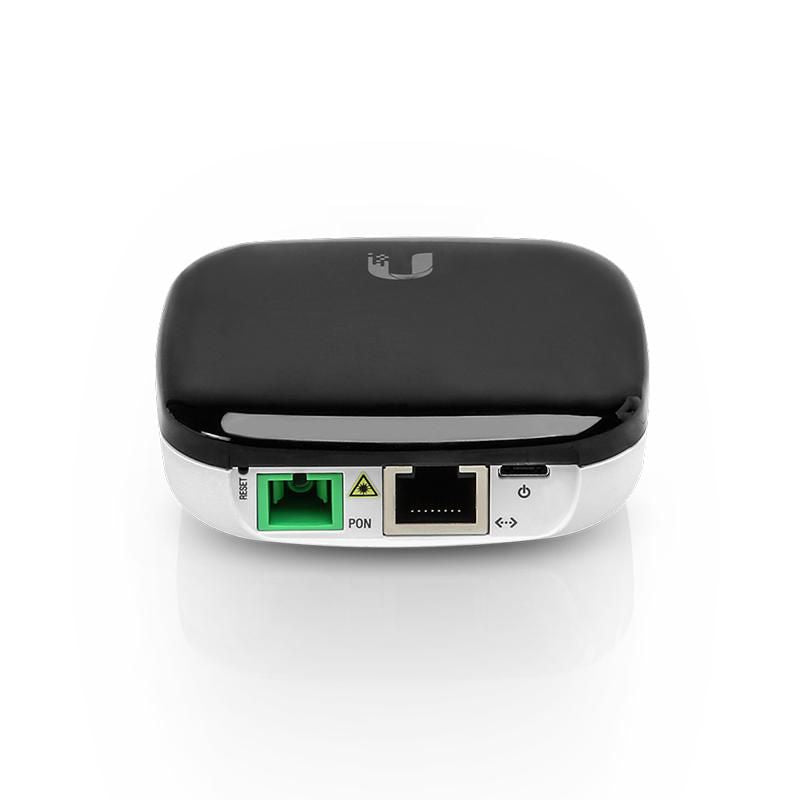

Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
Versatile Power
The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.
Designed for Integration
Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices
| Feature | Specification |
|---|---|
| Dimensions | 76.5 x 76.5 x 26.4 mm (3 x 3 x 1") |
| Weight | 77 g (2.7 oz) |
| Material | Polycarbonate |
| Networking | |
| * WAN | (1) SC/APC, ITU-G.984 GPON |
| * LAN | (1) GbE RJ45 |
| Management | Ethernet In-Band/PON |
| Power | |
| * Method | Micro-USB: 5V, 1A / 24V Passive PoE |
| * Supply | Micro-USB Adapter* (included in single-pack) |
| Voltage Range | 4.7–5.3V |
| Max. Power Consumption | 3.5W |
| Line Rate | |
| * Downstream | 2.488 Gbps |
| * Upstream | 1.244 Gbps |
| LEDs | |
| * PON Status | (3) signal LEDs |
| * Ethernet | Steady white (link up), Blinking white (activity), OFF (link down) |
| * Power | White (ONS) |
| Software | ONU/ONT layer 2/3 Ethernet switch |
| Services | Web server, telnet, NAT, bridging/routing, firewall, application passthrough |
| Temperature | -10 to 45° C (14 to 113° F) |
| Humidity | 10 to 90% noncondensing |
| Fiber | |
| * Wavelength | TX: 1310 nm, RX: 1490 nm |
| * Line Code | Scrambled NRZ |
| * Bit Rate | Downstream: 2488.32 Mbit/s, Upstream: 1244.16 Mbit/s |
| * Reach | 20 km |
| Security | GEM Port Encryption |
