Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.
Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.
Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.
Rackmount Design

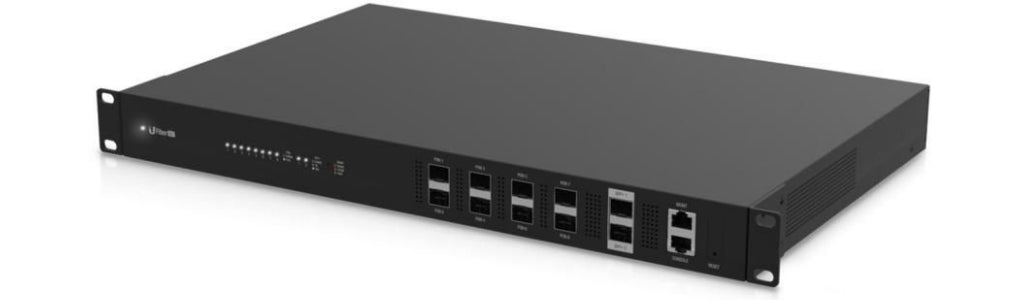

The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
| Specification | Description |
|---|---|
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | Without mounting brackets: 4.4 kg (9.7 lb) With mounting brackets: 4.5 kg (9.9 lb) |
| Enclosure Material | SGCC steel |
| Networking Interface | (8) GPON OLT SFP ports (2) 10 Gbps SFP+ ports |
| Management Interface | (1) Ethernet Out-of-Band (1) Ethernet In-Band (1) RJ45 Serial Console port Bluetooth |
| Power Method | Universal input, 100—240V AC, 50/60 Hz |
| Power Supply | (2) Hotswap AC/DC PSU |
| Supported Voltage Range | 100—240V AC |
| Max. Power Consumption | 40W (Excluding SFP modules) |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | Power: (1) Blue/white Blinking blue: reset to default Steady blue: system is booting Steady white: service is ready GPON OLT SFP: (8) White Steady/blinking white: link/activity SFP+: (2) White/green White: 10G Green: 1G Steady on after link is up; blinking while active Ethernet: (1) Green Green: 1G Steady on after link is up; blinking while active |
| Software | OLT GPON Core and Layer 2 Ethernet switch |
| VLAN | 4062 VLANs supported |
| Advanced QoS | Support 8 priority queues per user port and traffic classification |
| Concurrent Clients | 1024 ONUs/ONTs registered |
| Ubiquiti Specific Features | UISP Mobile App |
| Fiber | Operating Wavelength: TX: 1490 nm RX: 1310 nm Line Code: Scrambled NRZ Optical Interface Nominal Bit Rate: Downstream: 2488.32 Mbit/s Upstream: 1244.16 Mbit/s Physical Reach: 20 km |
