High-performance WiFi 6 GPON CPE.

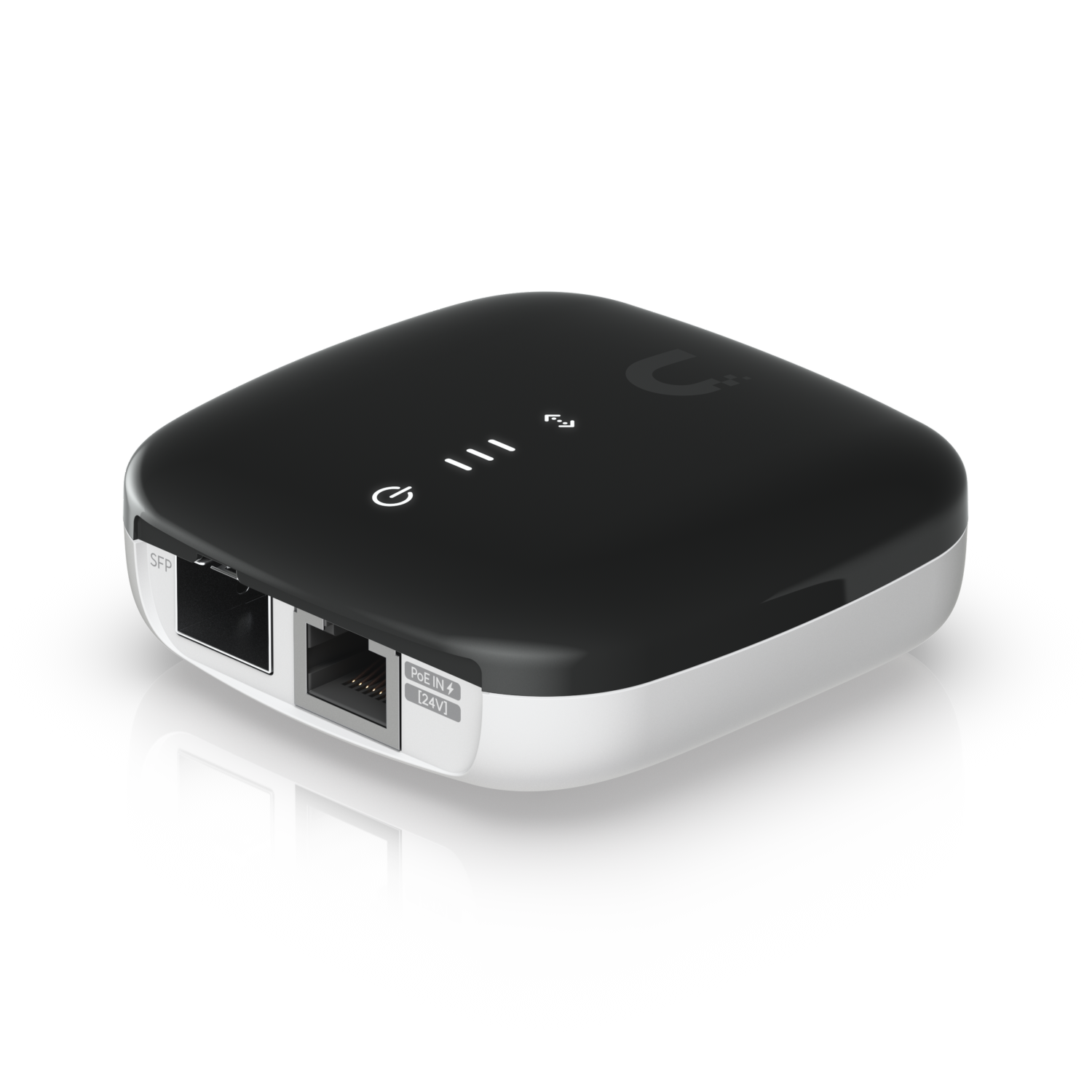

The UFiber WiFi6 GPON CPE (UF WiFi6) is a point-to-multipoint WiFi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. The UF WiFi6 has (4) GbE RJ45 LAN ports and (1) GPON WAN port to connect a local fiber line. It also excels at establishing reliably strong, long-distance fiber links up to 20 kilometers, allowing you to extend your service range and build your customer base.
| Category | Details |
|---|---|
| Design | |
| LED indicators | LAN/Power |
| Product colour | Black |
| Product type | Optical network unit (ONU) |
| Management features | |
| Reset button | Yes |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Downstream data rate | 1244 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| ITU standards | G.984 |
| Networking standards | IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11g/IEEE 802.11n |
| Rx wavelength (max) | 1490 nm |
| Switch layer | L2/L3 |
| Transmission distance (max) | 20 km |
| Tx wavelength (max) | 1310 nm |
| Upstream data rate | 2488 Mbit/s |
| VLAN support | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | -15 - 45 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 0.8 kg |
| Packaging content | |
| AC adapter included | Yes |
| Quantity | 1 |
| Ports & interfaces | |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber optic connector | SC |
| Fiber ports quantity | 1 |
| USB ports quantity | 1 |
| Power | |
| Output current | 3 A |
| Output voltage | 5 V |
| Power consumption (max) | 11 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 0.2 kg |
| Product Depth | 14.08 cm |
| Product Height | 3.17 cm |
| Product Width | 14.15 cm |
| Security | |
| Security algorithms | AES/TKIP/WEP/WPA/WPA-Enterprise/WPA-PSK/WPA2/WPA3 |
| Technical details | |
| Sustainability certificates | CE |
| Vendor information | |
| Brand Name | Ubiquiti |
| Warranty | 2 Year(s) |
| Wireless LAN features | |
| Antenna gain level (max) | 3 dBi |
| Antenna type | Internal |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
