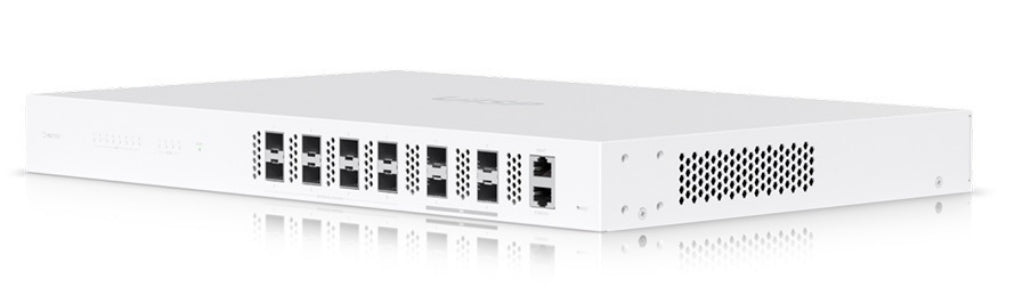

This Ubiquiti UISP Fiber UISP-FIBER-OLT-XGS 8-Port GPON SFP+ 10-Gigabit Optical Line Terminal can deliver 10 Gbps uplink/downlink speeds to over 2,000 subscribers.
Key Features
XGS-PON 10 Gbps bi-directional capacity.
2048 Client capacity (8 ports).
Four (4) 25G SFP28 uplink ports.
1U rack mount.
AC/DC power module redundancy support.
Works with Ubiquiti Internet Service Provider (UISP) application
Centrally manage your networks and clients with ease.
Organise your clients' plans, setup billing and invoicing, and grow your customer base.
View network topology, advanced data analytics, and more.
Set up devices quickly and manage them on the go with a powerful mobile app.
| Category | Specifications |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7") |
| Weight | 5.29 kg (11.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Networking interface | (8) XGS/XG/GPON ports |
| (4) 1/10/25G SFP28 ports* | |
| Management interface | Ethernet out-of-band |
| Ethernet in-band | |
| RJ45 serial console port | |
| Bluetooth | |
| Memory | 512 MB DDR3 |
| Onboard flash storage | 64 MB NOR + 512 MB NAND |
| Power method | (1) Universal AC input, 100-240V AC, 50/60 Hz |
| Power supply | (2) Hotswap AC/DC PSU |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 70W |
| Button | (1) Factory reset |
| Ambient operating temp. | -10 to 45° C (14 to 113° F) |
| Ambient operating hum. | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Slow blinking white: system is booting |
| Fast blinking white: reset to default | |
| Blinking white/blue: system is upgrading | |
| Slow blinking blue: system is connecting to UISP | |
| Fast blinking blue: locate system | |
| Steady white: system is ready | |
| Steady blue: system is ready and connected to UISP | |
| MGMT port | (1) White, steady on after link is up |
| PON ports | (8) Steady white: PON link |
| SFP28 ports | (4) White, steady on after link is up |
| Description | Downloads |
|---|---|
| Ubiquiti UISP Fiber 8-Port GPON SFP+ 10-Gigabit Optical Line Terminal (UISP-FIBER-OLT-XGS) User Manual | Downloads |
