The Ubiquiti UniFi UAP-AC-SHD-5 access point enables you to effectively and efficiently create wireless network designs of any size, from small to large.
The built-in, dedicated security and monitoring dual-band radios of the UniFi AC SHD (Secure High Density) Access Point provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance.
Powerful Hardware
The UniFi UAP-AC-SHD-5 features the latest in Wi-Fi 802.11ac Wave 2 4X4 MU-MIMO technology combined with dedicated security and Bluetooth radios.
Intuitive UniFi Controller Software
The system integrator can leverage the controller to easily configure and administer an enterprise Wi-Fi network.
Expandable
Start with one (or upgrade to a multi-pack) and expand to thousands while maintaining a single unified management system.
Save Money and Save Time
UniFi comes bundled with a software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Perfect for High-Density Scenarios
For high-density environments, such as a concert venue or outdoor fair where there are numerous clients in a relatively small space, we recommend the UniFi AC SHD AP. When you use the 2.4 GHz band in a high-density location, you encounter self-interference and channel saturation. When you use the 5 GHz band, you can deploy smaller cells (coverage areas), so you can support more clients in any cell that deploys more than one AP.
| Specification | Description |
|---|---|
| Dimensions | Ø220 x 48.1 mm (Ø8.7 x 1.9") |
| Weight | Without mount: 700 g (1.5 lb) With mount: 830 g (1.8 lb) |
| Networking Interface | (2) GbE RJ45 ports |
| Power Method | PoE+ |
| Power Supply | UniFi PoE Switch* *5-packs do not come with PoE adapters. |
| Supported Voltage Range | 44—57 VDC |
| Max. Power Consumption | 20W |
| Max. TX Power | 2.4 GHz: 25 dBm 5 GHz: 25 dBm |
| MIMO | 2.4 GHz: 4 x 4 5 GHz: 4 x 4 |
| Throughput Rate | 2.4 GHz: 800 Mbps 5 GHz: 1733 Mbps |
| Antenna Gain | 2.4 GHz: 6 dBi 5 GHz: 6 dBi |
| Button | Factory reset |

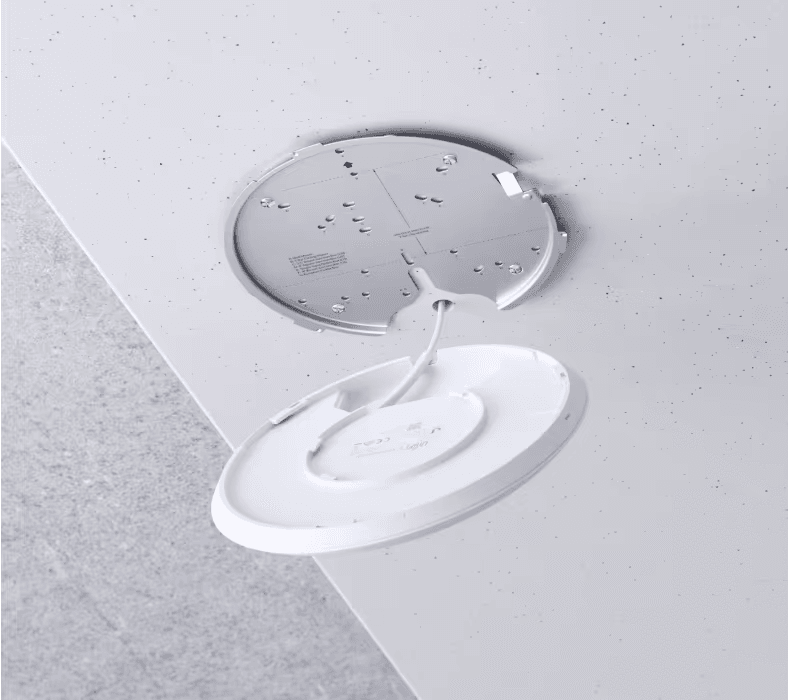

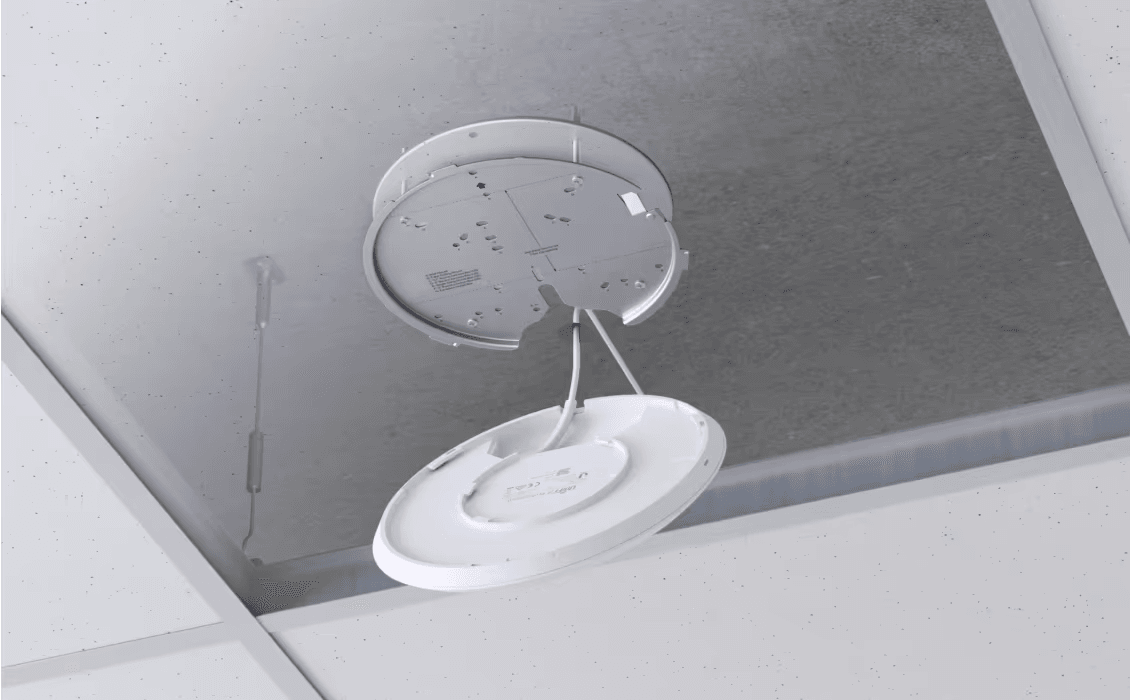

| Mounting | Wall/ceiling (Included) |
| Ambient Operating Temperature | -10 to 70° C (14 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, cULus |
| WiFi Standards | 802.11a/b/g/n/ac/ac-Wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w (PMF) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Power Save | Supported |
| Guest Traffic Isolation | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent Clients | 1000+ |
| Supported Data Rates (Mbps) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40) 802.11ac: 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
