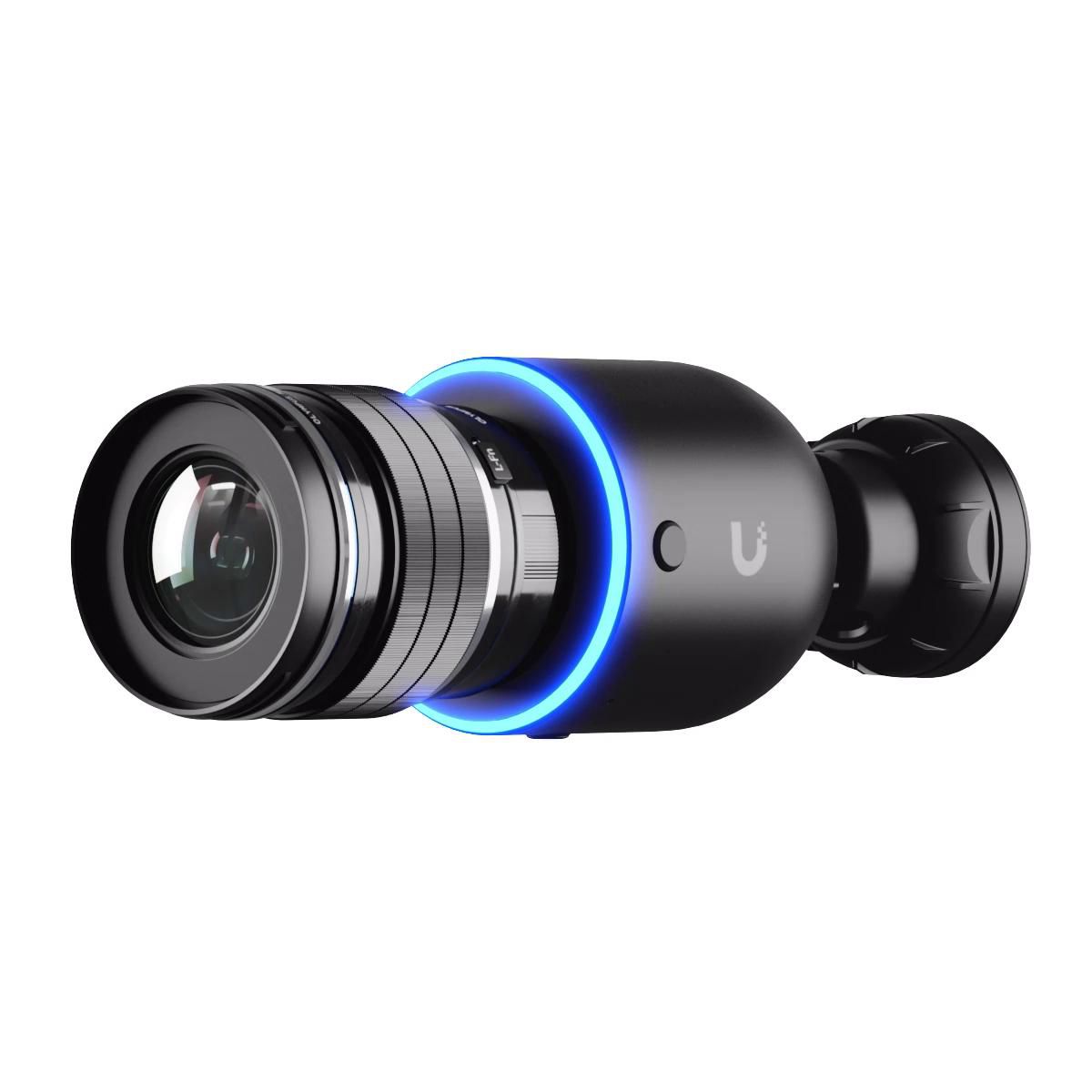

Ubiquiti UniFi Camera AI DSLR (UVC-AI-DSLR)
The Ubiquiti UniFi UVC-AI-Theta is a versatile and high-performance security camera built to meet a variety of surveillance needs. With an array of options for different mounting configurations, this camera's dimensions vary depending on the setup, offering flexibility in deployment. Whether it's the compact Ø80 x 89 mm without a mount or the outdoor case Ø91.6 x 196.3 mm, the camera's aluminum alloy enclosure ensures durability. With a 4/3" 10MP CMOS sensor and lens options such as the M. Zuiko Digital ED 17 mm f/1.2 PRO and the M. Zuiko Digital ED 45 mm f/1.2 PRO, it captures high-quality imagery with wide-angle and telephoto view angles.
UVC-AI-DSLR Key Features
4K (8MP) video resolution
High-sensitivity imaging sensor
Wide aperture M4/3 f/1.2 prime lens included
Advanced AI: Detect people, read license plates, and more
Integrated 2-way audio*
Connect and power using PoE+
Weatherproof (outdoor exposed)
In the realm of video, the UVC-AI-Theta impresses with H.264 compression, a 3840 x 2160 resolution, and a maximum frame rate of 30 FPS. Users have the ability to fine-tune image settings for optimal results, including colour, brightness, sharpness, contrast, white balance, exposure control, and various noise reduction options. The Quad-core Arm Cortex-A53 based chip powers the camera, and it's equipped with a GbE RJ45 port for networking. With a power-efficient design, the camera consumes 17.77W when the lens is operational, and it can be powered using PoE+ with a supported voltage range of 37-57V DC. It's easy to manage and control with UniFi Protect software and mobile apps for iOS and Android.
The UVC-AI-Theta offers a range of lens options, versatile image settings, and robust hardware, making it a valuable asset for various surveillance applications. With its durable aluminum alloy construction and adaptable mounting solutions, it's suitable for both indoor and outdoor use. Its high-resolution video capabilities, efficient power consumption, and compatibility with UniFi Protect software make it a reliable choice for those seeking a versatile and feature-rich surveillance camera.
| Specification | Description |
|---|---|
| Dimensions | Without mount: Ø80 x 89 mm (Ø3.1 x 3.5") With mount: Ø80 x 153 mm (Ø3.1 x 6") M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4") M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3") Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7") |
| Weight | Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Wall mount: aluminum alloy Pole mount: aluminum alloy |
| Weatherproofing | IPX5 (With the outdoor case) |
| Sensor | 4/3" 10MP CMOS |
| Lens | UVC-AI-DSLR: M. Zuiko Digital ED 17 mm ƒ/1.2 PRO UVC-AI-DSLR-LD: M. Zuiko Digital ED 45 mm ƒ/1.2 PRO |
| View Angle | Wide: H: 52°, V: 39°, D: 65° (UVC-AI-DSLR) Telephoto: H: 21.6°, V: 16.2°, D: 27° (UVC-AI-DSLR-LD) |
| Resolution | UVC-AI-DSLR/UVC-AI-DSLR-LD: 8MP 3840 x 2160 (16:9) |
| Max. Frame Rate | 30 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking Interface | GbE RJ45 port |
| Max. Power Consumption | 17.77W (With lens working) |
| Power Method | PoE+ |
| Supported Voltage Range | 37—57V DC |
| Buttons | Factory reset Lens release key |
| Mounting | Wall, pole mount (Included) Tripod mount (Optional) |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Microphone | Yes (Can be disabled) Audio function will be disabled when using its outdoor case. |
| Speaker | Yes Audio function will be disabled when using its outdoor case. |
| Web Application | UniFi Protect: Version 2.2.2 and later |
| Mobile App | UniFi Protect iOS™ and Android™: Version 1.7.0 and later |
