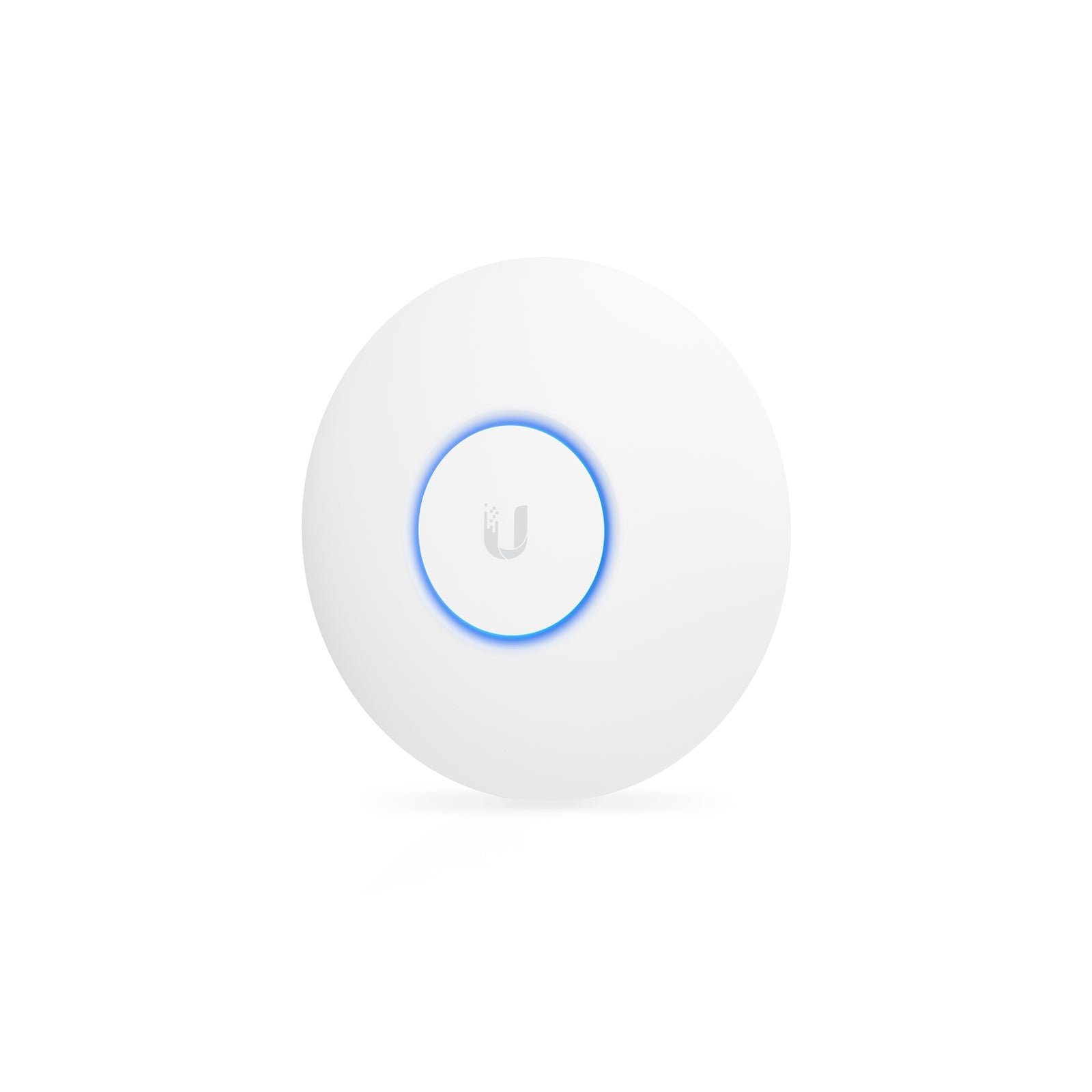

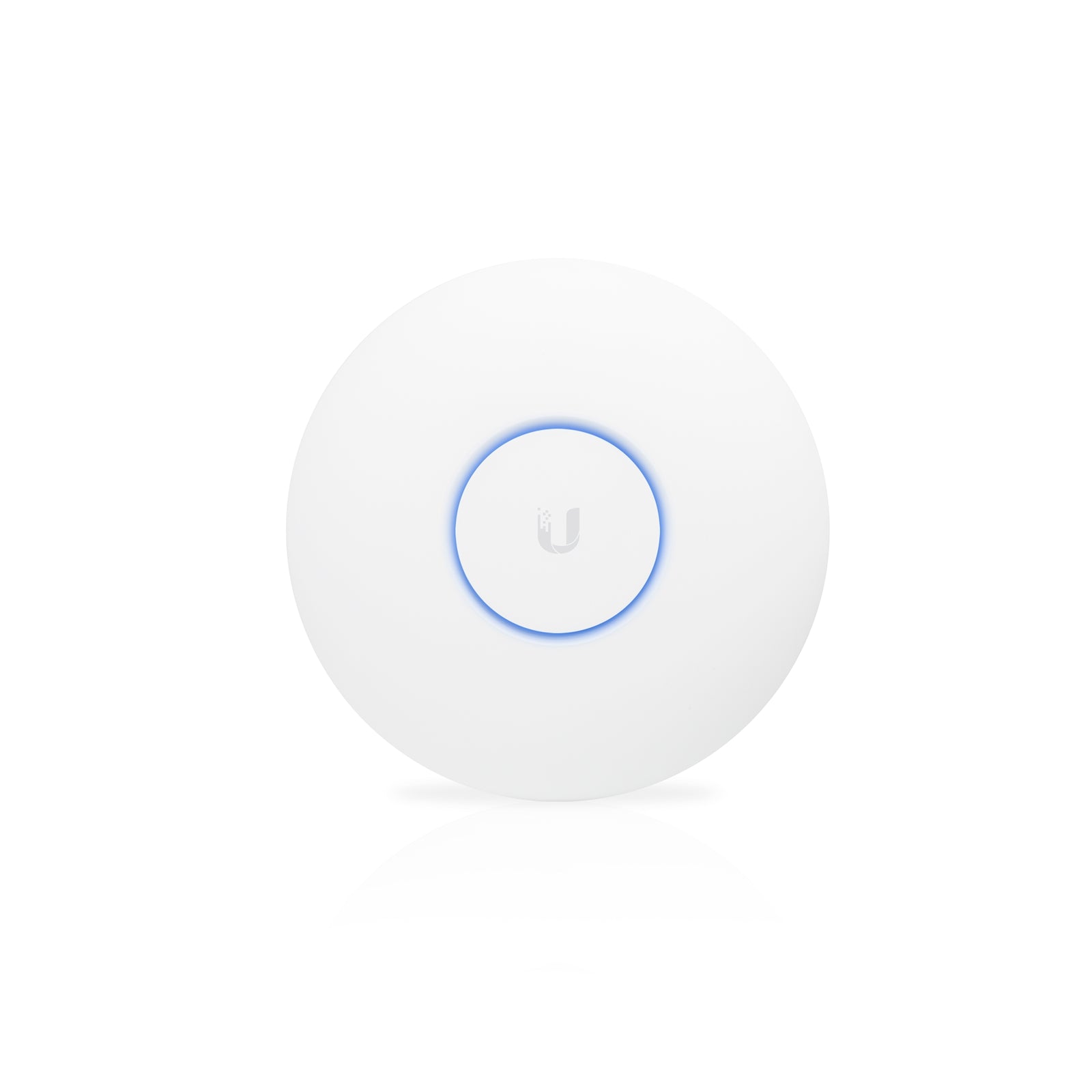

The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.
Dual-Radio Performance, Gigabit Speeds
The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti's disruptive pricing strategy.
Sleek, Ultra-Compact Design
The UniFi AC Lite AP features a cleaner design in a reduced footprint half the size compared to the standard UniFi AP.
Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance
Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | Ø160 x 31.45 mm (Ø6.3 x 1.2") |
| Weight | Without mount: 170 g (6 oz) |
| With mount: 185 g (6.5 oz) | |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Passive PoE, 24V (Pairs 4, 5+; 7, 8 return) | |
| Power supply | UniFi PoE switch, 24V, 0.5A Gigabit PoE adapter* |
| *5-packs do not come with PoE adapters. | |
| Max. power consumption | 6.5W |
| Max. TX power | |
| 2.4 GHz: 20 dBm | |
| 5 GHz: 20 dBm | |
| 6 GHz: – | |
| MIMO | |
| 2.4 GHz: 2 x 2 | |
| 5 GHz: 2 x 2 | |
| 6 GHz: – | |
| Throughput rate | |
| 2.4 GHz: 300 Mbps | |
| 5 GHz: 867 Mbps | |
| 6 GHz: – | |
| Antenna gain | |
| 2.4 GHz: 3 dBi | |
| 5 GHz: 3 dBi | |
| 6 GHz: – | |
| Button | Factory reset |

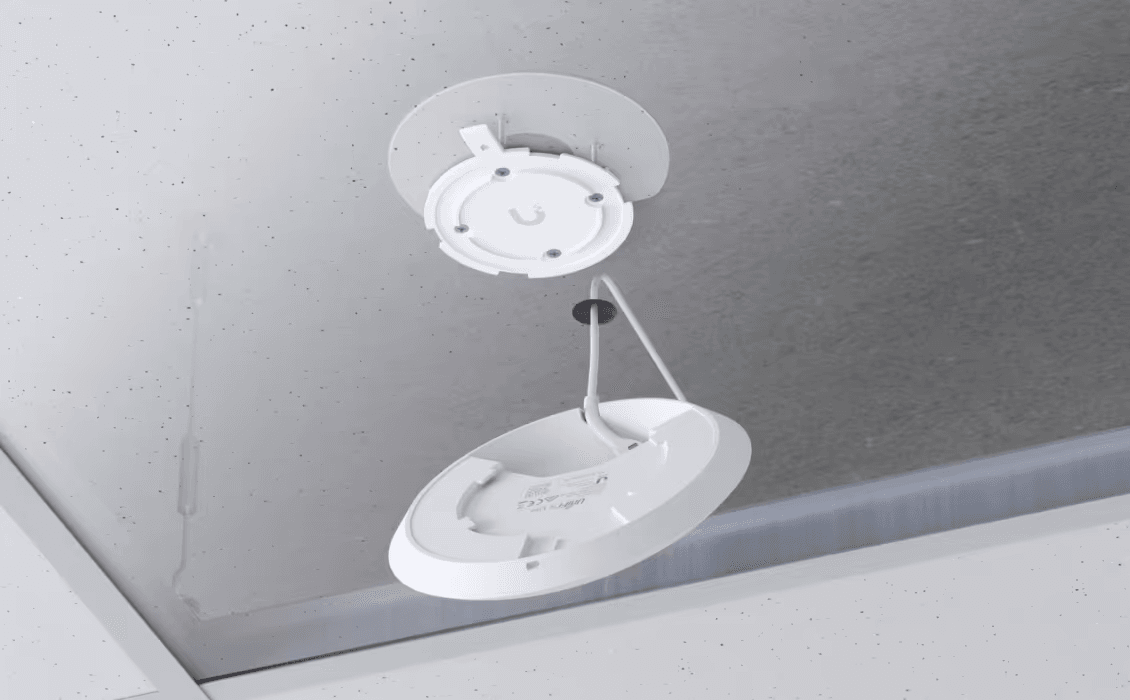

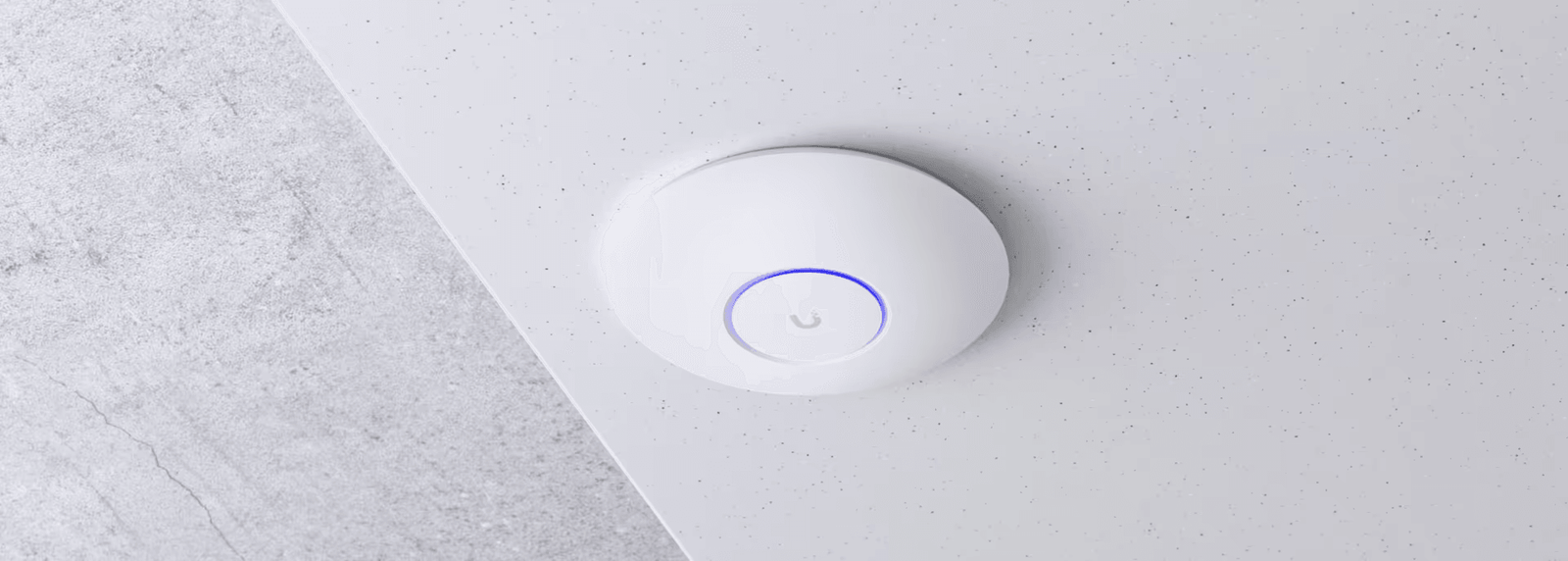

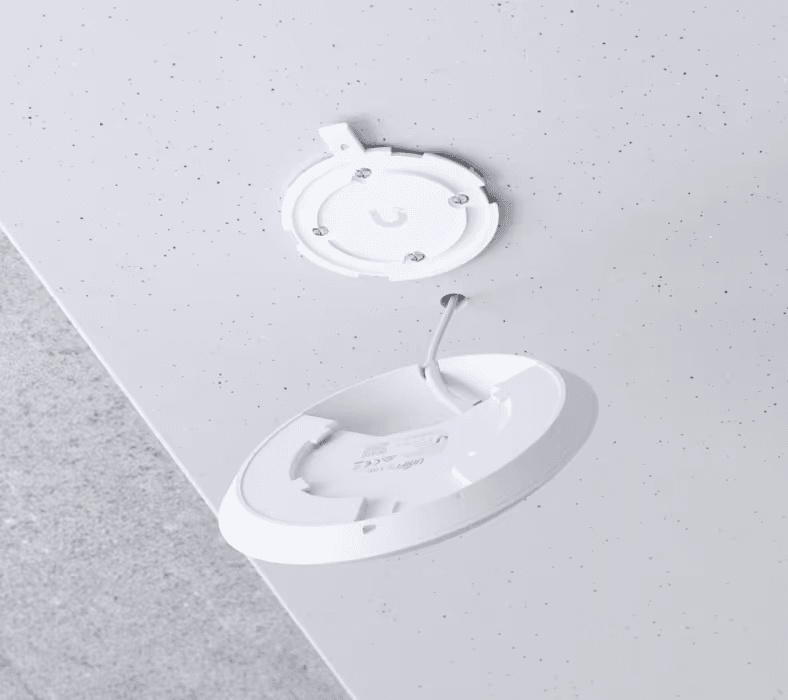

| Mounting | Wall, ceiling (Included) |
| Ambient operating temp. | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
