Ubiquiti UniFi Express Gateway & Controller 1000 Mbit/s

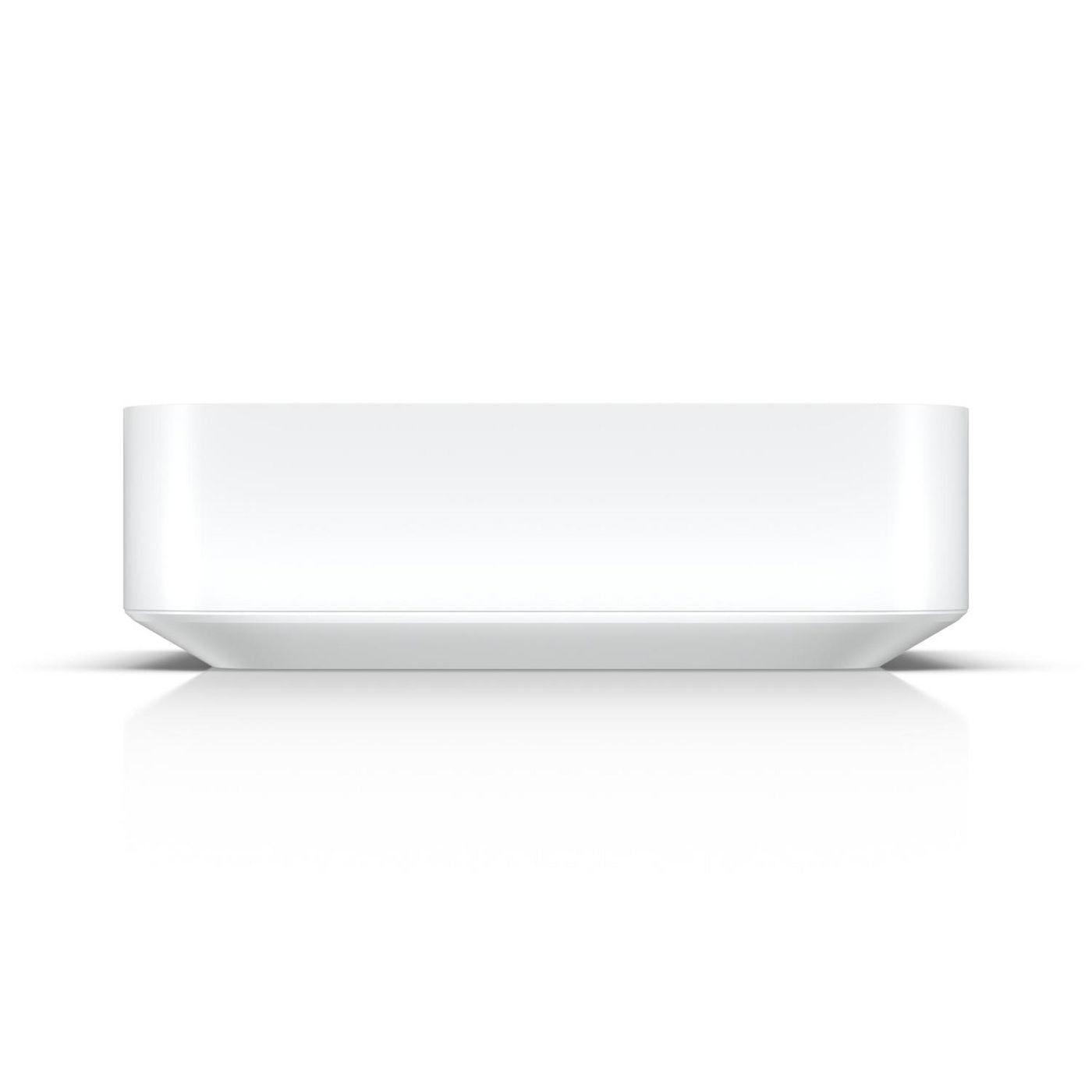

Ubiquiti UniFi Express (UX)

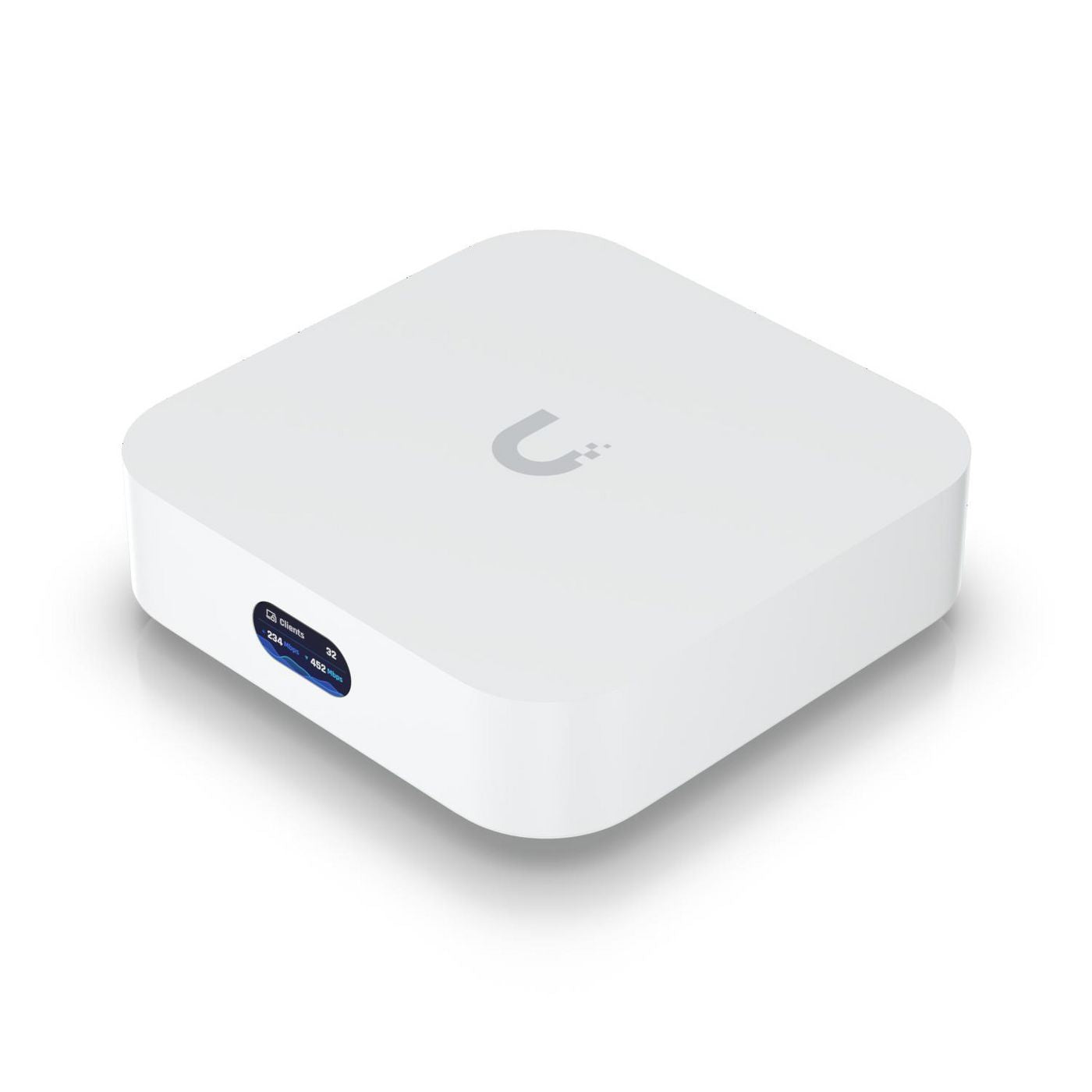

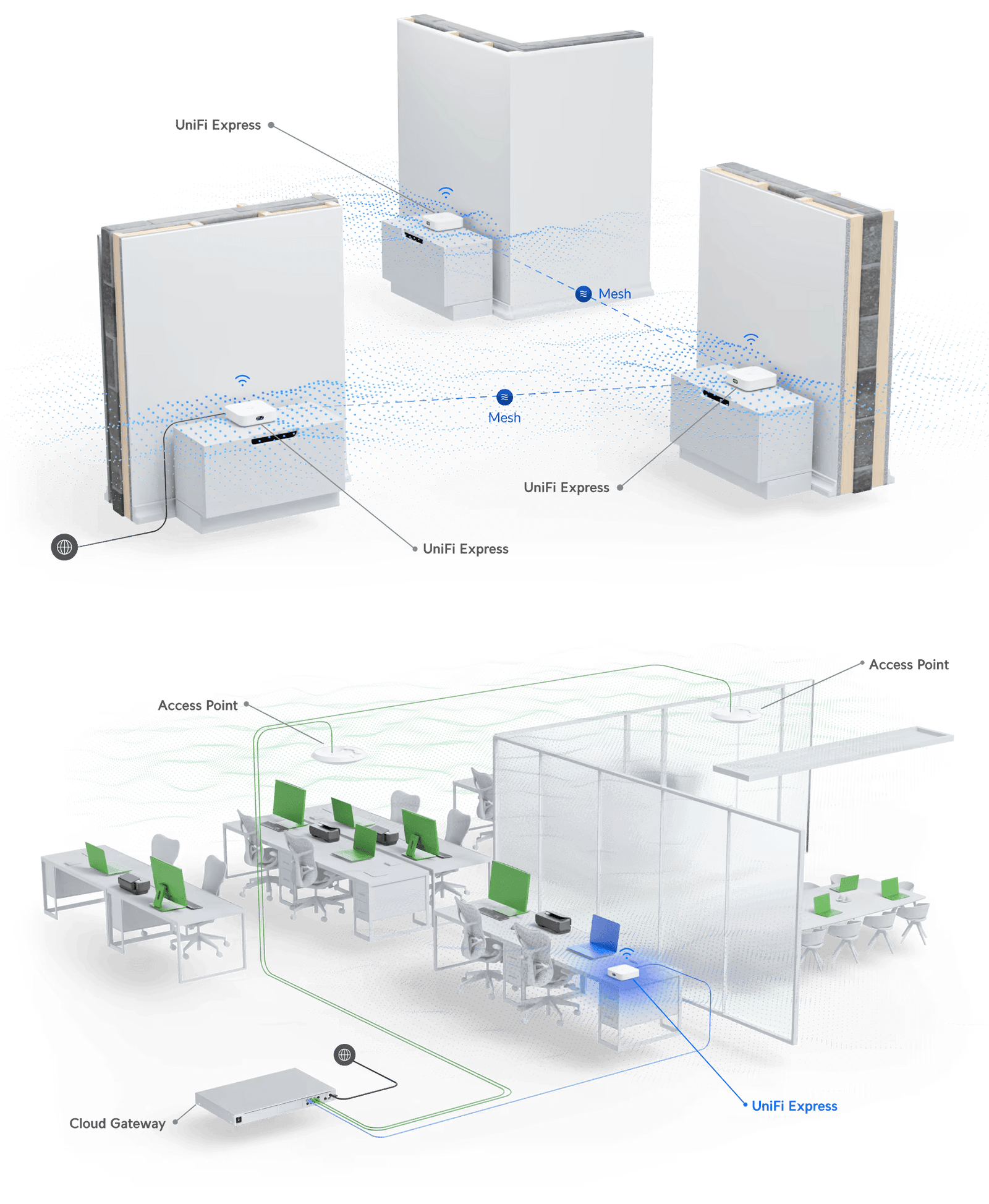

The Ubiquiti UniFi Express (UX) is a compact networking solution that combines the power of a UniFi Cloud Gateway and a WiFi 6 access point in one unit. Operating as a versatile mesh access point, it delivers high-performance wireless connectivity with built-in WiFi 6 technology (2x2 MIMO). Despite its small size, it covers 140 m² (1,500 ft²) and supports over 60 connected WiFi devices, making it ideal for home and small office environments.
Ubiquiti UniFi Express (UX) Key Features
Built-in WiF6 (2x2 MIMO)
140 m² (1,500 ft²) single-unit coverage
60+ connected WiFi devices

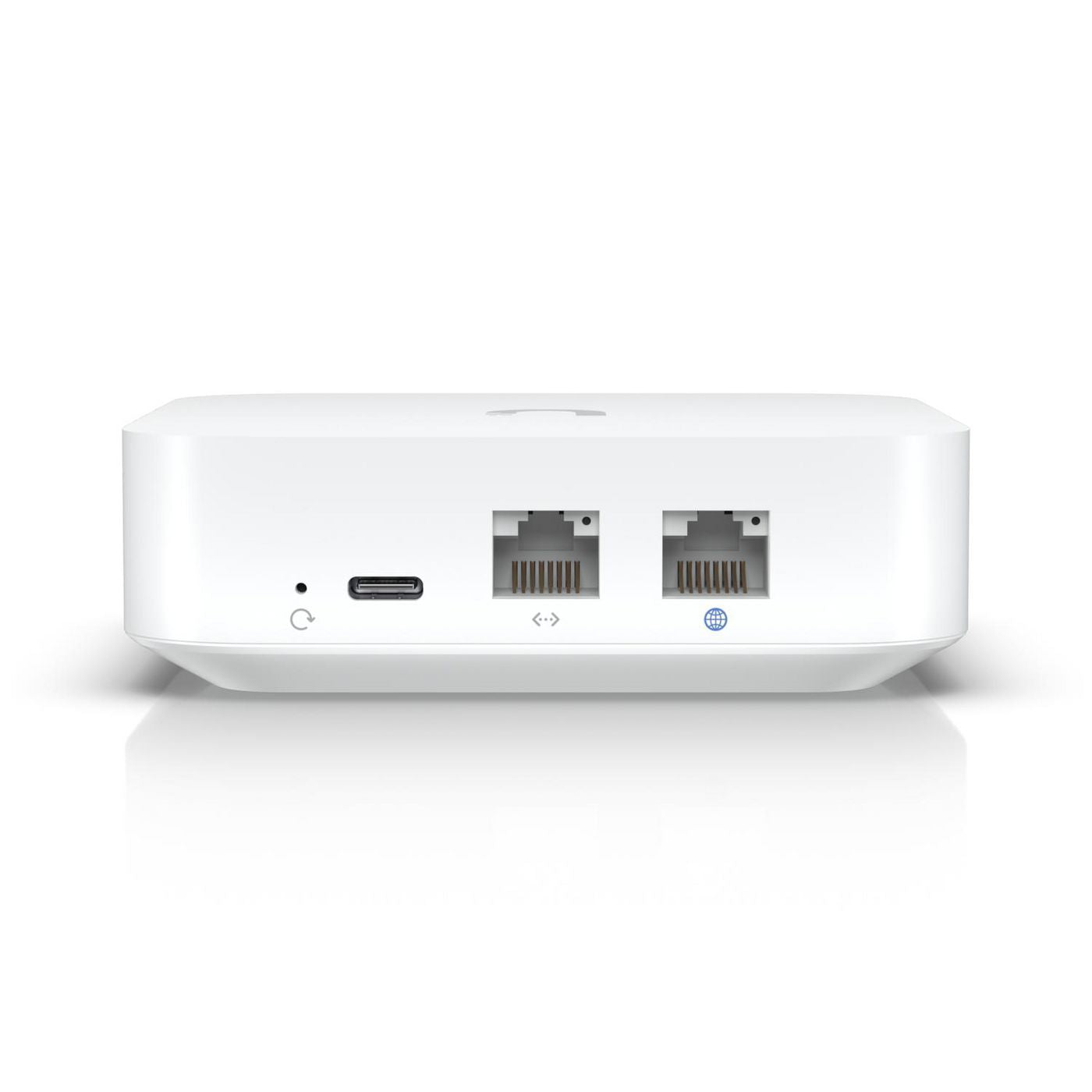

(1) GbE RJ45 WAN port
(1) GbE RJ45 LAN port to extend network

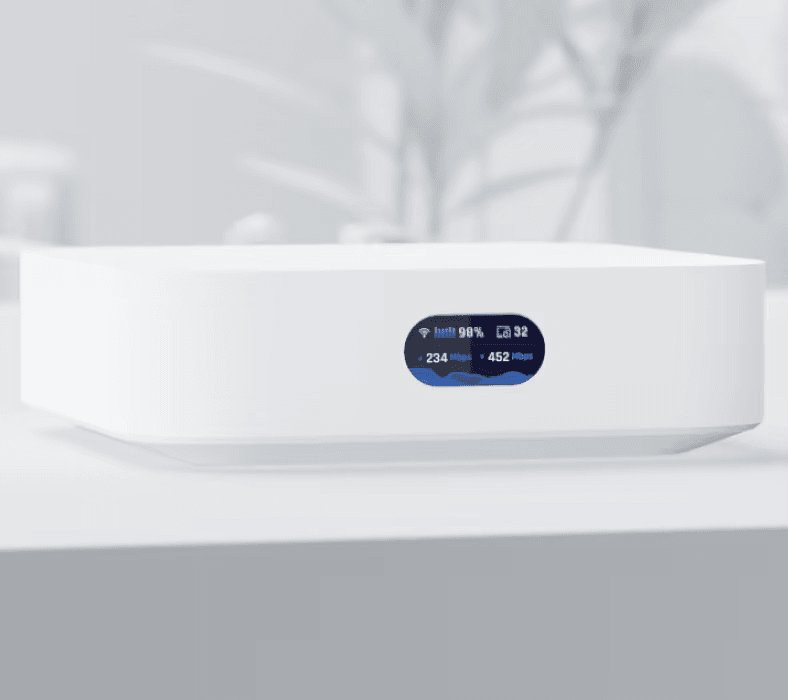

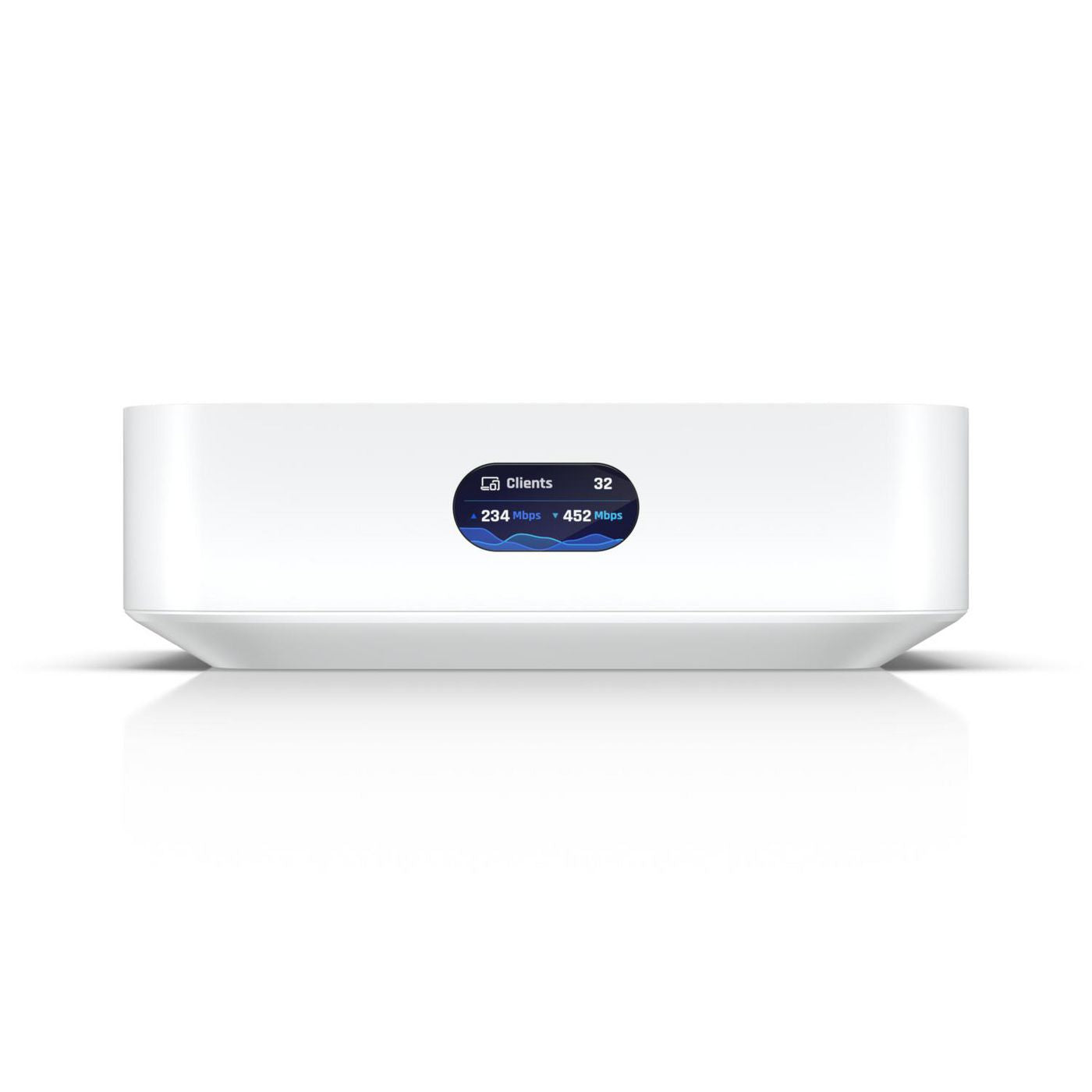

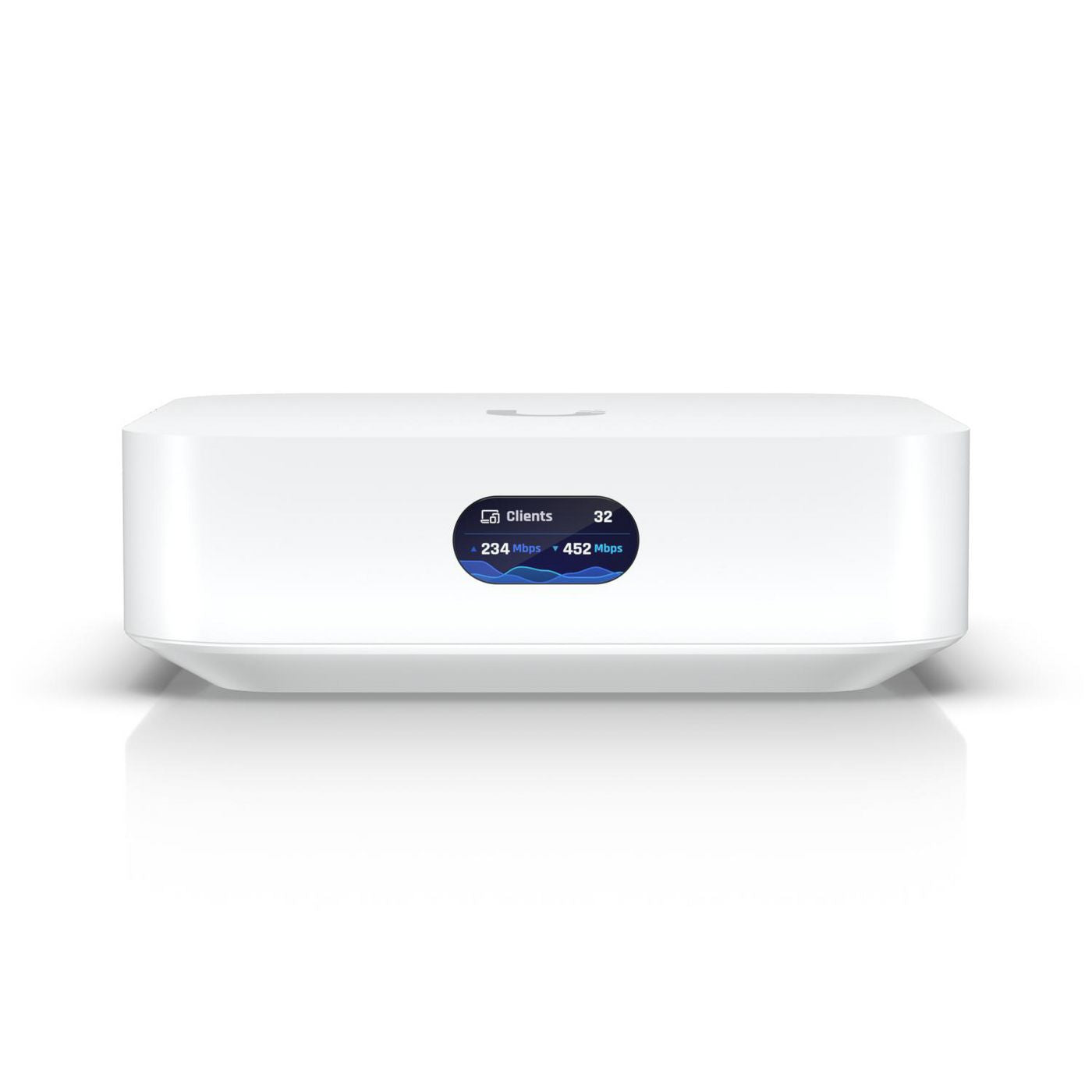

0.96" LCM status display

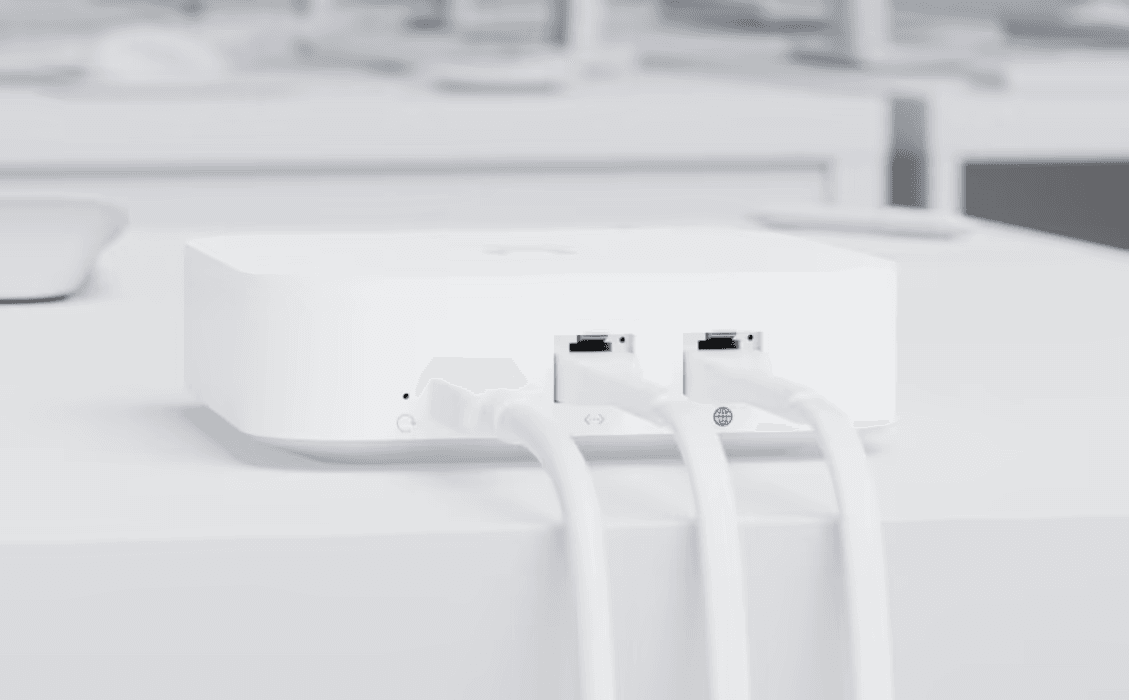

Equipped with essential networking interfaces, the UniFi Express provides seamless integration into various setups. The inclusion of a GbE RJ45 WAN port ensures reliable connectivity to the wider internet, while the GbE RJ45 LAN port allows for easy network extension, enhancing its versatility in diverse networking scenarios. The device's 0.96" LCM status display adds a user-friendly dimension, providing at-a-glance information about the network's status and performance.
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Weight | 302 g (10.7 oz) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet, Bluetooth |
| Networking interface | LAN: (1) GbE RJ45 port |
| WAN: (1) GbE RJ45 port | |
| Power method | USB type C (5V DC/3A) |
| Max. power consumption | 10W |
| Wireless | |
| Max. TX power | 2.4 GHz: 22 dBm |
| 5 GHz: 25 dBm | |
| MIMO | 2 x 2 (DL/UL MU-MIMO) for both 2.4 GHz and 5 GHz bands |
| Throughput rate | 2.4 GHz: 573.5 Mbps |
| 5 GHz: 2.4 Gbps | |
| Antenna gain | 2.4 GHz: 4 dBi |
| 5 GHz: 5.15 dBi | |
| Gateway Features | |
| Performance | Internet quality and outage reporting |
| Next-generation security | |
| Application-aware firewall rules | |
| Content, country, domain, and ad filtering | |
| VLAN/subnet-based traffic segmentation | |
| Full stateful firewall | |
| Software | |
| WiFi standards | 802.11a/b/g/n/ac/ax |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | Console mode: 3 per band, Standard AP: 8 per band |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 50+* |
| Supported Data Rates | See supported data rates for 802.11a/b/g/n/ac/ax |
| Application Requirements | UniFi Network Version 8.0.7 and later |
