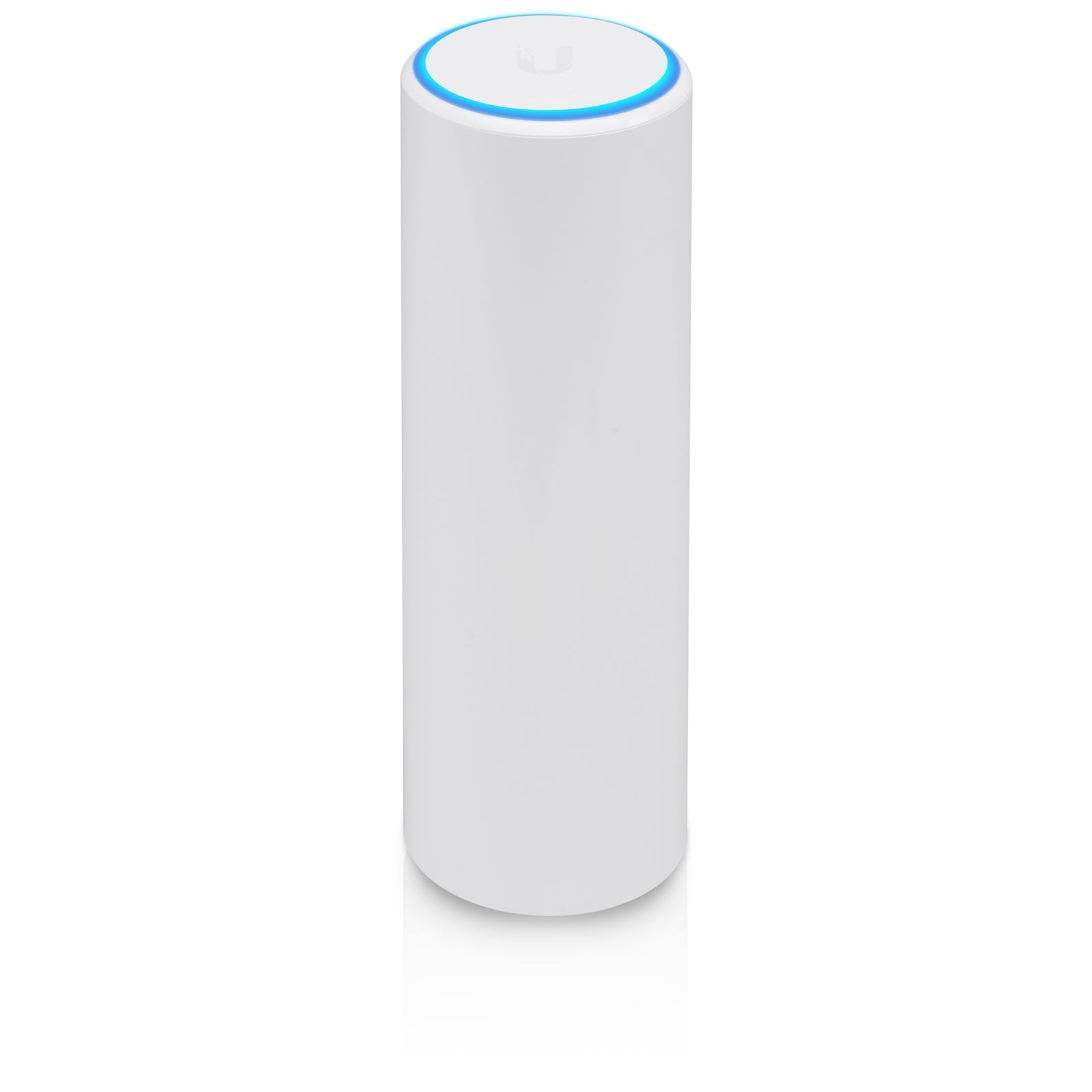

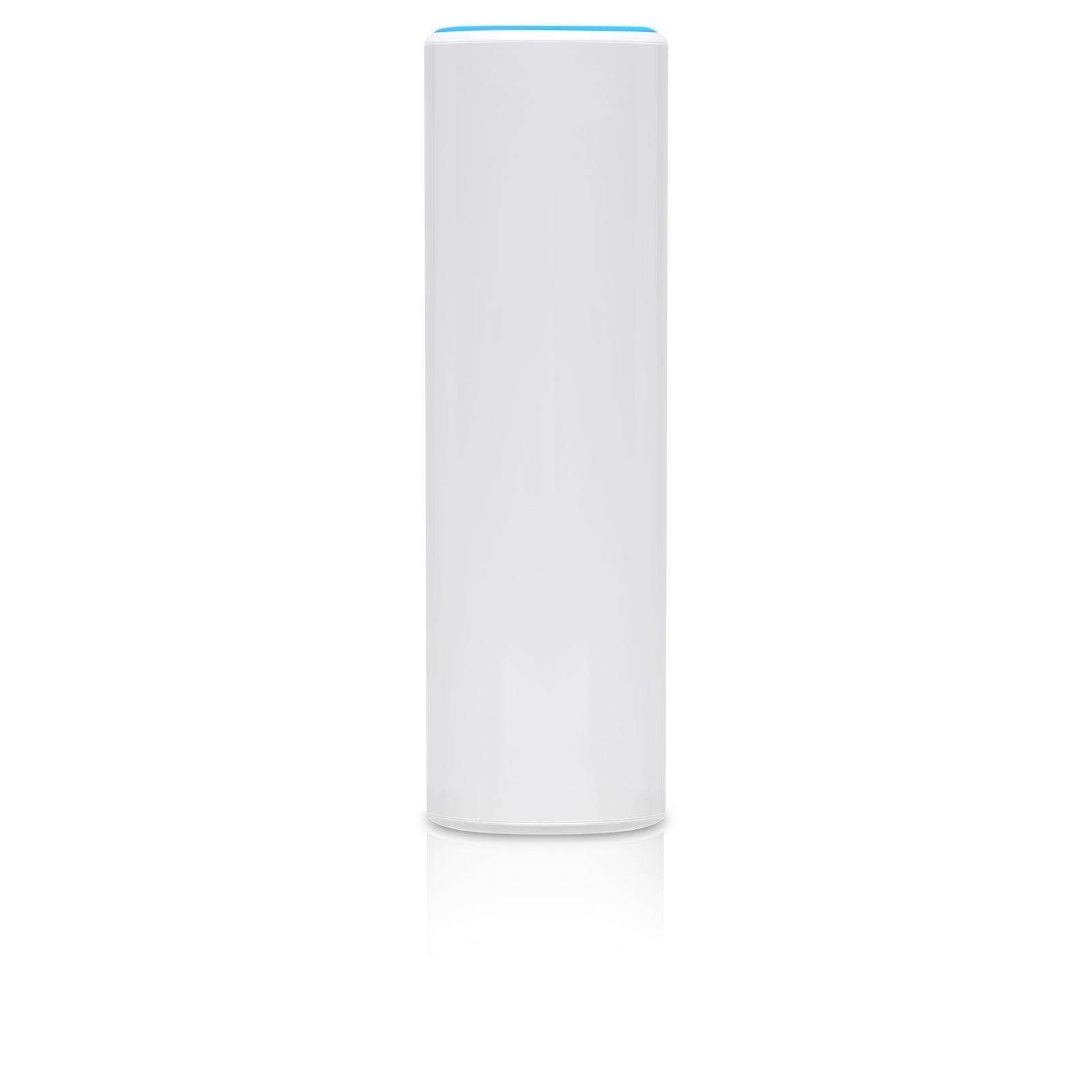

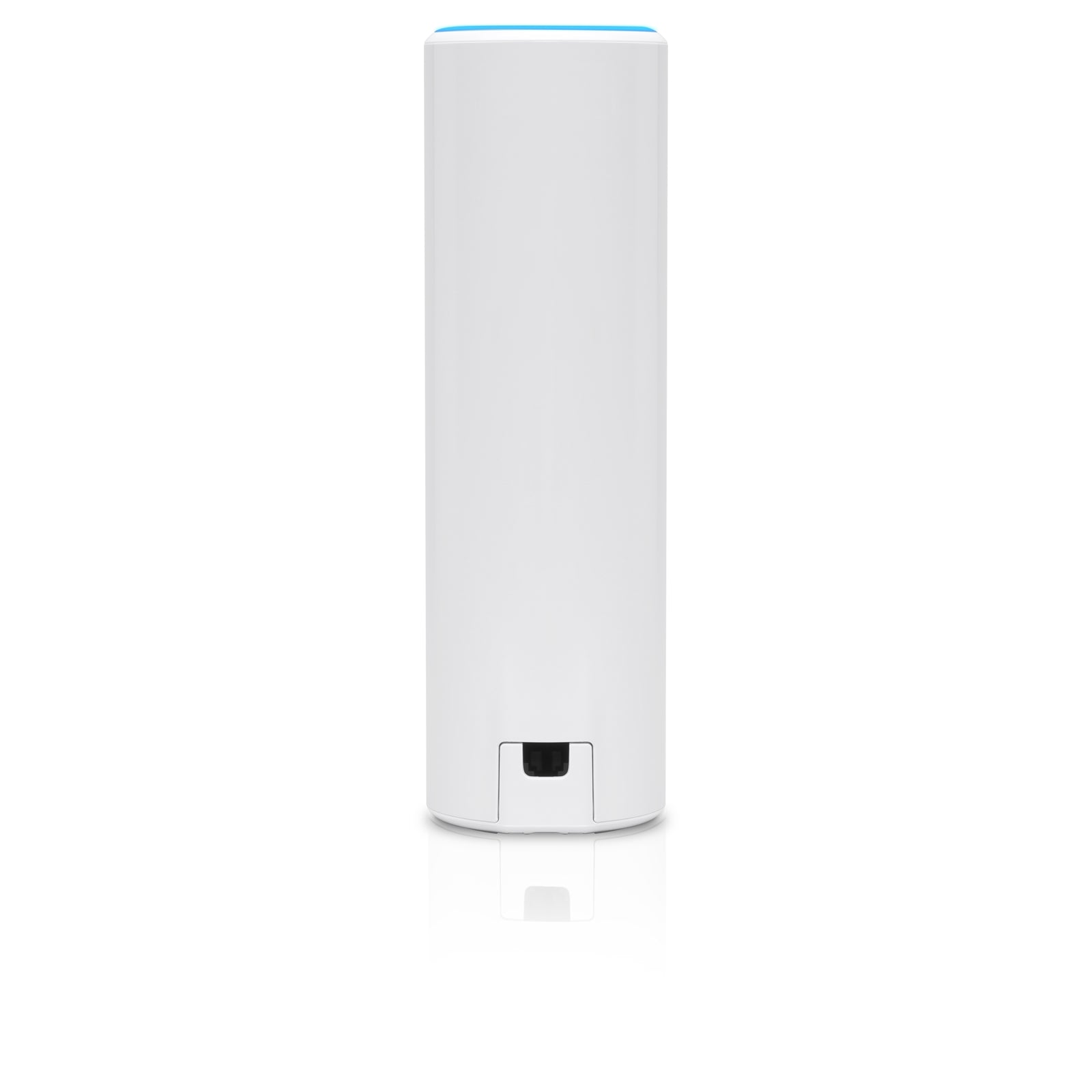

Small and sleek, yet powerful, the 802.11ac 4x4 AP is ideal for enterprises, businesses, and homes. The modern yet discreet design allows placement near users for optimal performance.
802.11ac Wave 2 Technology
5 GHz Radio: 802.11ac Wave 2, 4x4 MU-MIMO with Radio Rate of 1.733 Gbps
2.4 GHz Radio 802.11n: 2x2 MIMO with Radio Rate of 300 Mbps
Indoor and Outdoor Use

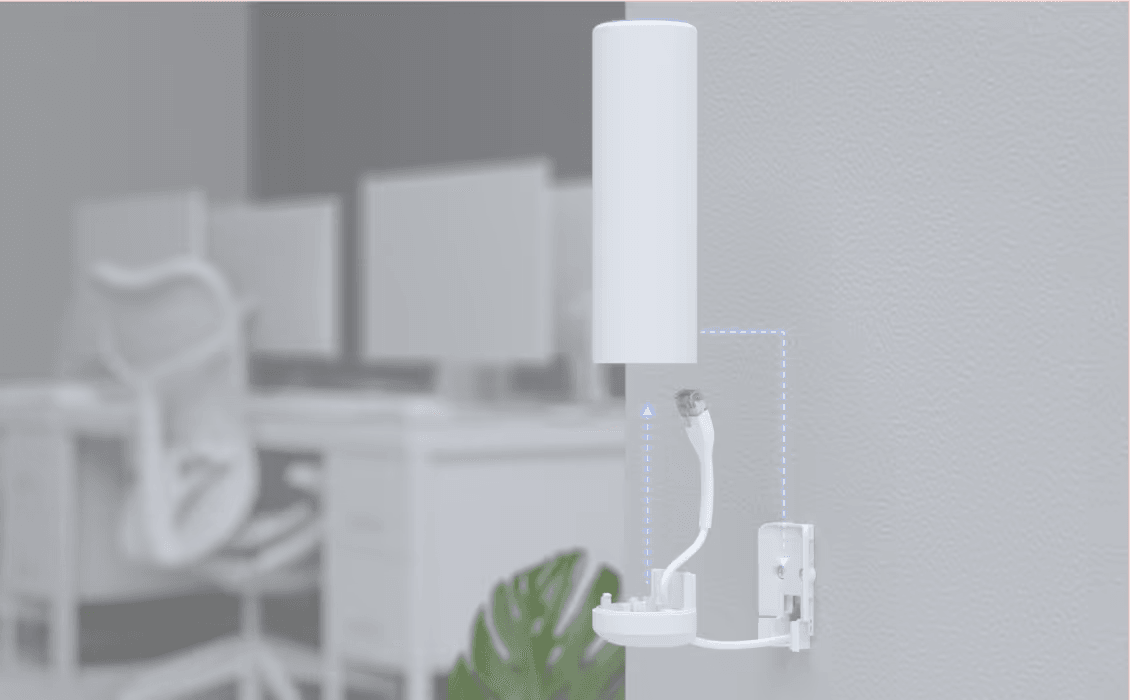

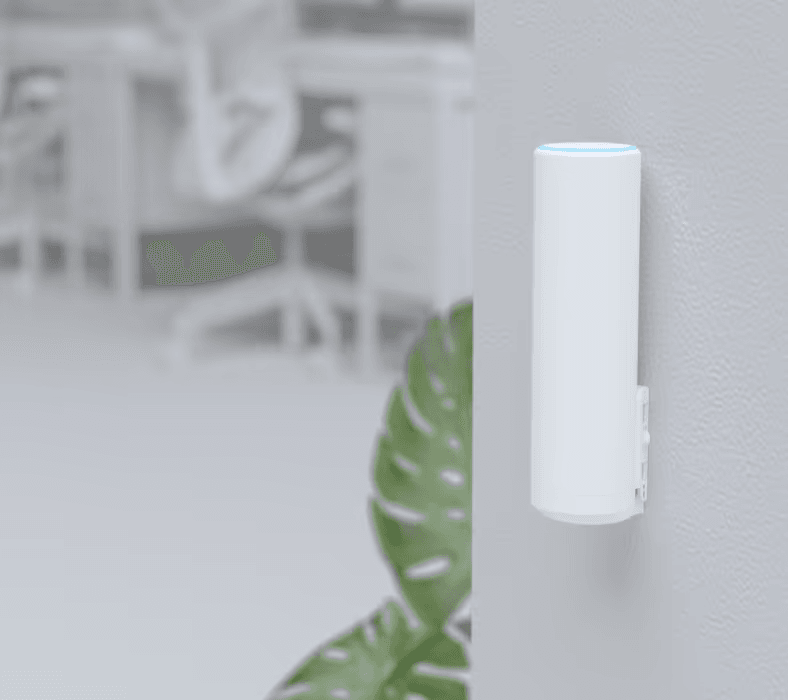

Tabletop, Wall, and Pole Mounting Brackets Included
Seamless Integration and Management with UniFi Network Solution
| Category | Specification |
|---|---|
| Mechanical | |
| Dimensions | Ø48.5 x 159.5 mm (Ø1.9 x 6.3") |
| Weight | 315 g (0.7 lb) |
| Hardware | |

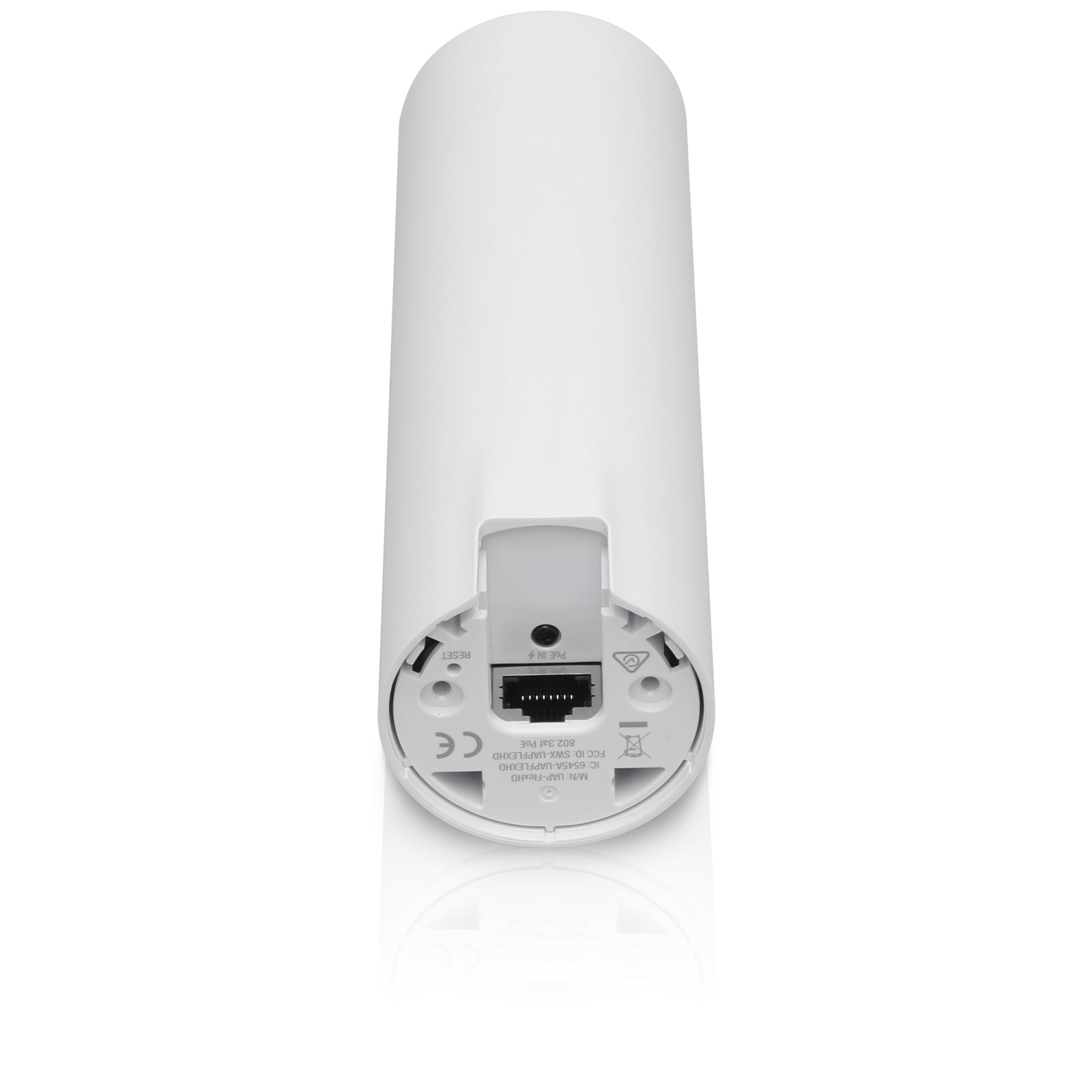

| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Power supply | UniFi PoE switch |
| 48V, 0.32A Gigabit PoE adapter (Included) | |
| Supported voltage range | 44—57V DC |
| Max. power consumption | 10.5W |
| Max. TX power | 2.4 GHz: 23 dBm, 5 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2x2, 5 GHz: 4x4 |
| Throughput rate | 2.4 GHz: 300 Mbps, 5 GHz: 1733 Mbps |
| Antenna gain | 2.4 GHz: 1.6 dBi, 5 GHz: 4 dBi |
| Button | Factory reset |
| Mounting | Wall, desktop, pole (Included), Ceiling (Optional) |
| Ambient operating temp. | -30 to 70° C (-22 to 158° F) |
| Ambient operating humid. | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 200+ |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80) |
