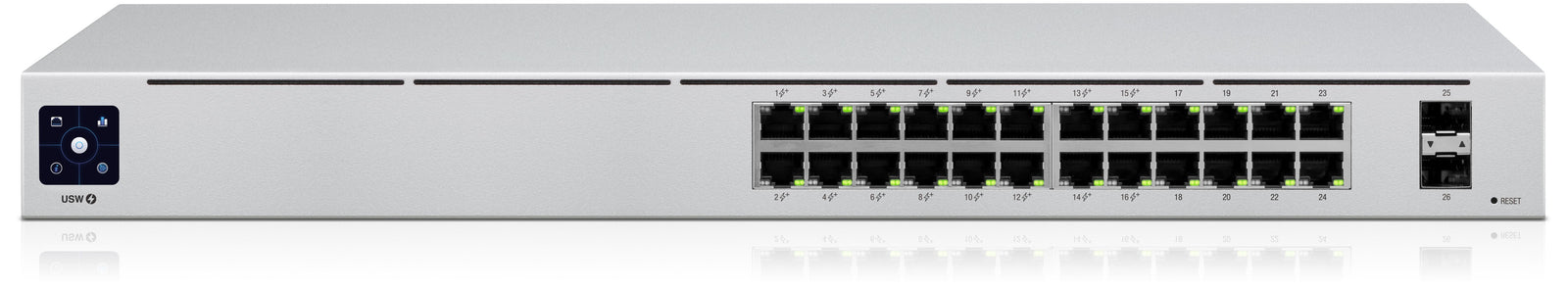

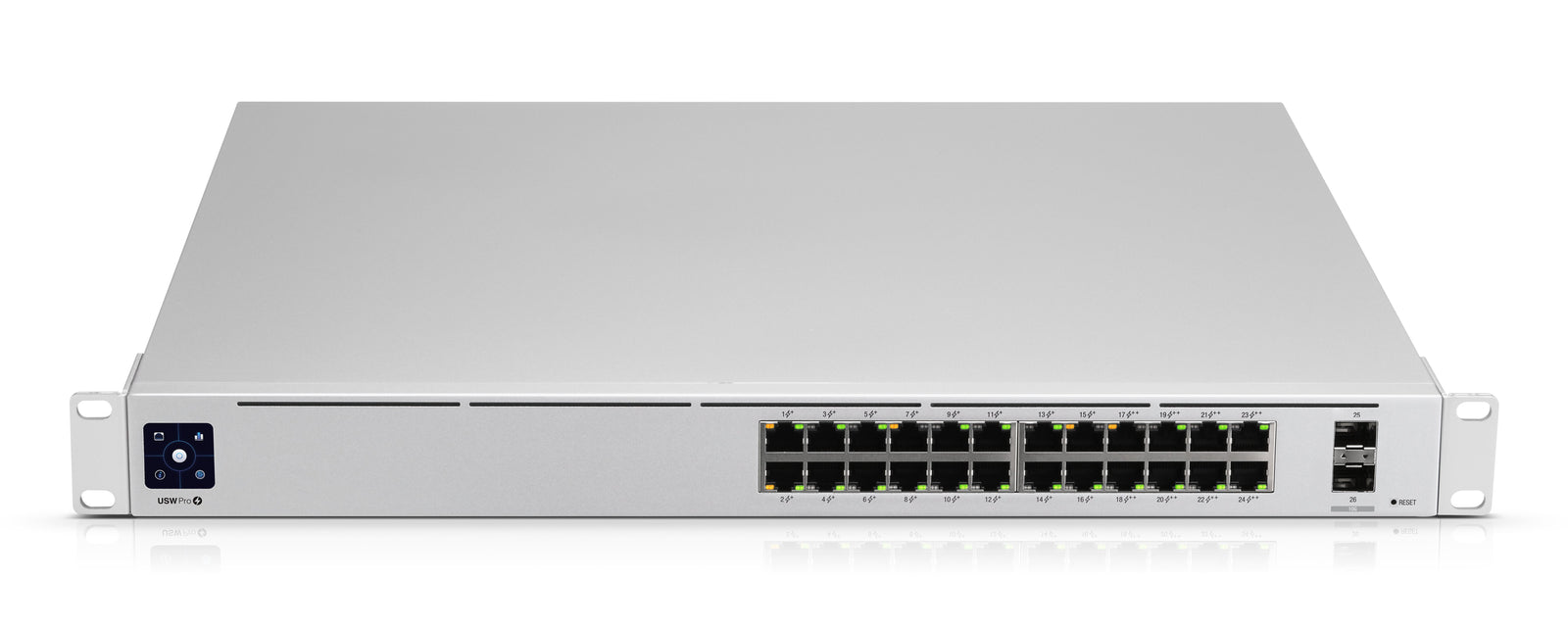

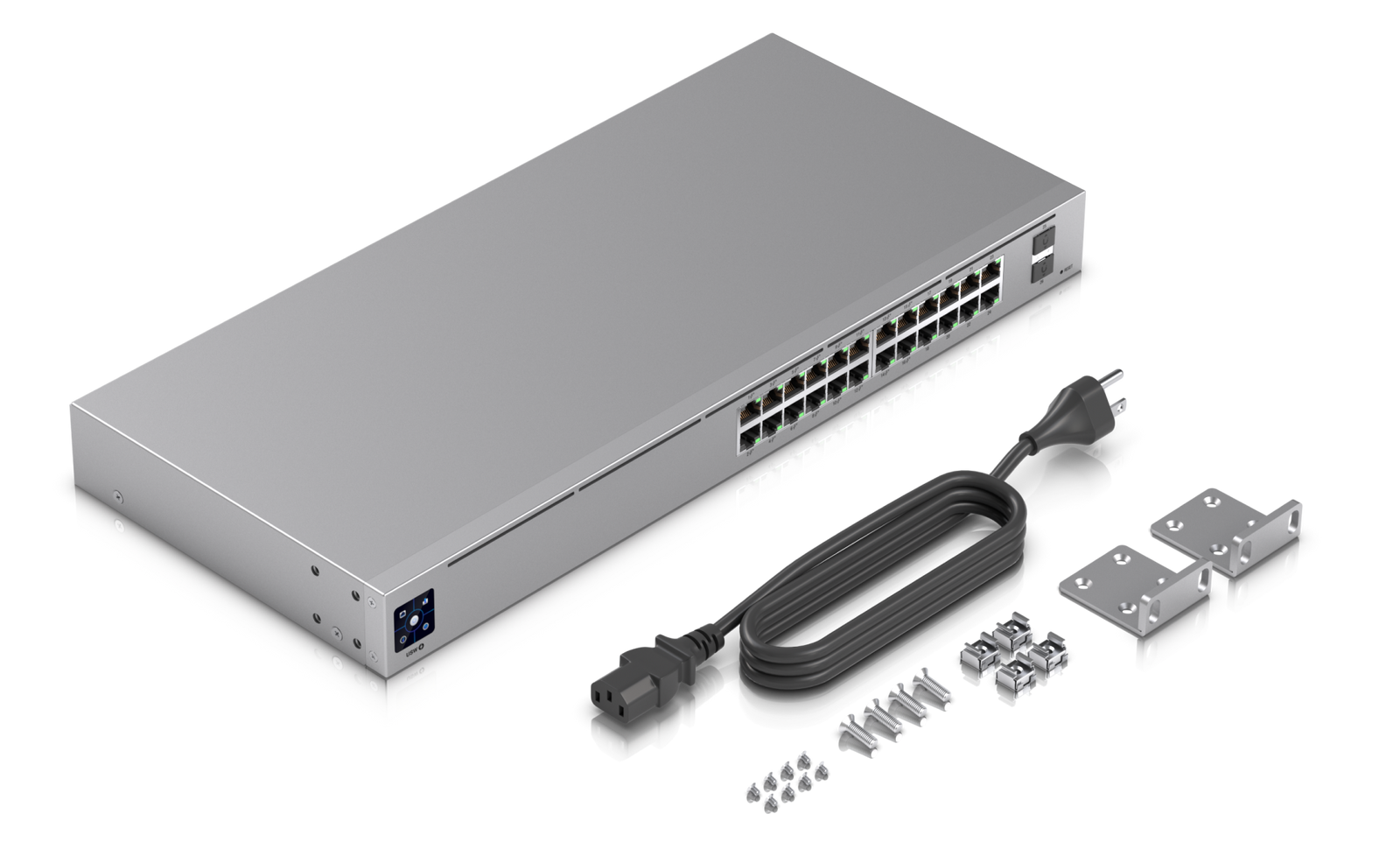

Ubiquiti UniFi Gen2 24 Port Gigabit Network Switch With 16 PoE+ Ports - USW-24-POE
SKU: USW-24-POE
£282.72 (Excl. VAT)
- Description
- Specifications
-
Ubiquiti UniFi Gen2 24 Port Gigabit Network Switch With 16 PoE+ Ports
Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3 switching capabilities.Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.Synchronized LCM Displays
Touch one to wake up all the screens and view a rich set of information.
System Information
Errors
Warnings
Port Statistics
PoE Power
Throughput
And a lot more.. -
Specifications Details Mechanical Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") Weight Without brackets: 3 kg (6.6 lb) With brackets: 3.1 kg (6.8 lb) Enclosure material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (24) GbE RJ45 ports<br>(2) 1G SFP ports PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-) Total non-blocking throughput 26 Gbps Switching capacity 52 Gbps Forwarding rate 38.69 Mpps Power method Universal input, 100—240V AC, 50/60 Hz Power supply AC/DC, internal, 120W Supported voltage range 100—240V AC Max. power consumption 25W (Excluding PoE output) Total available PoE 95W Max. PoE wattage per port by PSE PoE+: 32W Voltage range PoE mode PoE: 44—57V<br>PoE+: 50—57V ESD/EMP protection Air: ± 16kV, contact: ± 12kV LCM display (1) 1.3" touchscreen Button Factory reset Shock and vibration ETSI300-019-1.4 Standard Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP/RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast/broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping/guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs Layer 3 features – LEDs System, Status Ethernet Speed/link/activity PoE – SFP Link/activity Application Requirements UniFi Network Version 7.2.94 and later
