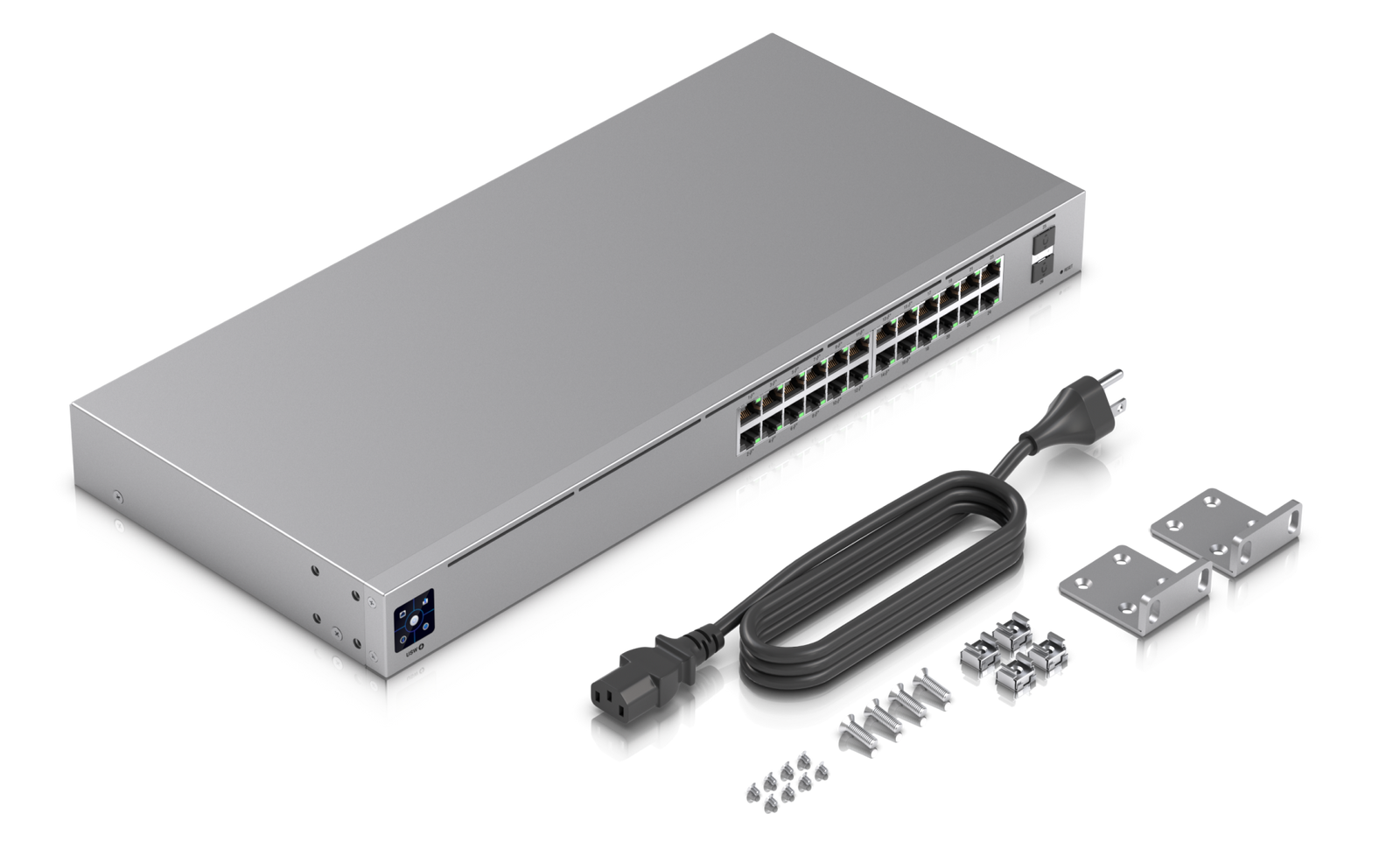

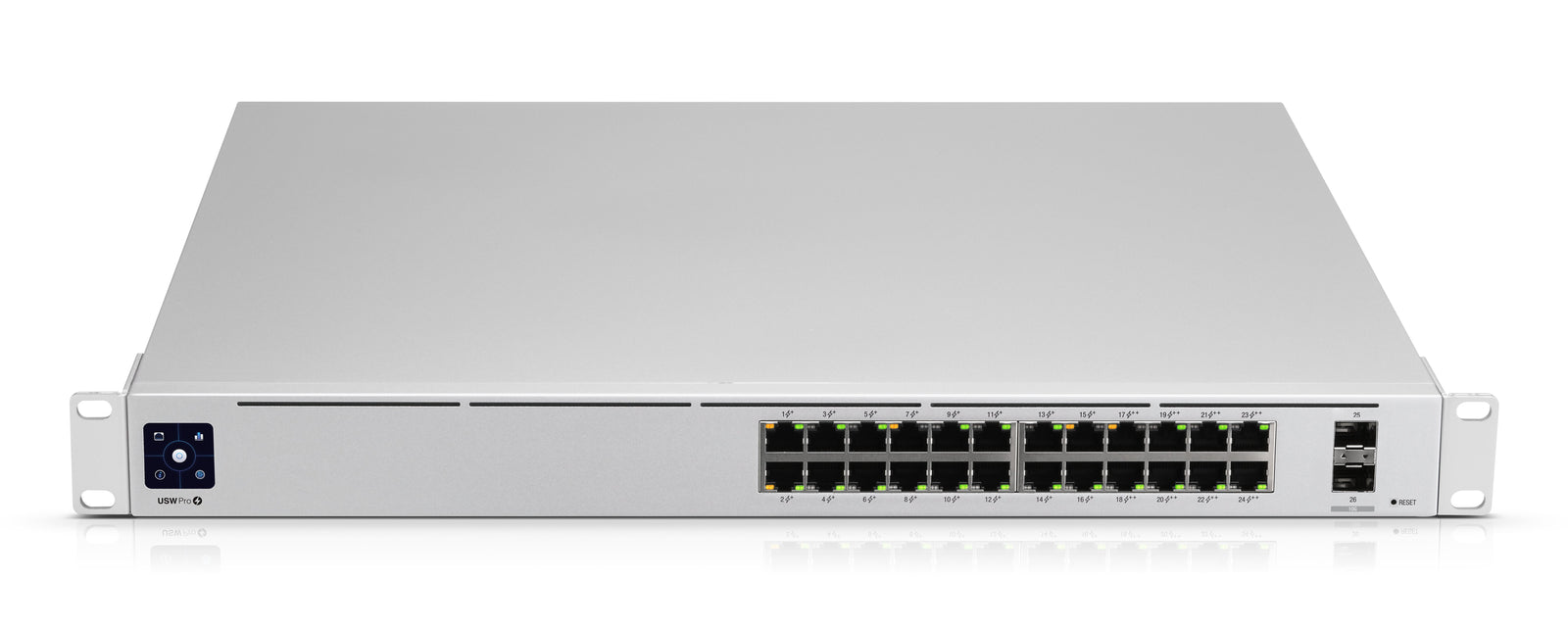

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features
(24) Gigabit Ethernet Ports
(2) Gigabit SFP Ports
1.3" color touchscreen for status information
Managed by UniFi Network Controller
1U rackmountable (kit included)
| Category | Specification |
|---|---|
| Data Transmission | |
| Forwarding rate | 38.69 Mpps |
| Switching capacity | 52 Gbit/s |
| Throughput | 26 Gbit/s |
| Design | |
| Certification | CE, FCC, IC |
| Housing material | Steel |
| LED indicators | Yes |
| Product color | Silver |
| Rack mounting | Yes |
| Stackable | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Logistics Data | |
| Harmonized System (HS) code | 85176990 |
| Management Features | |
| Switch layer | L2 |
| Switch type | Managed |
| Web-based management | Yes |
| Network | |
| 10G support | No |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Operational Conditions | |
| Operating relative humidity | 10 - 90 % |
| Operating temperature | -5 - 40 °C |
| Package Dimensions | |
| Gross Weight (Package) | 4.11 kg |
| Packaging Data | |
| Quick start guide | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Ports & Interfaces | |
| Basic switching RJ-45 ports | 24 |
| Basic switching RJ-45 type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules | 1 |
| Power connector | AC-in jack |
| SFP module slots | 2 |
| Power | |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 120 Watt |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Product Dimensions | |
| Net Weight | 3 kg |
| Depth | 4.37 cm |
| Height | 44.2 cm |
| Width | 20 cm |
| Vendor Information | |
| Brand Name | Ubiquiti |
| Warranty | 2 Year(s) |
| Categories | |
| Main category | Network |
| Subcategory | Wired Network |
| Subcategory | Network Switches |
